1MP 1/9" OV9734 USB high-definition medical endoscope camera module, equipped with Type C interface, built-in image processor and digital signal processor, output high-quality image quality, through advanced image algorithm technology, obtain professional image screen, support OTG protocol plug-and-play, can be applied to Android system, Windows system and Linux system without obstacles.

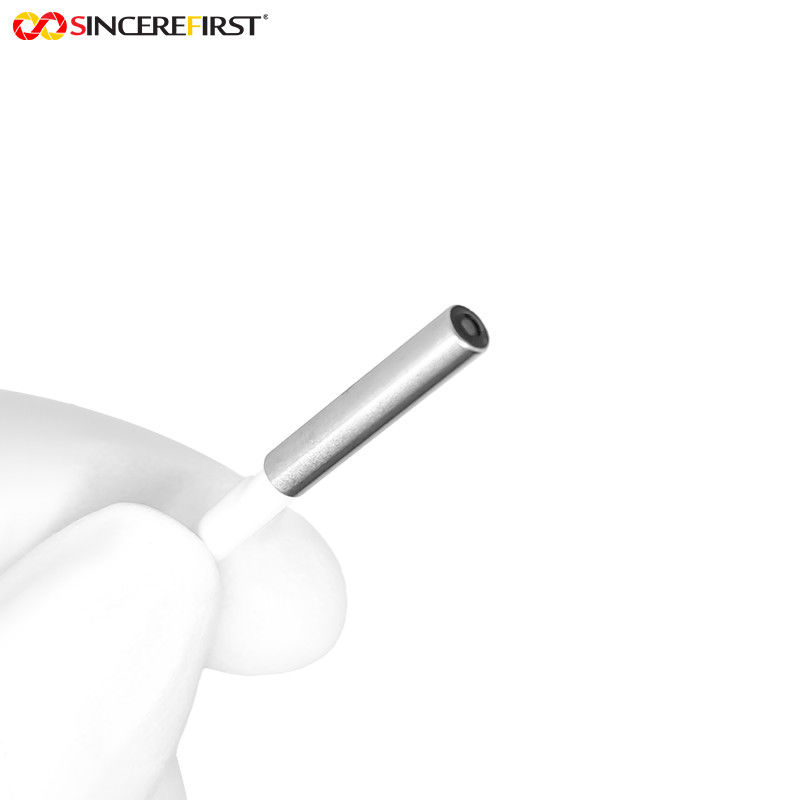

1. OV9734 Sensor 1/9 inch HD Endoscope Camera Module

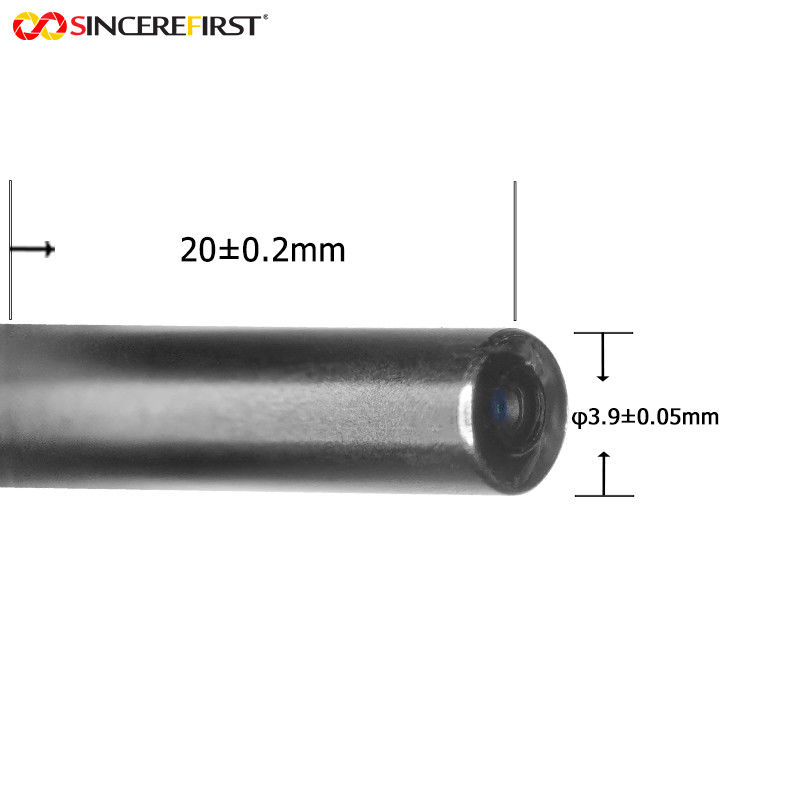

2. 3.9mm diameter
3. Designed for medical
4. High-quality image
5. UVC compliant, Plug & Play

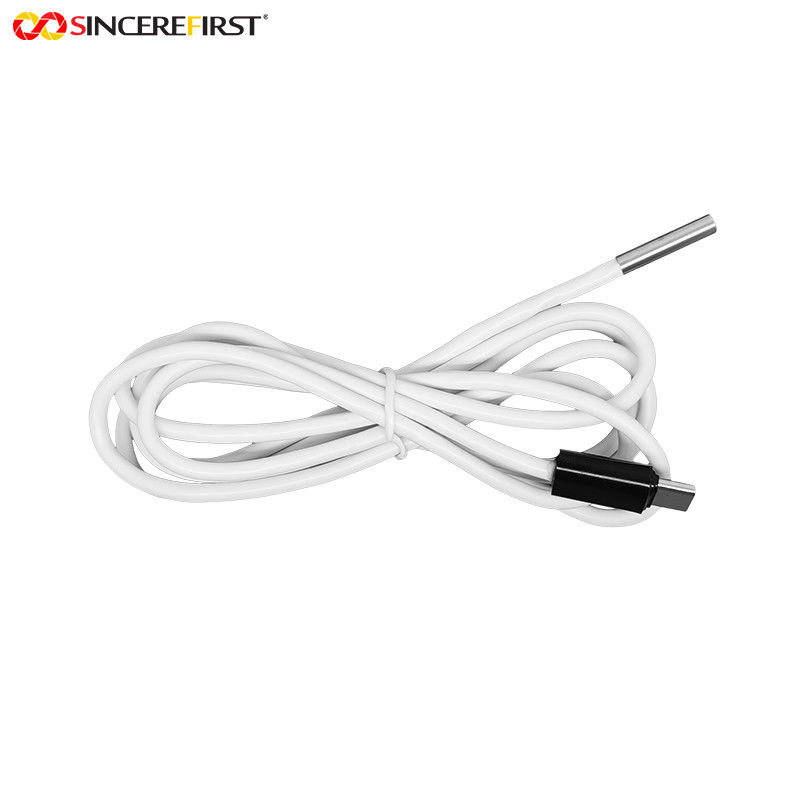

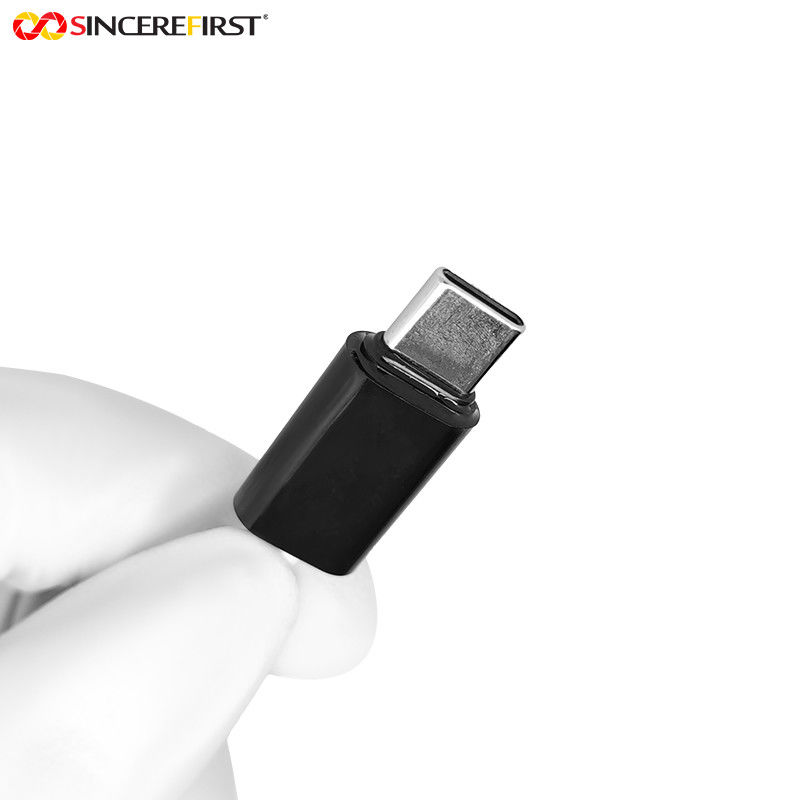

6. USB/TYPE C Interface
7. Support USB2.0 OTG
| Output Format: | Standard UVC |
| Image Sensor: | OV9734 |
| LED: | 0402 LED |
| Focusing Range: | 10mm~100mm |
| Focal Length: | 1.25mm |
| F Number: | 4 |
| FOV(D): | 95° |
| TV Distortion: | ＜-20% |
| Diameter: | 3.9mm |
| Applications: | Industrial, Medical |
Scanning Bird Nests And Small Holes, Veterinary Endoscope, Sewer Detection, Laparoscope Equipments, Capsule Endoscopy
We can customize integrated or separate, diameter, steel sleeve, led, etc.
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
