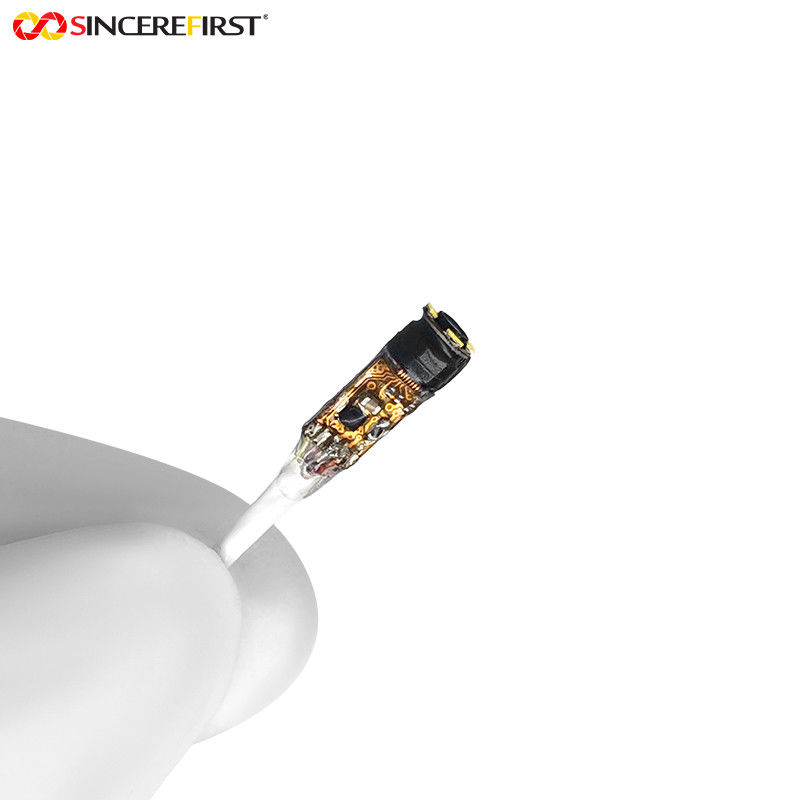

VGA endoscope camera module is a high-resolution camera module for endoscopy. The diameter of this endoscope is 3.6mm, and its main features include miniaturization, high resolution and low power consumption. This camera module typically uses a CMOS image sensor with higher image quality and lower power consumption and is suitable for a variety of endoscopy applications.
1. 3.6mm Diameter
2. VGA Sensor Endoscope
3. IP67 Waterproof
4. Suggested DOF is 20-80mm
5. Designed for Medical And Industrial
6. High Quality Image
7. UVC Compliant, Plug & Play
| Attribute | Value |
|---|---|
| Product Name | USB Endoscope Camera Module |
| Sensor | VGA |
| Connector | Mini USB-5P |

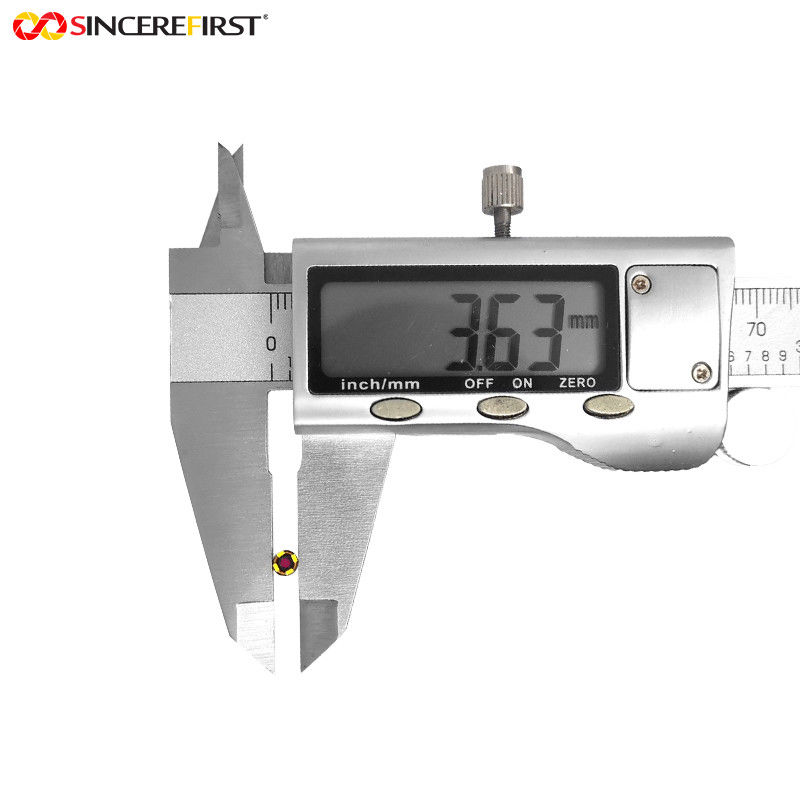

| Diameter | 3.6mm |
| Output | USB2.0 UVC |
| Format | YUV&MJPG |
| Focusing Range | 20~80mm |
| Focal Lenght | 1.074mm |
| F Number | 3.58 |
| FOV(D) | 90° |
Scanning Bird Nests And Small Holes, Veterinary Endoscope, Sewer Detection, Laparoscope Equipments, Capsule Endoscopy
We can customize module shape, module head size, lens holder, imaging direction, VCM, lens, firmware, etc.
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
The Endoscope Camera Module is a high-quality camera designed for medical applications. It is equipped with advanced features such as high resolution, wide field of view, and low light sensitivity, making it ideal for various medical procedures.
Our technical support team is available to provide assistance with any issues related to the Endoscope Camera Module. We offer troubleshooting, repair, and maintenance services to ensure that your camera is working at its best.
In addition to technical support, we also offer training services to help you get the most out of your Endoscope Camera Module. Our experts can provide detailed instructions on how to use and maintain the camera, as well as best practices for various medical procedures.
Our products are sold all over the world, you can rest assured.
