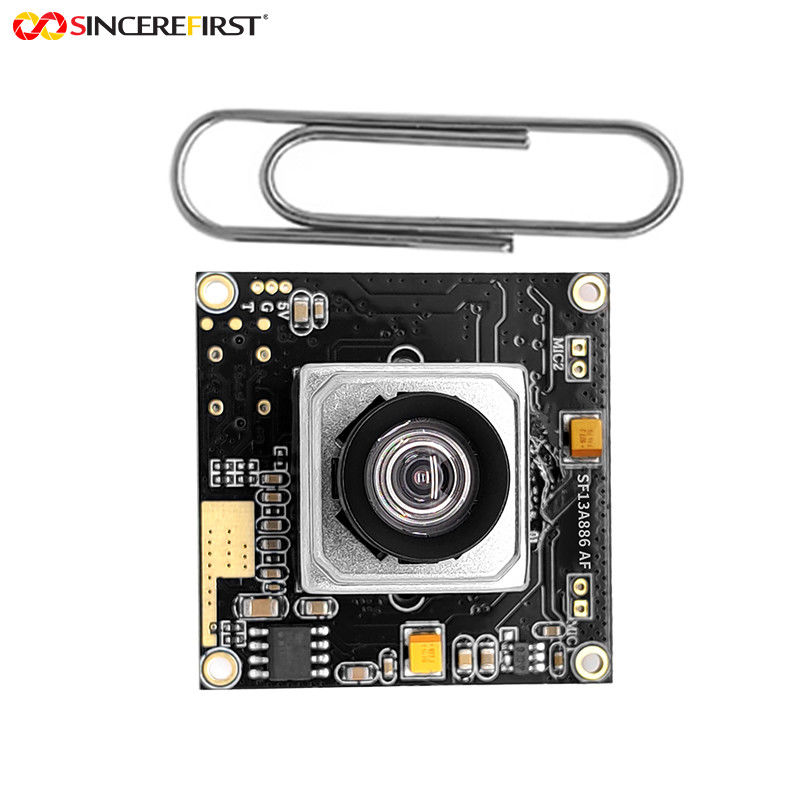

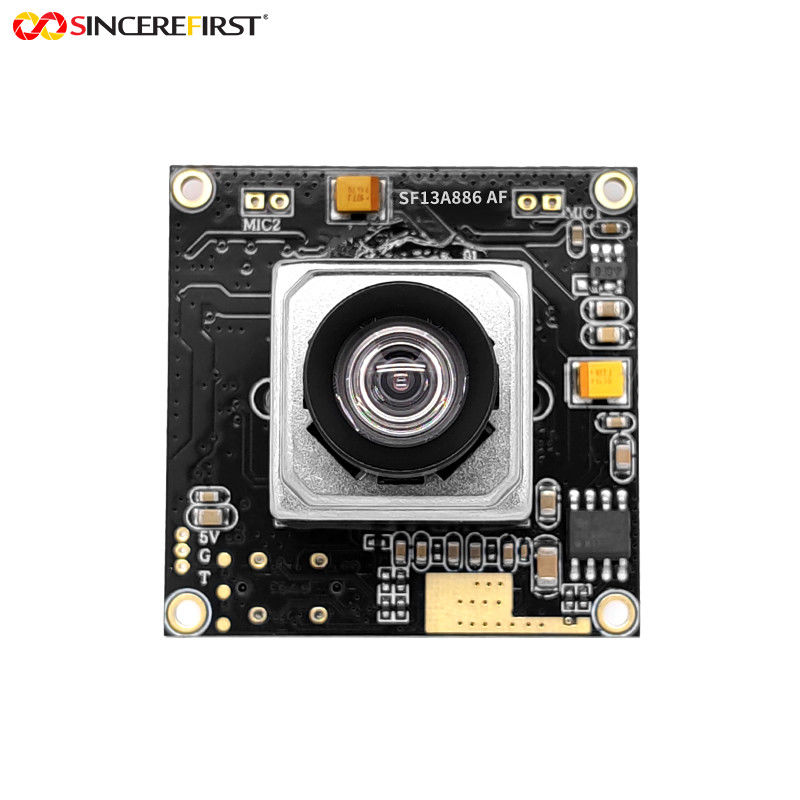

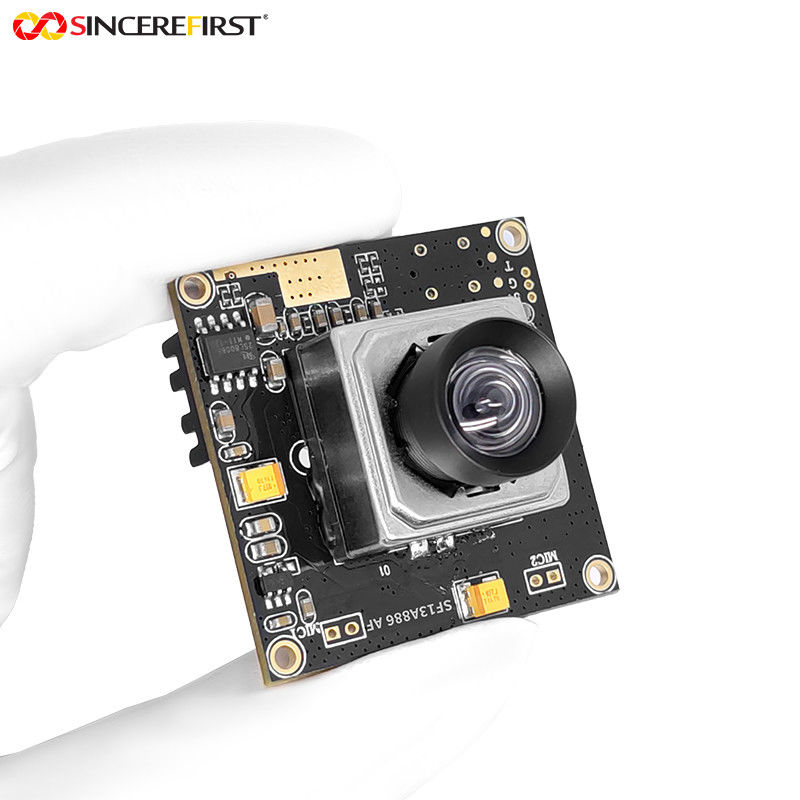

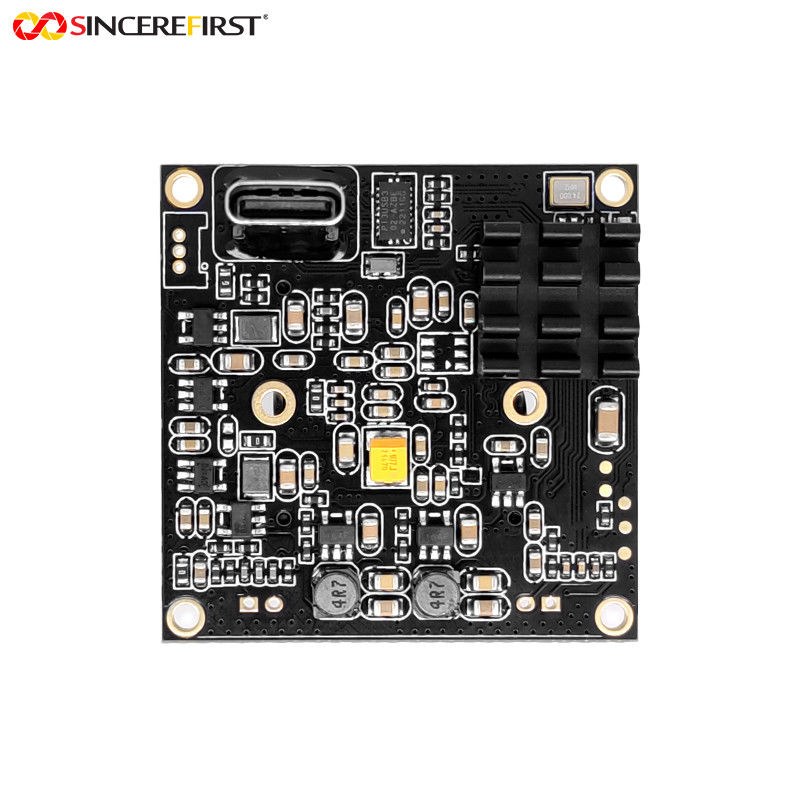

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module

Products - USB Camera Module
  • Highlight

    M12 Lens USB3.0 Camera Module

    ,

    12 Megapixel USB3.0 Camera Module

    ,

    12 Megapixel USB3.0 Camera Sensor Module

  • Brand
    SincereFirst
  • Photosensitive Type
    Sony IMX577
  • Application
    ATM Machine
  • Lens Size
    1/2.3"
  • Module Size
    38mmx38mm
  • Standard Interface
    USB3.0 High Speed
  • Working Current
    300mA(VGA)
  • Operating Voltage
    USB-DC5V
  • Frame Rate
    27fps
  • Driving Mode
    Drive Free
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCERE FIRST
  • Certification
    CE, FCC, RoHS, REACH, ISO
  • Model Number
    SF13A886-AF
  • Minimum Order Quantity
    5pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C, Western Union, T/T, MoneyGram, Paypal and Others
  • Supply Ability
    350000 pcs / month

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module

  • USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module
  • USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module
  • USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module
  • USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module
Get Price Contact Now

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module 0

Product Description:

The Sony IMX577 CMOS 12MP Color Camera Module, a imaging solution designed for diverse applications. With a compact module size of 38mm x 38mm, this camera offers an impressive resolution of 12MP, The camera operates efficiently across a versatile imaging distance range of 1 cm to infinity, making it suitable for close-up shots as well as broader landscapes. It supports a frame rate of 27 frames per second, ensuring smooth video capture without compromising on image quality. Designed with a drive-free mode, the module simplifies your setup and allows for hassle-free operation. Built to withstand a wide temperature range of -20°C to 70°C, this camera module is ideal for both indoor and outdoor usage in varying environmental conditions.



Features:

1.High Resolution: 12MP Sony IMX577 CMOS sensor for detailed images.
2.Versatile Range: Imaging distance from 1cm to infinity.
3.Smooth Video: 27fps frame rate for fluid video capture.
4.Robust Design: Operates in -20°C to 70°C temperatures; drive-free for easy integration.



Technical Parameters:

Module Size 38mmx38mm
Drive Mode Drive Free
Frame Rate 27fps
Output Format MJPG/YUY2
Brand SincereFirst
Product Name USB Camera Module
Photosensitive Size 1/2.3"
Module Size 38mmX38mm
Standard USB3.0 High Speed
Imaging Distance 1cm-∞


Applications:

Imaging recognition, high definition shooting, wide dynamic scene application, text recognition, etc...

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module 1

Customized Service:

We can customize module shape, module head size, lens holder, imaging direction, VCM, lens, firmware, etc.

 USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module 2

Why Choose us?

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module 3

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

About us:

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module 4

Cooperative Brands & Customers:

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module 5

Details Pictures:

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module 6USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module 7USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module 8USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module 9
