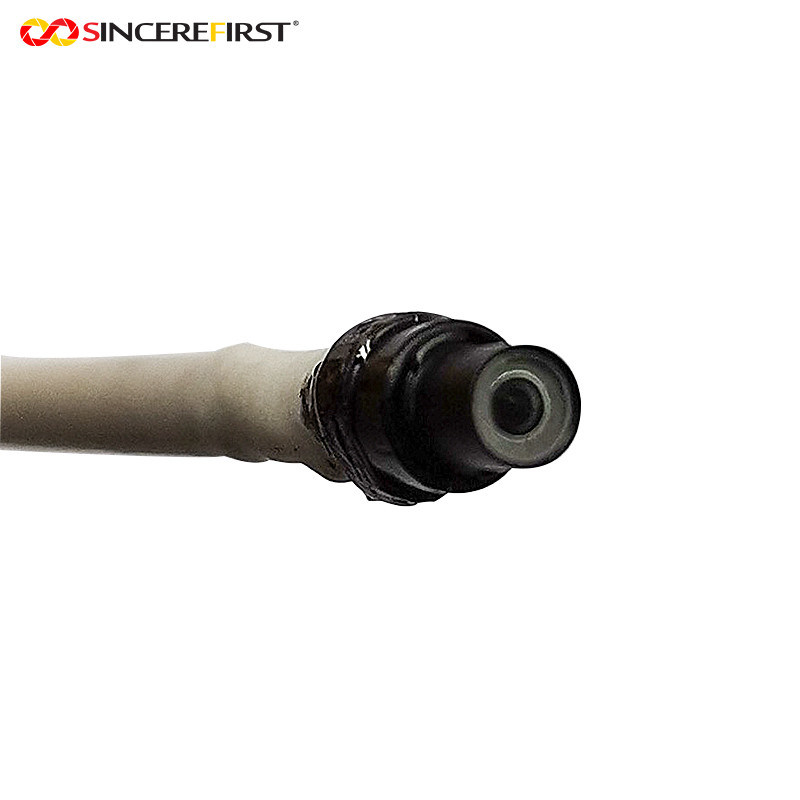

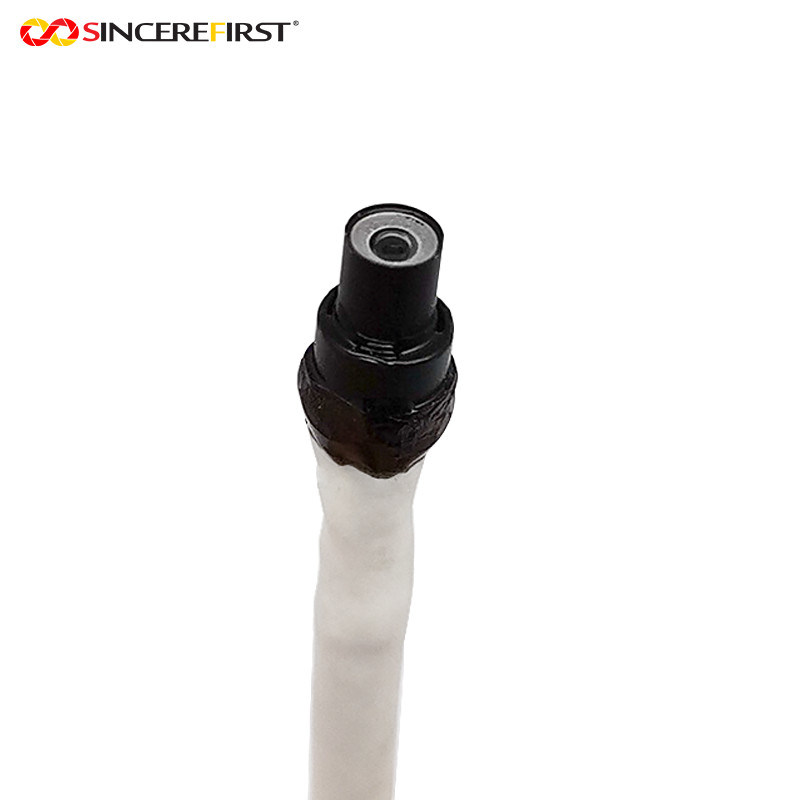

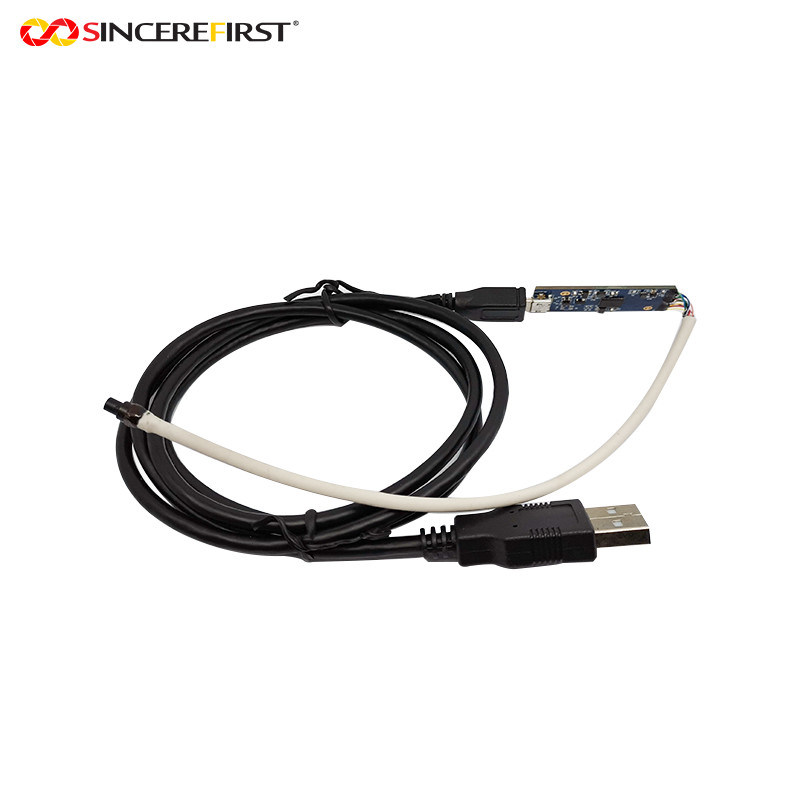

5mm Diameter 1080P HD Mini OV2740 CMOS Sensor USB Endoscope Camera Module

This 5mm Diameter 1080P HD Mini OV2740 CMOS Sensor USB Endoscope Camera Module ,is an integrated imaging component designed specifically for 8–80mm short and long-distance narrow space visualization detection, manufactured by SincereFirst in compliance with RoHS standards. Built around the OV2740 2-megapixel-level image sensor and a single-lens optical structure, it combines compactness and stability— the single-lens design not only makes the module more compact in volume but also enhances assembly stability and long-term operational reliability, suitable for continuous operation in complex detection scenarios. Its probe diameter is precisely controlled at 5.0mm, a size dedicated to micro-endoscopy, which can easily penetrate into thin pipes, narrow gaps and micro-cavities with a diameter of more than 5mm, balancing detection accessibility and structural strength. The optical system is optimized with a 1.29mm focal length, a horizontal 140° field of view, and an 8–80mm focusing range, covering both short and medium-distance typical endoscopic working distances, eliminating the need for frequent probe position adjustments and improving detection efficiency. The TV distortion of <-53% barrel-shaped design effectively expands the single-frame image coverage within the limited probe diameter, ensuring comprehensive observation without blind spots. Equipped with a MICRO USB-5P interface and following the USB2.0 UVC driver-free protocol, it supports YUV and MJPEG output formats and can achieve real-time 1080P@60fps imaging— the OV2740 sensor’s high-definition performance combined with the 60fps high frame rate ensures smooth dynamic images and complete detail restoration, adapting to high-speed detection and dynamic observation needs. The 1500mm extended cable configuration is specially designed for long-distance and deep-cavity detection scenarios, breaking through the space limitation of short-cable endoscopes. The image direction register adopts the factory default configuration, allowing quick access without additional settings. Integrating micro size, high-definition high-frame imaging, wide focusing range, extended cable and stable single-lens structure, this module becomes a universal endoscopic imaging solution for industrial detection, automobile maintenance, precision electronics and experimental observation.
