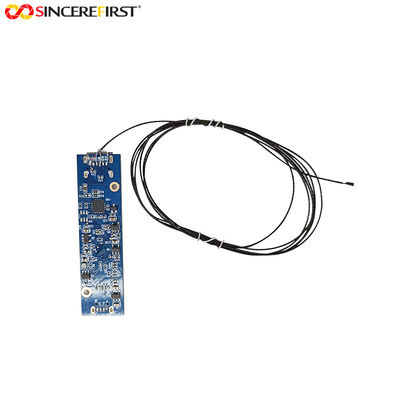

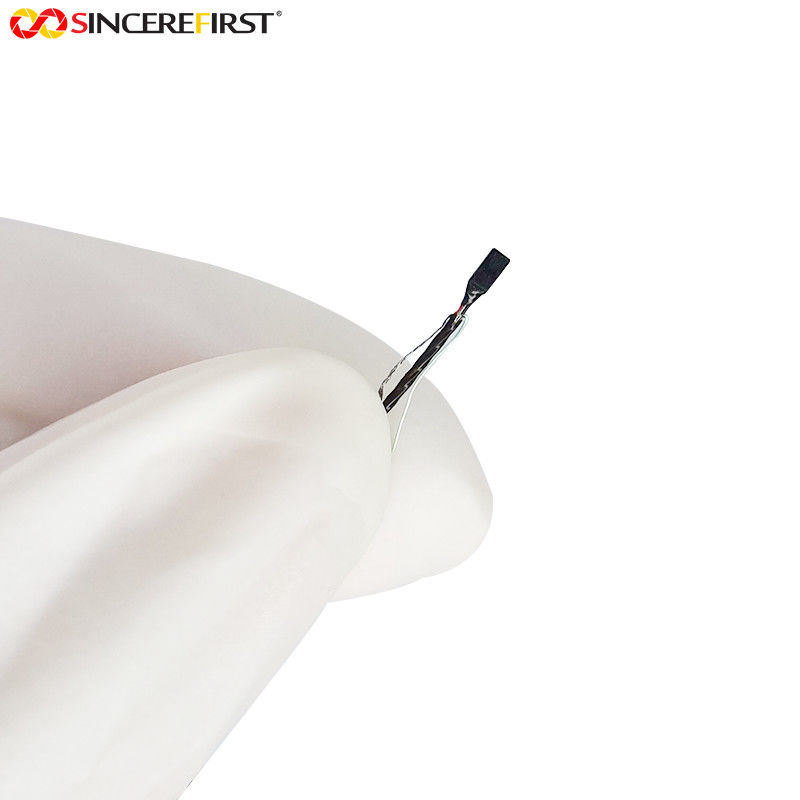

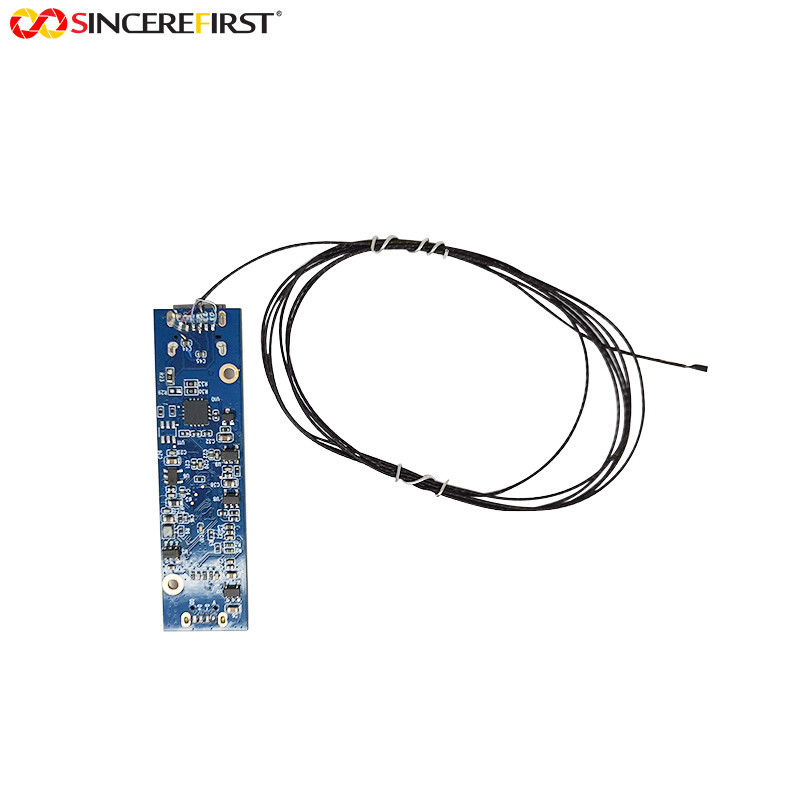

The OCHFA10 endoscope camera module is a 1/17.5-inch color 518k pixel analog camera suitable for the disposable medical endoscope market. It is the same size as OVM6946, but with higher resolution, making it particularly suitable for use with bronchoscopes, ureteroscopes, and hysteroscopes, making it an ideal upgrade for these devices. In addition, OCHFA10 can also be used for industrial endoscopes.
1. Resolution: 700 x 700 pixels
2. Frame Rate: 30 frames per second
3. Image Quality: using PureCel ® Plus-S pixel technology provides optimal image quality and improves patient treatment outcomes.
4. Interface: USB2.0 UVC
| Product Name | Endoscope Camera |
| Focusing Range | 5-50mm |
| Focal Length | 0.418mm |
| F NO. | 5.0 |
| FOV(H*V) | 86°*86° |
| TV Distortion | ＜-11% |
| Sensor | OCHFA10 |
| Output | USB2.0 UVC |
| Format | YUV&MJPG |
| Resolution | 700*700 |
Medical
Industrial
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
