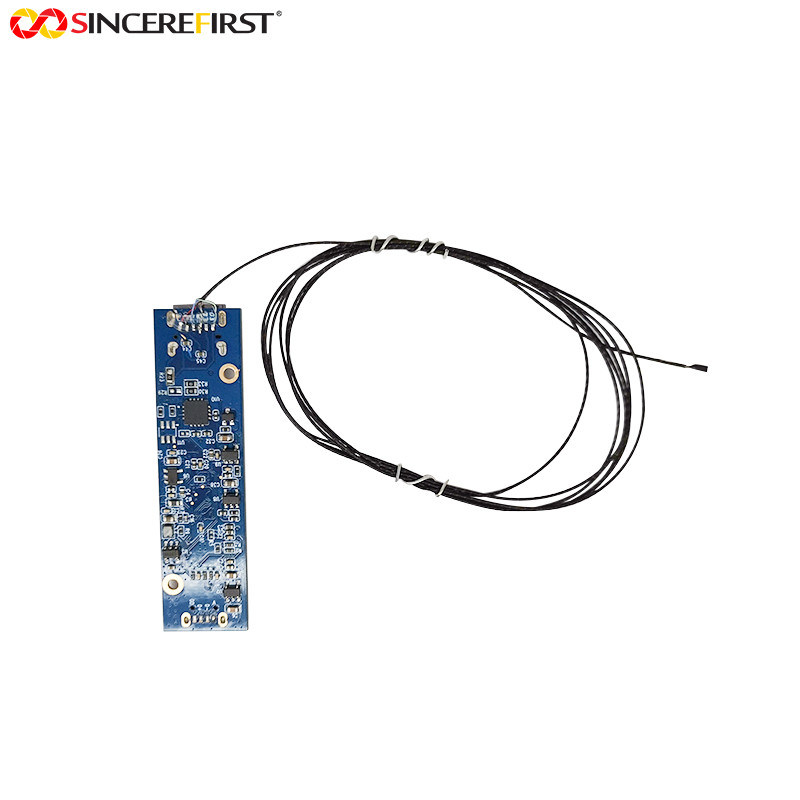

This OCHFA10 CMOS Sensor USB2.0 UVC Driver Free HD Endoscope Camera Module is an industrial-grade near-field imaging component specially designed for 5–50mm ultra-close-range and extremely narrow space visualization acquisition, manufactured by SincereFirst in accordance with RoHS standards. Built around the OCHFA10 sensor, its core advantage lies in the 1.5mm extreme micro probe diameter, with strict dimensional tolerance controlled within ±0.1mm—this ultra-compact design breaks through the space limitations of conventional detection equipment, enabling easy access to micro-holes, micro-channels and extremely narrow gaps that ordinary devices cannot penetrate, significantly improving detection accessibility for extreme tiny space scenarios. The optical system is professionally optimized for macro applications: a 0.418mm focal length paired with an 86°×86° field of view expands single-frame coverage within limited space, while the 5–50mm dedicated macro focusing range enhances close-range imaging clarity, ensuring stable and clear capture of tiny details, perfectly meeting the needs of micro-observation and micro-detection. Equipped with a Micro USB 5PIN interface and following the USB2.0 UVC driver-free protocol, the module eliminates the need for additional driver installation, enabling direct recognition by multiple platforms and simplifying the deployment process for on-site personnel or equipment integration. It supports both YUV and MJPEG output formats, allowing flexible switching between image quality priority and transmission efficiency priority to adapt to different application requirements, while the 700×700 resolution balances imaging clarity and transmission stability for macro scenarios. The image direction register adopts factory default settings, enabling entry into standard working mode immediately after power-on without complicated configuration. Integrating extreme micro size, macro-optimized optics, driver-free convenience and dual-format output, this module becomes a reliable imaging solution for micro-channel detection, micro-component identification and micro-instrument integration.

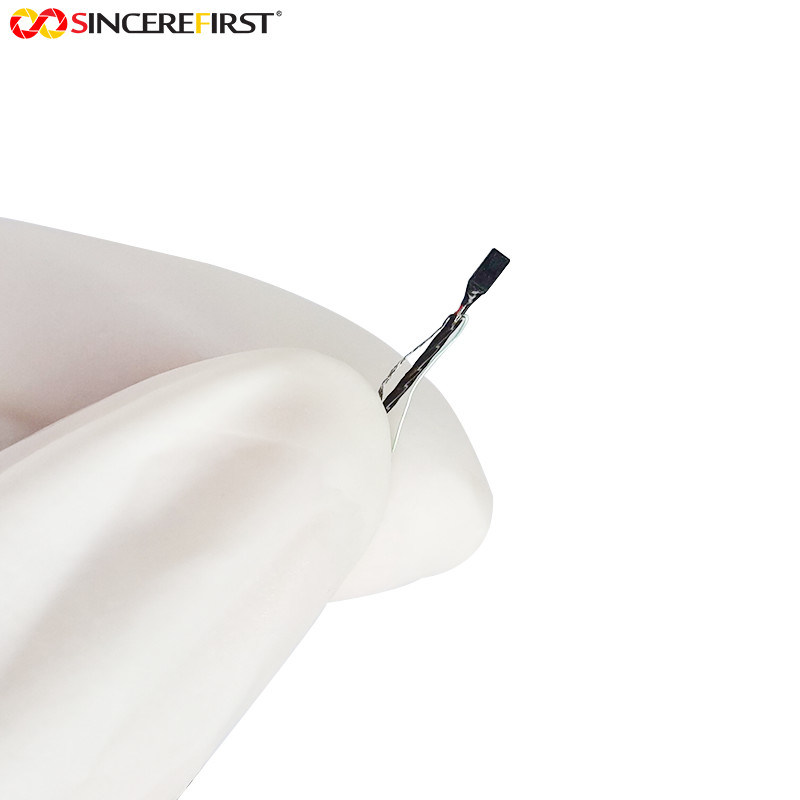

1.1.5mm Extreme Micro Size:With a probe diameter of only 1.5mm (tolerance ±0.1mm), it can access micro-holes, micro-channels and extremely narrow gaps inaccessible to conventional equipment, greatly improving detection accessibility.
2.5–50mm Dedicated Macro Focusing:The focusing range is limited to the close-range, enhancing close-up imaging clarity to meet the needs of micro-observation and micro-detection.
3.UVC Driver-Free Plug-and-Play:Adopting the standard USB video protocol, it can be recognized by multiple platforms without installing drivers, simplifying the deployment process.
4.Dual-Format Image Output:It supports both YUV and MJPEG formats, enabling flexible switching between image quality priority and transmission efficiency priority.

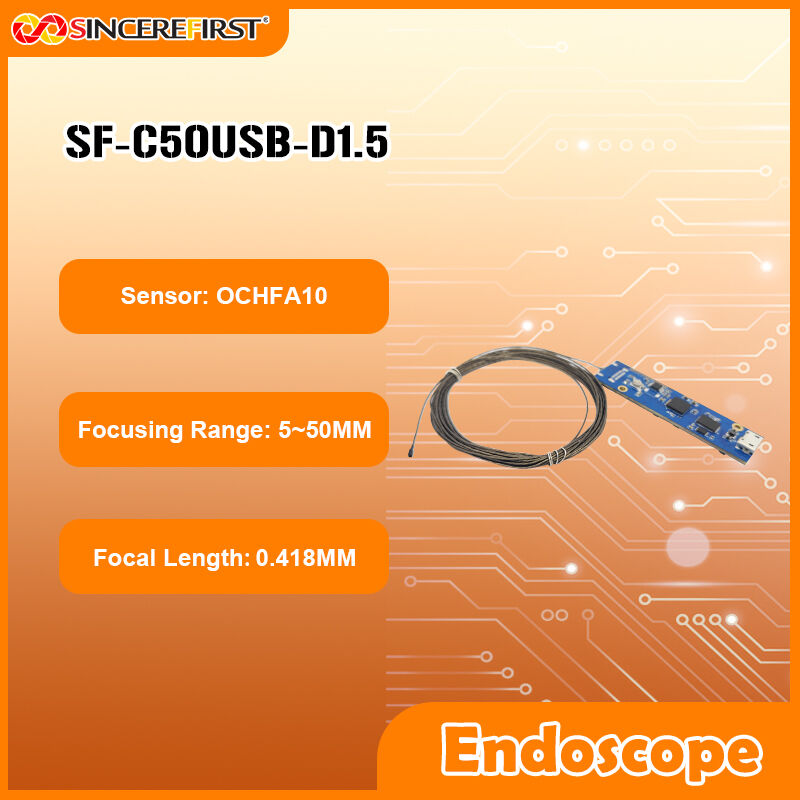

| Product Name | Endoscope Camera |
| Focusing Range | 5-50mm |
| Focal Length | 0.418mm |
| F NO. | 5.0 |
| FOV(H*V) | 86°*86° |
| TV Distortion | ＜-11% |
| Sensor | OCHFA10 |
| Output | USB2.0 UVC |
| Format | YUV&MJPG |
| Resolution | 700*700 |
Medical
Industrial
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
