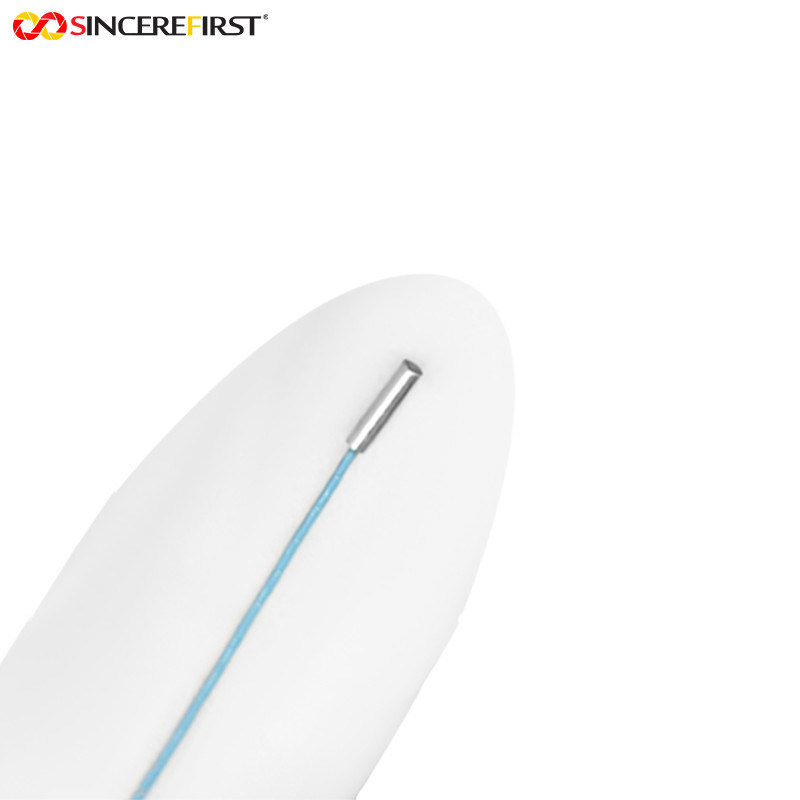

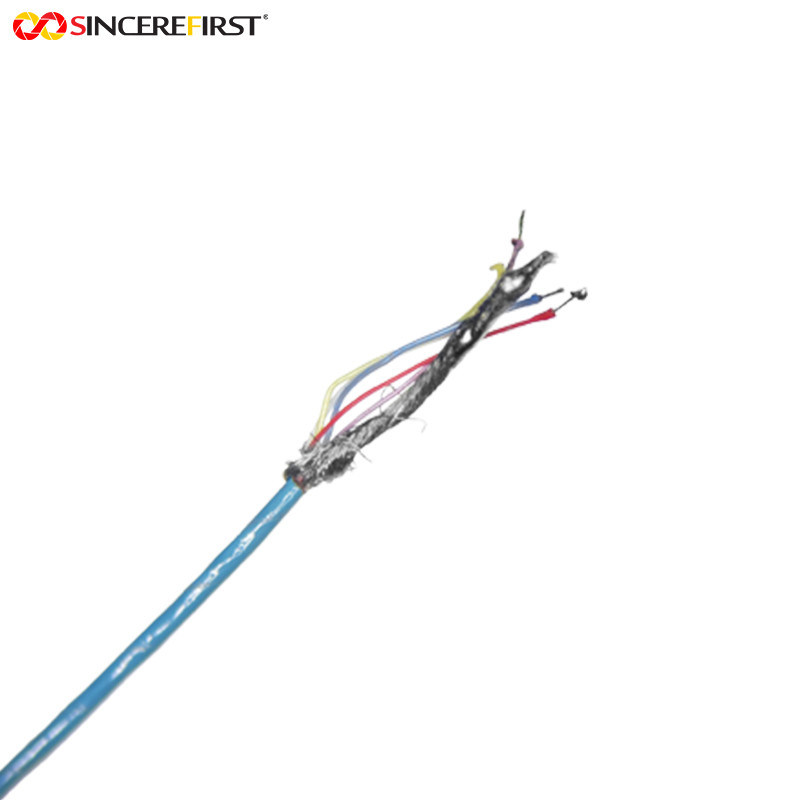

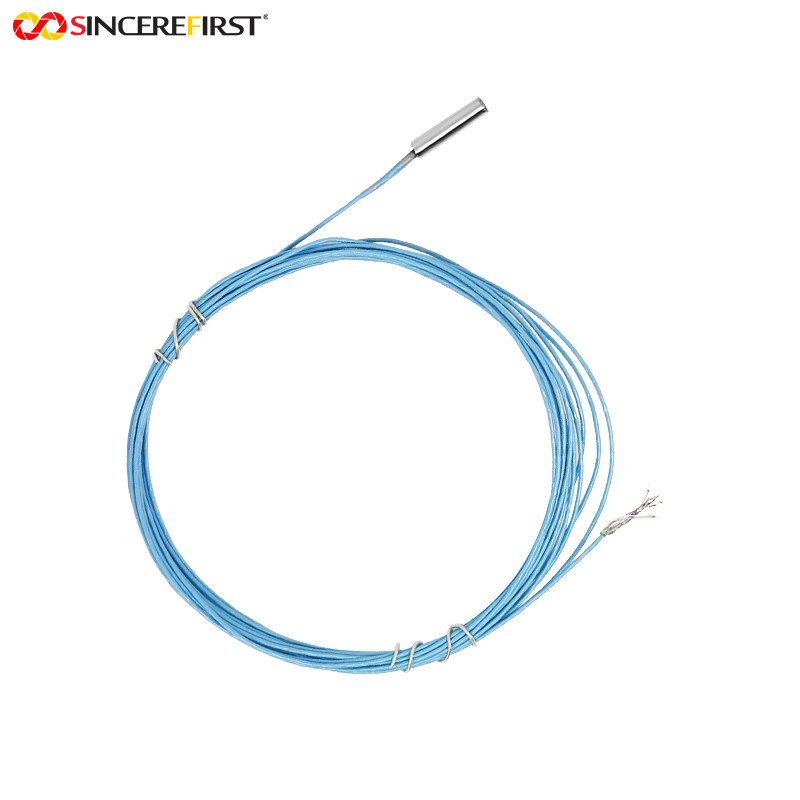

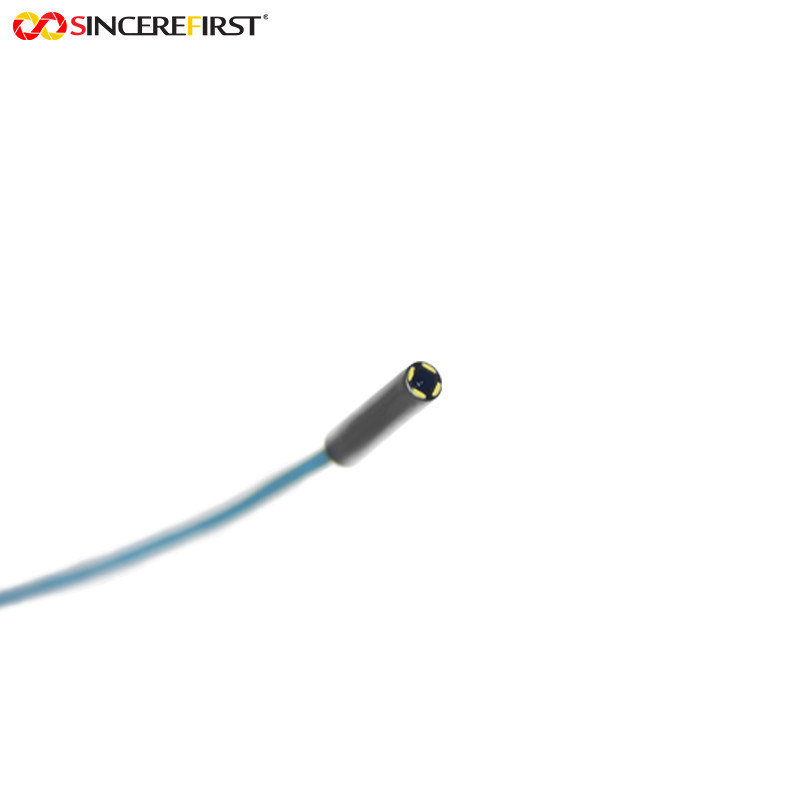

OCHTA10 CMOS Sensor USB2.0 Interface UVC Driver-Free Fixed Focus Endoscope Camera Module
Product Description:
This OCHTA10 CMOS Sensor USB2.0 Interface UVC Driver-Free Fixed Focus Endoscope Camera Module is a micro close-range fixed-focus vision module specially designed for 3–30mm ultra-close-range imaging scenarios, integrating high integration and practicality to meet the needs of precision detection and embedded near-field vision. Built around the OCHTA10 sensor and adopting a single-chip integrated solution, it achieves a compact micro structure while ensuring stable imaging performance, making it easy to integrate into narrow spaces and reducing installation and integration costs significantly. Its 3–30mm macro-specific focusing range is precisely optimized for ultra-close-range imaging, ensuring high clarity in close-up and贴拍式 visual collection, which can accurately capture the details of tiny objects and meet the requirements of high-precision close-range detection tasks. Equipped with a 100°×100° large field of view, the module can cover a wide observation range within a small space, eliminating the need for frequent adjustment of the module position and improving the efficiency of close-range imaging. Adopting a USB2.0 5PIN interface and UVC driver-free architecture, it can be directly recognized by Windows, Linux and embedded devices without installing additional drivers, realizing plug-and-play functionality and greatly simplifying deployment and operation processes. It supports both YUV and MJPEG image output formats, balancing image quality and transmission speed—YUV format ensures high-quality image restoration, while MJPEG format enables efficient data transmission, flexibly adapting to the needs of different systems. Integrating ultra-close-range precise focusing, driver-free convenience, small-size high integration and dual-format output, this module is perfectly suitable for various precision detection, embedded near-field vision and miniaturized intelligent device integration needs, becoming a cost-effective micro macro vision solution.
Features:
1.Ultra-Close-Range Precise Focusing:With a focusing range of 3–30mm, it is specially designed for macro and close-up visual collection, ensuring high clarity in close-up shooting.
2.Driver-Free Plug-and-Play:Follows the standard USB UVC protocol, which can be directly recognized by Windows, Linux and embedded devices without installing drivers.
3.Small Size & High Integration:Adopts a micro structure design, suitable for embedding into narrow spaces, with low installation and integration costs.
4.Dual-Format Image Output:Supports both YUV and MJPEG formats, balancing image quality and transmission speed to adapt to different system requirements.
Technical Parameters:
| Product Name |
1.2mm Endoscope Camera Moudle |
| Focusing Range |
3-30mm |
| Focal Length |
0.175mm |
| Series |
Endoscope Camera Module |
| FOV(H*V) |
100°*100° |
| TV Distortion |
＜-11% |
| Sensor |
OCHTA10 |
| Output |
USB2.0 UVC |
| Format |
YUV&MJPG |
| Theory |
Cmos Imaging |
Applications:
Medical
Industrial
Customized Process:
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
