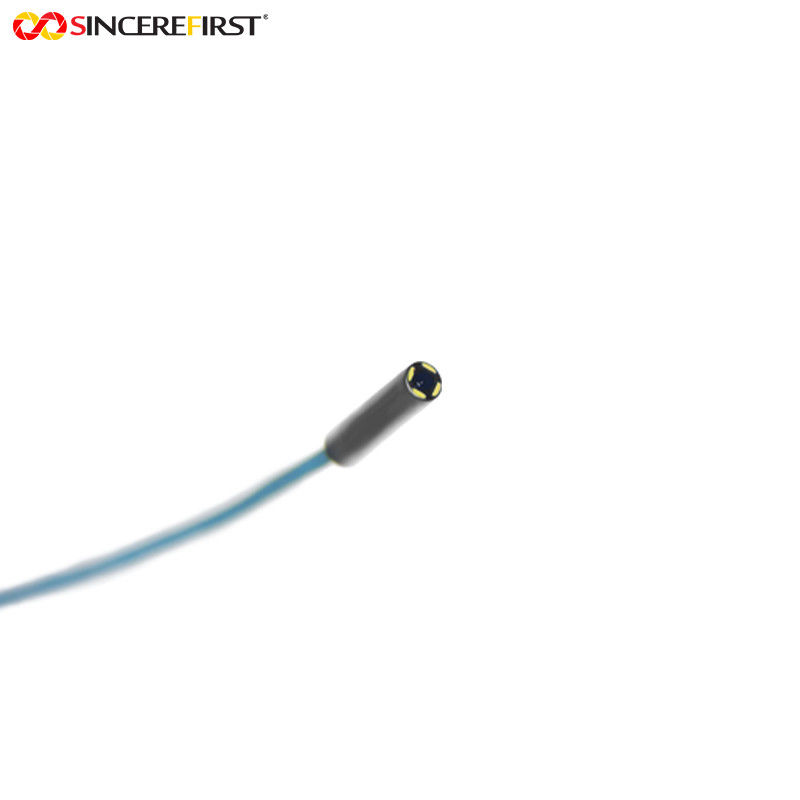

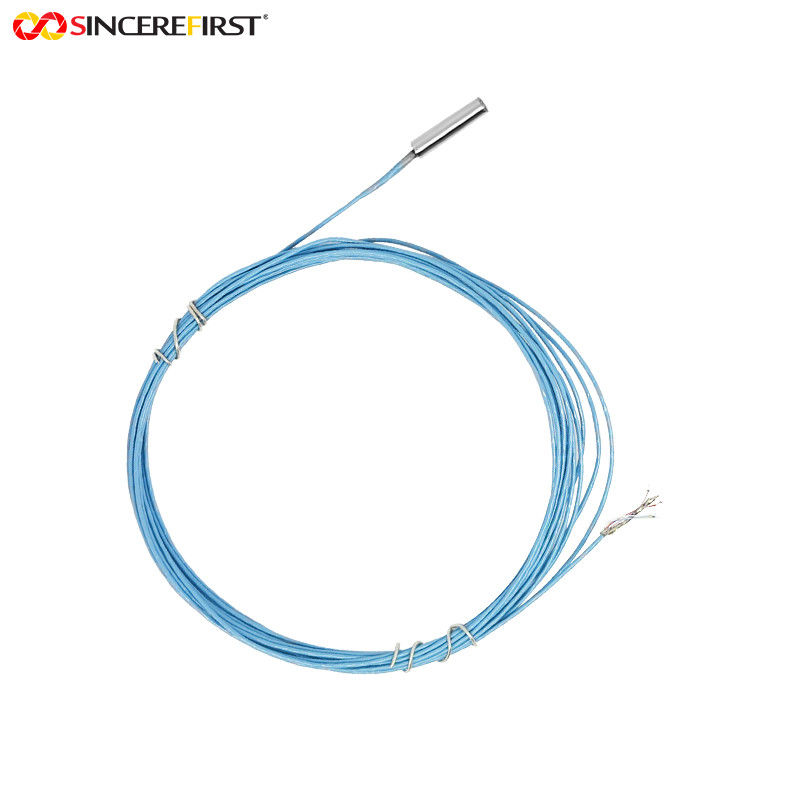

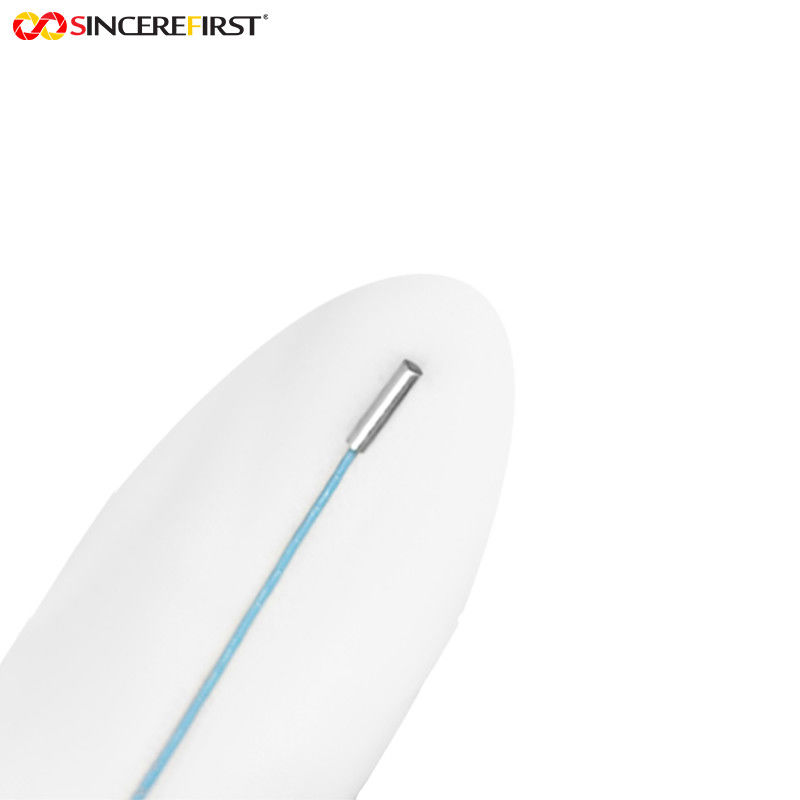

This1.2mm diameter camera module, engineered for easy integration into various inspection applications. This flexible endoscope camera features a high-performance OCHTA10 sensor with a resolution of 200x200, delivering clear visuals for detailed examinations. It comes with four white LEDs to illuminate dark areas, enhancing visibility. With a focal length of 3.75mm and a field of view of 120°x88.8°, this USB2.0 camera module effectively captures comprehensive images in tight spaces, with a versatile focus range of 3mm to 50mm for different inspection depths. The compact design includes a slim 1.4mm cable diameter and a maximum length of 2 meters, making it easy to maneuver through challenging environments. Additionally, this endoscope camera module is compatible with Windows and Android systems, offering plug-and-play functionality for quick connections.

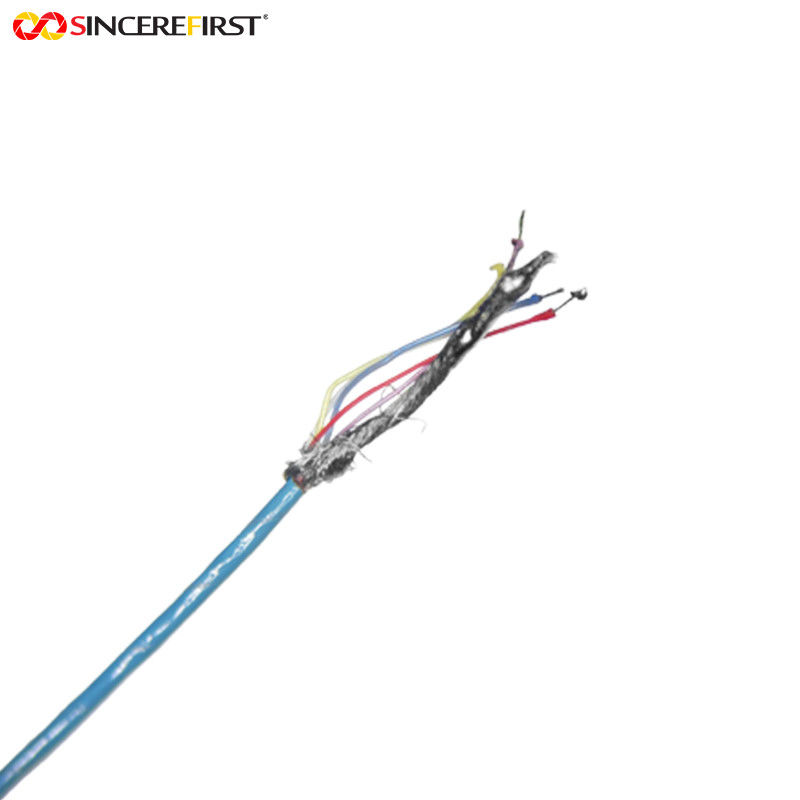

1.2mm diameter camera module and 1.4mm cable diameter.
OCHTA10 sensor with 200x200 resolution for clear visuals.
Four white LEDs for enhanced visibility in dark areas.
120°x88.8° with a focal length of 3.75mm.
Plug-and-play with Windows and Android systems.
| Product Name | 1.2mm Endoscope Camera Moudle |
| Focusing Range | 3-30mm |
| Focal Length | 0.175mm |
| Series | Endoscope Camera Module |
| FOV(H*V) | 100°*100° |
| TV Distortion | ＜-11% |
| Sensor | OCHFA10 |
| Output | USB2.0 UVC |
| Format | YUV&MJPG |
| Theory | Cmos Imaging |
Medical
Industrial
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
