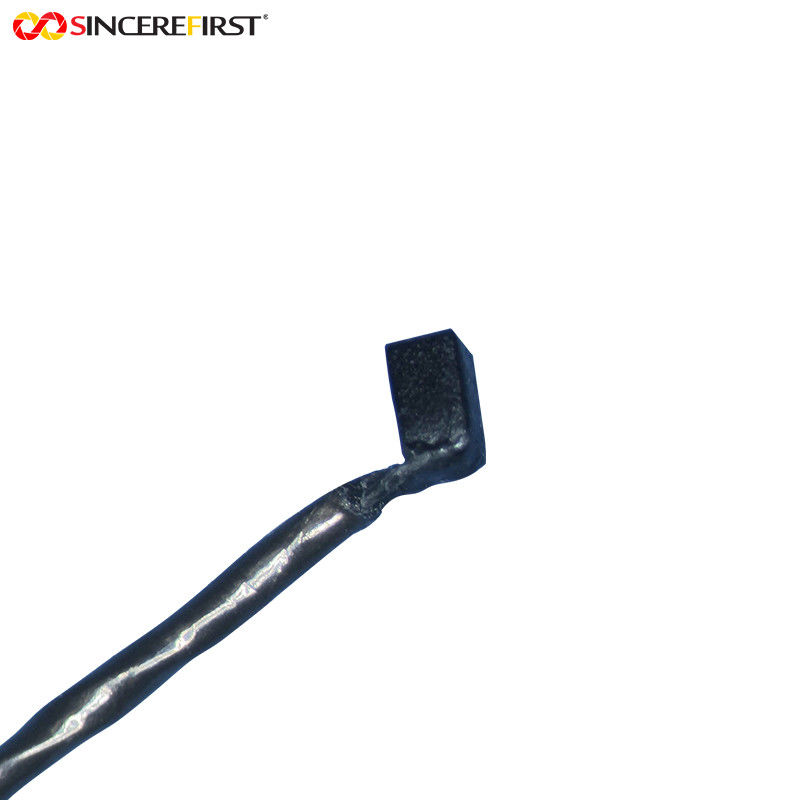

The OCHTA10 sensor side view endoscope camera module is an ultra-compact solution for endoscopes with a lens diameter of just 0.9mm. The module has a resolution of 160K pixels (400x400) and provides clear image quality, making it ideal for nasal endoscopy and various medical applications. With a focal length of 0.175 mm and a focus range of 3-30 mm, the camera allows for precise detail inspection in narrow areas, capture, and direct vision of areas that cannot be captured by the camera module. In addition, the camera has a 100° field of view and high-intensity white LED lighting to ensure optimal visibility during surgical interventions. The camera module 0.9mm runs at 30 fps and utilizes USB 2.0 UVC to simply connect to the device, enhancing its versatility in the medical, industrial and veterinary fields. This innovative endoscope is perfect for surgery and diagnosis across a variety of specialties, including neurology, ophthalmology and urology.

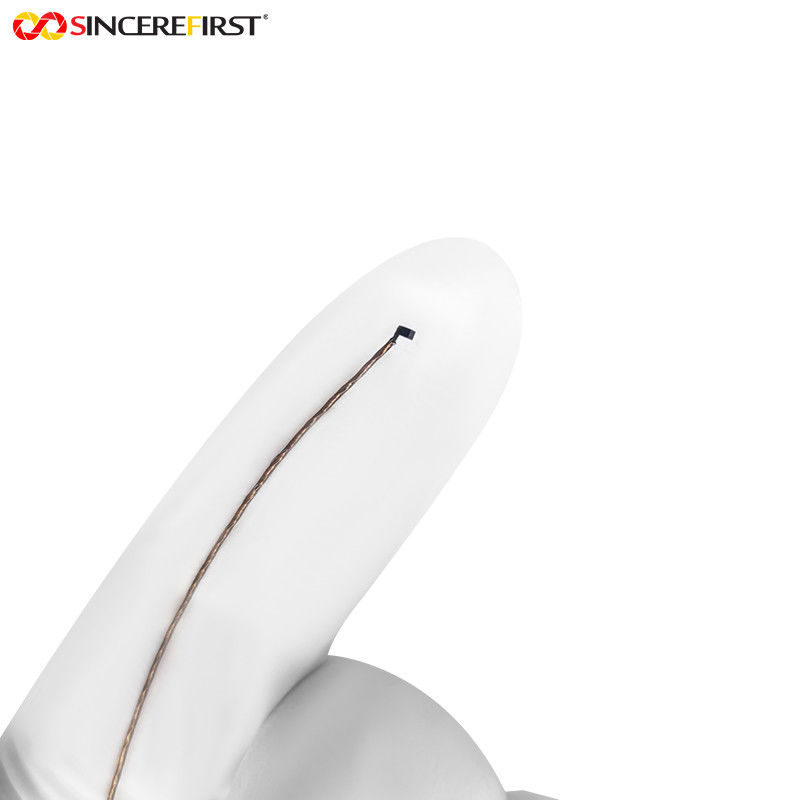

0.9mm diameter for ultra portability.
160K pixels (400x400) at 30 fps.
Wide Field of View100° horizontal and vertical coverage.
High-intensity white LED for enhanced visibility.
| Product Name | 0.9mm Endoscope Camera Moudle |
| Mounting Type | USB |
| Description | 0.9mm Endoscope Camera Module |
| Customized support | Support |
| FOV(H*V) | 100°*100° |
| TV Distortion | ＜-11% |
| Sensor | OCHFA10 |
| Application | Medical |
| Format | YUV&MJPG |
| Warranty | 10 Years |
Medical
Industrial
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
