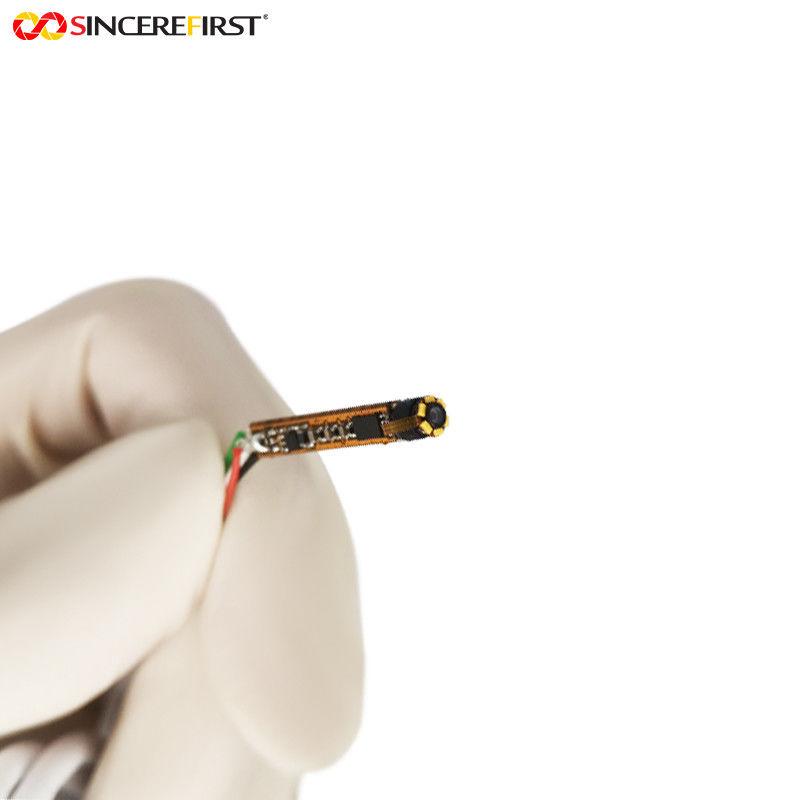

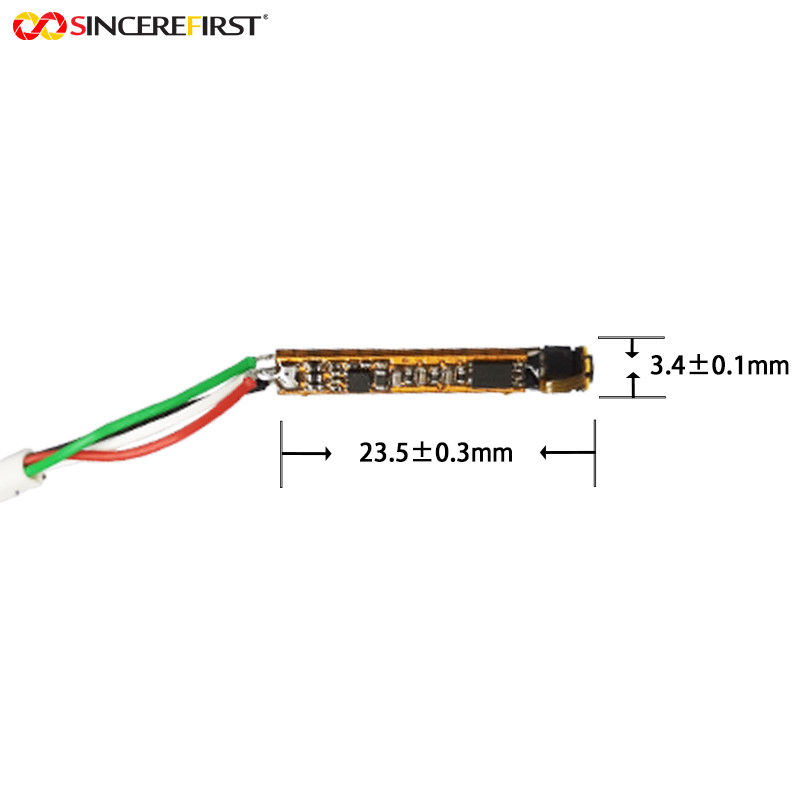

The OV9734 endoscopic camera module is a high-performance visual image sensor, particularly suitable for endoscopic examination applications. The image array size of OV9734 is 1280 × 720, with a pixel size of 1.4 µ m × 1.4 µ m. The smaller pixel size allows for the integration of more pixels on the same chip area, thereby improving image resolution and detail capture capability. Adopting a 1/9 inch lens size, suitable for various miniaturized imaging devices
The working temperature range is -20 ° C to 70 ° C, and the stable image temperature range is 0 ° C to 50 ° C, which can work stably in a wide temperature range
1. High resolution imaging: OV9734 can capture clear details of internal tissues and organs in the human body, improving diagnostic accuracy. For example, it can clearly display small lesions in the gastrointestinal mucosa, the morphology of polyps, and the distribution of blood vessels.
2. Detail presentation: Its pixel size of 1.4 µ m × 1.4 µ m can accurately record subtle details such as tissue texture and cell structure, which is helpful for early detection and diagnosis of diseases
3. Excellent performance in low light environments: In low light environments, OV9734 can effectively reduce noise and capture clean and clear images even in weak lighting, ensuring that doctors can see the examination site clearly.
4. Automatic exposure adjustment: Through the serial camera control bus (SCCB) interface, exposure and other parameters can be programmable controlled to ensure that the brightness and contrast of the image are always in the best state, further improving the visibility of the image.
5. Accurate color reproduction: It can faithfully reproduce the true colors of human tissues and organs, helping doctors to more intuitively judge the health status of tissues.
| Product Name | Endoscopy Camera Moudle |

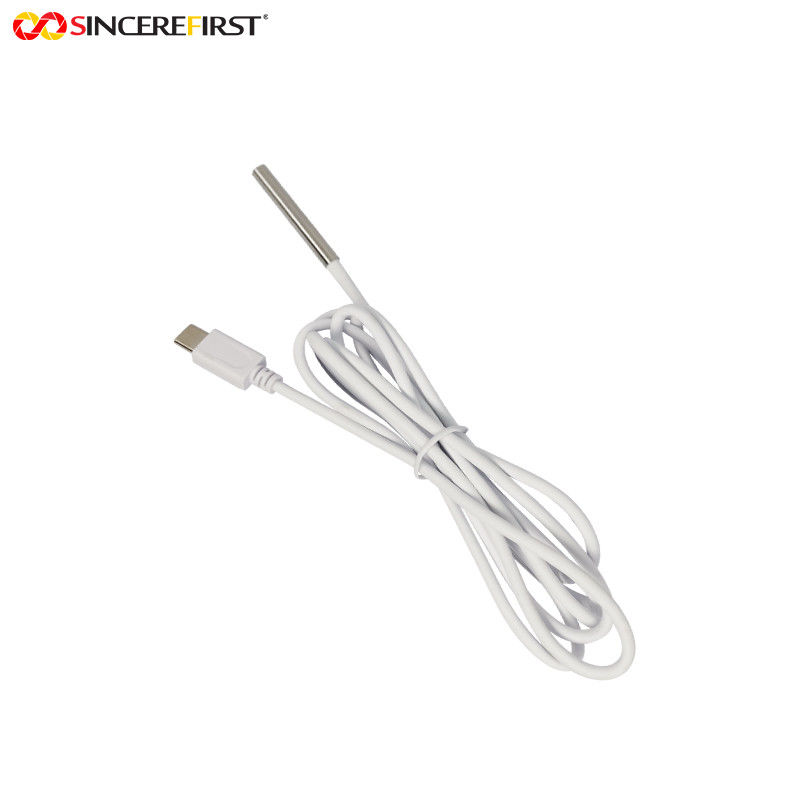

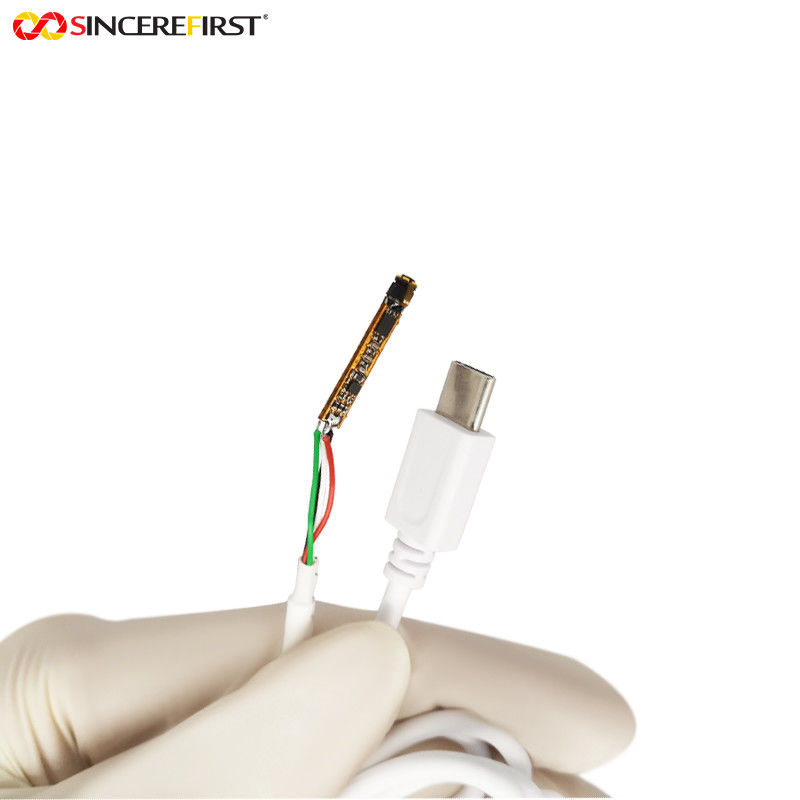

| Interface | Type C |
| Description | Endoscope Camera Module |
| Image Sensor | OV9734 |
| Focusing Range | 10-40mm |
| FOV(D) | 88° |
| Max Image Circle | 4.8mm |
| Application | Medical |
| Format | YUV&MJPG |
| Warranty | 10 Years |
Medical
Industrial
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
