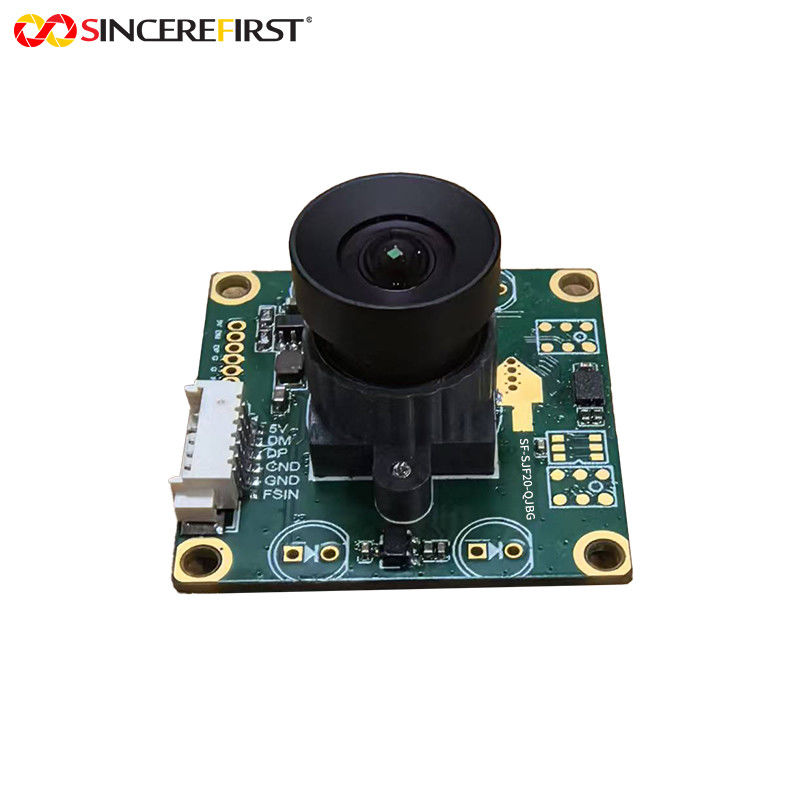

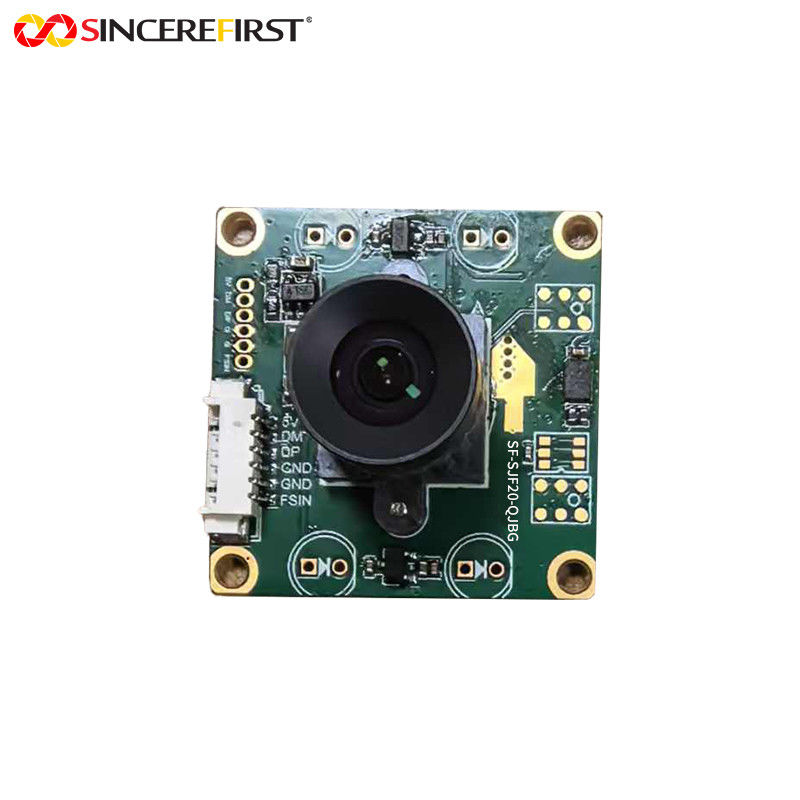

The OG02B10 2MP manual focus USB global shutter camera module is a 1/2.7-inch CMOS OmniVision OG02B10 image sensor that uses global shutter technology and is suitable for high-speed motion scenes and high-precision image capture. It connects to computers or other devices through a USB interface and can be used for global scanning of items in shopping carts, intelligent sales in supermarkets, and other fields.
1. Global Shutter: suitable for capturing high-speed moving objects.
2. High Resolution: providing clear images.
3. High Frame Rate: Supports 60fps at full resolution, suitable for high-speed scenes.
4. Excellent Low Light Performance: suitable for applications in low light environments.
5. Compact Design: Small in size, easy to integrate into various devices.
6. Plug and Play: Supports UVC protocol without the need for additional drivers.
| Product Name | Global Shutter USB Camera Module |
| Pixel | 2MP |
| Image Sensor | OG02B10 |
| Interface | USB2.0 |
| Sensor Size | 1/2.9 |
| Connector | USB 6PIN |
| DVDD/DOVDD | 1.2V/1.8V |
| AVDD | 2.8V |
| Lens | Fixed Focus Lens |
| Warranty | 10 Years |
Smart Shopping Cart: supermarket intelligent sales.
Machine Vision: used for high-precision detection, positioning, measurement, etc.
Industrial Testing: used for automated testing, quality monitoring, part identification, etc.
Intelligent Transportation: used for license plate recognition, traffic monitoring, violation capture, etc.
Drones: Used for target tracking, obstacle avoidance, aerial photography, etc.
Medical Equipment: used for endoscopes, surgical aids, etc.
Research Experiments: used for high-speed motion capture, microscopic imaging, etc.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
