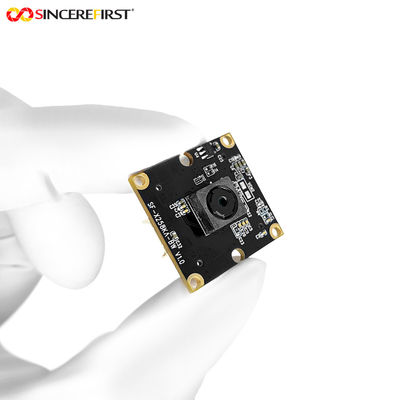

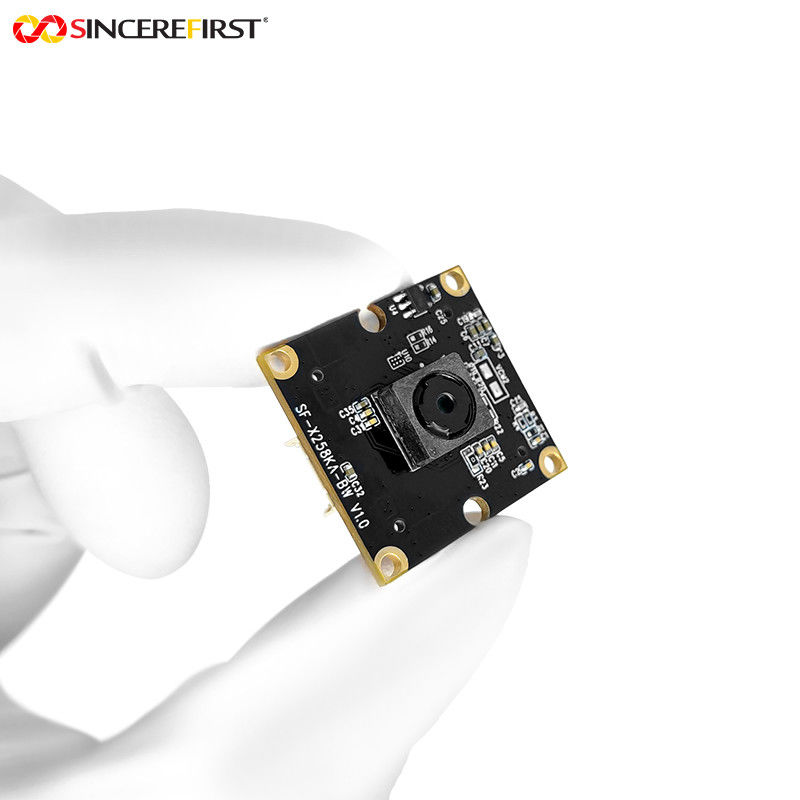

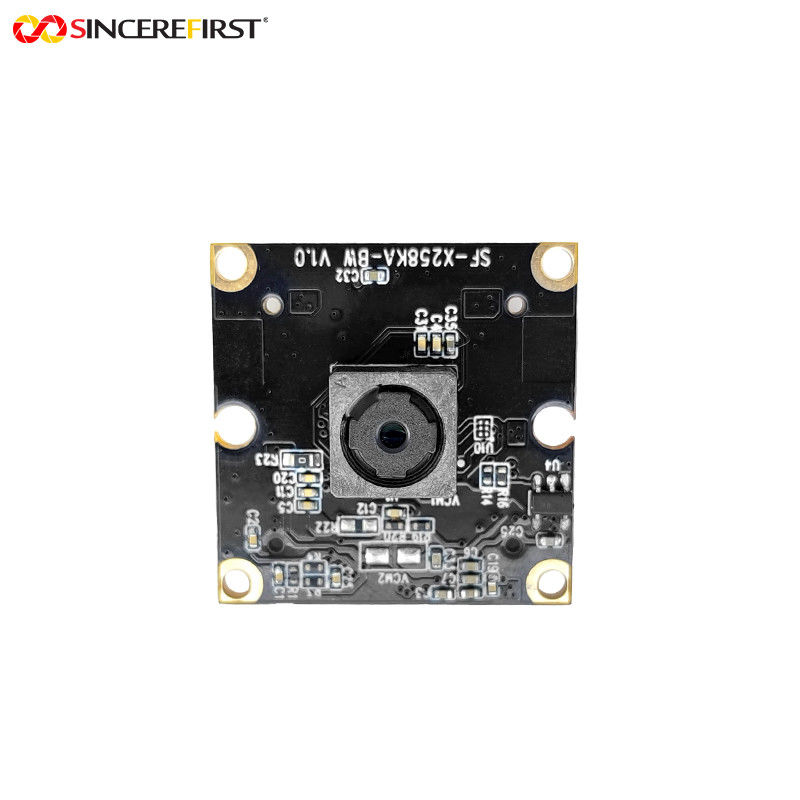

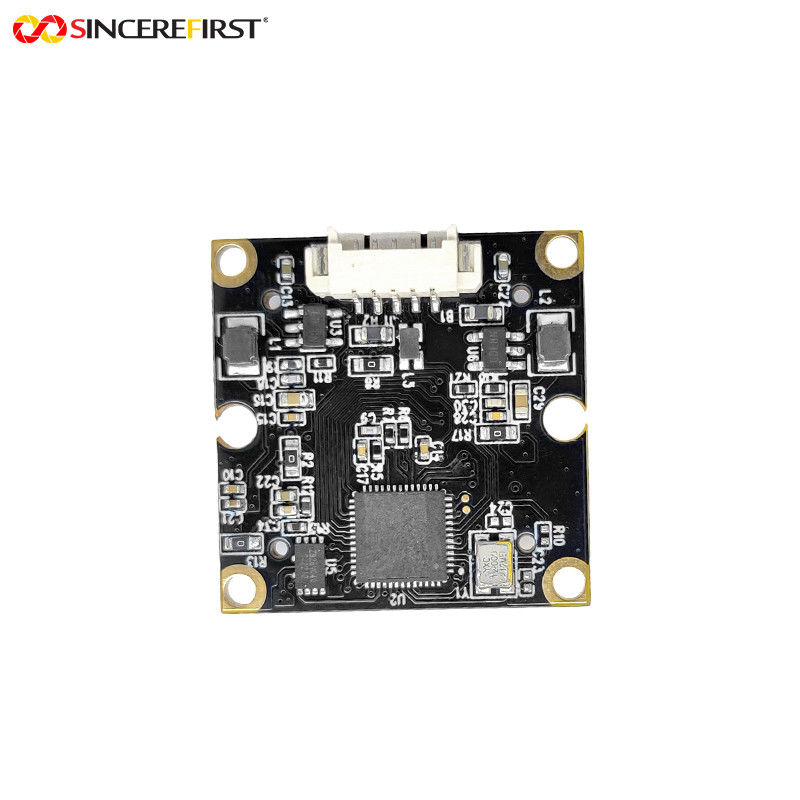

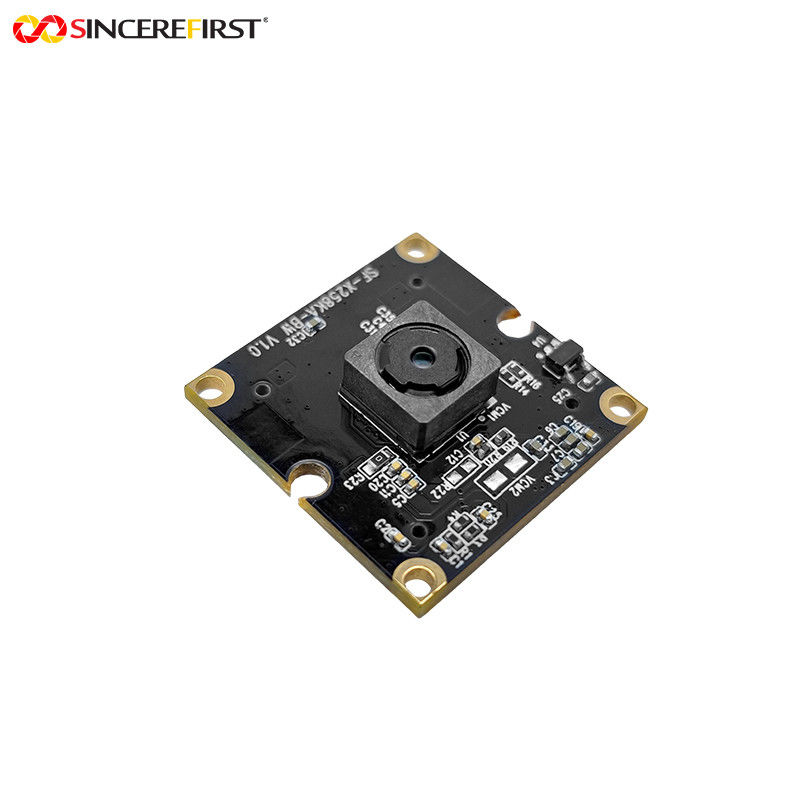

The IMX258 USB camera module has 13 megapixels with a maximum resolution of 4224 × 3144 pixels. It also supports 4K (3840 × 2160) resolution and can record video at 30fps, 60fps or 120fps . The IMX258 USB camera module supports USB 2.0 interface and can be directly plugged in without additional driver installation . It is compatible with Windows, Linux, and macOS operating systems.
1. High Resolution And Pixels
2. USB2.0 Interface And Compatibility
| Product Name | Mono Sensor USB Camera Module |
| Pixel | 13MP |
| Image Sensor | Sony IMX258 |
| Interface | USB2.0 |
| EFL | 3.57mm |
| Pixel Array | 4224H*3144V |
| View Angle | D78.4° |
| Distortion | ＜-1.5% |
| Focusing Range | 10cm to Infinity |
| Output Format | USB2.0 UVC YUV&MJPG |
Office: Ideal for office environments that require high-definition video conferencing and document shooting.
Monitoring: Due to its high resolution and stability, it is suitable for security surveillance and video surveillance systems
Machine Vision: used for high-precision detection, positioning, measurement, etc.
Industrial Testing: used for automated testing, quality monitoring, part identification, etc.
Intelligent Transportation: used for license plate recognition, traffic monitoring, violation capture, etc.
Medical Equipment: used for endoscopes, surgical aids, etc.
Research Experiments: used for high-speed motion capture, microscopic imaging, etc.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
