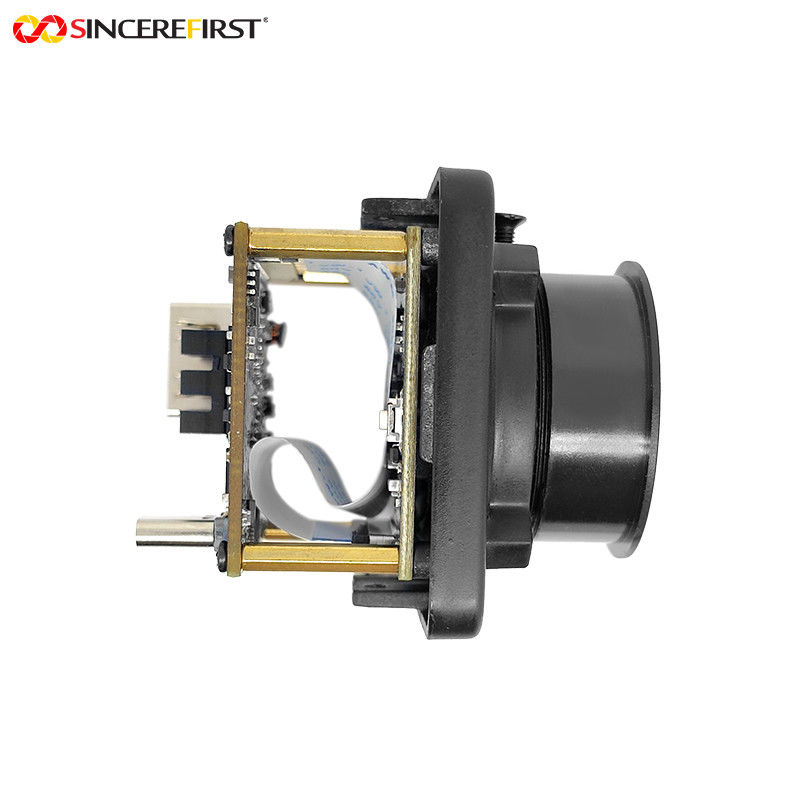

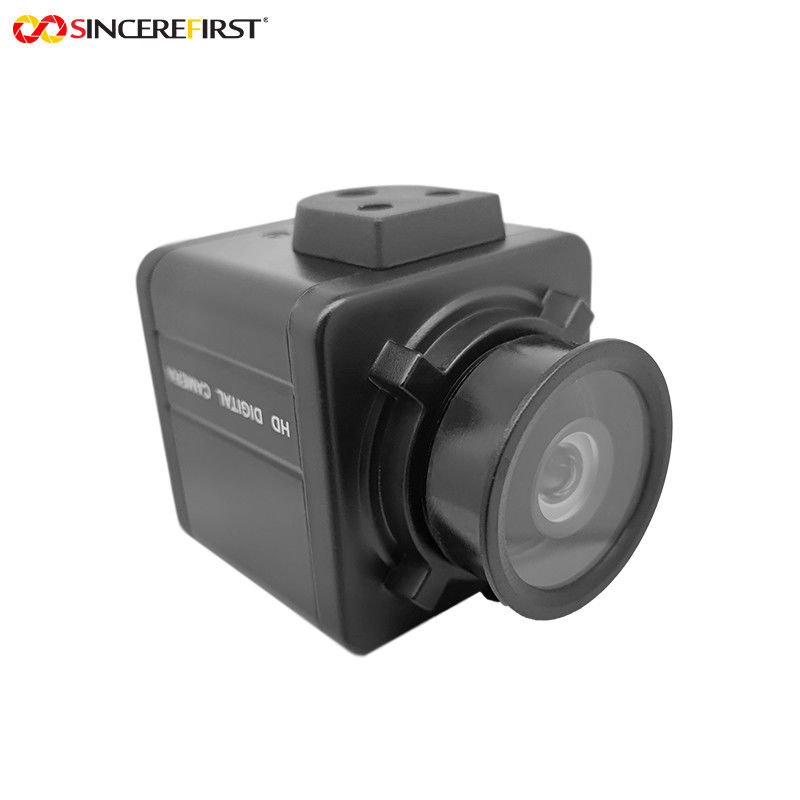

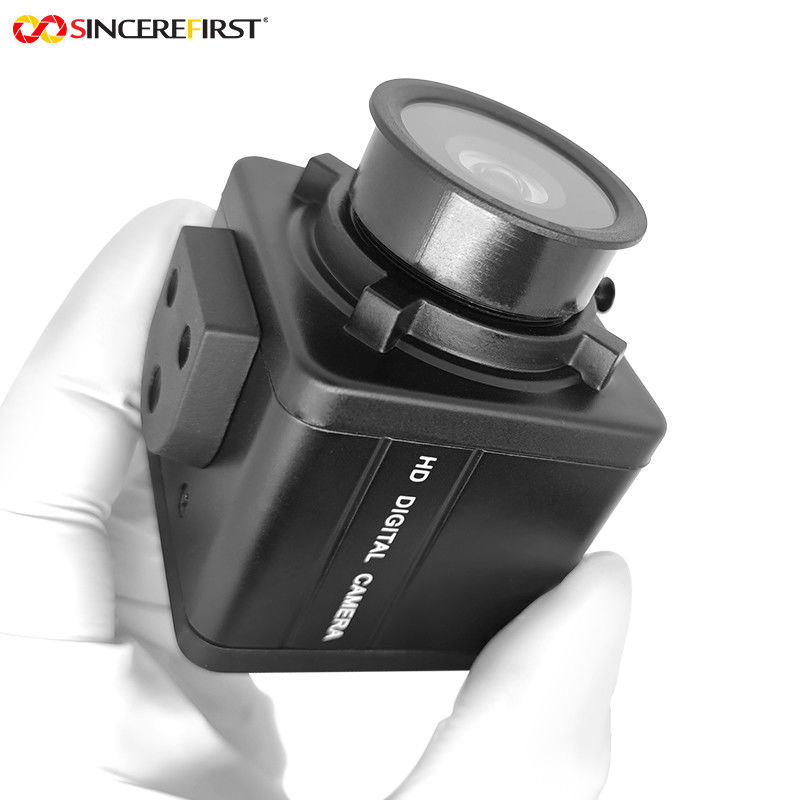

This 2MP HD usb3.0 high frame rate global shutter camera module. The module features 1080p high resolution and 120fps ultra high frame rate camera module. It utilizes USB3.0 interface for plug-and-play, clear image capture, fast image transfer, enhanced image processing and support for higher resolution. It is currently used in traffic monitoring, smart home, medical imaging and industrial measurement scenarios.
1.Enhanced power supply: supports camera modules with higher power requirements
2.USB3.0 Plug and Play: Supports USB3.0 high-speed transmission interface, ultra-low transmission delay, no additional driver required.
3.High Smoothness: 120 high frame rate, high smoothness and low latency, reduce lag.
4.Image Processing Enhancement: Supports hardware-level HDR
| Product Name | 2MP HD usb3.0 high frame rate global shutter camera module |
|
Focusing |
Adjustable, manual focus or fixed focus |
|
Shutter |
global shutter |
|
Interface type |
USB3.0 High Speed Type-C,HDMI |
|
Pixel Size |
3μm X 3μm |
|
Lens Size |
1/2.6" |
|
Module size |
Double layer 38mmX38mm |
|
Imaging distance |
1CM~infinitely |
|
Working current |
560mA (VGA) |
|
Drive - free protocol |
USB Video Class(UVC) |
Office: Ideal for office environments that require high-definition video conferencing and document shooting.
Monitoring: Due to its high resolution and stability, it is suitable for security surveillance and video surveillance systems
Machine Vision: used for high-precision detection, positioning, measurement, etc.
Industrial Testing: used for automated testing, quality monitoring, part identification, etc.
Intelligent Transportation: used for license plate recognition, traffic monitoring, violation capture, etc.
Medical Equipment: used for endoscopes, surgical aids, etc.
Research Experiments: used for high-speed motion capture, microscopic imaging, etc.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
