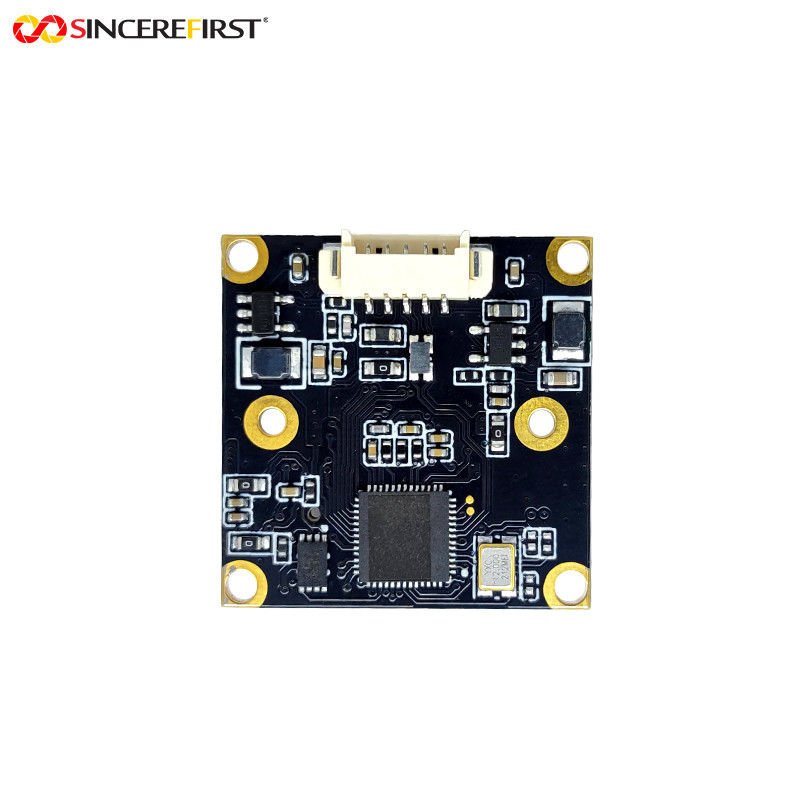

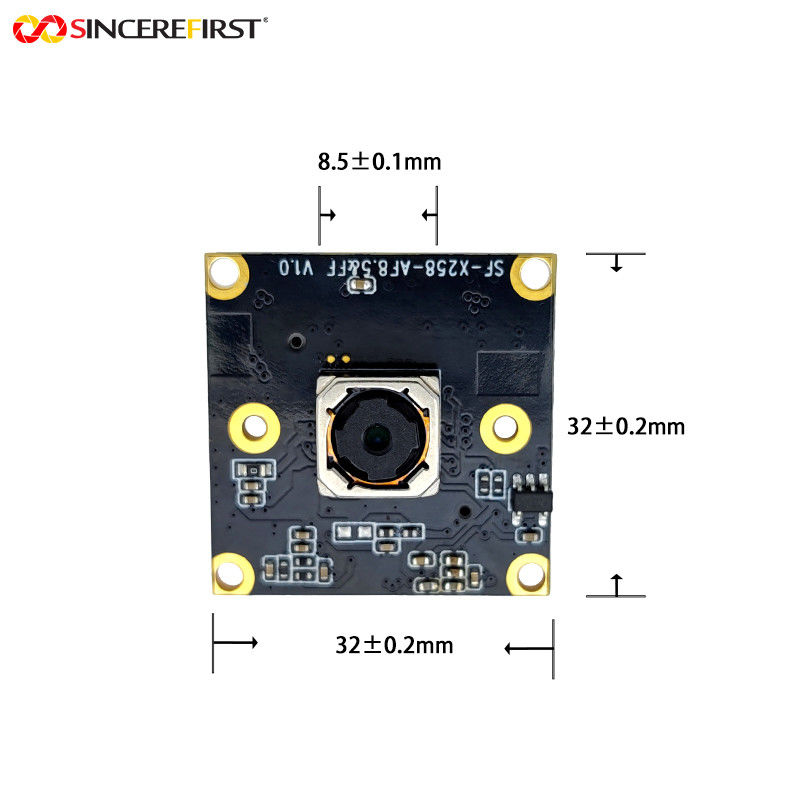

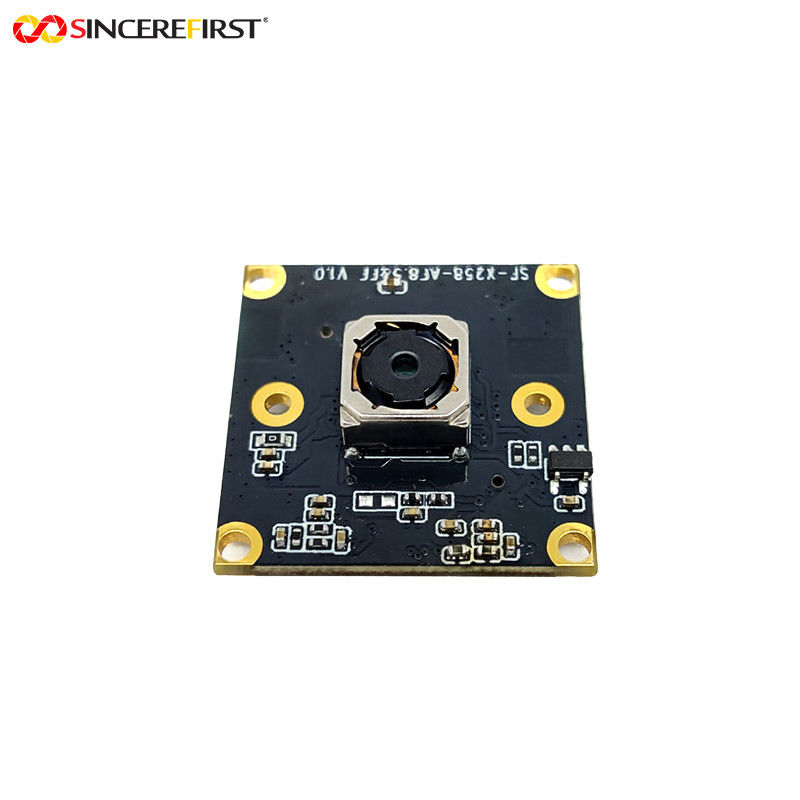

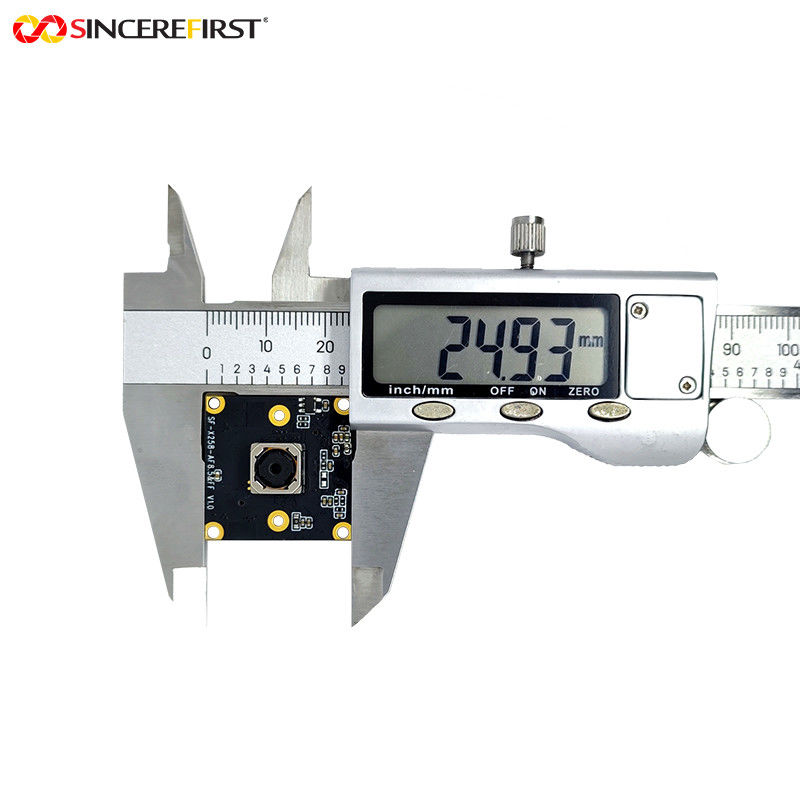

This is a 13MP IMX258 fixed focus USB2.0 camera module. It adopts USB2.0 camera module interface, plug and play, no need for additional driver, low latency transmission. It is USB compatible with multiple platforms, compact design, easy to carry, view angle is D78.4°, distortion is <-1.5%. At present, it is mainly used in industrial equipment, smart home and monitoring equipment.
1.USB 2.0 High-Speed Transmission: 480Mbps bandwidth for real-time HD video streaming, supporting long-time stable operation
2.Multi-platform compatibility: Adapt to Windows/Mac/Linux system with universal USB interface, support Zoom/WeChat and other software.
3.Plug and Play protocol: Quickly connect to your computer with driver-free design, no need for complex setup to start live streaming/conferencing.
4.13-megapixel sensor: Capture high-precision images with high pixel count for detailed still life/commodity images, medical images, etc.
| Product Name |
13MP IMX258 Fixed Focus USB2.0 Camera Module |
|
Sensor |
IMX258 |
|
Distortion |
＜-1.5% |
|
EFL |
3.57mm |
|
F.NO |
2.0±5% |
|
View Angle |
D78.4° |
|
Focusing Range |
10cm to Infinity |
|
Chip Type |
IMX258-AMH5-C |
|
Pixel Array |
4224H*3144V |
|
Lens Elements |
5P,Without 650nm IR |
Office: Ideal for office environments that require high-definition video conferencing and document shooting.
Monitoring: Due to its high resolution and stability, it is suitable for security surveillance and video surveillance systems
Machine Vision: used for high-precision detection, positioning, measurement, etc.
Industrial Testing: used for automated testing, quality monitoring, part identification, etc.
Intelligent Transportation: used for license plate recognition, traffic monitoring, violation capture, etc.
Medical Equipment: used for endoscopes, surgical aids, etc.
Research Experiments: used for high-speed motion capture, microscopic imaging, etc.
