This 5M 1080P USB HD camera module features an advanced 5 megapixel sensor with 1080P, 30FPS smooth video output, ensuring clear and sharp picture details. This USB camera module adopts USB2.0 interface to realize high-speed data transmission, compatible with Windows/Linux/Android and other mainstream operating systems, plug and play without driver. Its professional-grade optical lens is designed with low distortion, and with automatic exposure and white balance functions, it can adapt to different lighting environments. It is often used in medical imaging and industrial inspection.
1.Optical optimization: automatic exposure & white balance, adaptable to different lighting
2. Efficient transmission: USB2.0 interface, compatible with multiple platforms, ultra-low latency.
3.High Resolution Imaging: 5 megapixels, supports 1080P@30FPS smooth video output with clear details and accurate color reproduction.
| Product Name | 1080P USB Camera Module |
|
Sensor |
OV2735 |
|
Module Size |

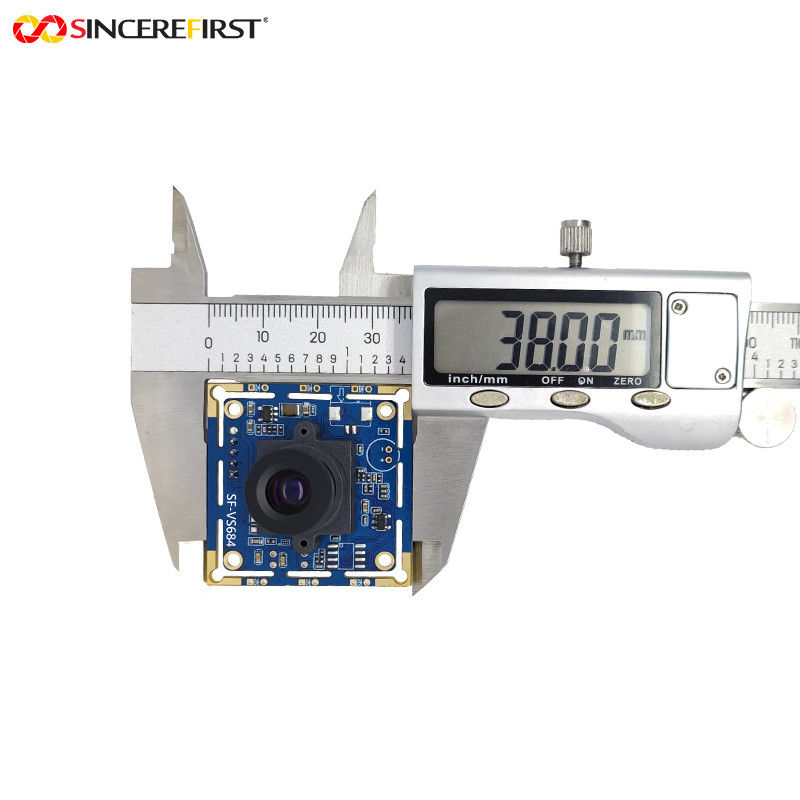

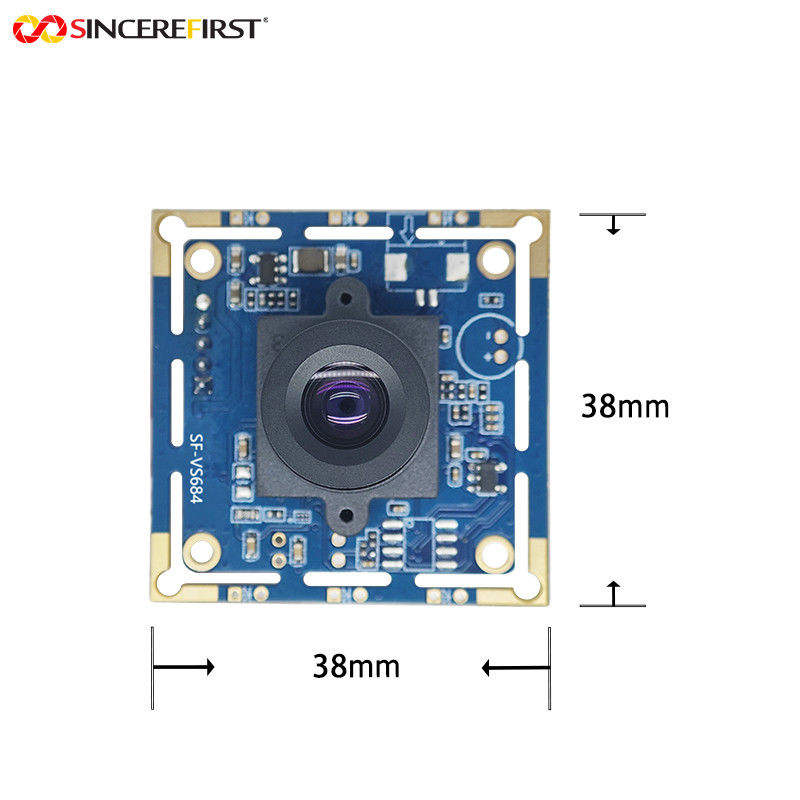

38mm × 38mm (±1mm) |
|
Senor Size |
1/2.7" |
|
Pixel Size |
3µm X 3µm |
|
Temperature (Operation) |
-20°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Object distance |
1CM~ ∞ |
|
Interface |
USB2.0 High Speed |
|
Drive Free protocol |
USB Video Class(UVC) |
Office: Ideal for office environments that require high-definition video conferencing and document shooting.
Monitoring: Due to its high resolution and stability, it is suitable for security surveillance and video surveillance systems
Machine Vision: used for high-precision detection, positioning, measurement, etc.
Industrial Testing: used for automated testing, quality monitoring, part identification, etc.
Intelligent Transportation: used for license plate recognition, traffic monitoring, violation capture, etc.
Medical Equipment: used for endoscopes, surgical aids, etc.
Research Experiments: used for high-speed motion capture, microscopic imaging, etc.
