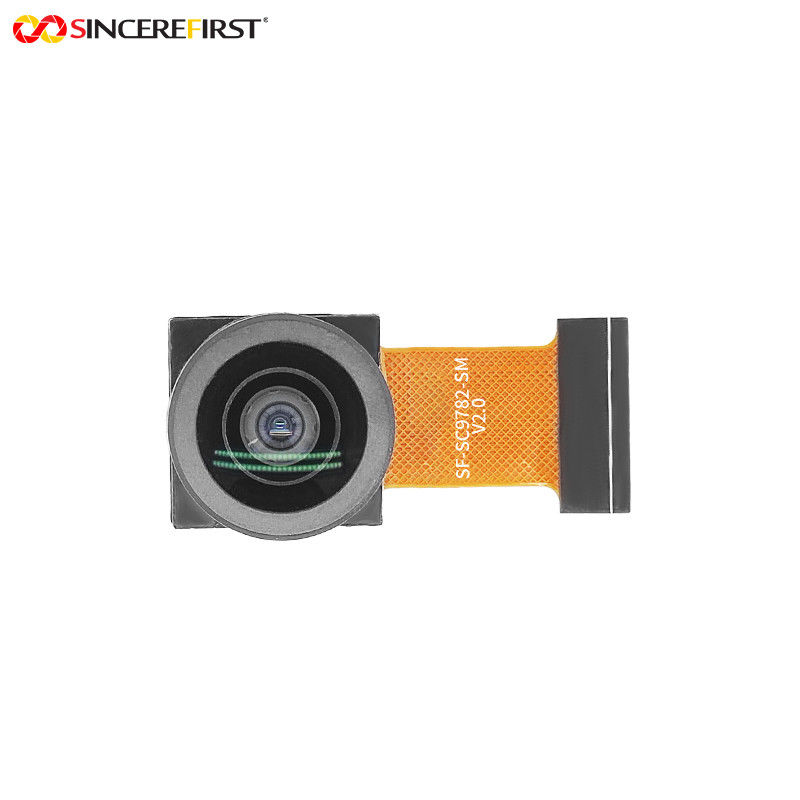

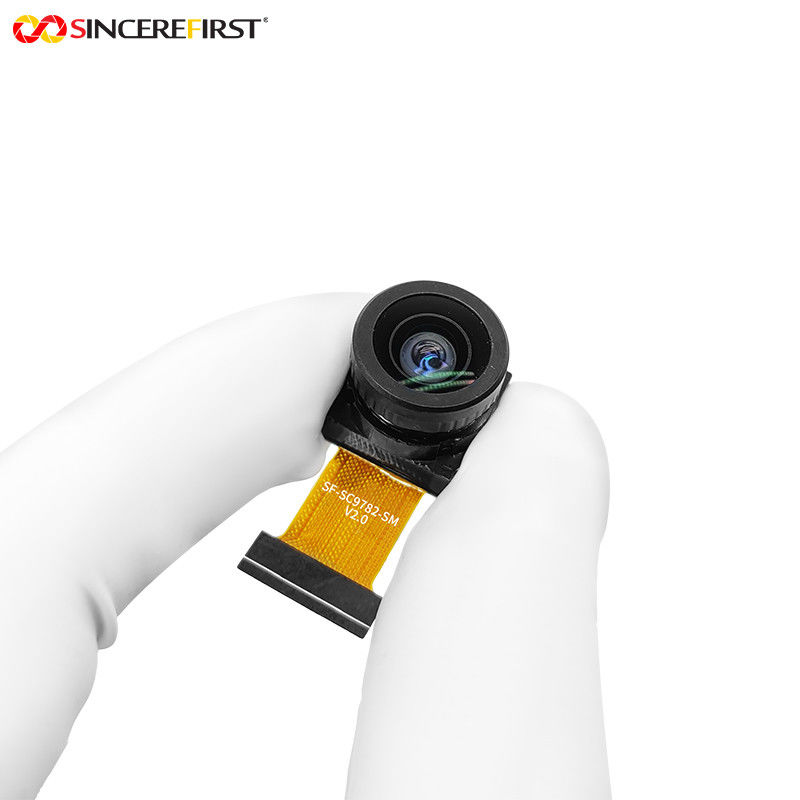

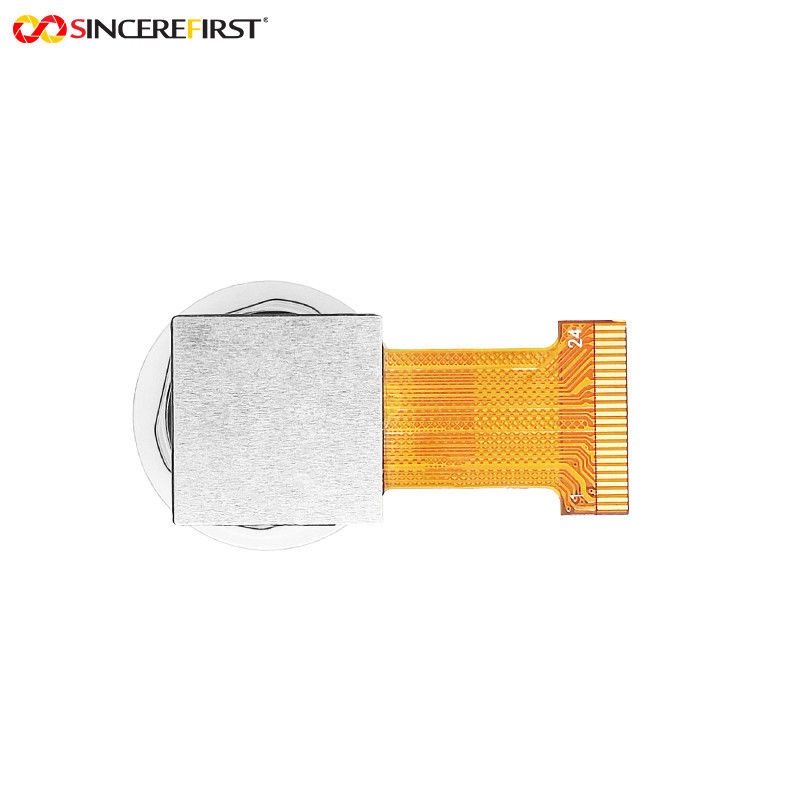

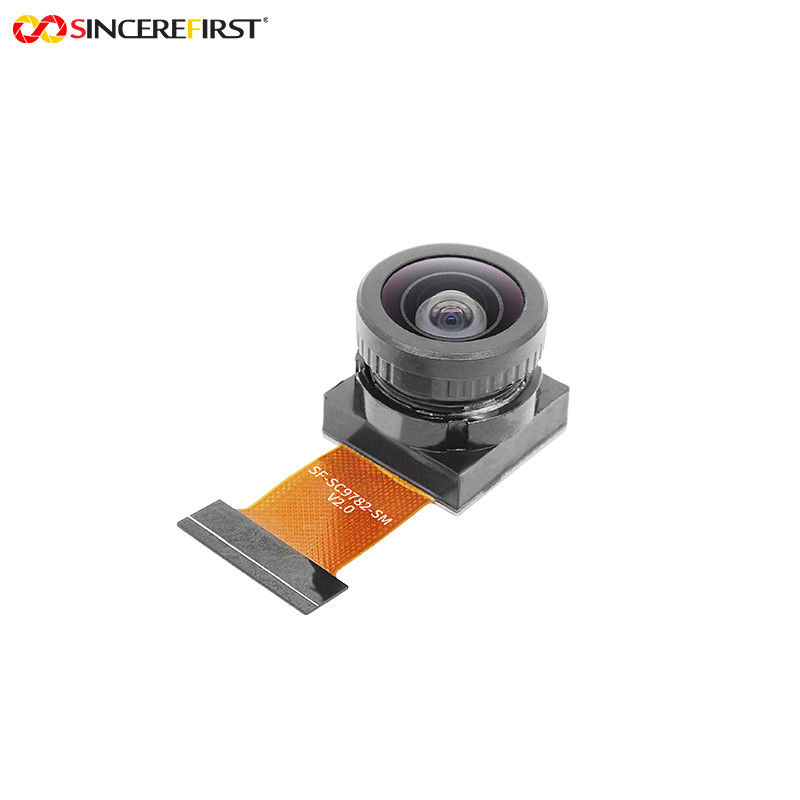

This high-performance camera module features a 1/4-inch CMOS sensor with 1 million effective pixels. The 3.0μm×3.0μm BSI pixel architecture delivers exceptional light sensitivity and image quality. Supporting an impressive 120fps frame rate at full resolution, the module offers flexible 8/10-bit RAW data output options. Its compact design and high-speed imaging capabilities make it ideal for machine vision applications requiring fast, precise image capture.
1. Standard optical format of 1/4 inch
2. Various output formats: YCbCr4:2:2 / RGB565 / Raw Bayer
3. Windowing support
4. SPI interface: 1-wire,2-wire
5. Horizontal/Vertical mirror
6. Image processing module
7. Package:CSP
| Product Name |
MIPI Camera Module |
|
Sensor |
OV9782 |
| Piexl
|
1MP
|
|
Lens Type |
1/4" |
|
Output Interface: |
2-lane Mipi serial output and DVP
|
|
Array Size |
1280*800 |
|
Keywords |
SPI Camera Module |
|
Warranty |
10 Years |
|
Pinout |
10 Pin |
|
Brand Name |
SINCEREFIRST |
Barcode Scanning Systems :The high frame rate and excellent motion capture capability enable reliable reading of fast-moving barcodes on production lines, even under variable lighting conditions.
Automotive Electronics Inspection :Precise imaging performance supports quality control of minute electronic components, solder joints and assembly verification in vehicle manufacturing processes.
Security Monitoring Solutions :Combines high sensitivity for low-light environments with the speed to clearly capture fast-moving subjects, ideal for intelligent surveillance applications.
High-Speed Photography Systems :The global shutter and 120fps capability freeze fast motion without distortion, perfect for scientific imaging, impact testing and manufacturing process analysis.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
