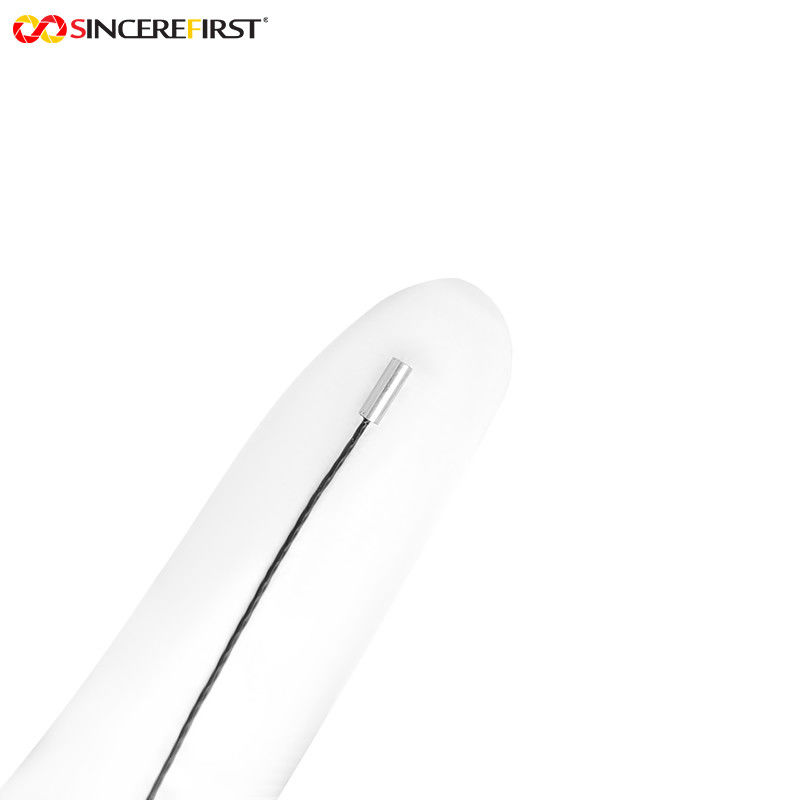

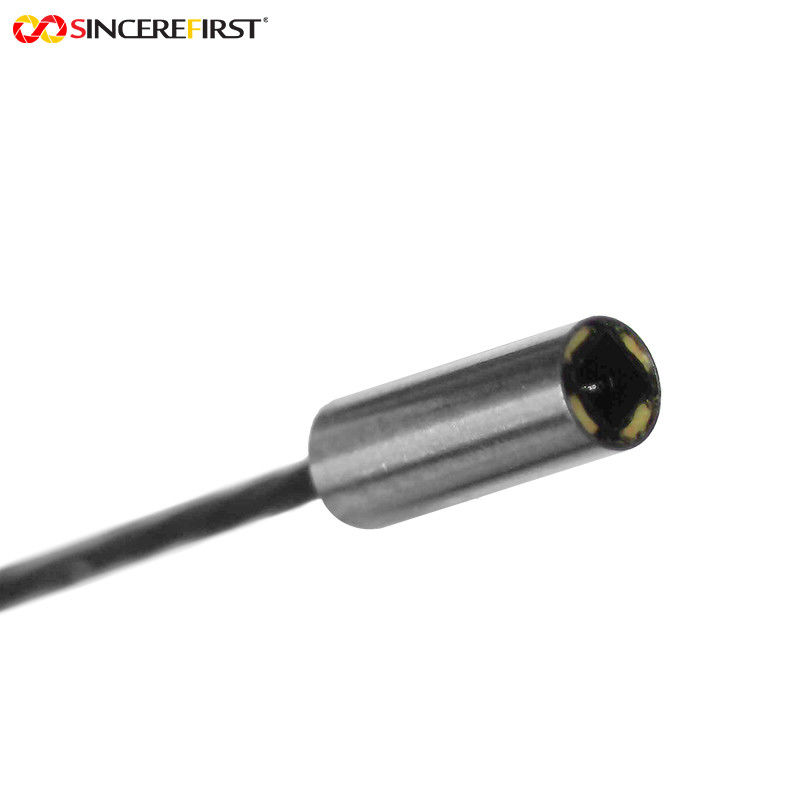

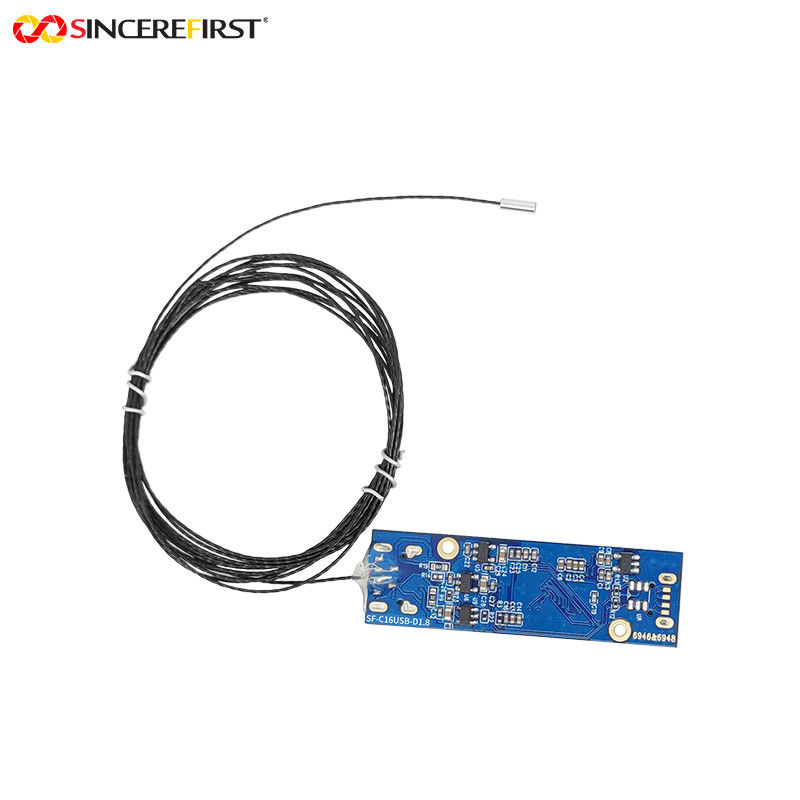

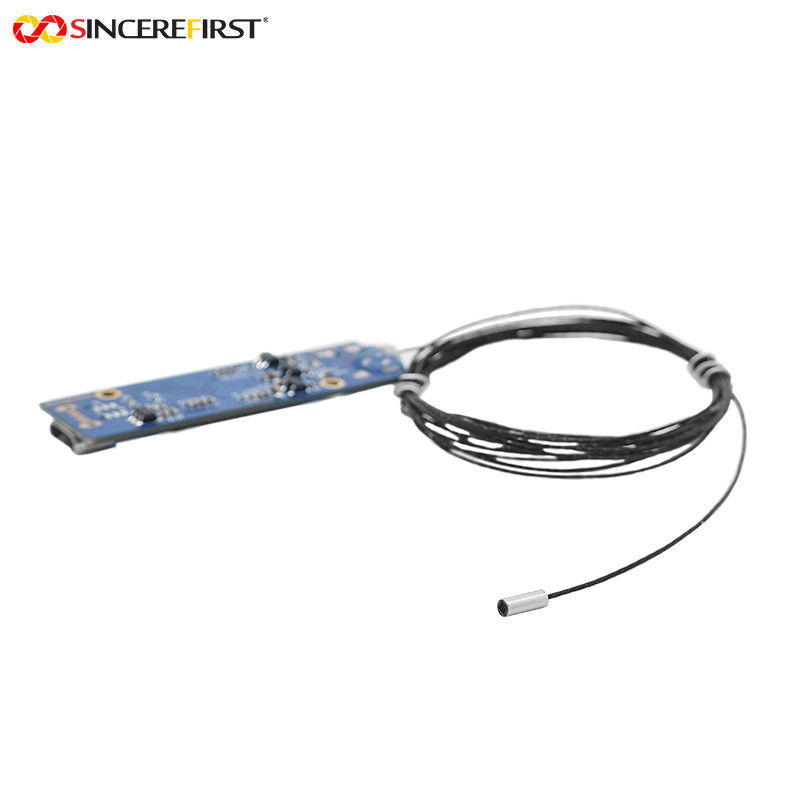

The OVM6946 endoscope camera module is a compact camera module for medical applications such as minimally invasive endoscopes. The module features a 1/18-inch sensor with a compact 1.10mm x 1.10mm and a height of 2.37mm or 2.27mm, providing a 120° diagonal field of view. It is applicable to a wide range of endoscopic applications, including the medical, veterinary and industrial fields.
1. High Frame Rate: The OVM6946 can shoot high-quality video at 30 frames per second and is suitable for applications that require high-speed imaging.
2. Field of View: This module has a 120° diagonal field of view and is suitable for various endoscope application requirements.
3. Medical-grade Quality: OVM6946 meets strict medical device standards and safety performance requirements, ensuring reliability and stability in medical environments.
| Product Name |
USB2.0 Endoscope Camera Module |
|
Sensor |
OVM6946 |
| Piexl | 400*400 |
|
Demeter |
1.8mm |
|
Output Interface |
USB2.0 UVC |
|
Format |
YUV&MJPG |
|
Connector |
Micro USB-5P |
|
Focusing Range |
5-50mm |
|
Focal Length |
0.418mm |
|
TV Distortion |
＜-11% |
Medical Field: For internal inspection of medical equipment, such as surgical instruments, maintenance and repair of medical equipment.
Industrial Machinery: For internal inspection and maintenance of factory equipment, such as troubleshooting inside pipes and machines.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
