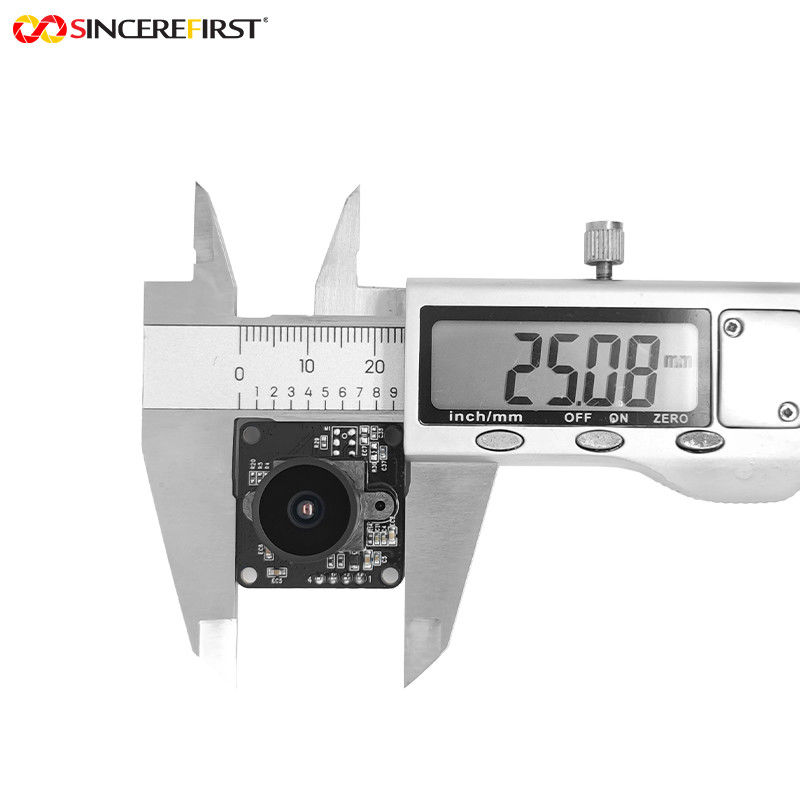

The HM2131 USB camera module is a fixed-focus 2MP Full HD camera module that can stably capture 1080p 60fps high-definition images under low-light conditions. With a size of only 25mm × 25mm, it can be installed in almost all narrow spaces and miniature devices.
1. Compact Size Packaging: The small form factor (only 25mm × 25mm) makes it suitable for portable devices and embedded applications.
2. High Resolution and High Sensitivity: Capable of capturing Full HD resolution images at 1920×1080 and 30FPS even under low-light conditions, making it ideal for applications such as sports scenes or real-time monitoring.
3.Strong Compatibility: Compatible with mainstream operating systems, including Windows, Linux, and macOS.
| Product Name |
Fixed Focus Camera Module |
|
Sensor |
HM2131 |
|
Pixel |
2MP |
|
View Angle |
D145° H120° V64° |
|
Focusing Range |
50cm-∞ |
|
Distortion |
<-25% |
|
Lens Size |
1/2.7inch |
|
Focal Length |
2.9mm |
|
Interface Type |
USB |
|
Brand Name |
SINEREFIRST |
In the field of smart home, the HM2131 USB camera module is used in smart refrigerators and smart freezers, etc.
Machine Vision: used for high-precision detection, positioning, measurement, etc.
Industrial Testing: used for automated testing, quality monitoring, part identification, etc.
Intelligent Transportation: used for license plate recognition, traffic monitoring, violation capture, etc.
Medical Equipment: used for endoscopes, surgical aids, etc.
Research Experiments: used for high-speed motion capture, microscopic imaging, etc.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
