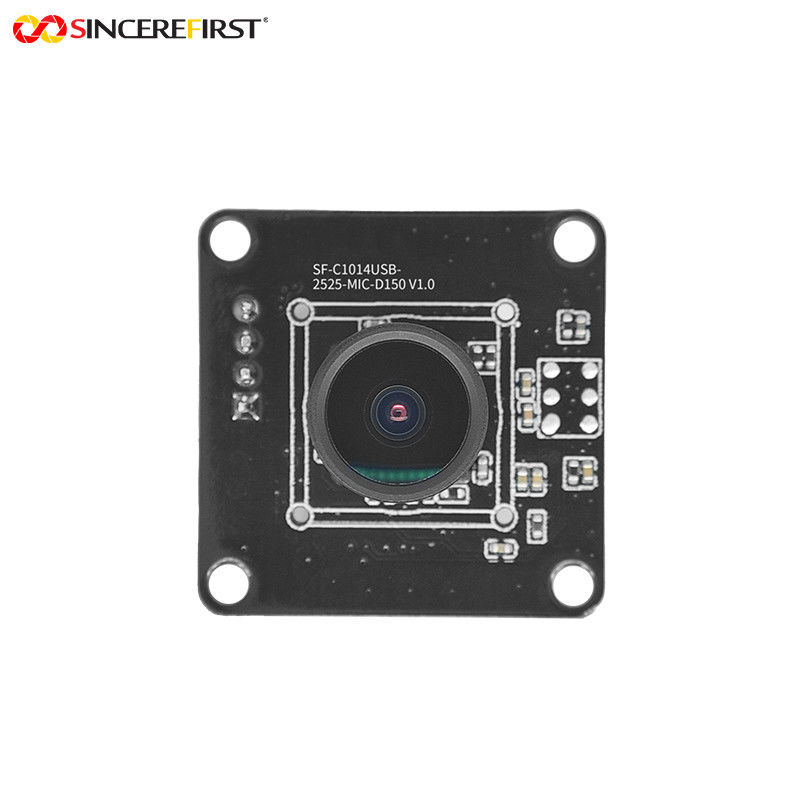

The USB camera module with a microphone features 1MP resolution and uses a USB 2.0 interface. It supports synchronous output of 1280×720P@30FPS video and audio. With a compact module size of only 25mm × 25mm, it is suitable for installation in most miniature devices and confined spaces.

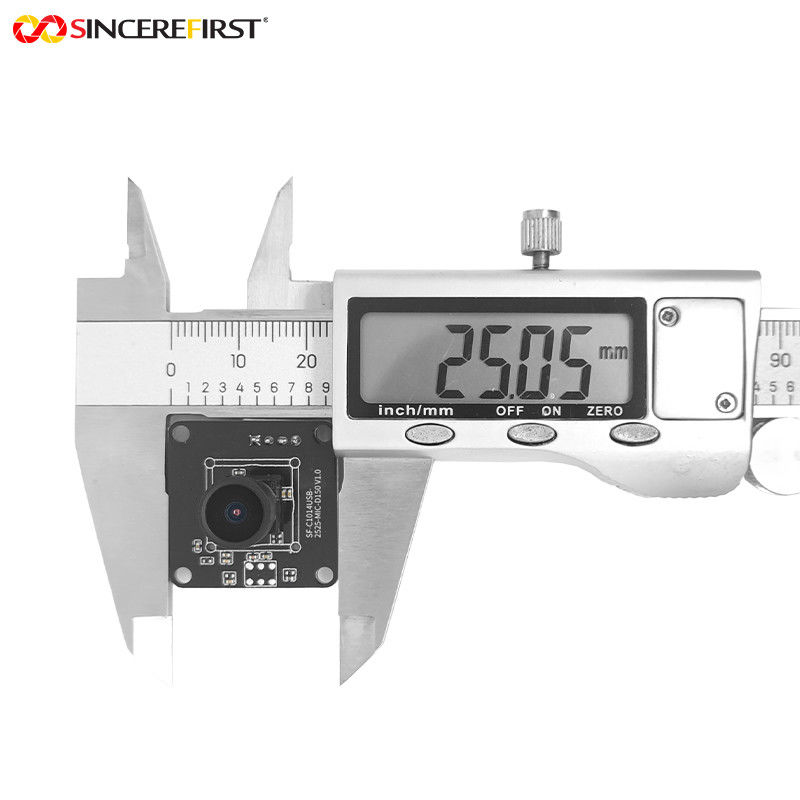

1. Small-Size Module: The module size of 25 mm × 25 mm makes it suitable for installation in various micro devices and narrow scenarios.
2. Audio-Video Synchronization: The OV9732 CMOS chip with 1 MP pixel, combined with a microphone, can synchronously output high-definition (1280×720p@30fps) images and audio.
3.High-Speed Transmission: The USB 2.0 interface ensures stable and high-speed transmission of audio and video, preventing any desynchronization of audio and video.
| Product Name |
USB Camera Module With Mic |
|
Sensor |
OV9732 |
|
Pixel |
1MP |
|
View Angle |
D67° |
|
Focusing Range |
60cm-∞ |
|
Distortion |
<-1% |
|
Lens Size |
1/4nch |
|
Focal Length |
3.37mm |
|
Interface Type |
USB |
|
Brand Name |
SINEREFIRST |
In the field of smart home, the HM2131 USB camera module is used in smart refrigerators and smart freezers, etc.
Machine Vision: used for high-precision detection, positioning, measurement, etc.
Industrial Testing: used for automated testing, quality monitoring, part identification, etc.
Intelligent Transportation: used for license plate recognition, traffic monitoring, violation capture, etc.
Medical Equipment: used for endoscopes, surgical aids, etc.
Research Experiments: used for high-speed motion capture, microscopic imaging, etc.
