Sony IMX415 Sensor 8MP 4K USB2.0 Small Camera Module

Sony IMX415 Sensor 8MP 4K USB2.0 Small Camera Module

  • Product Name
    Fixed Focus USB Camera Module
  • Module Size
    32mm*32mm*17.5mm
  • Pixel
    8MP
  • FOV
    H129°
  • Focal Length
    2.3mm
  • TV Distortion
    <-40%
  • Working Range
    10cm-∞
  • Frame Rate
    30FPS
  • Interface Type
    USB
  • Brand Name
    SINEREFIRST
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCERE FIRST
  • Certification
    CE, FCC, RoHS, REACH, ISO
  • Model Number
    SF-X4154KA-25FPS-AF V1.0
  • Minimum Order Quantity
    5pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C,Western Union,T/T,MoneyGram,Paypal and Others
  • Supply Ability
    350000 pcs / month

Sony IMX415 Sensor 8MP 4K USB2.0 Small Camera Module

Sony IMX415 Sensor 8MP 4K USB2.0 Small Camera Module

Sony IMX415 Sensor 8MP 4K USB2.0 Small Camera Module 0

Product Description:

This is a Sony IMX415 sensor 8MP 4K USB2.0 Small camera module delivers 30fps high-resolution imaging for seamless video capture in dynamic settings. Equipped with VCM and F.NO 2.0 aperture, achieve the capabilities of automatic focusing and low-light shooting. With a 38*38mm module size and USB 2.0 interface enabling universal plug-and-play across diverse platforms . Its customizable lens field of view adapts to specific requirements, ensuring versatility in demanding applications without compromising on image stability .

Features:

1. High Frame Rate Capability‌: 8MP can achieves smooth 60fps output at full 4K resolution for fluid motion rendering in fast-action scenarios.
2. Broad System Compatibility‌: Integrates UVC protocol for effortless connectivity with Linux, Android, Mac, and Windows devices, simplifying deployment.
3. Plug-and-play architecture: USB2.0 interface compatible with UVC protocol, driver-free and compatible with mainstream operating systems.

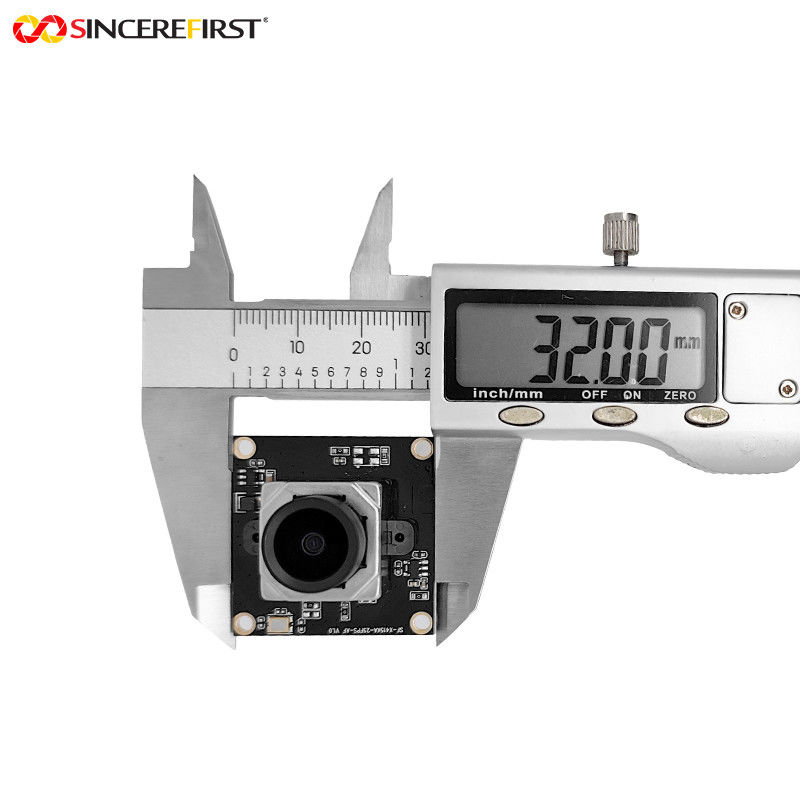

4. Miniaturized packaging: Compact size of 32×32×17.5mm, with reserved standard installation holes.

5. Low-light shooting capability​: Equipped with VCM, it enables automatic focusing function. Combined with an F.NO 2.0 aperture, it can capture clear images even in the dark.



Technical Parameters:

Product Name

USB2.0 Auto Focus Camera Module

Sensor

Sony IMX415 CMOS Sensor

Pixel

8MP

View Angle

H129°

Focusing Range

10cm-∞

Distortion

<-40%

Lens Size

1/2.8inch

Focal Length

2.3mm

Interface Type

USB2.0

Brand Name

SINEREFIRST



Applications:

This mini 8MP auto focus camera module is suitable for the following scenarios:
Smart Home Surveillance‌: Enhances 24/7 security monitoring with reliable night vision for entry points and indoor areas .
Drone-Based Inspection‌: Enables high-definition aerial footage for infrastructure and environmental surveys .
Interactive Public Displays‌: Supports user interaction in digital signage and kiosks with consistent auto focus for real-time engagement .
Sony IMX415 Sensor 8MP 4K USB2.0 Small Camera Module 1

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.

4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

About US:

Sony IMX415 Sensor 8MP 4K USB2.0 Small Camera Module 2



Cooperative Brands & Customers:

Sony IMX415 Sensor 8MP 4K USB2.0 Small Camera Module 3



Why Chooes US:

Sony IMX415 Sensor 8MP 4K USB2.0 Small Camera Module 4

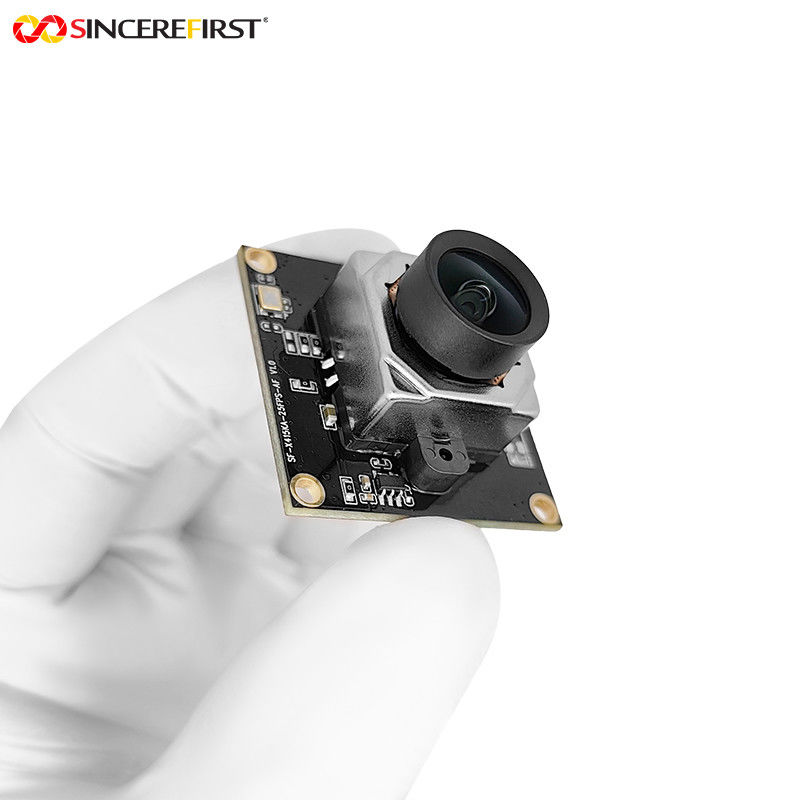

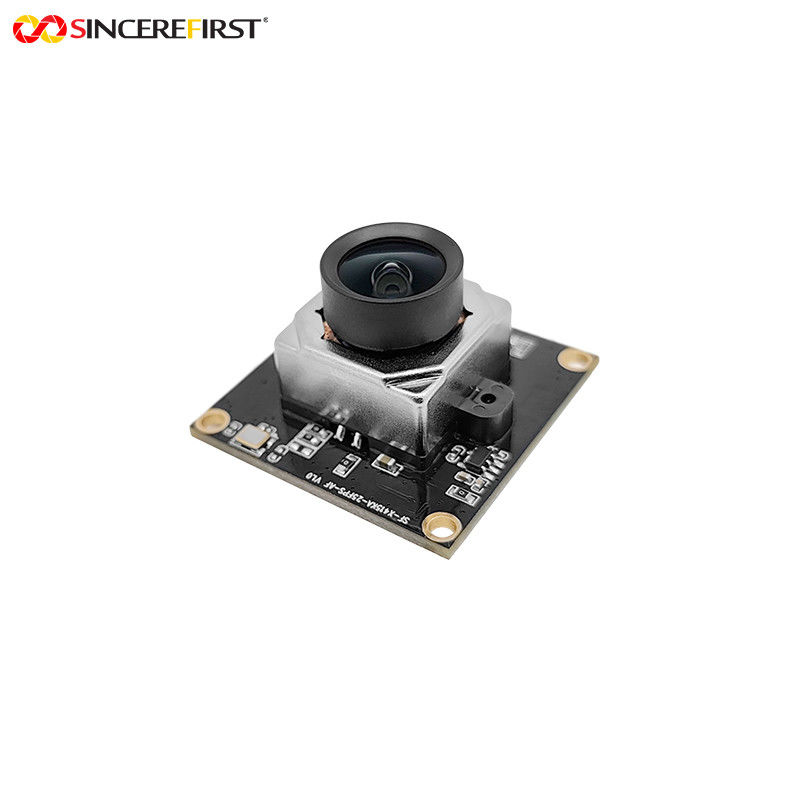

Details Pictures:

Sony IMX415 Sensor 8MP 4K USB2.0 Small Camera Module 5Sony IMX415 Sensor 8MP 4K USB2.0 Small Camera Module 6Sony IMX415 Sensor 8MP 4K USB2.0 Small Camera Module 7
