Mini MIPI 13mp Sony Imx214cmos Camera Module

Mini MIPI 13mp Sony Imx214cmos Camera Module

Product Description:

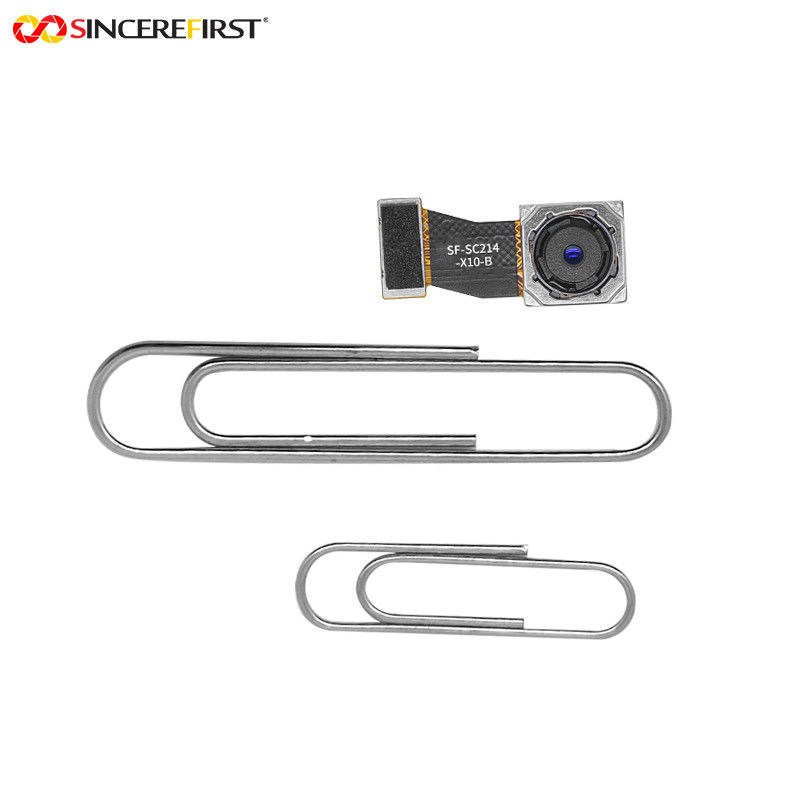

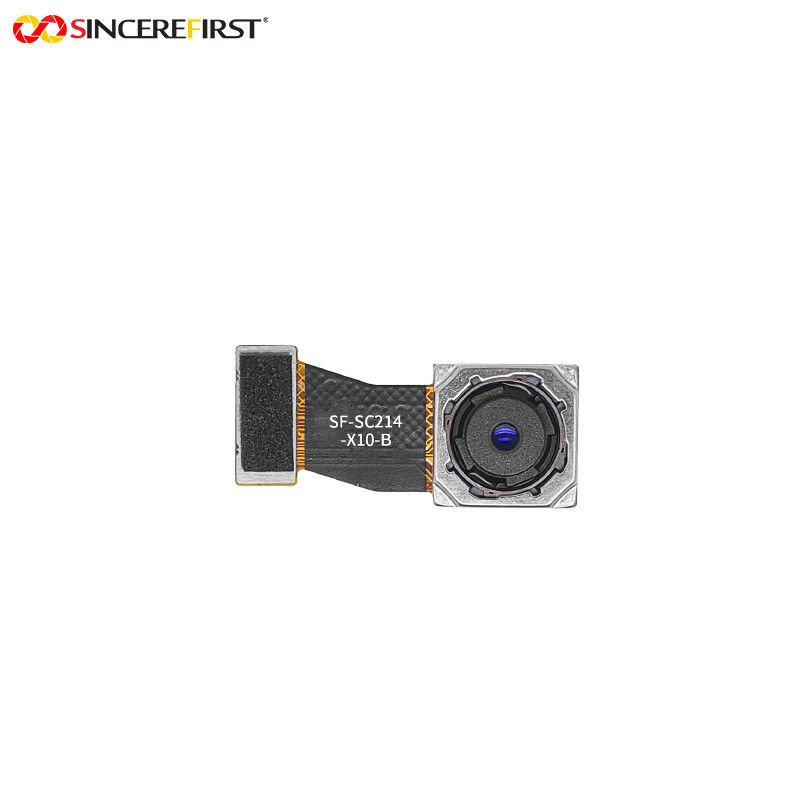

This is mini MIPI 13MP SONY IMX214CMOS camera module. Its 1/3.06-inch sensor size and F2.2 aperture enhance optical performance, with an effective focal length (EFL) of 3.85mm and excellent depth control. Equipped with a VCM motor, it can achieve reliable focusing within a range of 10 centimeters to infinity, while the 82° wide-angle lens ensures consistent image capture. The module size is only 20.5×8.5mm, which can adapt to various types of equipment. This module supports seamless MIPI interface connection and is used for high-bandwidth data transmission, making it an ideal choice for demanding machine vision applications.

Features:

1. Enhance optical accuracy: The 3.85mm EFL paired with a large F2.2 aperture provides clear and high-contrast images at different distances, which is crucial for detailed inspection.
   2. Stable autofocus mechanism: VCM motor technology enables fast and repeatable focusing from 10 centimeters to infinity, ensuring clarity in fast-paced or low-light conditions.

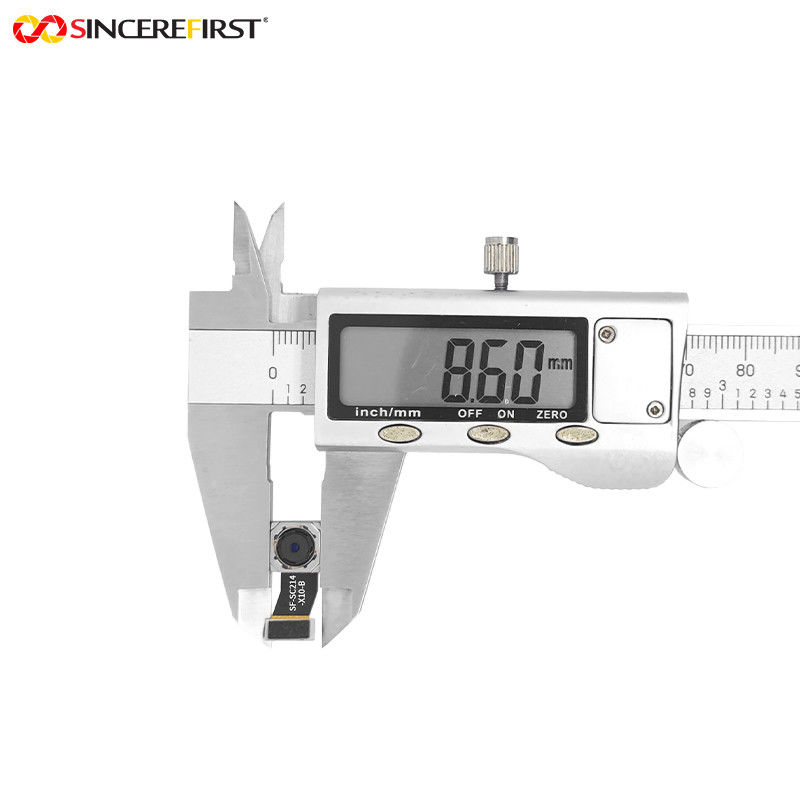

   3. Space-efficient design: With dimensions of 20.5×8.5mm, it minimizes occupied space to facilitate easy integration into constrained device architectures.
   4. High-throughput connection: The MIPI interface ensures low-latency transmission of 4k resolution images and meets real-time processing requirements.

Technical Parameters:

Applications:

Intelligent retail shelf monitoring: Utilizing high pixels to capture the details of product display, wide-angle lenses to cover the entire 3-meter shelf, and the automatic focusing function to accurately identify the actions of product retrieval.
Underwater robot visual navigation: The F2.2 aperture increases the light intake in muddy waters. The VCM motor, in combination with a focusing range of 10cm to ∞, significantly expands the detection range.
Industrial precision measuring instrument: 3.85mm EFL lens combined with 13MP sensor achieves ±0.01mm level size measurement. The large depth of field ensures the overall clarity of the inclined measured surface.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
