Separate-Type USB OCHTA10 Sensor Ultra-Mini Camera Module

Separate-Type USB OCHTA10 Sensor Ultra-Mini Camera Module

  • Product Name
    USB Interface Endoscope Camera Module
  • Sensor
    OCHTA10
  • Focusing Range
    3-30mm
  • FOV(N*V)
    100°*100°
  • Focal Length
    0.175mm
  • F. NO
    2.8
  • Brand Name
    SincereFirst
  • Warranty
    10 Years
  • Type
    D0.9mm Endoscope Module
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCERE FIRST
  • Certification
    CE, FCC, RoHS, REACH, ISO
  • Model Number
    SF-C016USB-D0.9
  • Minimum Order Quantity
    5pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C,Western Union,T/T,MoneyGram,Paypal and Others
  • Supply Ability
    350000 pcs / month

Separate-Type USB OCHTA10 Sensor Ultra-Mini Camera Module

Separate-Type USB OCHTA10 Sensor Ultra-Mini Camera Module

Separate-Type USB OCHTA10 Sensor Ultra-Mini Camera Module 0

Product Description:

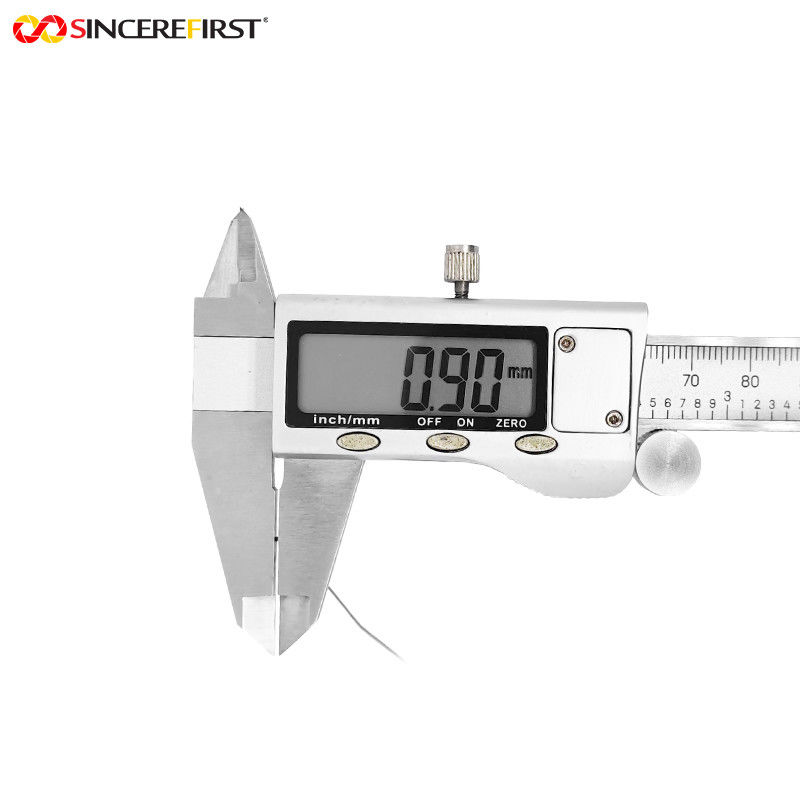

  • This is separate-type USB OCHTA10 sensor ultra-mini camera module. This endoscope module combines a 0.9mm diameter lens assembly with a remote processing unit, delivering 400×400 pixel resolution through simultaneous YUV/MJPEG output streams. With 3-30mm adjustable focus, F2.8 aperture and 100°×100° field of view, its partitioned architecture unlocks novel inspection possibilities.

Features:

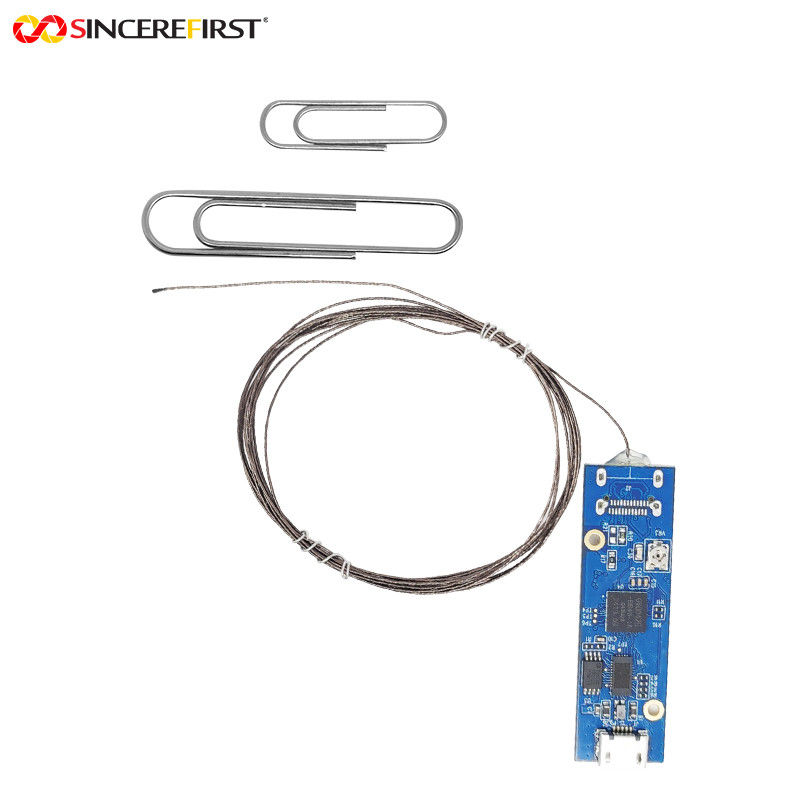

1. Modular Imaging System: The sub-1mm probe connects to external electronics via micro-cable, enabling access through ≤1mm openings while isolating sensitive components.
2. Distortion-Corrected Optics: Maintains <-11% geometric distortion across entire focus range for accurate micro-scale documentation.
3. Adaptive Visual Parameters: Independent adjustment of 100° FOV and F2.8 aperture ensures optimal imaging in confined spaces.





Technical Parameters:

Product Name

Ima Sensor Endoscope Camera Module

Sensor

OCHTA10

Focus Range3-30mm

FOV(H*V)

100°*100°

Distortion

≤-11%

Format

YUV&MJPG

Features

Separate-Type Endoscope Camera Module

Interface

 USB Interface

Warranty

10 Years

F. NO

2.8


Applications:

Precision Horology: Inspects mechanical watch movement components through jewel bearing apertures.
Nuclear Facility Monitoring: Conducts remote visual checks in radioactive environments with shielded processing units.
Automotive Engineering: Verifies fuel injector nozzle geometries without disassembly.
Biological Research: Records microscopic aquatic organism behaviors in pressurized laboratory habitats.

Separate-Type USB OCHTA10 Sensor Ultra-Mini Camera Module 1

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.

4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

About US:

Separate-Type USB OCHTA10 Sensor Ultra-Mini Camera Module 2



Cooperative Brands & Customers:

Separate-Type USB OCHTA10 Sensor Ultra-Mini Camera Module 3



Why Chooes US:

Separate-Type USB OCHTA10 Sensor Ultra-Mini Camera Module 4


Detail Pictures:

Separate-Type USB OCHTA10 Sensor Ultra-Mini Camera Module 5
Separate-Type USB OCHTA10 Sensor Ultra-Mini Camera Module 6Separate-Type USB OCHTA10 Sensor Ultra-Mini Camera Module 7
