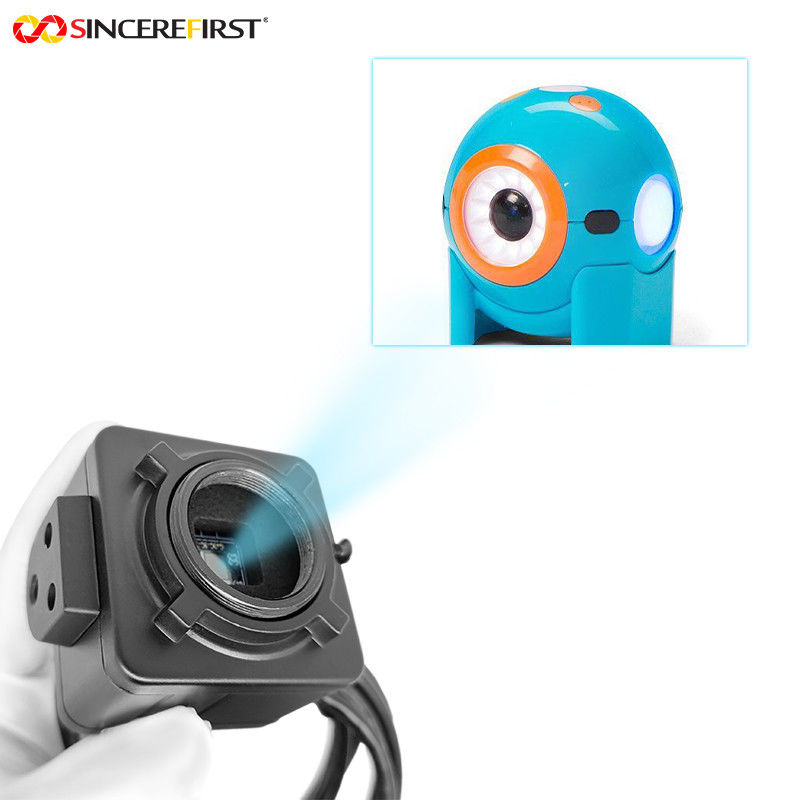

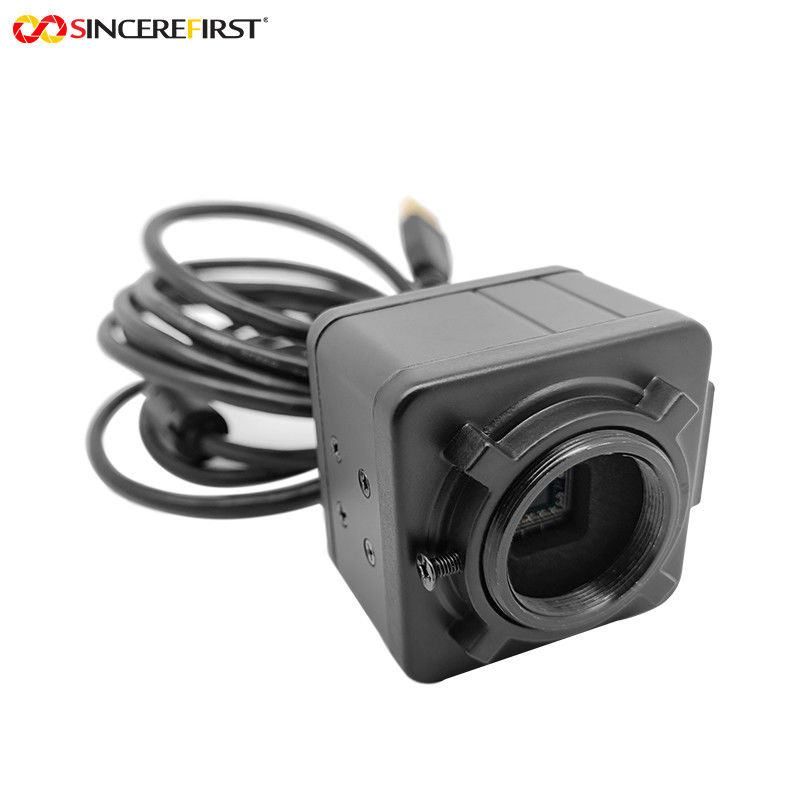

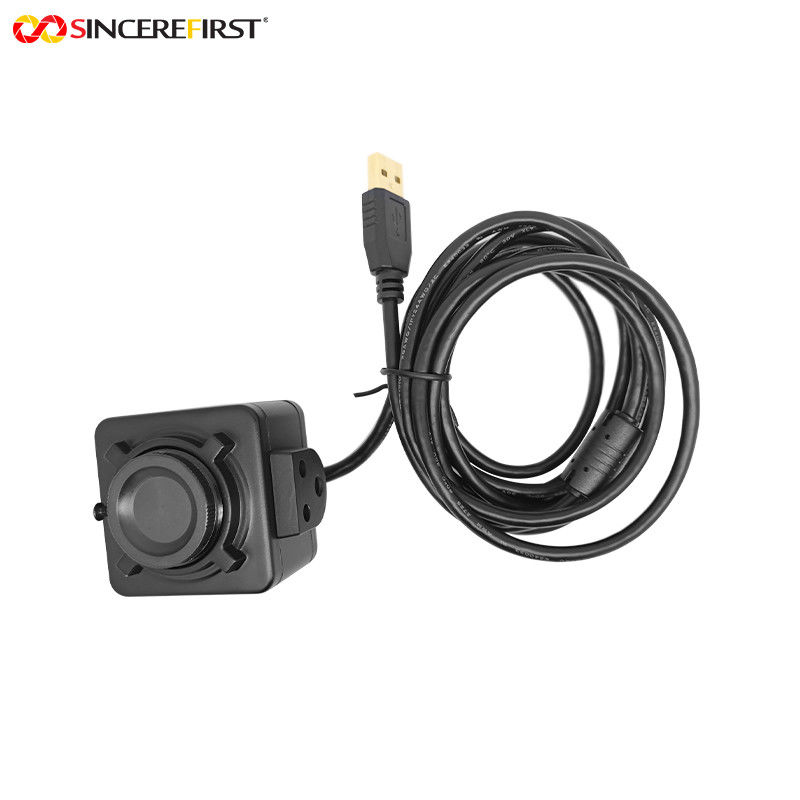

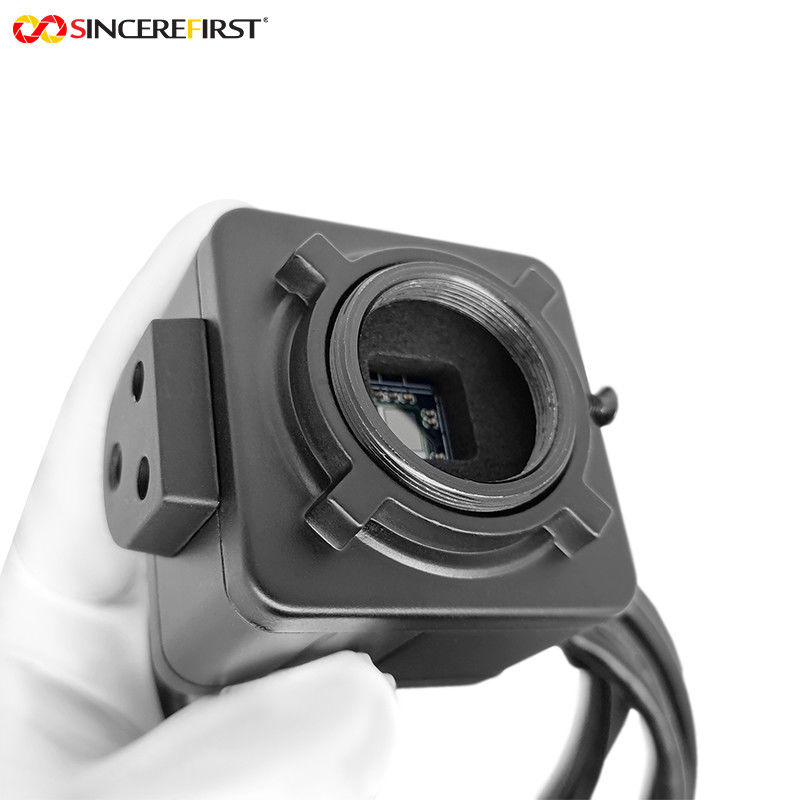

This global shutter OmniVision OV2312 image sensor USB camera module with shell, featuring a 1/2.9-inch optical sensor size that enhances light capture efficiency for superior imaging capabilities. The 3μm large pixel size significantly boosts signal-to-noise ratio and detail rendition in dim environments, while supporting 1080P@60FPS high-definition video output for seamless motion capture. It offers dual video format compatibility with MJPG and YUY2, ensuring flexibility in data processing and storage. The compact 38mm*38mm module design includes an industrial-grade casing for durability, and integrates plug-and-play functionality via USB2.0 interface with native UVC protocol support for effortless compatibility across platforms. Global shutter technology effectively eliminates motion blur during high-speed imaging sequences. Additionally, it accommodates standard M12 and C/CS interface lenses for easy optical customization, with options for exclusive lenses and microphone modules to meet specific integration needs.
1. Super Low Light Imaging: 3μm large pixel + 1/2.9-inch sensor significantly improves signal-to-noise ratio in low light conditions, with clearer details in the dark areas.
2. Motion Capture: Global shutter +1080P@60FPS eliminates high-speed motion blur, suitable for dynamic scene shooting.
3. Quick and Easy to Use: USB2.0 interface supports UVC protocol plug and play compatible with Windows/Linux/Android, driverless quick deployment.
4. Flexible Customization: Supports M12/C/CS standard interface lens , enabling flexible expansion of optical solutions such as wide-angle and telephoto.
5. Robust Protection: The industrial casing provides comprehensive protection and is suitable for the harsh industrial environment.
| Product Name |
Color Sensor USB2.0 Camera Module |
|
Sensor |
OV2312 CMOS Sensor |
|
Pixel |
2MP |
|
Shutter Type |
Global Shutter |
|
Focusing Range |
1cm-∞ |
|
Module Size |
38mm*38mm |
|
Lens Size |
1/4inch |
|
Focus Type |
FF |
|
Interface Type |
USB |
|
Brand Name |
SINEREFIRST |
1. Fingerprint Scanner: It collects the user's fingerprint biometric features, extracts the pattern details through algorithms and compares them with the database to complete identity verification or access control permission control.
2. Self-Checkout counter: Automatically identifies goods and calculates the amount through scanning codes or RFID technology, supports multiple payment methods, and synchronously updates inventory data.
3. Outdoor Security Monitoring: All-weather real-time video collection and storage, automatically detects anomalies through AI algorithms and triggers alarms.
4. Video Conferencing Terminal: It enables remote real-time communication, supports high-definition picture quality transmission, multi-party meetings, screen sharing and mobile access, and provides auxiliary functions such as recording and encryption.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
