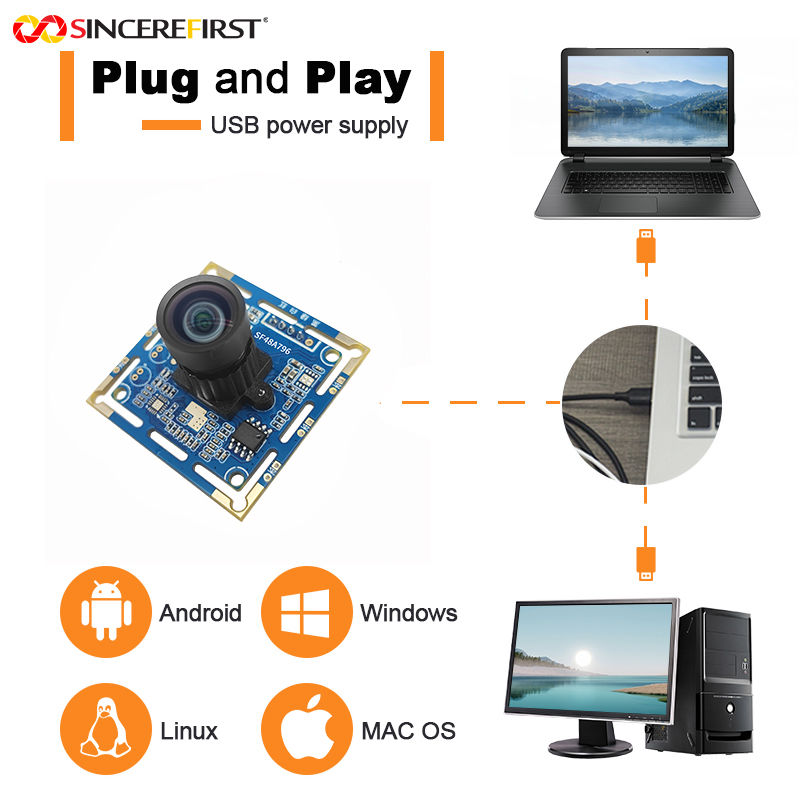

This industrial-grade Sony 48MP IMX586 image sensor USB 2.0 camera module, featuring a 1/2-inch optical format and 0.8μm pixels with Quad Bayer technology. It delivers exceptional 4K resolution imaging (up to 90fps) and excels in diverse lighting through pixel-binning (1.6μm equivalence in low light) for enhanced sensitivity and dynamic range. The module includes an IR650 filter for accurate color reproduction, supports full-range autofocus (1cm to ∞), and offers UVC plug-and-play compatibility. Its compact 38x38mm design and comprehensive SDK enable rapid integration into vision systems requiring ultra-high detail capture.
1.Ultra-High-Definition imaging: Utilizing intelligent pixel aggregation technology, it can output 48-megapixel ultra-clear images in strong light conditions. In low light, it automatically switches to the four-in-one pixel mode, achieving equivalent 1.6μm large pixel light sensitivity and increasing the dynamic range by 300%.
2. Professional-Grade Optical System: The precision IR filter achieves a visible light transmittance of over 95%, supports continuous focusing from macro 1cm to Infinity, and is combined with a noise reduction algorithm to effectively suppress high ISO noise.

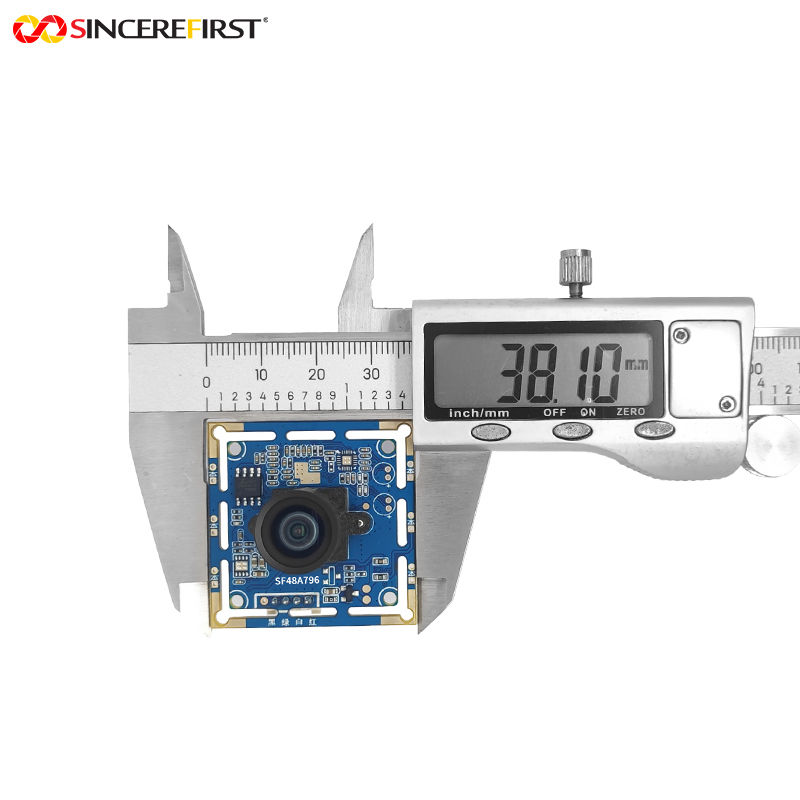

3. Industrial Adaptation Design: Compact size of 38mm*38mm, supports wide temperature range operation from -20℃ to 70℃, achieves stable and high-speed data throughput through USB2.0 interface, and provides SDK and developable interfaces.
| Product Name |
Color Sensor USB2.0 Camera Module |
|
Sensor |
IMX586 CMOS Sensor |
|
Pixel |
48MP |
|
Pixel Size |
0.8μm*0.8μm |
|
Focusing Range |
1cm-∞ |
|
Module Size |
38mm*38mm |
|
Lens Size |
1/2inch |
|
Focus Type |
FF |
|
Interface Type |
USB |
|
Brand Name |
SINEREFIRST |
1. Drone Aerial Photography: 38mm compact size suitable for gimbal modification.
2. Facial Recognition Terminal: IR filter ensures accurate separation of RGB-IR dual spectra.
3. Electronic Component Solder Joint Detection: With a native pixel resolution of 0.8μm, it can identify false soldering defects of 0201 packaged components.
