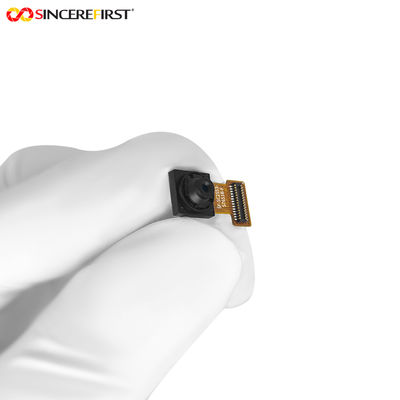

This is wide angle 5MP micro MIPI BF2553 image sensor camera module, delivering 5-megapixel (2592 x 1944) still image capture and 1920x1080 Full HD video output. It incorporates a 1/5-inch optical format CMOS sensor built with a 1.12μm pixel process, enhancing individual pixel light sensitivity for detailed imaging across diverse lighting conditions. Key optical features include a fixed 1.4mm focal length lens with a wide F2.2 aperture and an ultra-wide 120-degree diagonal field of view (105° HFOV / 80° VFOV). A specialized 3P+IR optical structure minimizes geometric distortion to below -1.5%, preserving edge-to-edge image clarity.
Hardware innovations center on compact integration: COB (Chip-on-Board) packaging achieves an extremely small maximum imaging circle diameter of just 3.90mm. Data transmission utilizes the high-speed MIPI interface. This combination of a small 1/5-inch sensor footprint and advanced packaging makes the module exceptionally space-efficient. It is engineered for applications demanding wide-angle coverage, minimal distortion, and a miniature profile, such as smart home security, robotic vacuum navigation, drone obstacle avoidance, automotive blind-spot monitoring, and panoramic access control systems. The design prioritizes reliable performance in volume-constrained environments.
1. High-Resolution Imaging: 5MP resolution supports HD image output and 1080P video output.
2. Ultra-Wide Field of View: 120° diagonal field of view (105° horizontal / 80° vertical) achieves panoramic coverage.
3. Low-Light Optimization: The 1.12μm large-pixel process improves imaging quality in low-light environments.
4. Optical Distortion Control: The 3P+IR lens structure keeps geometric distortion within -1.5%.

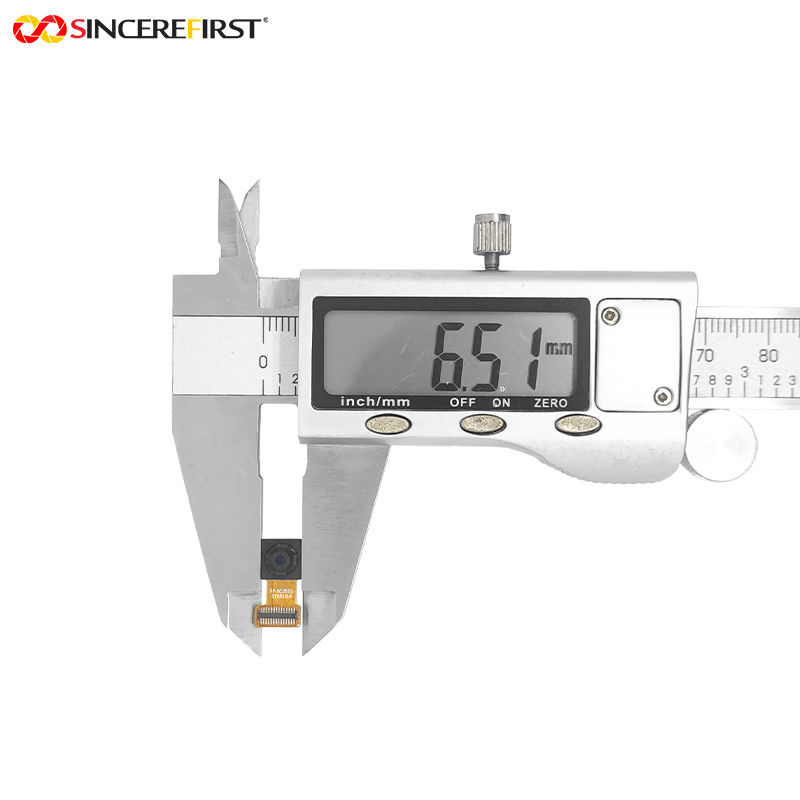

5. Miniaturized Design: COB packaging reduces the imaging circle diameter to just 3.90mm, suitable for compact spaces.
6. High-Speed Data Transfer: The MIPI interface ensures smooth data transmission.
7. Multi-Scenario Adaptation: Optimized for space-sensitive applications such as smart home, automotive systems, drones, and more.

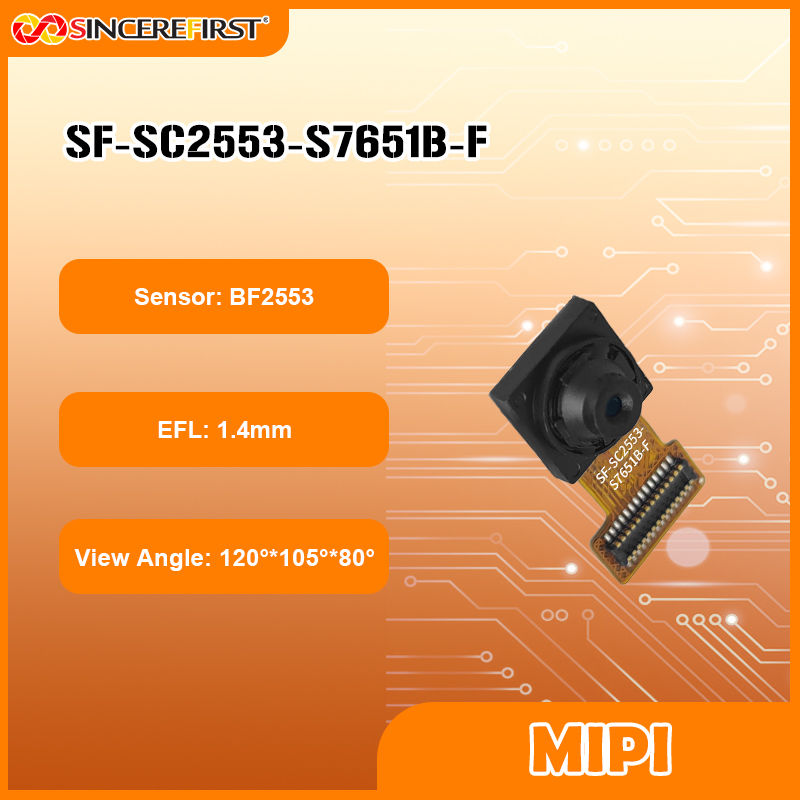

| Product Name |
5MP Fixed Focus Camera Module |
|
Sensor |
BF2553 CMOS Sensor |
| Piexl | 5MP |
|
F.NO |
2.2 |
|
Output Interface: |
MIPI |
|
Sensor Size |
1/5 Inch |
|
Keywords |
CMOS Camera Module |
|
Warranty |
10 Years |
|
EFL |
1.4mm |
|
Brand Name |
SINCEREFIRST |
Industrial Robotic Arms: Geometric distortion of less than 1.5% ensures precise visual positioning for assembly.
AR Glasses: The ultra-small imaging circle is compatible with lightweight head-mounted displays, and low distortion ensures accurate integration of virtual and real elements.
In-Vehicle DMS System: A 105° horizontal field of view simultaneously monitors the behavior of the driver and front passenger.
Production Line Inspection: COB packaging is resistant to vibration, making it suitable for installation at the end of robotic arms.

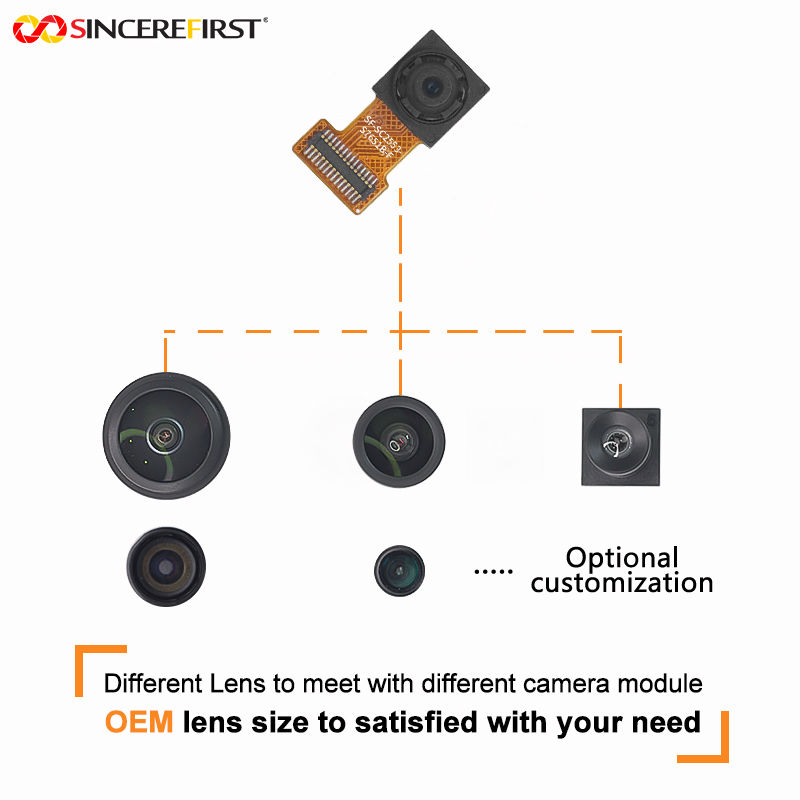

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
