1MP HD OV9734 Sensor Endoscope Camera Module

1MP HD OV9734 Sensor Endoscope Camera Module

Product Description:

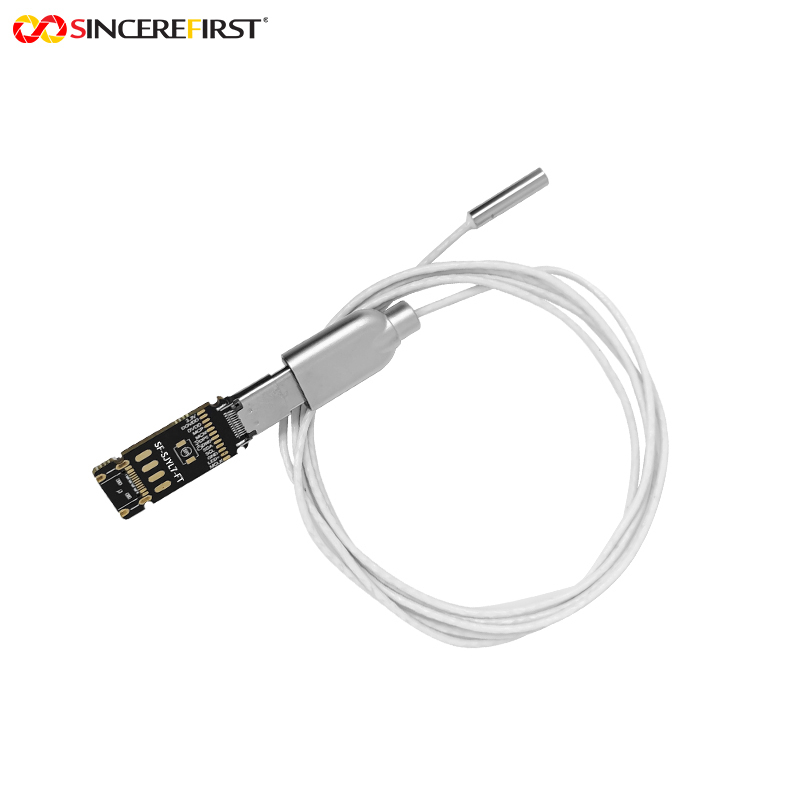

• This is a 1MP HD OV9734 sensor endoscope camera module, specially designed for fine detection scenarios. It is equipped with the OmniVision OV9734 CMOS color image sensor, with 1MP pixels capable of outputting 1280x720 resolution images and a maximum frame rate of 30FPS to ensure smooth image. The 1/9-inch sensor, combined with a pixel size of 1.4μmx1.4μm, offers strong light sensitivity and clear color reproduction.​

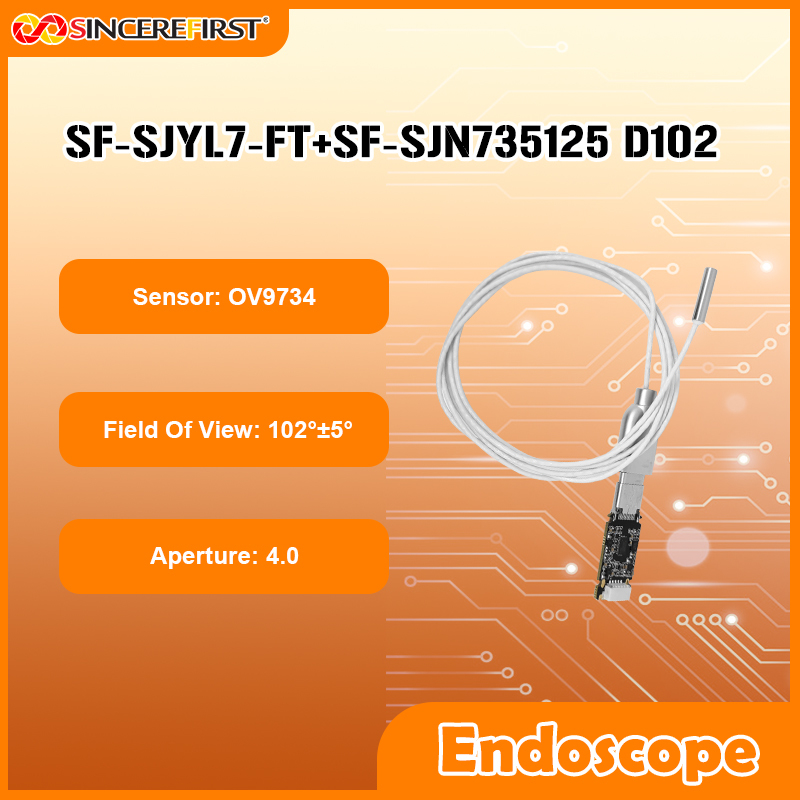

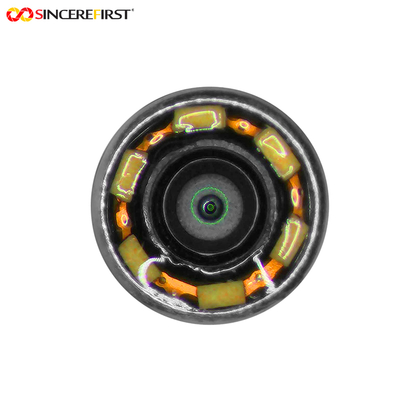

  The lens has an aperture of F4.0, a focusing range of 5-15mm, a 102° wide field of view, and supports manual focusing. With a diameter of 3.5mm and a steel shell, it balances slimness and durability, and can cope with dim environments thanks to the integrated 4 LED beads. It adopts a Type-C interface, supports USB 2.0 speed and UVC protocol for plug-and-play use. Manufactured through SMT (Surface Mount Technology) and AA (Active Alignment) processes, it features stable performance and high precision.

Features:

1. Clear and Smooth Images: The combination of OV9734 sensor, 1280x720 resolution, and 30FPS frame rate ensures no image trailing. The 1.4μmx1.4μm pixel size enhances light sensitivity for accurate detail reproduction.

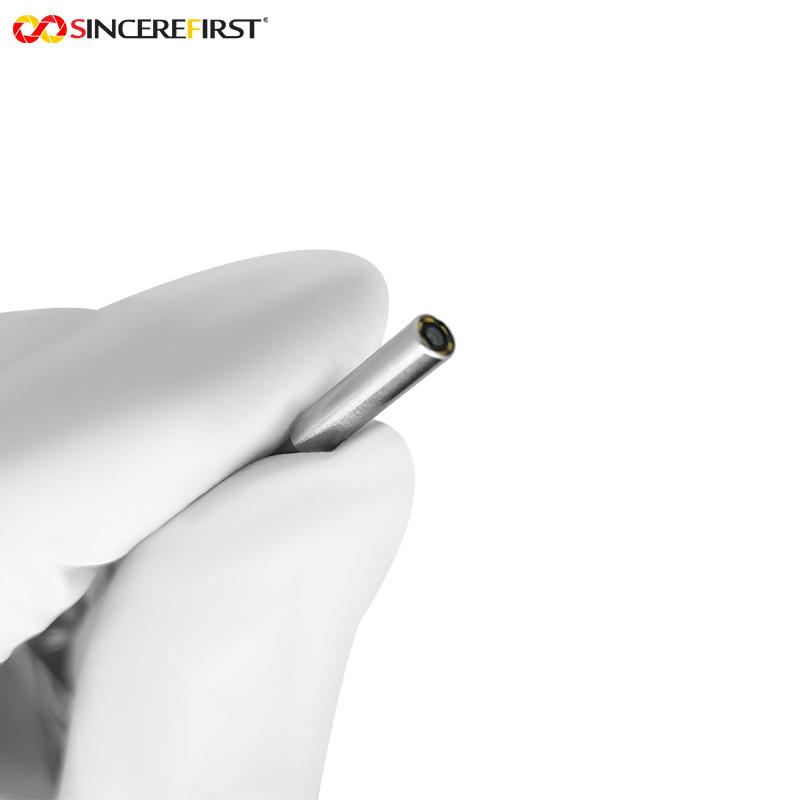

2. Strong Adaptability: The 3.5mm lens with a steel shell can enter narrow spaces and resist wear. The 102° field of view plus 5-15mm focusing range balances wide-area detection and local focusing.
3. Convenient Use and Low Cost: Type-C interface and UVC protocol enable plug-and-play without driver installation. The universal interface eliminates the need for additional connecting cables.

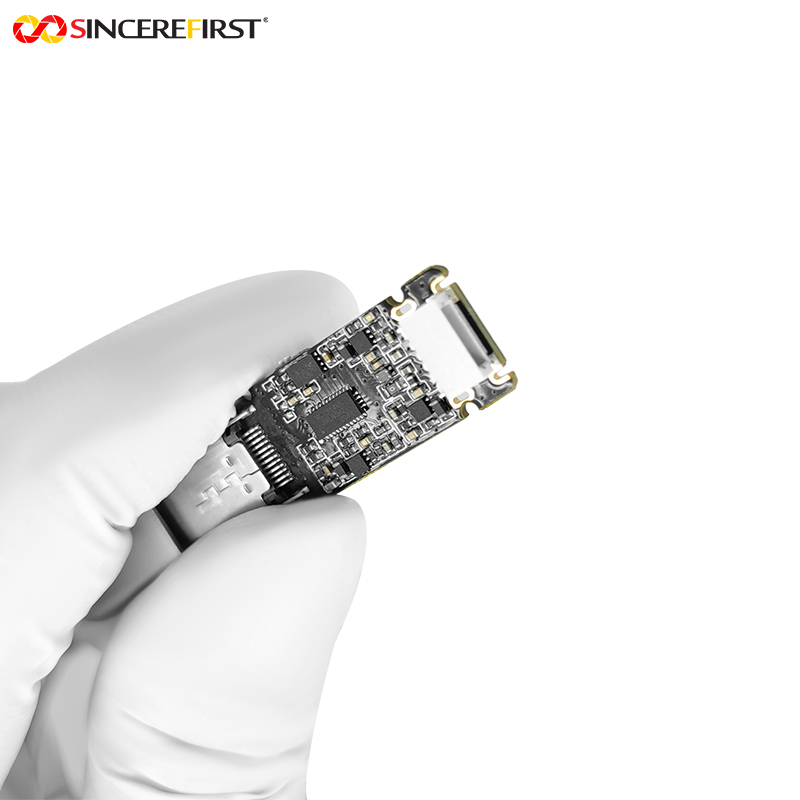

4. Stable Quality: SMT ensures firm component soldering, while AA process improves optical precision, reducing faults and maintenance costs.

Technical Parameters:

Applications:

Pipeline Detection Field: It can detect blockages, cracks in municipal drainage pipelines, corrosion and scaling in industrial pipelines, water leakage in building water supply and drainage pipelines, and aging of household gas pipelines. The LED beads and wide field of view guarantee detection efficiency.
Industrial Equipment Maintenance: It can go deep into the interior of equipment such as motors and gearboxes to detect part wear and loose circuits. Manual focusing allows precise viewing of fault points, facilitating quick maintenance.
Medical Auxiliary Examination: Used in dentistry, otolaryngology, etc., the 3.5mm slim lens can enter small cavities. Clear images assist doctors in observing conditions and provide references for diagnosis.
Electronic Equipment Detection: It checks the interior of precision equipment like mobile phones and computers to see if motherboard solder joints and components are damaged. High resolution can capture tiny faults, making it easy for maintenance personnel to troubleshoot problems.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
