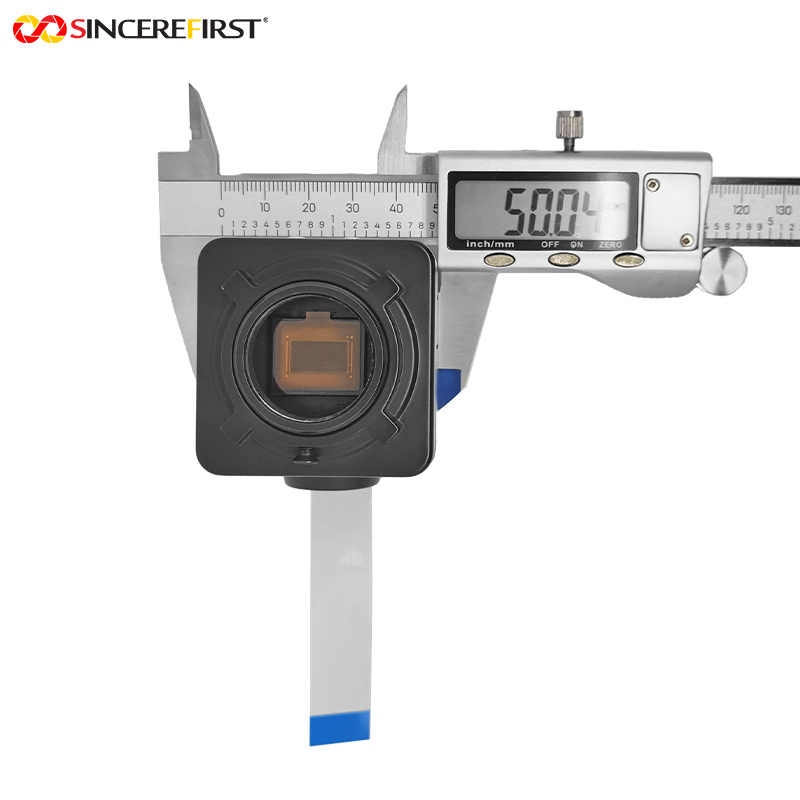

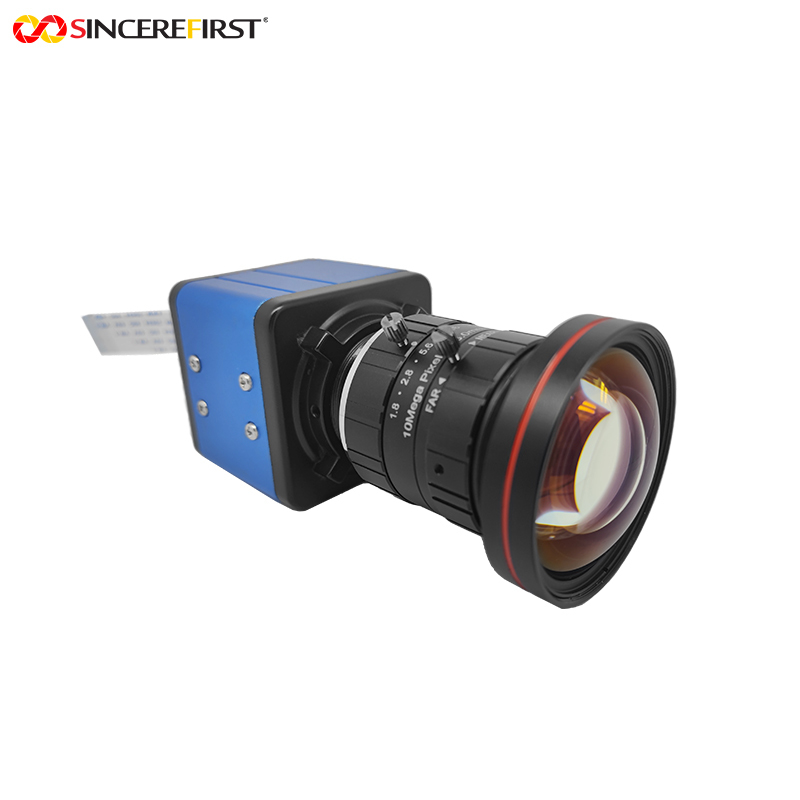

This is a 4K high-performance STARVIS Sony IMX585 CMOS HDR MIPI camera module. It employs a Sony IMX585 CMOS color image sensor with 8 effective megapixels (3840×2160), supporting 4K resolution video output at a maximum frame rate of 30 FPS. The sensor size is 1/1.2 inches, with a single pixel size of 2.9μm×2.9μm. Utilizing advanced STARVIS 2 technology, it supports HDR high dynamic range imaging and achieves an ultra-high dynamic range of 88dB with a single exposure. The module has a focusing range from 10cm to infinity, a aperture of 1.8-16, a field of view of 79.7°, and optical distortion of less than 1%. It features manual focus and comes with a housing and lens, with overall dimensions of 97.63mm×50mm×50mm. Data transmission is handled via an MIPI interface, and the module is manufactured using SMT (ROHS) processes and AA active alignment production techniques, ensuring high reliability and consistency.
1. Exceptional HDR Performance: 88dB dynamic range with a single exposure, capable of preserving both highlight and shadow details under extreme lighting conditions.
2. Ultra-Low Optical Distortion: Less than 1% distortion rate ensures geometric accuracy of images, providing reliable support for measurement and recognition applications.
3. Flexible Focal Length Range: aperture of 1.8-16 adapts to multiple shooting distances and scene requirements.
4. Industrial-Grade Reliability: SMT processes and AA production techniques ensure stability and durability in various environments.
5. Outstanding Low-Light Performance: STARVIS 2 technology combined with a large 2.9μm pixel size delivers clear images even in low-light environments.
| Product Name |
8MP Fixed Focus Camera Module |
|
Sensor |
IMX585 CMOS Sensor |
| Piexl | 8MP |
|
Focusing Range |
1cm~Infinity |
|
Output Interface: |
MIPI |
|
Sensor Size |
1/1.2 Inch |
|
Keywords |
CMOS Camera Module |
|
Warranty |
10 Years |
|
F.NO |
1.8~16 |
|
Brand Name |
SINCEREFIRST |
Security Monitoring Systems: HDR functionality effectively handles backlit scenes, while low distortion ensures accuracy in facial recognition and license plate recognition.
Industrial Machine Vision: The less than 1% distortion makes it ideal for precision measurement, defect detection, and positioning applications.
Intelligent Transportation Systems: Provides clear road and vehicle images in both strong light and nighttime environments, supporting traffic flow monitoring and violation capture.
Inspection Robots: HDR functionality adapts to complex outdoor lighting conditions, while low distortion ensures accuracy in mapping and inspection data.
Medical Imaging Equipment: High dynamic range and image geometric fidelity meet the high image quality requirements of medical diagnostics.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
