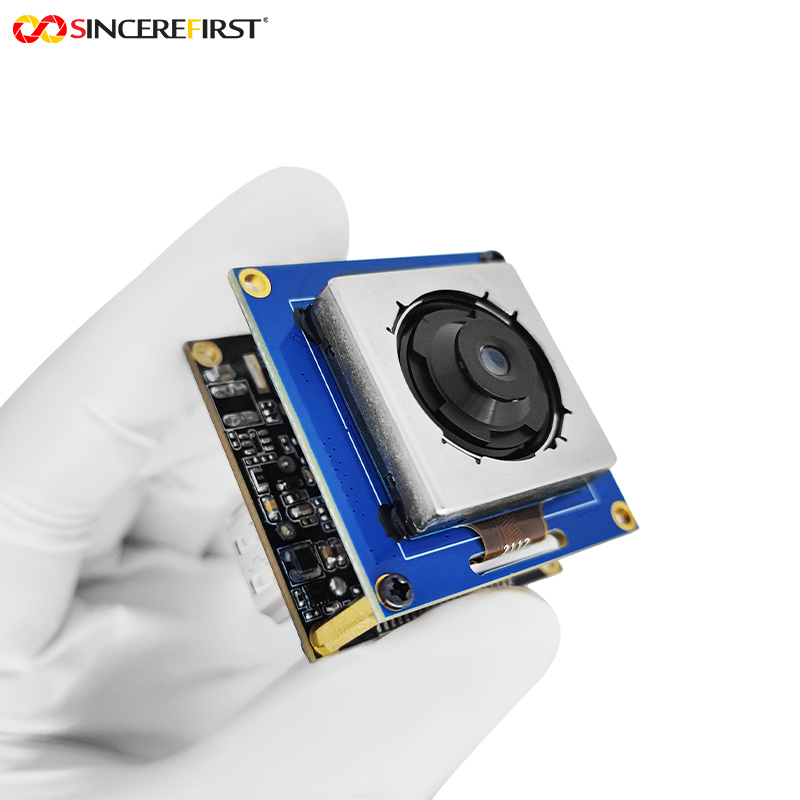

This is a 4K 60FPS high-frame-rate IMX283 CMOS auto-focus USB camera module. It is equipped with Sony's 1-inch large-format IMX283 CMOS image sensor, boasting 20-megapixel ultra-high resolution. It can capture static details at the native full resolution of 5472×3648, and also output 4K@60fps ultra-clear video or 1080P@120fps high-speed images. Its core parameters include 2.4μm large-size pixels, a 75° standard field of view, and an auto-focus range from 10cm to infinity.

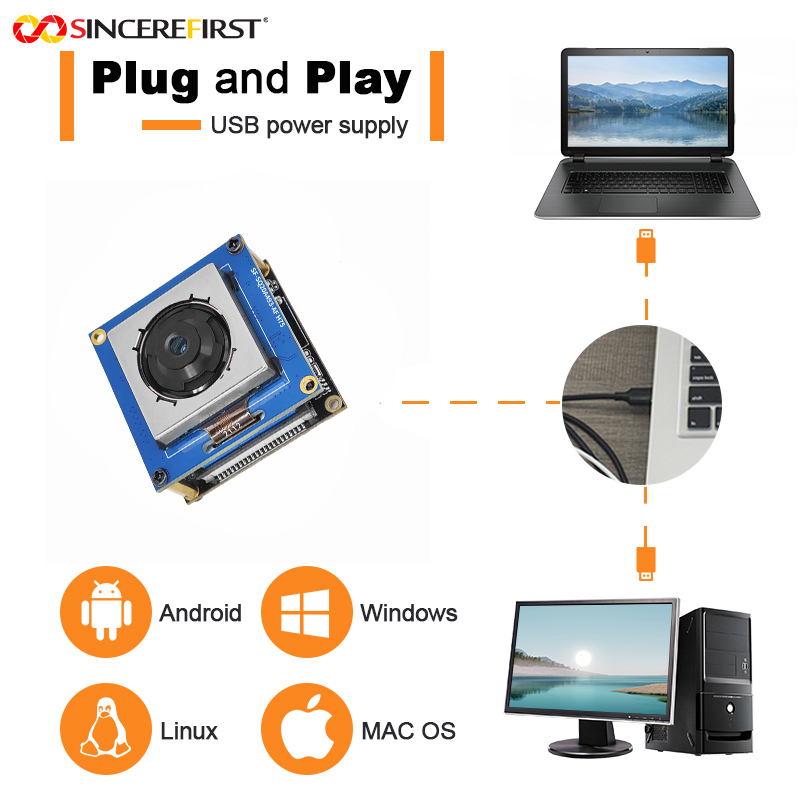

In terms of interfaces, the module features forward-looking design: it adopts a Type-C interface, supports USB 3.0 high-speed transmission and the UVC protocol, ensuring broad compatibility; meanwhile, it is ingeniously equipped with a direct HDMI output interface. With its compact 38mm×38mm form factor, combined with SMT (ROHS) environmentally friendly manufacturing process and AA (Active Alignment) auto-focus production, it has established excellent reliability and consistent imaging quality.
1. Superior Low-Light Performance: Benefiting from the 1-inch large-format sensor and 2.4μm large pixels, compared with products with ordinary small-size sensors, this module has a larger light-sensitive area and higher light intake per pixel. This means that in complex or dim lighting environments, it can effectively suppress noise, deliver purer images with richer details, and achieve high-quality imaging across all scenarios from bright to low-light conditions.
2. Industrial-Grade Stability: The SMT (ROHS-compliant) manufacturing process ensures high precision and consistency during module production and soldering, avoiding issues such as cold soldering and enhancing durability in harsh environments like vibration, high/low temperatures. Combined with AA (Active Alignment) production, it guarantees perfect alignment between the optical center and the sensor center of each module, providing optimal and consistent MTF (Modulation Transfer Function) performance—this is crucial for machine vision applications that require precise measurement.
3. High Integration & Flexibility: The module provides dual output interfaces (USB and HDMI) simultaneously, creating unique deployment flexibility. The USB interface facilitates connection to computers or embedded hosts (e.g., Raspberry Pi) for image processing and analysis; the HDMI interface, on the other hand, offers independent real-time display capability with zero latency and no reliance on a host. It is highly suitable for digital signage, on-site monitoring large screens, or direct output as a microscope camera, greatly expanding application boundaries.

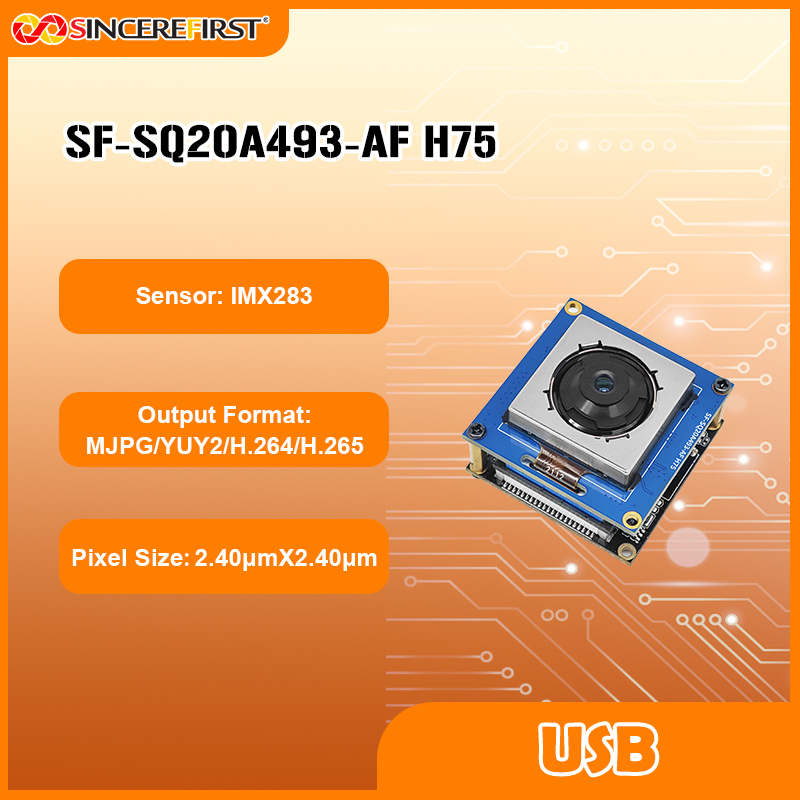

| Product Name |
4K 60FPS Industrial Camera Module |
|
Sensor |
Sony IMX283 CMOS Sensor |
| Piexl | 20MP |
|
Focusing Range |
10cm~Infinity |
|
Output Interface |
USB3.0, HDMI |
|
Sensor Size |
1 Inch |
|
Keywords |
Auto Focus Camera Module |
|
Warranty |
10 Years |
|
Pixel Size |
2.4μm |
|
Brand Name |
SINCEREFIRST |
Intelligent Transportation & Security Surveillance: Leveraging its 20-megapixel ultra-high resolution, a single camera can cover wide lanes or squares. After software cropping, it can still clearly identify license plates or facial details, realizing "one camera for multiple uses" and reducing costs. H.265 encoding can significantly save network transmission bandwidth and backend storage space, meeting the economic needs of long-term deployment.
Life Sciences & Microscopic Imaging: When observing cell or tissue sections under a biological microscope, the full-resolution mode can capture high-definition global images of entire sections for archiving and subsequent detailed analysis; the 1080P@120fps high-frame-rate mode can be used to record the movement or division processes of living cells, capturing instantaneous dynamics.
High-End Commercial Display & Interactive Devices: Thanks to its direct HDMI output function, the module can connect directly to large screens to play 4K promotional videos without a computer host, creating high-definition advertising players. Meanwhile, its 75° field of view and auto-focus feature also make it a stable and reliable "eye" in interactive display windows or somatosensory interactive games.
Online Quality Inspection in Precision Manufacturing: The excellent optical consistency guaranteed by the AA process ensures that when multiple cameras are deployed on a production line, the imaging quality of each unit is highly uniform, facilitating the establishment of unified inspection standards. The smooth 4K@60fps output allows real-time shadow-free inspection of high-speed moving components, enabling timely detection of production defects.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
