This is a USB 3.0 Sony IMX415 CMOS 4K HDR sensor mini camera module. Centered on the Sony IMX415 sensor, it targets mid-to-high-end universal imaging needs and boasts comprehensive parameter advantages. It features 8MP effective pixels and can stably output 60FPS dynamic images at 4K resolution (3840×2160), balancing delicate image quality and smooth video transmission. The sensor measures 1/2.8 inch with a pixel size of 1.45μm×1.45μm; combined with Sony’s exclusive STARVIS technology and HDR function, it optimizes imaging in low-light and high-contrast scenarios, ensuring excellent light-sensing performance and a wide dynamic range under complex lighting conditions. It covers three mainstream output formats—MJPG, YUY2, and H.264—allowing flexible switching based on storage capacity and bandwidth, thus providing versatile encoding options. Adopting manual focus, it offers a focus range from 1cm (macro) to Infinity, enabling precise adaptation to both close-up detail shooting and long-distance capture needs. It uses a Type-C interface and supports USB 3.0 high-speed transmission rate, ensuring lag-free transmission of 4K@60FPS image data. Meanwhile, it is compatible with the UVC universal video protocol, enabling direct adaptation to mainstream operating systems such as Windows, macOS, and Linux. It also supports SDK for in-depth development, facilitating secondary development and function customization for enterprise users. With a compact physical size of only 38mm×38mm, the module is manufactured using SMT (ROHS) process and AA (Active Alignment) process, guaranteeing product precision and consistency. Additionally, it has passed international safety and environmental certifications including FCC, CE, Reach, and RoHS, meeting compliance requirements in European and American regions.

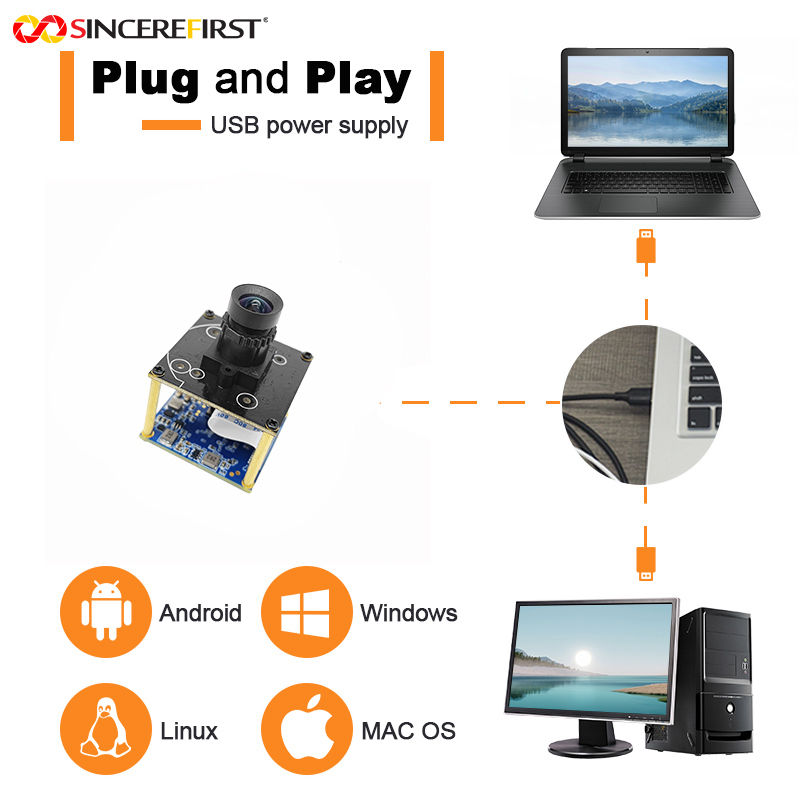

1. Low-Threshold Customization and Deployment: Supports SDK development to meet personalized functional needs. Combined with the UVC protocol and Type-C plug-and-play feature, no additional drivers are required, shortening the deployment cycle for multiple devices.
2. High-Precision Scenario Adaptation: Avoids focus shift in complex scenarios. The 1cm macro function captures close-up details, while manual focus locks onto distant targets, meeting both close-up observation and long-distance capture needs.
3. Superior Night Vision and Backlight Handling: STARVIS technology increases light intake and reduces noise in low-light conditions; HDR balances bright and dark areas, adapting to multi-light scenarios such as low light and backlighting.

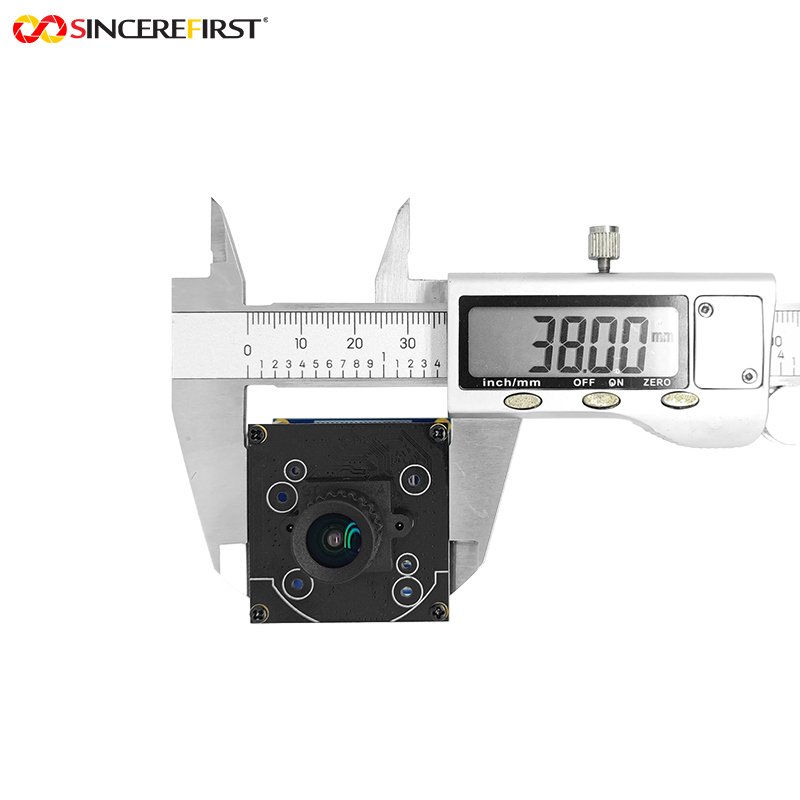

4. Efficient Transmission and Easy Integration: USB 3.0 ensures real-time transmission of 4K@60FPS without lag. The compact 38mm×38mm size allows easy integration into devices with limited space, and the SMT process enhances reliability.
| Product Name |
AI Vision 8MP Camera Module |
|
Sensor |
Sony IMX415 CMOS Sensor |
| Piexl | 8MP |
|
Focusing Range |
1cm~Infinity |
|
Output Interface |
USB3.0, Type-C |
|
Sensor Size |
1/2.8 Inch |
|
Keywords |
STARVIS Sensor Camera Module |
|
Warranty |
10 Years |
|
Pixel Size |
1.45μm |
|
Brand Name |
SINCEREFIRST |
All-Weather Security Surveillance: Suitable for monitoring in low-light environments and effectively handling backlit scenarios.
Industrial Machine Vision Inspection: Meets high-precision inspection needs and overcomes interferences like metal reflections.
Medical Research Imaging: Provides clear images for equipment such as endoscopes and microscopes.
Intelligent Traffic Management: Improves nighttime license plate recognition rate and copes with complex lighting conditions.
Professional Video Conferencing: Ensures natural and clear images in various lighting environments.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
