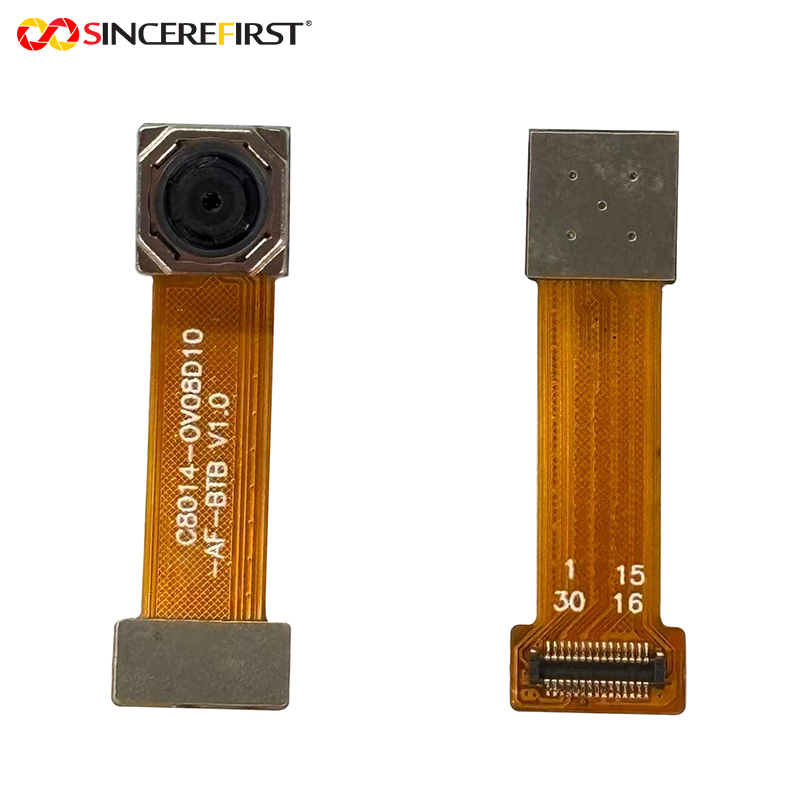

4K OmniVision OV8856 CMOS Autofocus Machine Vision Camera Module

4K OmniVision OV8856 CMOS Autofocus Machine Vision Camera Module

Product Description:

This is a 4K OmniVision OV8856 CMOS autofocus machine vision camera module, capable of outputting uncompressed raw image data. It preserves the most complete color information and dynamic range, providing maximum adjustment space for subsequent algorithm processing. It adopts OmniVision's 1/4-inch OV8856 CMOS sensor with a pixel size of 1.12μm x 1.12μm, balancing slim design with light-sensing performance; it supports 4K@30FPS image output, enabling smooth recording of dynamic scenes; it integrates HDR function and PureCel® technology — the former compensates for detail loss in strong light and shadows, while the latter helps improve light-sensing efficiency. In terms of optical parameters, the 2.57mm focal length is paired with an F2.4±5% aperture, allowing flexible switching between close-range shooting and medium-to-long-range framing; the field of view (D82.7°*H69.9°*V55.3°) can cover a wide image range, and with TV distortion < -0.8%, it effectively avoids stretching and deformation at the image edges. The focusing system supports wide-range autofocus from 10cm to Infinity, enabling quick locking of targets near and far; it uses the industry-universal MIPI CSI-2 interface for easy integration with various devices; in the production process, COB (Chip on Board) technology and AA (Active Alignment) process are adopted to ensure module consistency; at the same time, it has passed FCC, CE, Reach, and RoHS certifications, meeting the strict requirements for quality and environmental protection in the global market.

Features:

• High Color Quality & Post-Processing Flexibility: 10-bit RGB RAW output enables smooth color transitions, preserves complete raw data, and maintains image quality when adjusting white balance and exposure in post-processing.​
• Optical Adaptability for Multiple Scenarios: The combination of 2.57mm focal length and F2.4 aperture meets close-range focusing and medium-range light input needs; the 82.7° wide FOV covers large scenes, and TV distortion < -0.8% ensures neat image presentation.​
• HD Dynamic Recording with Low Burden: 8MP+4K@30FPS balances high-definition recording and low data volume, reducing storage usage and device processor load—suitable for low-power devices.​
• High Consistency & Compliance: The AA process ensures consistent imaging across modules of the same batch; multiple global certifications support export without additional compliance modifications.

Technical Parameters:

Applications:

1. Action Cameras: Suitable for small action cameras and Vlog cameras — FPC design enables thin and light integration, 4K recording captures dynamic scenes, and 10-bit RGB RAW restores true colors.​
2. Smart Wearables: Used in AR glasses and smart helmets — The small-sized sensor fits compact spaces; wide-range autofocus switches between close-range interaction and long-range viewing, and low distortion ensures AR fusion accuracy.​
3. Medical Aids: Applied in portable skin detectors and small pathological devices — High color accuracy restores subtle color gradations, 8MP resolution captures lesion details, and the F2.4 aperture ensures sufficient light input.​
4. Outdoor Cameras: Integrated into portable monitoring terminals and wildlife cameras — PureCel® enhances low-light imaging, the wide FOV covers monitoring areas, and RoHS certification supports long-term outdoor deployment.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

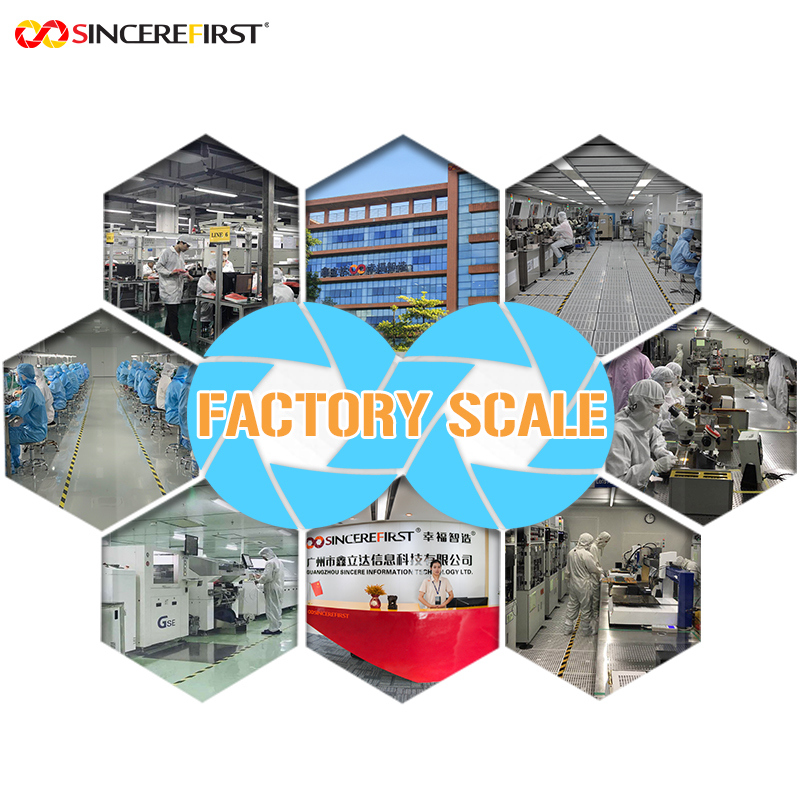

About US:

Cooperative Brands & Customers:

Why Chooes US:

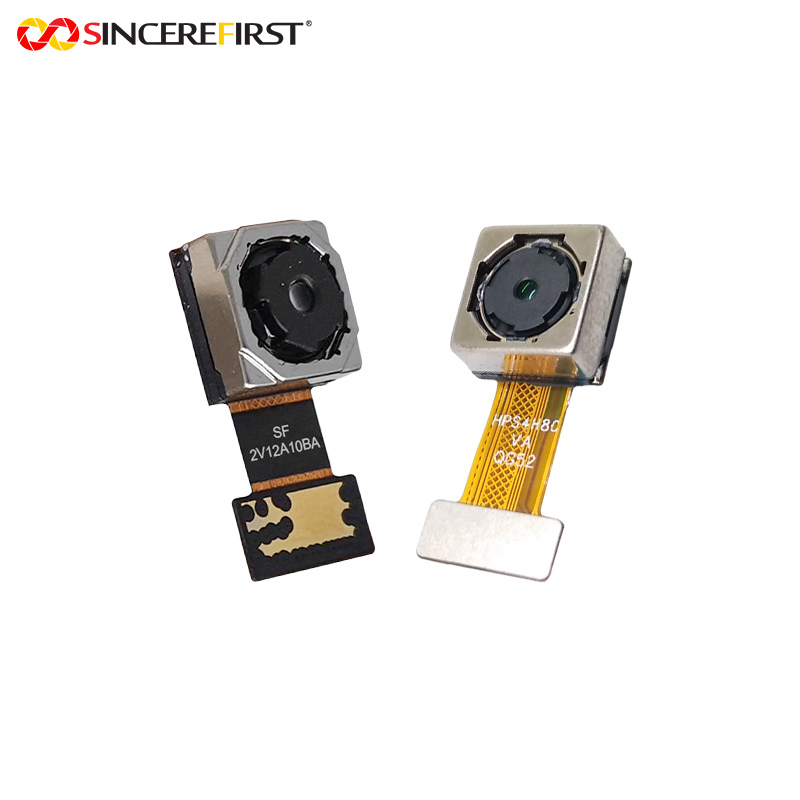

Detail Pictures:
