Medical And Industrial USB 2.0 CMOS Sensor Endoscope Camera Module
Product Description:

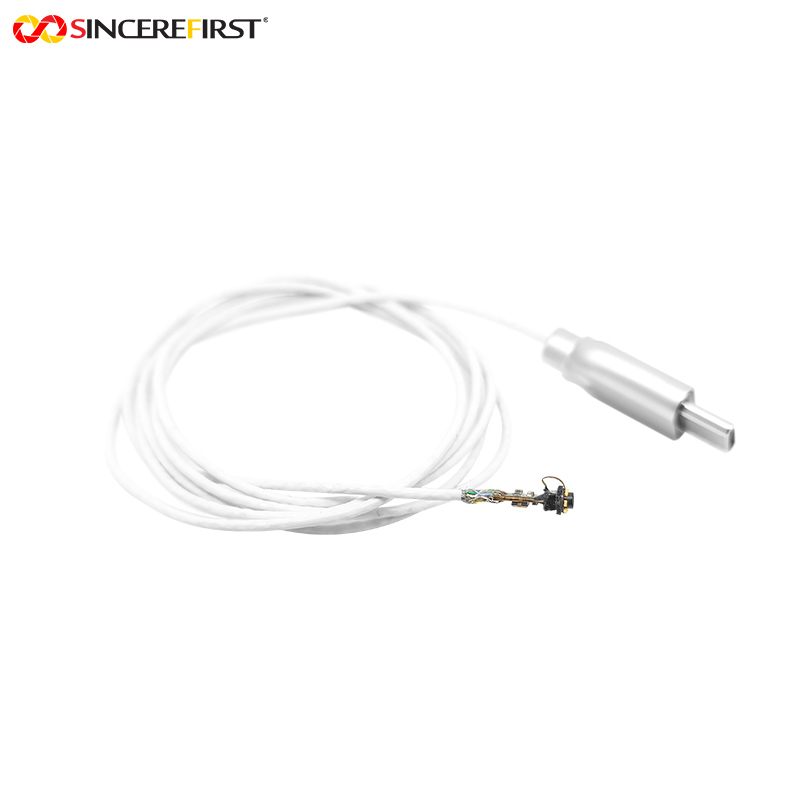

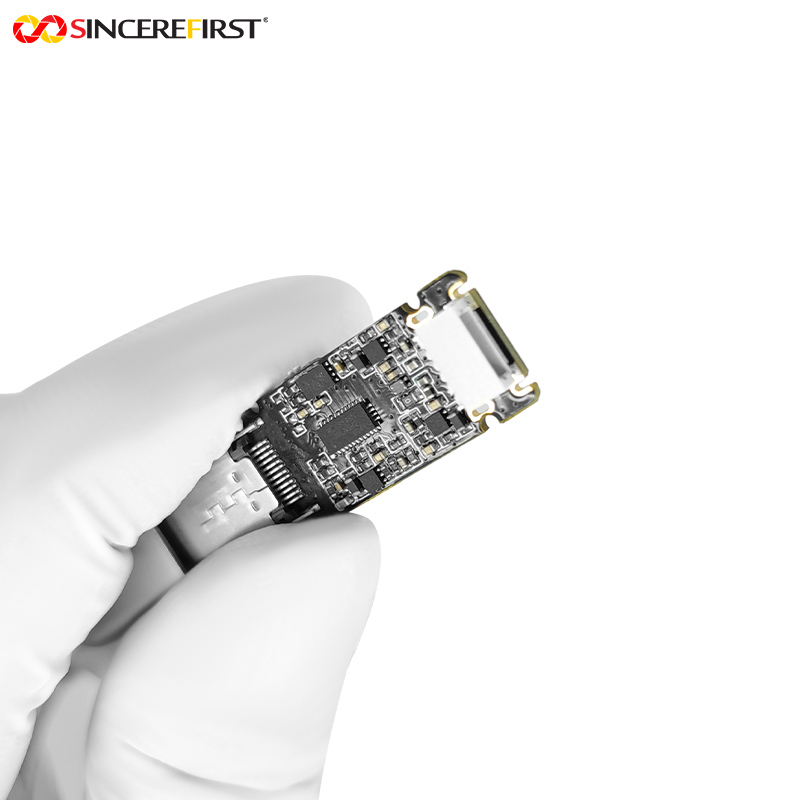

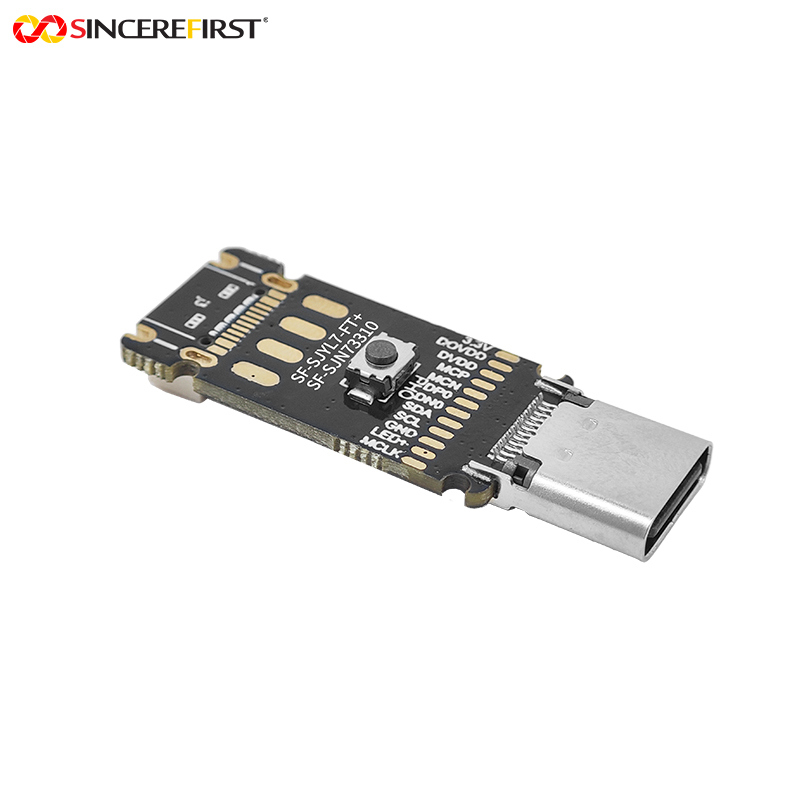

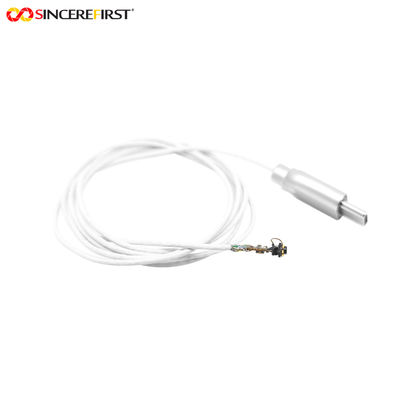

- This is a medical-grade 1MP OV9734 sensor LED endoscope camera bare module, developed based on OmniVision’s 1MP pixel CMOS image sensor. It supports 720P HD resolution and 30FPS smooth frame rate. The sensor adopts a 1/4-inch size structure, is equipped with 1.75μm×1.75μm large pixel units, and integrates PureCel® technology; through CSP packaging, it achieves better light-gathering ability and color reproduction performance. The optical system adopts a combination of F4.0 aperture and 102° wide-angle lens, supporting manual focus and direct-view imaging mode. The module uses an innovative separated architecture: it transmits MIPI signals to a dedicated DSP board via a Type-C interface, and finally outputs video streams at USB2.0 high-speed standard through a USB 5Pin interface, fully compatible with the UVC protocol. The 3.3mm ultra-fine diameter lens module integrates 6 0201-sized LED beads, and is manufactured using SMT technology and AA active alignment technology to ensure the consistency of optical performance. The entire system has passed international authoritative certifications such as CE, FCC, RoHS, and Reach; the DSP board also specially integrates a physical button to support one-click capture function.
-
Features:
- System Architecture Advantage: The separated design separates the image acquisition and processing modules, effectively reducing electromagnetic interference, improving system stability, and supporting flexible module replacement at the same time.
- Connection reliability: The Type-C to MIPI connection solution not only ensures signal transmission quality, but also realizes cross-platform plug-and-play through the USB-UVC protocol, compatible with various host devices.
- Operation Experience Optimization: The independent hardware photo button endows users with direct image capture capability, no need to rely on software interface operations, significantly improving workflow efficiency.
- Manufacturing Process Guarantee: The AA process ensures precise alignment of the optical center, and the SMT process guarantees the reliability of the LED lighting system, ensuring product yield from the source.
- Market Access Advantage: It has complete qualifications for multiple international certifications, meets the access requirements of major global markets, and greatly shortens the time-to-market cycle of customers’ products.
Technical Parameters:
| Product Name |
LED UVC Endoscope Camera Module
|
|
Sensor
|
OV9734 CMOS Sensor
|
| Resolution |
12080x720 |
|
FOV
|
102°
|
|
F.NO
|
4.0 |
|
Diameter
|
3.3mm
|
|
Max Frame Rate
|
30FPS
|
|
Interface
|
USB 5Pin, USB2.0 |
|
Warranty
|
10 Years
|
|
Certification
|
CE, FCC, REACH, ISO |
Applications:
- Industrial Pipeline Endoscope: 3.3mm lens detects pipeline blockages/corrosion, PureCel® + LEDs ensure dark-environment clarity, UVC enables quick terminal connection.
- Dental Apical Detector: PureCel® aids tissue color distinction, manual focus captures tiny lesions, certifications meet medical standards.
- Electronic Component Cavity Inspector: Separated design fits component cavities, USB 2.0 ensures real-time imaging, 1.75μm pixels identify tiny defects.
- Veterinary Ear Endoscope: Thin lens avoids ear canal stimulation, low-light imaging shows mites/inflammation, one-click photos assist communication.
