Industrial OmniVision OV9734 CMOS Color USB Endoscope Camera Module

Industrial OmniVision OV9734 CMOS Color USB Endoscope Camera Module

Product Description:

• This is an industrial OmniVision OV9734 CMOS color USB endoscope camera module, core-equipped with the OmniVision OV9734 CMOS color image sensor. It features 1MP pixel resolution, supports 720 resolution, and a maximum frame rate of 30FPS, delivering smooth and clear observation images. The sensor size is 1/4-inch, with a pixel size of 1.75μm x 1.75μm, and it supports PureCel® technology to optimize light-sensing performance. Paired with a lens with an F4.0 aperture and a 102° wide field of view, it can cover a broader observation range, while the manual focus function enables precise targeting of tiny objects. Structurally, it adopts a Separated design: it connects to the DSP board via a Type-C interface for signal processing, and then outputs data through a USB 5Pin interface. This dual-interface combination not only ensures stable signal transmission but also adapts to the connection requirements of different devices. Meanwhile, it supports USB2.0 speed and UVC protocol, compatible with mainstream operating systems such as Windows, macOS, and Linux, allowing quick activation without additional driver installation. The module’s lens has a diameter of only 3.3mm, enabling easy access to various narrow spaces, and it is integrated with 6 0201 LED beads to provide uniform supplementary lighting for dark environments. The entire module is manufactured using SMT process and AA (Active Alignment) manufacturing process, ensuring optical precision and product consistency. It has also passed international certifications including CE, FCC, RoHS, and REACH, meeting compliance requirements for use in multiple regions.

•

Features:

1. Flexible Dual-Interface Adaptation: It connects to the DSP board via a Type-C interface and outputs data through a USB 5Pin interface, balancing signal processing stability and device compatibility. It can connect to different devices such as industrial computers, laptops, and detection terminals, reducing interface adaptation costs;​
2. Efficient Supplementary Lighting Coverage: Integrated with 6 0201 LED beads, the lighting range is accurately matched with the lens’s field of view. It can uniformly illuminate the observation area in fully dark or low-light environments, avoiding local overexposure or dark corners. Combined with PureCel® technology, it further enhances low-light imaging clarity;​

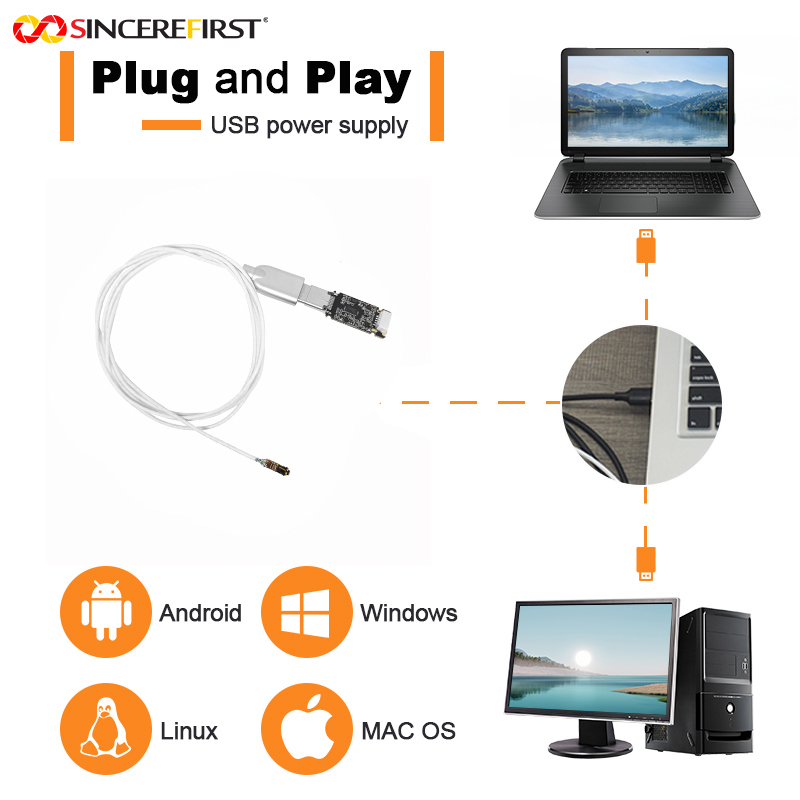

3. Cross-System Plug-and-Play: Supporting UVC protocol and USB2.0 speed, it is compatible with mainstream operating systems without dedicated drivers. Inspectors can quickly connect the device and start observation, lowering on-site deployment and operation thresholds;​
4. Precision Manufacturing Assurance: The AA process ensures high-precision alignment between the lens and the sensor, reducing optical deviations; the SMT process improves the module’s vibration resistance and anti-interference capabilities. Combined with international compliance certifications, it can adapt to long-term and high-frequency detection scenarios.

Technical Parameters:

Applications:

• Battery Cell Inspection: It can reach the gaps between lithium battery cells to observe tiny defects such as pole piece wrinkles and separator damage. It can connect to battery testing equipment, transmitting images in real time to assist in judging battery cell quality;​
• Precision Component Inspection: For narrow spaces such as engine fuel pipelines and micro-interfaces, it can clearly identify issues like pipeline blockages and abnormal interface sealing;​
• Pet Cavity Inspection: Used for inspecting pet cavities such as ear canals and oral cavities, it reduces pet stress responses. It can clearly display conditions like ear canal inflammation and tooth decay, and supports quick connection to veterinary diagnosis and treatment equipment;​
• Residential/Commercial Pipeline Inspection: It can be used by connecting to ordinary laptops, and can reach into water pipes and gas pipes to observe pipe inner wall rust and blockage locations. No professional detection equipment is required, reducing pipeline maintenance costs for households or small businesses.​
