NIR Wide Angle 1080P Sensor OV02C10 USB Endoscope Camera Module
Product Description:

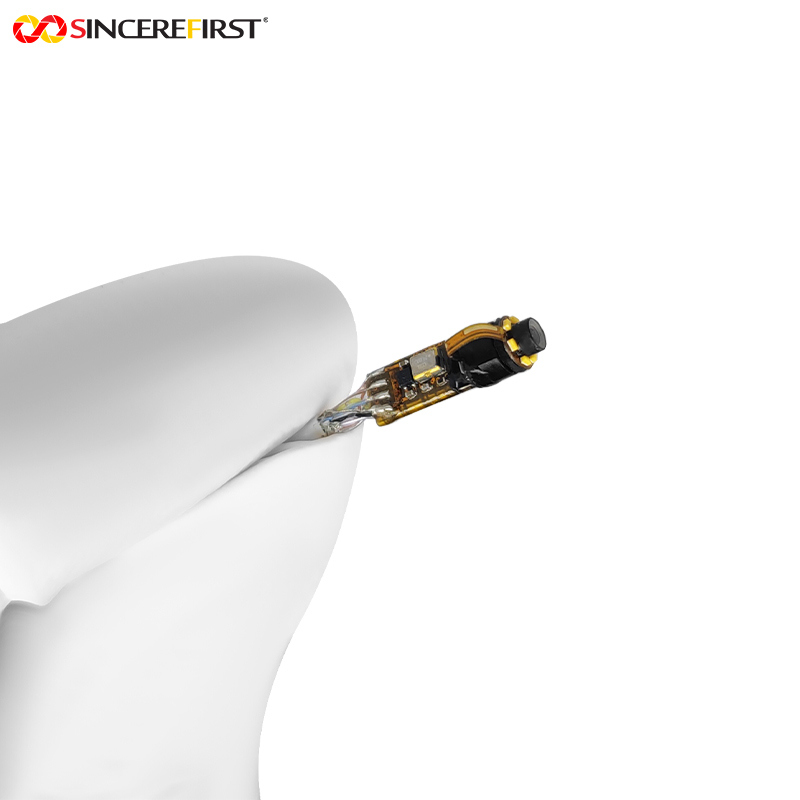

This is the NIR Wide Angle 1080P Sensor OV02C10 USB Endoscope Camera Module, equipped with the OmniVision OV02C10 CMOS color image sensor. It features 2MP pixels and 1080P resolution, supporting a maximum frame rate of 60FPS. The sensor size is 1/7.25 inch, with a pixel size of 2.9μm×2.9μm. It also supports HDR technology and Nyxel™ near-infrared technology, achieving a quantum efficiency of 60% at 850nm wavelength and 40% at 940nm wavelength, with a dynamic range of up to 120dB—delivering excellent imaging details and light-shadow reproduction. The lens has a diameter of only 3.9mm, paired with an F5.0 aperture, a 120° field of view, and a maximum imaging circle of 2.78mm, covering a wider observation range. It also integrates 6 9653 LED beads to adapt to low-light environments.

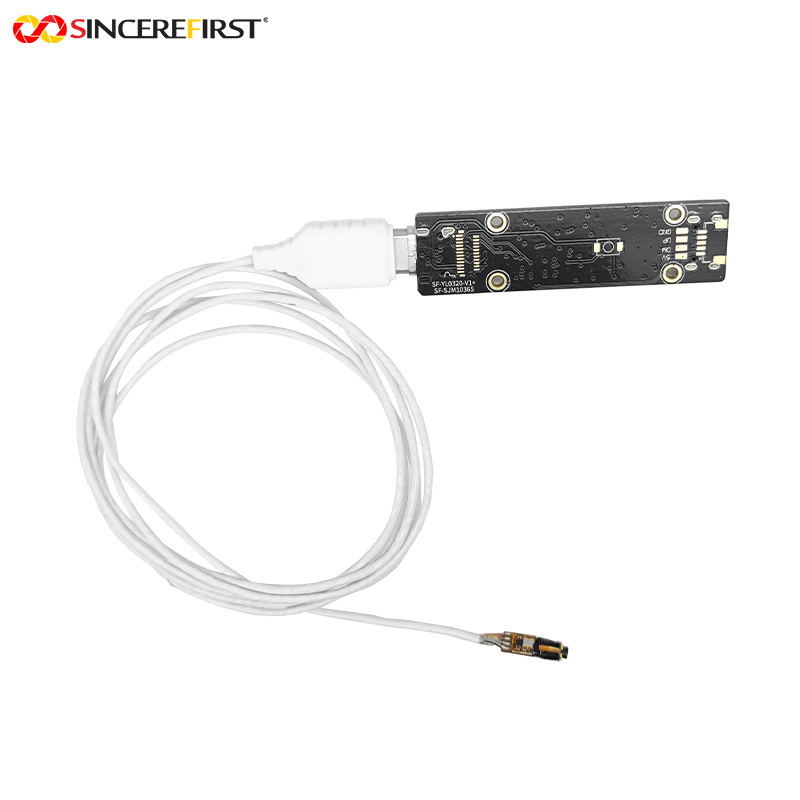

The product supports manual focusing and direct-view image output, and adopts a separated design. It transmits MIPI signals to the DSP board via a Type-C interface, then outputs signals at USB 2.0 speed through another Type-C interface, and is compatible with the UVC protocol. Overall, it comes in a bare module form, manufactured using SMT process and Active Alignment (AA) process, and has passed multiple tests and certifications such as FCC, CE, Reach, and RoHS—balancing performance, adaptability, and compliance.
Features:
- HD All-Round Imaging Capability: HDR technology and 120dB dynamic range can accurately retain details in scenarios with light-dark contrast. Nyxel™ near-infrared technology, combined with 2.9μm large pixels, still delivers clear images in low-light or infrared environments. The high quantum efficiency at 850nm/940nm meets the needs for concealed observation.
- Compact and Flexible Adaptability: With a 3.9mm ultra-small lens diameter and a 1/7.25-inch sensor, it can be easily embedded into slender probes or small devices. The separated design and bare module form adapt to different installation scenarios, reducing space constraints.

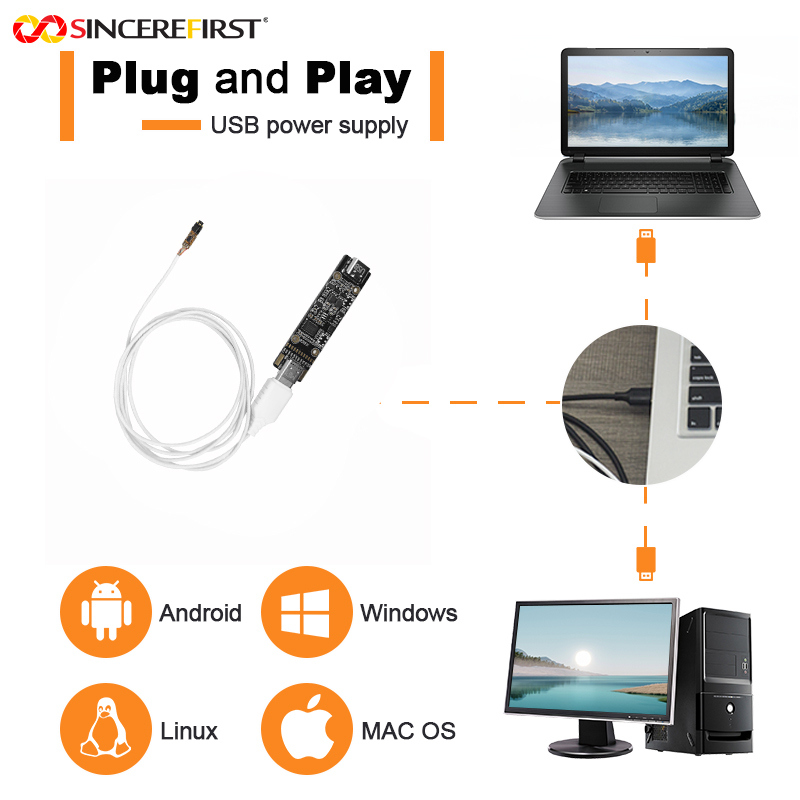

- Convenient and Efficient Operation & Compatibility: Manual focusing can accurately lock onto tiny targets, avoiding missing details due to auto-focus. The Type-C interface and USB 2.0 speed ensure fast transmission, and the UVC protocol supports plug-and-play functionality without complex secondary development.
- Stable and Reliable Quality Assurance: SMT process and Active Alignment (AA) process ensure imaging consistency and structural precision. Multiple global authoritative certifications enable it to comply with strict standards in medical, industrial, and other fields, making it suitable for long-term high-frequency use.

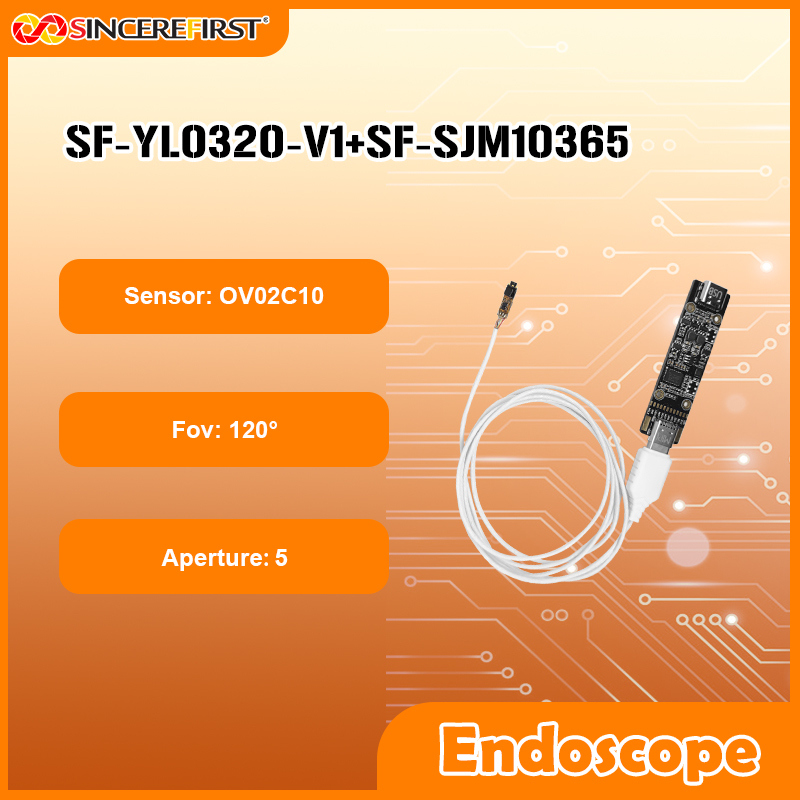

Technical Parameters:
| Product Name |
CMOS UVC Endoscope Camera Module
|
|
Sensor
|
OV02C10 CMOS Sensor
|
| Resolution |
1920x1080 |
|
FOV
|
120°
|
|
F.NO
|
5.0 |
|
Diameter
|
3.9mm
|
|
Max Frame Rate
|
30FPS
|
|
Interface
|
Type-C, USB2.0 |
|
Warranty
|
10 Years
|
|
Certification
|
CE, FCC, REACH, ISO, RoHS |
Applications:
- Medical Minimally Invasive Diagnosis and Treatment: Compatible with devices such as gastroscopes and arthroscopes. The 3.9mm small lens reduces tissue trauma; HDR technology clearly distinguishes between mucous membranes and blood vessels; Nyxel™ near-infrared technology assists in observing deep tissues, facilitating accurate identification of lesions.
- Industrial Precision Inspection: Used for engine block inspection and small pipeline patrol inspection. The small lens can penetrate narrow spaces; Nyxel™ technology captures details of component wear and corrosion in dark areas; the 120° field of view covers a wider detection range.
- Electronic Equipment Maintenance: Compatible with motherboard inspection endoscopes. Manual focusing accurately observes tiny components such as chip solder joints and capacitor pins; the 60FPS frame rate smoothly presents dynamic inspection processes; the Type-C interface quickly connects to maintenance equipment.
- Nighttime Concealed Security: Integrated into night-vision patrol equipment. Invisible 940nm near-infrared light enables concealed observation; high quantum efficiency ensures target recognition in low light; the UVC protocol allows convenient connection to security systems, making it suitable for scenarios such as equipment rooms and access control.
Customized Process:
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
