Product Description:

This is a 1MP OV9782 Image Sensor IoT Global Shutter Camera Module, adopting OmniVision's OV9782 CMOS sensor. With a deeply integrated architecture of OmniPixel®3‑GS technology and 3μm×3μm large pixels as its core, it achieves a precise balance between quantum efficiency and spatial resolution in the field of global shutter CMOS: The 3μm large pixel size significantly increases the light intake per pixel; combined with the optimized quantum efficiency of OmniPixel®3‑GS technology, it can reduce image noise and maintain pure image quality even in low-light environments such as dim indoor spaces or outdoor backlighting, meeting the needs of high-precision recognition and imaging. Meanwhile, this technology works in synergy with the global shutter function, and when paired with the high frame rate output of 1280x800P@120FPS, it can accurately capture details of fast-moving targets and avoid motion blur.​

The module has 1MP effective pixels and supports 8/10-Bit RAW output format, ensuring the acquisition of original image data for native data processing by backend AI. The sensor size is 1/4 inch, and its optical configuration includes an F2.2 large aperture and a 1.66mm focal length design. The wide focusing range of 30cm~Infinity adapts to shooting scenarios at multiple distances, while the 120° ultra-large field of view (FOV) combined with low TV distortion of < -10% enables wide-area coverage while ensuring neat image quality.​

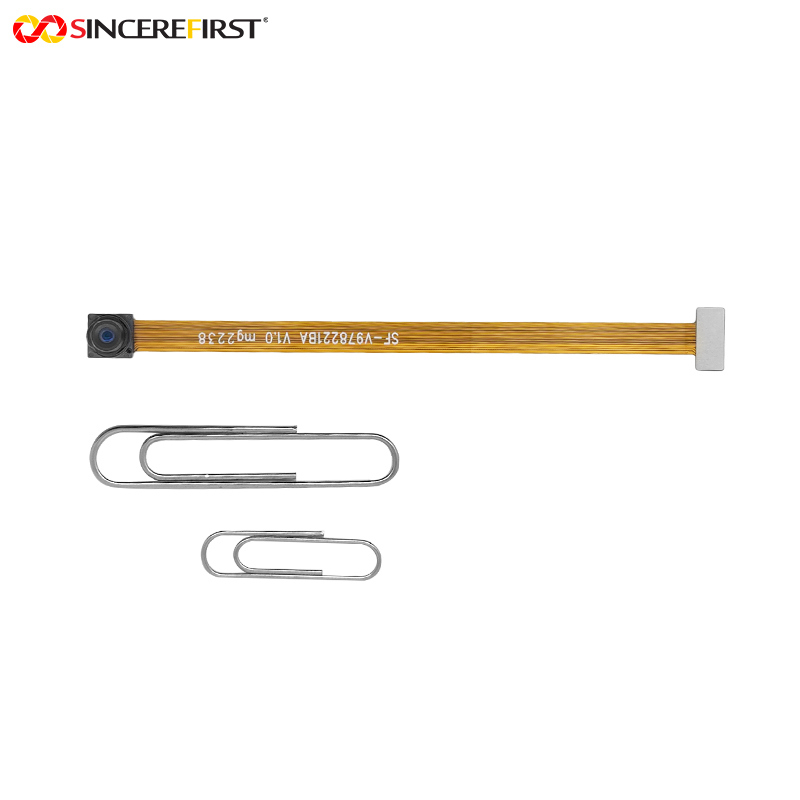

The product adopts a fixed focal length with manual focusing and features a compact strip-shaped design of only 7mm×7mm×5.12mm, which can be flexibly embedded in narrow installation spaces. It is also compatible with both dual-channel MIPI serial output interface and DVP parallel output interface. Manufactured via SMT process and AA (Active Alignment) technology, it ensures the precision and stability of mass production. Moreover, it has passed multiple international tests and certifications including CE, FCC, RoHS, and REACH, fully complying with global market access standards.

Features:

1. Low-Light Imaging Capability: The 3μm×3μm large pixels paired with OmniPixel®3‑GS technology significantly improve light intake efficiency and quantum efficiency in low-light environments, reducing noise interference and ensuring image purity and detail restoration.​
2. HD Dynamic Image Quality: The 120FPS high frame rate works in synergy with the global shutter function to completely eliminate motion blur in fast-moving scenarios. At the same time, the 8/10-Bit RAW output format retains more image details, adapting to the needs of high-precision image processing.​
3. Excellent Optical Performance: The 120° ultra-large FOV expands the imaging coverage range; the low TV distortion of < -10% avoids stretching distortion at image edges. Combined with the wide focusing range of 30cm~Infinity, it enables seamless adaptation to near, medium, and long-distance scenarios.​
4. Strong Integration Adaptability: The compact 7mm×7mm×5.12mm size and strip-shaped design adapt to narrow installation spaces; the dual-interface design is compatible with different hardware platforms, allowing quick integration without additional modifications.​
5. Industrial-Grade Reliability: The SMT process and AA technology ensure the optical precision and mass production stability of the module. Multiple international certifications cover major global markets, reducing compliance risks for end products.​
6. RAW Domain Data Fidelity: The native 10-Bit RAW output bypasses color interpolation and noise reduction processes of the post-processing ISP, directly outputting original data in Bayer pattern. It provides uncompressed sensor-level information for backend deep learning algorithms, making it particularly suitable for scenarios requiring precise color restoration such as medical diagnosis and multispectral analysis.

Technical Parameters:

Applications:

• Smart Home: The large-pixel advantage allows the camera to clearly recognize the activity status of family members at nighttime or in low-light conditions; the wide FOV can cover a larger indoor area, and a single device can monitor the entire room; the compact design facilitates concealed integration into home products, maintaining aesthetics without sacrificing performance.​
• VR/AR: The 120FPS high frame rate combined with the global shutter can accurately capture fast hand movements and head rotations, providing smooth, blur-free visual data; the excellent near-infrared response characteristics support cooperation with infrared markers to achieve high-precision spatial positioning and motion tracking, enhancing the realism of immersive experiences.​
• AOI Inspection: At a 2m/s board conveying speed on SMT production lines, the global shutter freezes images of solder joints and components; the 3μm pixel resolution meets the inspection requirements for 01005 components; NIR illumination suppresses reflection interference from pads; the 10-Bit RAW data supports deep learning models in identifying hidden defects such as microcracks and cold solder joints.​

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
