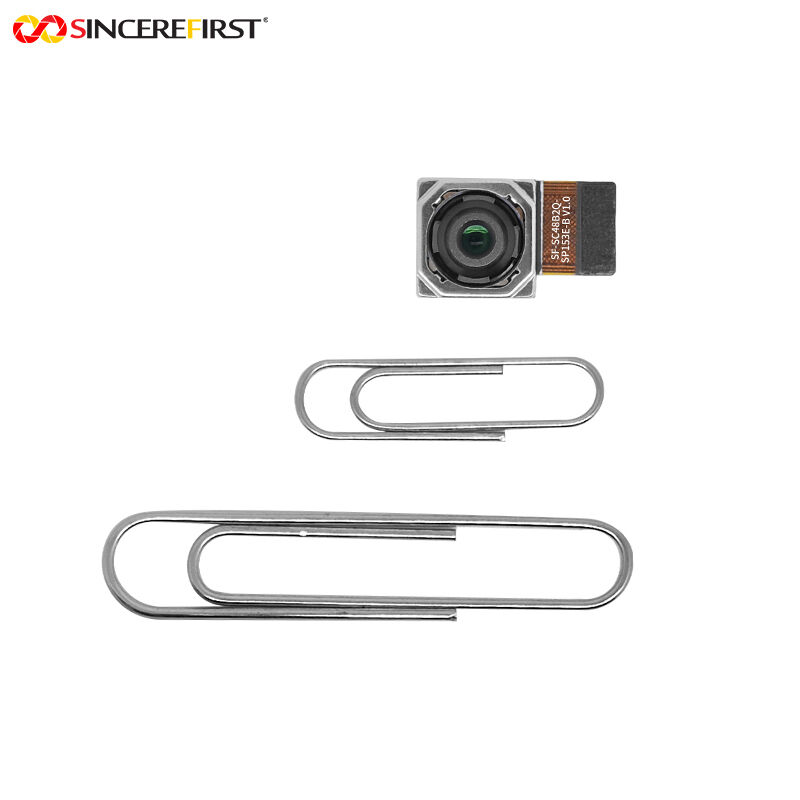

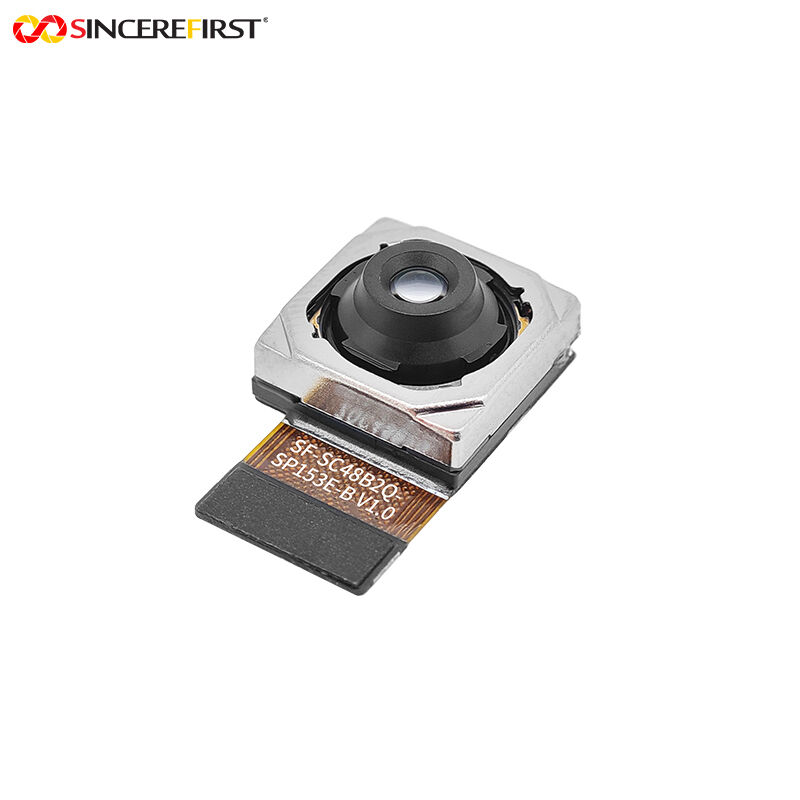

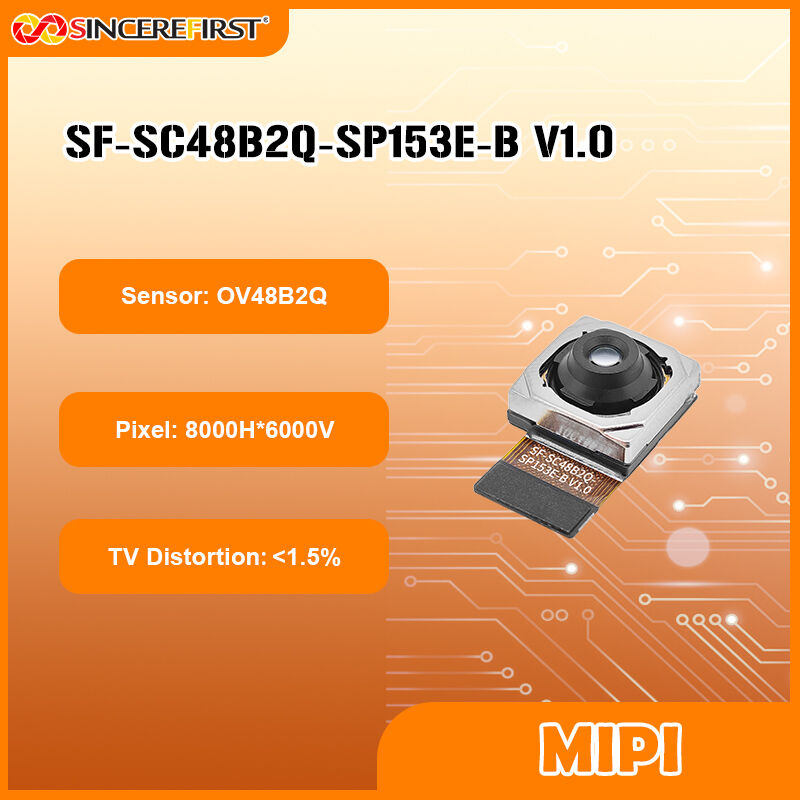

This is an HDR Low-Light 4K OV48B2Q CMOS Outdoor Camera Mini FPC Camera Module. Centered on the OmniVision OV48B2Q image sensor, it features an ultra-high 48MP resolution and supports flexible switching to 12MP output via quad-pixel technology. With a resolution of 8000x6000, it enables full-resolution 4K@30FPS high-definition video recording. The sensor measures 1/2 inch in size, with a pixel dimension of 0.8μmx0.8μm, and integrates PureCel®Plus-S backside-illuminated technology, ML-PDAF phase detection autofocus technology, and HDR function. It supports OTP (One-Time Programmable) programming, adopts a 10bit RAW output format, and boasts a relative illumination of 25.4%—ensuring good brightness retention at the image edges.

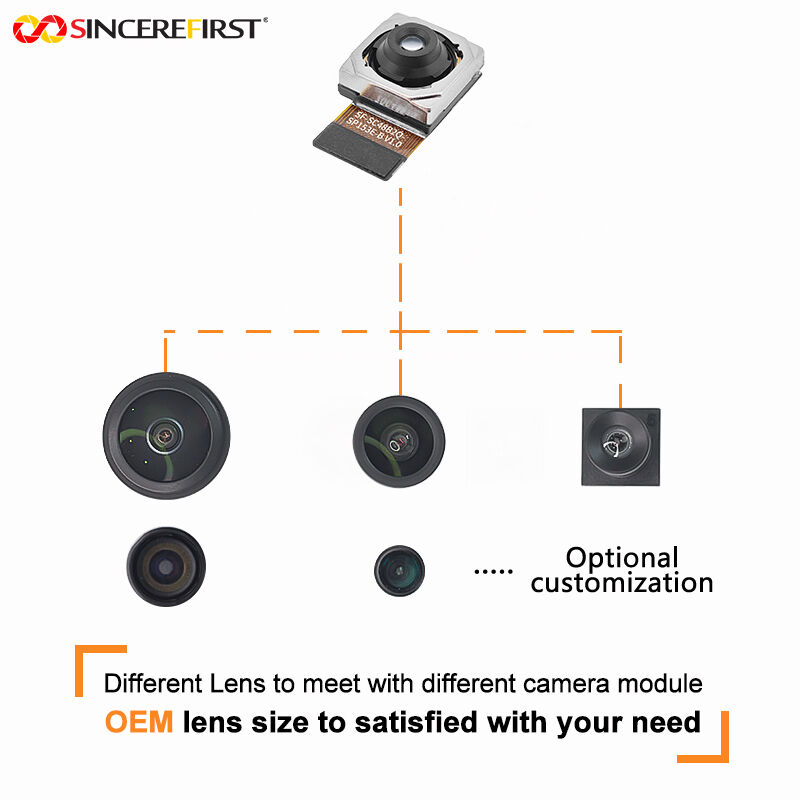

In terms of lens configuration, it is well-balanced: the aperture is F1.79±5%, the focal length is 4.74mm, the field of view covers 80.1°, TV distortion is strictly controlled within 1.5%, and the lens CRA (Chief Ray Angle) is <35.1°. It uses a MIPI CSI-2 high-speed interface and is manufactured via COB (Chip-on-Board) process and AA (Active Alignment) process. Additionally, it has passed multiple international certifications and tests including CE, FCC, RoHS, and Reach. Leveraging the synergistic optimization of HDR and high relative illumination, this module provides a high-quality solution for imaging needs in complex lighting environments.
| Product Name |
48MP CMOS MIPI Camera Module |
|
Sensor |
OV48B2Q CMOS Sensor |
| Piexl | 48MP |
|
F.NO |
1.79±5% |
|
Output Interface: |
MIPI |
|
Sensor Size |
1/2 Inch |
|
Keywords |
4K Industrial Camera Module |
|
Warranty |
10 Years |
|
Focus Type |
Auto Focus |
|
Brand Name |
SINCEREFIRST |
1. Smart City Traffic Enforcement
Captures clear plates at intersections during dawn/dusk when contrast exceeds 80dB, preserving both dark vehicle details and bright reflective plates in the same frame.
2. Fleet Dash Cam Systems
Handles rapid 1000x illumination changes during tunnel entry/exit, maintaining plate readability without washout while simultaneously recording interior cabin details.
3. Warehouse Loading Dock Surveillance
Balances stark indoor-outdoor lighting contrasts, ensuring truck plates at bay entrances and pallet labels inside trailers remain equally legible across the wide-angle view.
5. Retail Parking Analytics
Monitors multiple entry lanes with consistent plate detail as vehicles transition between sunlit outdoor areas and covered garages, tracking throughput while capturing both high-reflectance and low-reflectance plates accurately.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
