Micro OV2740 Image Sensor 1080P Medical Industrial Separated Endoscope Camera Module
Product Description:

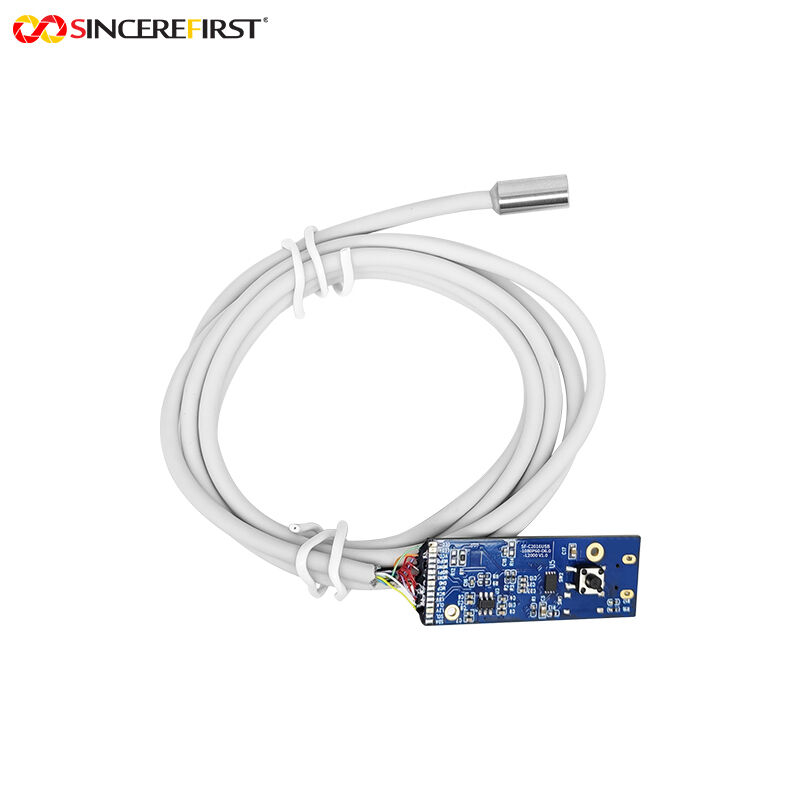

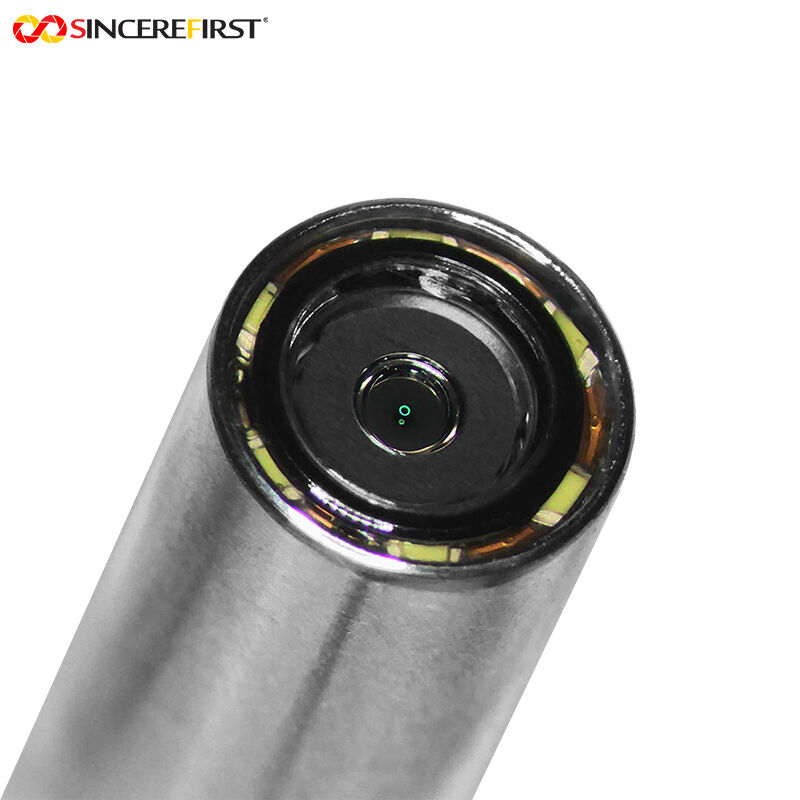

This is a micro OV2740 image sensor 1080P medical & industrial separated endoscope camera module, built based on the OmniVision OV2740 CMOS color image sensor. Its core parameters cover all dimensions including imaging, optics, structure, and protection: it features 2MP pixels and 1920x1080 resolution, capable of stably outputting 1080P@60FPS high-definition dynamic images; the sensor size is 1/6 inch, with a pixel specification of 1.4μm×1.4μm, and it supports both PureCel® back-illuminated technology and HDR function, balancing low-light sensitivity and detail capture in high-contrast scenarios; it is compatible with YUV and MJPEG output formats, which can match the image processing needs of different terminals. In terms of optical design, it adopts a manual focusing method, paired with an F5.9 aperture and 1.05mm focal length, achieving a practical depth of field range of 8~80mm, a field of view of 140°, and TV distortion controlled below -50%. The 6mm-diameter miniature lens can penetrate narrow spaces. In terms of structure and protection, the lens is protected by a steel shell, reaching IP67 dustproof and waterproof level, and integrates 6 white LED lights; the module adopts a Separated design, connected to the DSP board via bonding wires, and finally outputs through a Micro USB interface, supporting USB2.0 speed and UVC protocol. The dedicated dimming button on the DSP board enables 3-level brightness adjustment. In terms of production process, it adopts SMT process and AA (Active Alignment) process to ensure product precision and stability, and has passed international tests and certifications such as CE, FCC, RoHS, and Reach, complying with usage standards in multiple regions around the world.
Features:
Precise Focusing: Manual focusing can accurately lock the focal length according to the observation target, avoiding focus shift caused by environmental interference during automatic focusing, and is especially suitable for scenarios requiring high observation precision;
Separated Structure: The Separated design, which connects to the DSP board via bonding wires, allows adjusting the layout of the module and DSP board according to the installation space of the endoscope host, adapting to endoscope devices of different specifications;
Wide Scenario Adaptation: YUV format has high color reproduction, suitable for scenarios requiring high color precision such as medical diagnosis; MJPEG format has high transmission efficiency, adapting to scenarios requiring fast imaging such as industrial inspection. The dual-format switching meets the needs of multiple fields;
Dual Protection: The steel shell protection enhances the lens's anti-collision and anti-wear capabilities, and the IP67 dustproof and waterproof level can cope with humid, dusty, and even short-term water-exposed environments, extending the service life of the module in complex scenarios;
Standardized Process: The SMT process ensures the welding precision of components, and the AA process guarantees the optical alignment precision of the lens. Combined with multiple international certifications, the product has strong consistency and reliability, reducing later maintenance costs.

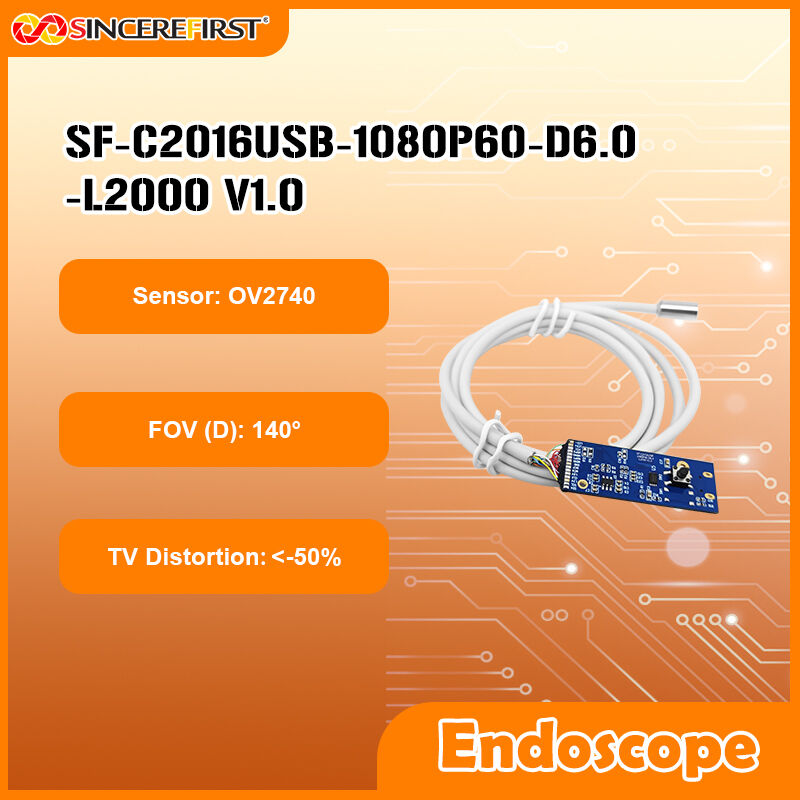

Technical Parameters:
Product Name
CMOS Medical Endoscope Camera Module
Sensor
OV2740 CMOS Sensor
Resolution
1920x1080
FOV
140°
Sensor Size
1/6 Inch
Diameter
6mm
Max Frame Rate
60FPS
Interface
Micro USB2.0
Warranty
10 Years
Certification
CE, FCC, REACH, ISO, RoHS
Applications:
Veterinary Cavity Inspection: Suitable for minimally invasive inspection of the ear canal and digestive tract of pets such as dogs and cats. The 6mm miniature lens can penetrate the narrow cavities of pets, the 140° field of view covers a wider observation range, and the 3-level brightness adjustment adapts to the light transmittance of different pet tissues, avoiding strong light stimulation;
Micro-Crack Observation of Cultural Relics: Used for inspecting fine cracks and internal structures of cultural relics such as porcelain and bronze ware. Manual focusing can accurately focus on crack details, the low-distortion design avoids the distortion of cultural relic shapes, and the white LED fill light does not damage the material of cultural relics;

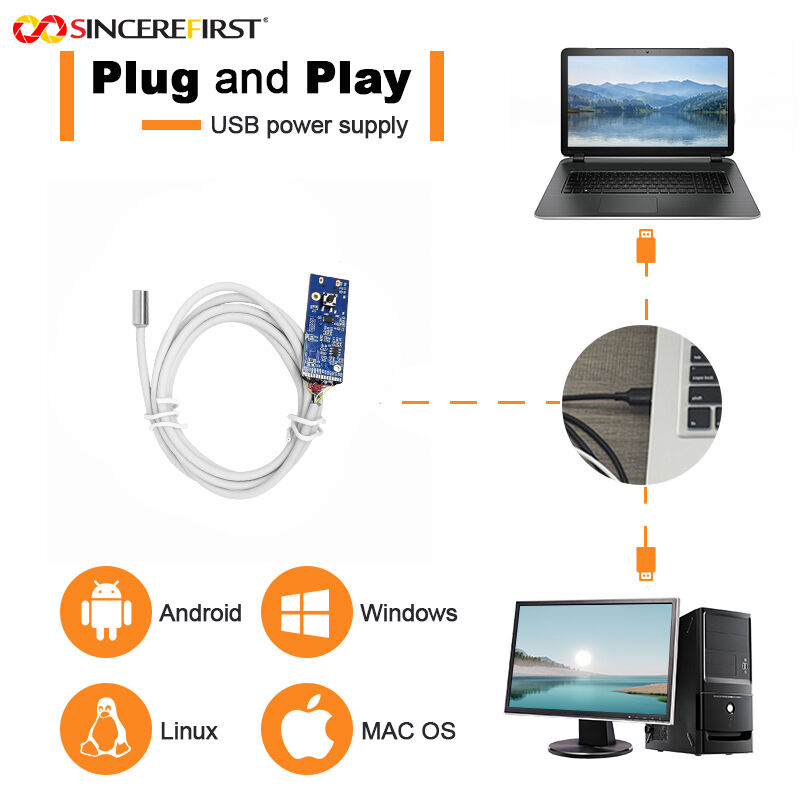

Home Pipeline DIY Inspection: Suitable for inspecting blockages and pipe wall rust in kitchen and bathroom water pipes at home. The IP67 protection can cope with the humid environment inside the pipeline, and the UVC protocol supports plug-and-play connection to home computers/mobile phones, without the need for professional operation skills;
Internal Maintenance of Precision Instruments: Used for inspecting internal parts (such as gears and circuit boards) of small precision instruments such as printers and cameras. The 6mm lens can penetrate the gaps of the instruments, the 8~80mm depth of field covers the observation of near and far parts, and the high frame rate avoids motion blur during dynamic observation;
Outdoor Emergency Rescue Inspection: Suitable for life detection or hidden danger investigation in narrow spaces (such as building gaps and the interior of equipment wrecks) at disaster sites such as earthquakes and collapses. The IP67 protection resists outdoor sand, dust, and rainwater, and the 3-level brightness adjustment adapts to the changing light conditions in the wild.
