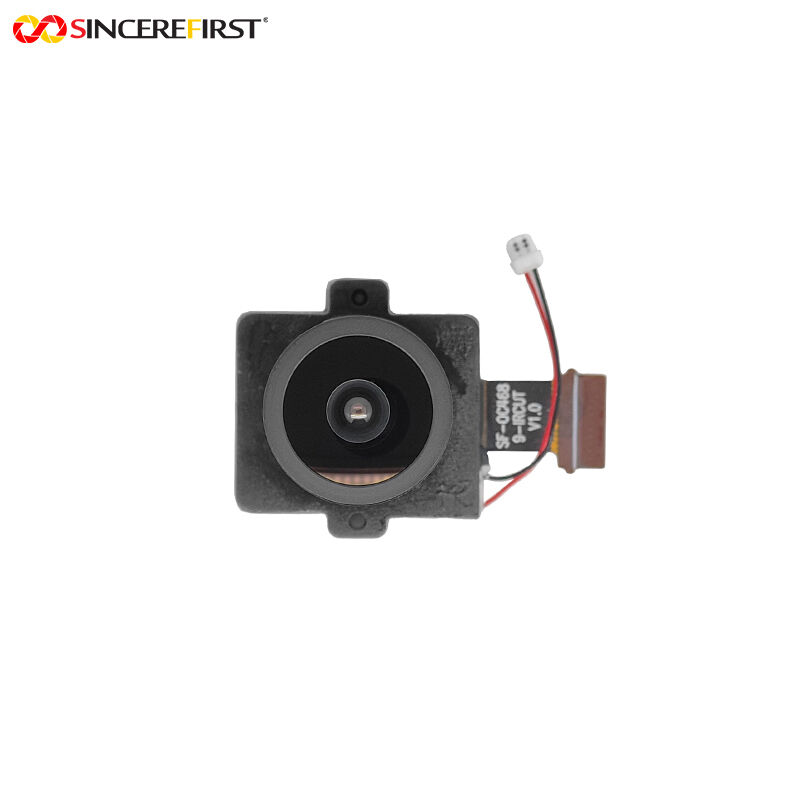

Compact 4MP Full HD IR Night Vision OV4689 Image Sensor MIPI Camera Module
Product Description:
This is a compact 4MP Full HD IR Night Vision OV4689 Image Sensor MIPI Camera Module, centered on the OmniVision OV4689 CMOS sensor and specifically designed to meet high-quality image capture needs in complex environments. The module features 4MP effective pixels and a native resolution of 2688x1520, supporting dual-mode output: 90fps at full resolution and 120fps@1080P. Adopting a 1/3-inch optical format and 2μm×2μm pixel size, the sensor is enhanced by PureCel® backside-illuminated technology and HDR function, which optimize light utilization, suppress noise, and expand dynamic range—ensuring no overexposure in bright areas and clear details in dark areas. It supports 10bit RAW output format, which fully preserves the original image data and reserves space for professional post-processing.

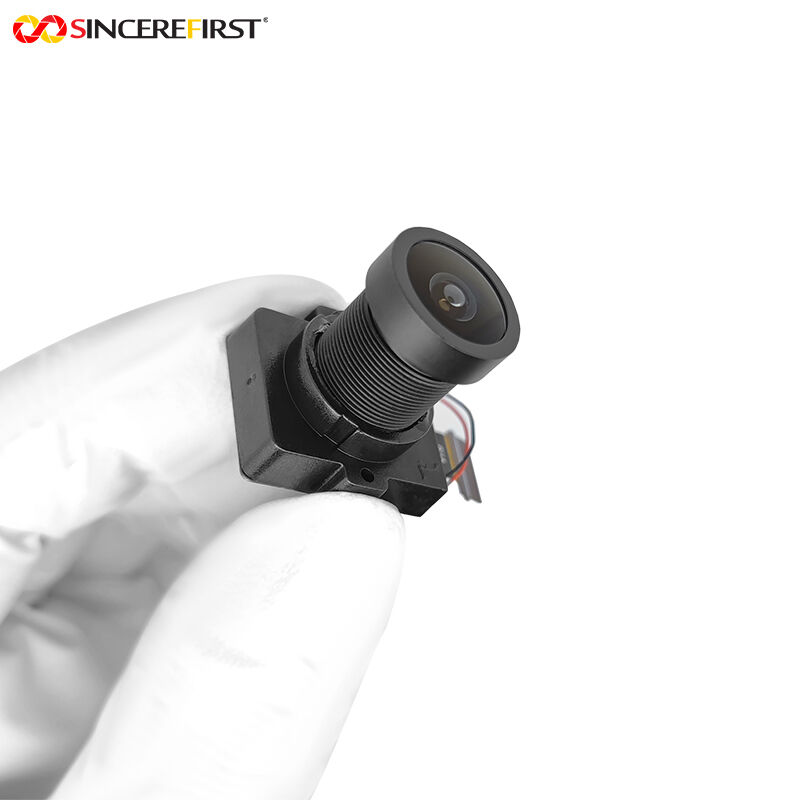

In terms of optical configuration, the module adopts a manual focus design for precise clarity control. Paired with an F2.4 aperture and 2.35mm focal length, it achieves a flexible depth of field from 10cm to Infinity. Its 117° ultra-wide field of view covers broad scenes, and TV distortion is controlled within -15% to ensure distortion-free images. The lens uses a precision 4G+2P structure to improve light transmittance, and is equipped with 2 IR filters and an integrated IR cutter for seamless day-night mode switching. For data transmission, it is equipped with a 25Pin MIPI CSI-2 high-speed interface to ensure low-latency transmission of high-frame-rate data. In the production process, COB technology and AA (Active Alignment) process are adopted to balance structural stability and optical precision. Moreover, the module has passed international certifications including CE, FCC, RoHS, and Reach, meeting the access requirements of global markets.
Features:
Outstanding Dynamic Capture: With dual high-frame-rate options (90FPS/120FPS), combined with PureCel® technology and 2μm pixels, it captures fast-moving targets without motion blur. The HDR function eliminates overexposure/underexposure in high-contrast scenarios, achieving a balance between speed and image quality.
Flexible Optical Adaptability: Manual focus allows precise adjustment for fixed-distance or detail-focused shooting scenarios. The combination of F2.4 large aperture, 117° ultra-wide angle, and 10cm~Infinity depth of field enables both close-range shooting and wide-area coverage without compromising clarity.
All-Weather Reliable Imaging: Integrated with an IR cutter and 2 IR filters, it automatically switches between day and night modes—restoring true colors during the day and enhancing low-light sensitivity at night. Combined with the HDR function, it handles complex lighting environments such as backlighting and dim rooms with ease.
Efficient & Compliant Design: The 25Pin MIPI CSI-2 high-speed interface ensures stable transmission of high-frame-rate/RAW data; the COB+AA production process guarantees consistent product performance; multiple international certifications break down barriers to global deployment.
Professional Post-Processing Potential: 10bit RAW output preserves rich color gradations and detailed data, supporting advanced image tuning, algorithmic analysis, and customized processing—suitable for professional or industrial-grade scenarios requiring in-depth data.
Technical Parameters:
Product Name
4MP FHD Camera Module
Sensor
OV4689 CMOS Sensor
Piexl
4MP
F.NO
2.4
Output Interface:
MIPI
Sensor Size
1/3 Inch
Keywords
2K FPC Camera Module
Warranty
10 Years
Focus Type
Fixed Focus
Brand Name
SINCEREFIRST
Applications:
Intelligent Agricultural Monitoring: Suitable for greenhouse crop growth tracking and outdoor field monitoring. The 117° ultra-wide angle covers large planting areas, the day-night switching function enables 24-hour crop monitoring, and the high frame rate captures pest and disease activity or environmental changes in real time.
Security Robots: Integrated into indoor/outdoor patrol security robots. The high frame rate captures moving targets without blurriness, the ultra-wide angle reduces monitoring blind spots, and manual focus can lock onto suspicious targets for clear identification; the MIPI interface enables seamless adaptation to robot control systems.
Industrial Robot Vision: Applied to production line picking and precision positioning tasks. 4MP pixels + manual focus enable accurate identification of small components, the 90FPS frame rate matches the movement speed of robots, and 10bit RAW data supports AI-driven defect detection algorithms.
Outdoor Environmental Monitoring: Deployed in weather stations or ecological observation equipment. Day-night switching adapts to day-night lighting changes, the wide depth of field captures both ground-level details and distant landscapes, and HDR handles harsh lighting conditions such as strong sunlight and heavy fog.
Smart Retail Analytics: Integrated into supermarket shelf-monitoring cameras. The 117° field of view covers entire rows of shelves, the high frame rate tracks customer browsing behavior, manual focus clearly presents product labels, and 10bit RAW data supports inventory counting and shelf restocking analysis algorithms.

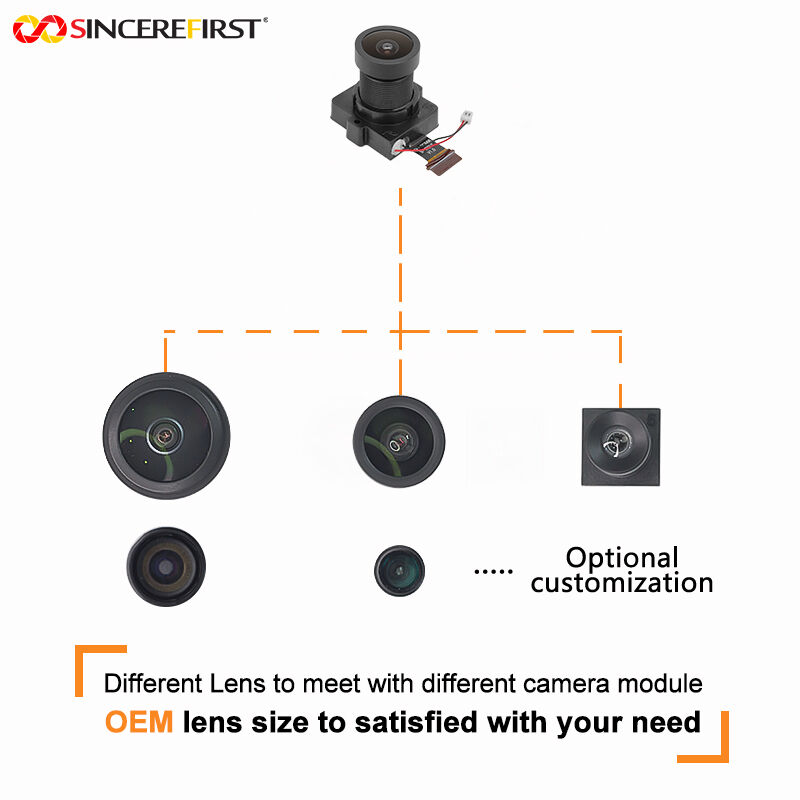

Customized Process:
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff. 2. Communication or Meeting 3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you according to your needs. 4. Sample Development 5. Determine the details of thedevelopment sample and the delivery time. Communicate at any time to ensure smooth progress. 6. Sample Testing 7. Test and age on your application, feedback test results, no need to modify, mass production.
