Type-C Interface 4K 20MP Sony IMX283 CMOS FPV USB Camera Module

Type-C Interface 4K 20MP Sony IMX283 CMOS FPV USB Camera Module

Product Description:

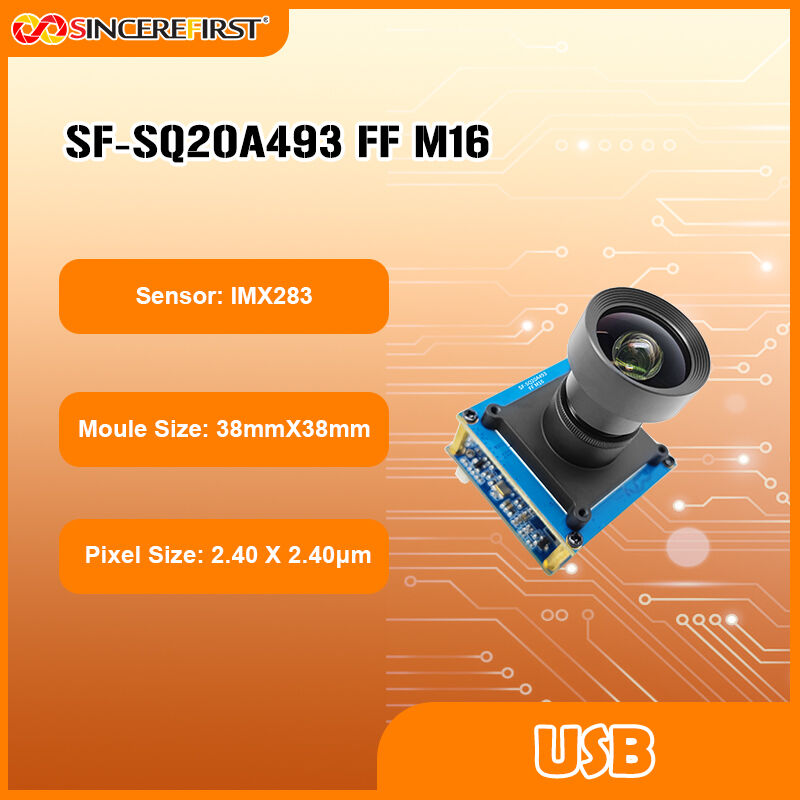

This is a Type-C interface 4K 20MP Sony IMX283 CMOS FPV USB camera module. It is built upon the flagship Sony IMX283 1-inch image sensor, delivering 20MP high-definition resolution with a pixel size of 2.4μm×2.4μm, which establishes an excellent foundation for light sensitivity. It can stably output both 4K@30fps and 1080P@30fps high-definition video qualities. The output formats are fully compatible with the three mainstream encodings: MJPG, YUY2, and H.264, providing users with flexible choices between image quality, latency, and bandwidth usage. The optical section adopts an M16*0.5P standard industrial lens interface, equipped with an F2.8 aperture and a 6.6mm fixed-focus lens. It achieves a wide focusing range from 1cm macro to infinity and provides an ultra-wide diagonal field of view of 102°, supporting precise manual focus adjustment.

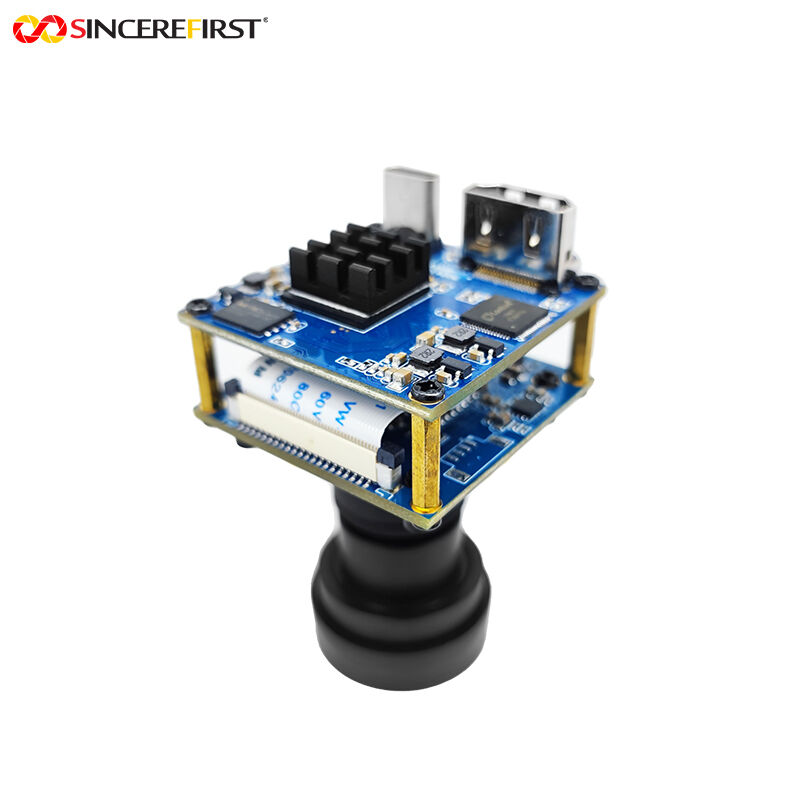

The module features a compact 38mm x 38mm double-layer PCB design. It utilizes a USB 3.0 Type-C interface for high-speed data transmission, supports the UVC driver-free protocol, and can seamlessly adapt to mainstream operating systems such as Windows, Linux, and macOS. The entire module is manufactured using high-precision SMT process and AA (Active Alignment) process, ensuring precise alignment between the optical center and the sensor pixels. It has also passed multiple international tests and certifications including CE, FCC, RoHS, and Reach, meeting the stringent global market requirements for quality.

Features:

1. Adapts to Professional Scenario Needs: Supports manual focus adjustment. In scenarios requiring fixed shooting angles and precise target locking, it enables long-term stable imaging effects, meeting the accuracy requirements for professional-grade shooting.
2. Adapts to Multiple Encoding Formats: Simultaneously supports three output formats: MJPG, YUY2, and H.264. It allows flexible switching based on the hardware performance, transmission bandwidth, and storage needs of different devices, eliminating the need for additional encoding modules and reducing compatibility costs with various terminal devices.
3. International Certifications: Utilizes SMT process and holds multiple international authoritative certifications. In scenarios with strict requirements for product safety and environmental protection, it can be directly applied without additional compliance modifications.
4. Compact PCB Design: The small 38mm×38mm size combined with a double-layer PCB structure significantly saves installation space while ensuring hardware performance. It can be easily integrated into space-constrained small devices and embedded terminals.

Technical Parameters:

Applications:

• Intelligent Agricultural Monitoring: Can cover large areas of farmland or greenhouses to accurately capture details such as crop leaf textures and pest spots, aiding in the intelligent monitoring and data analysis of crop growth status.
• Cultural Heritage Digitization Capture: Can clearly reproduce fine details on the surface of cultural relics, such as textures and inscriptions, precisely lock onto key areas of the relics, and provide reliable imaging support for the digital archiving of cultural heritage.
• Vehicle-mounted Auxiliary Imaging: Enables real-time video feedback, helping to reduce blind spots in the driving field of view. It is suitable for night driving scenarios and provides clear, stable image data for vehicle surround-view systems and driving assistance devices.
• Interactive Digital Signage/Kiosks: High-definition video quality can accurately capture user gestures and movement details, covering a wide interactive area to provide a smooth, immersive interactive experience.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
