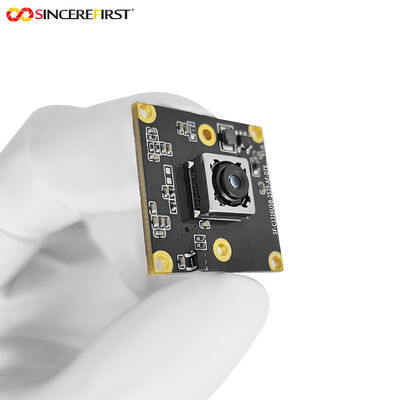

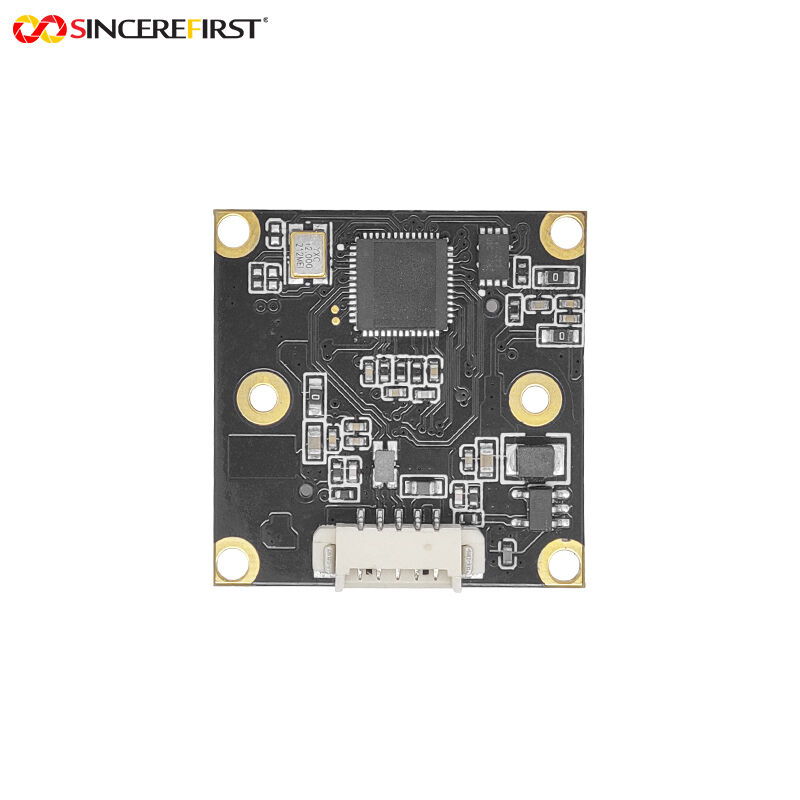

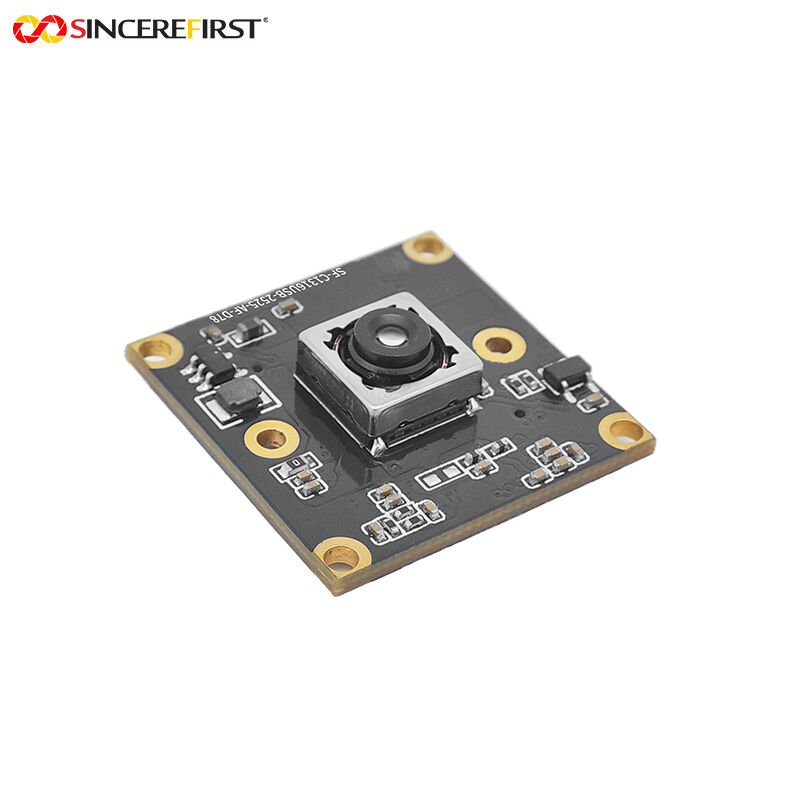

The IMX298 – 16.0 MP Raspberry Pi Compatible Camera Module features the IMX298 color sensor from Sony. Raspberry Pi uses this sensor for their 16.0 MP camera. The sensor has a 1/2.8″ optical format, which combined with the pixel size of 1.12 µm x 1.12 µm, provides the 16.0 MP 4656 x 3496 image. This is a rolling shutter sensor, which captures an entire column (or row) simultaneously. The sensor compiles the image by scanning across (or down).
Features
◆1/2.8” optical format (sensor size)
◆16.0 MP resolution (4656 H x 3496 V)
◆High sensitivity for low-light operation
◆RGBW Bayer pattern
◆Standard SCCB interface
◆Output support for Raw RGB, RGB (RGB565/555), GRB422, YUV (422/420) and YCbCr (4:2:2) formats, JPEG compression formats
◆Low operating voltage for embedded portable apps
| Sensor: | IMX298 |
| Focus Range: | 10cm to Infinity |
| F.NO: | 1.8 |
| TV Distortion: | ＜1% |
| Pixel: | 16MP |
| Focal Length: | 3.95mm |
| Fov(D): | 78° |
| Interface: | USB2.0 |
Office: Ideal for office environments that require high-definition video conferencing and document shooting.
Monitoring: Due to its high resolution and stability, it is suitable for security surveillance and video surveillance systems
Machine Vision: used for high-precision detection, positioning, measurement, etc.
Industrial Testing: used for automated testing, quality monitoring, part identification, etc.
Intelligent Transportation: used for license plate recognition, traffic monitoring, violation capture, etc.
Medical Equipment: used for endoscopes, surgical aids, etc.
Research Experiments: used for high-speed motion capture, microscopic imaging, etc.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
