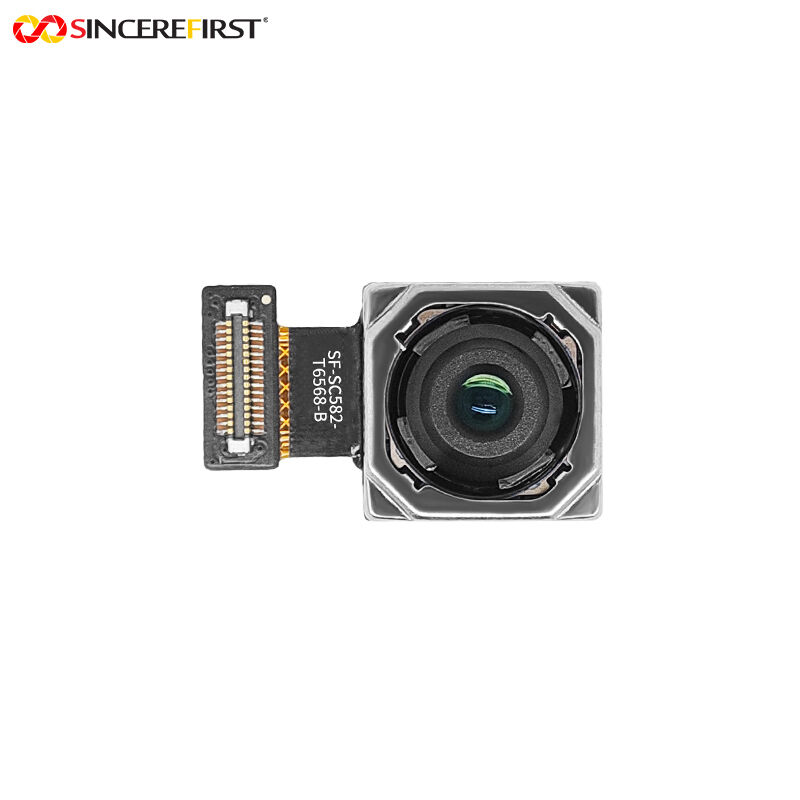

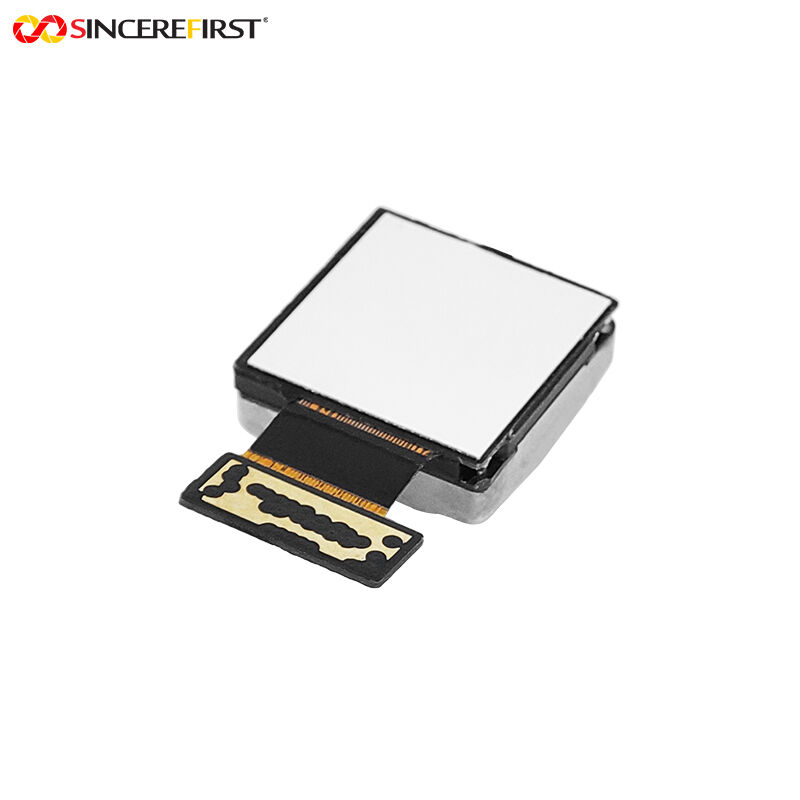

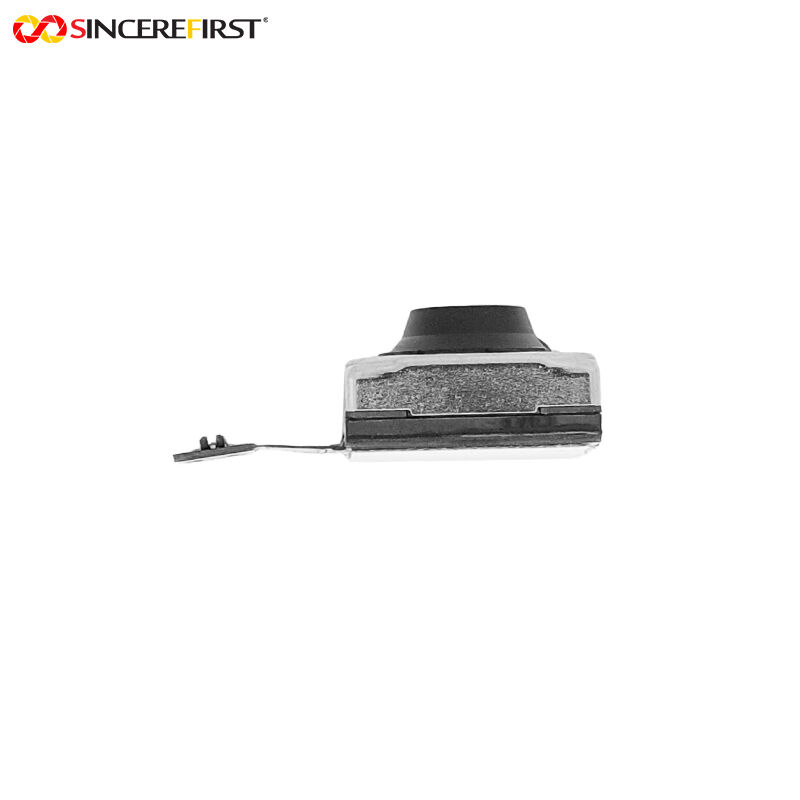

This is a 4K Auto Focus UHD 48MP IMX582 1/2 Inch CMOS MIPI Camera Module,supporting 48-megapixel (8000H×6000V) ultra-high-definition image output. Paired with a 4.74mm focal length lens, it delivers a 79.4° field of view, achieving high resolution and true scene reproduction within a compact structure (18.2mm×11mm×10.8mm). The module employs a rigid-flex board with motorized autofocus, balancing space utilization and imaging stability. Enhanced electromagnetic compatibility is achieved through conductive fabric and copper foil grounding. It is suitable for embedded vision applications demanding stringent requirements for image quality, compact size, and reliability, such as industrial vision inspection, high-end security, drone surveying, and medical imaging.
1. High-definition imaging: Features the Sony IMX582 sensor with 48MP resolution, supporting 8000×6000 high-resolution photography.

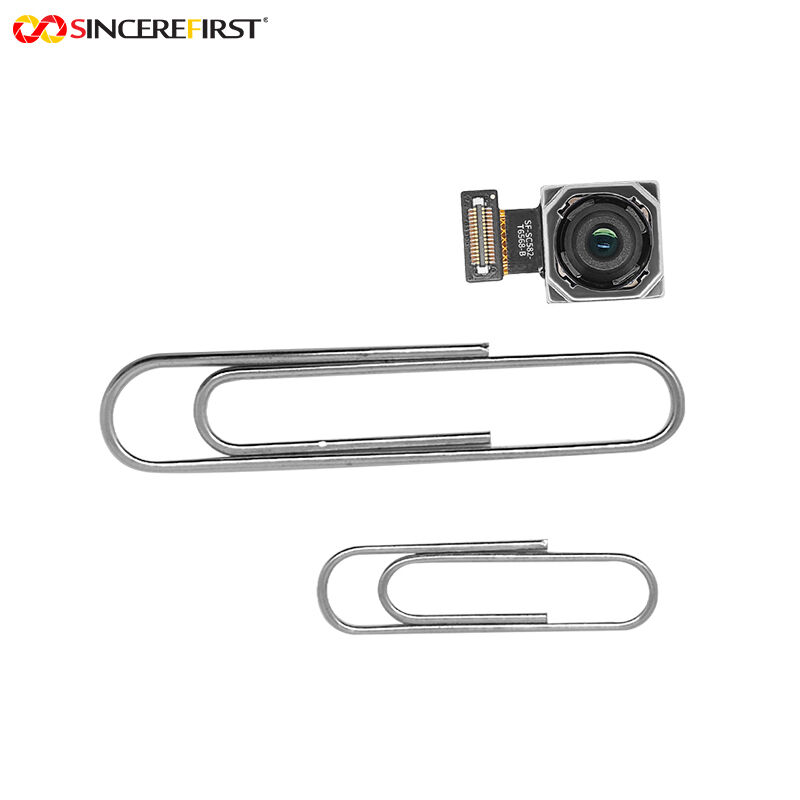

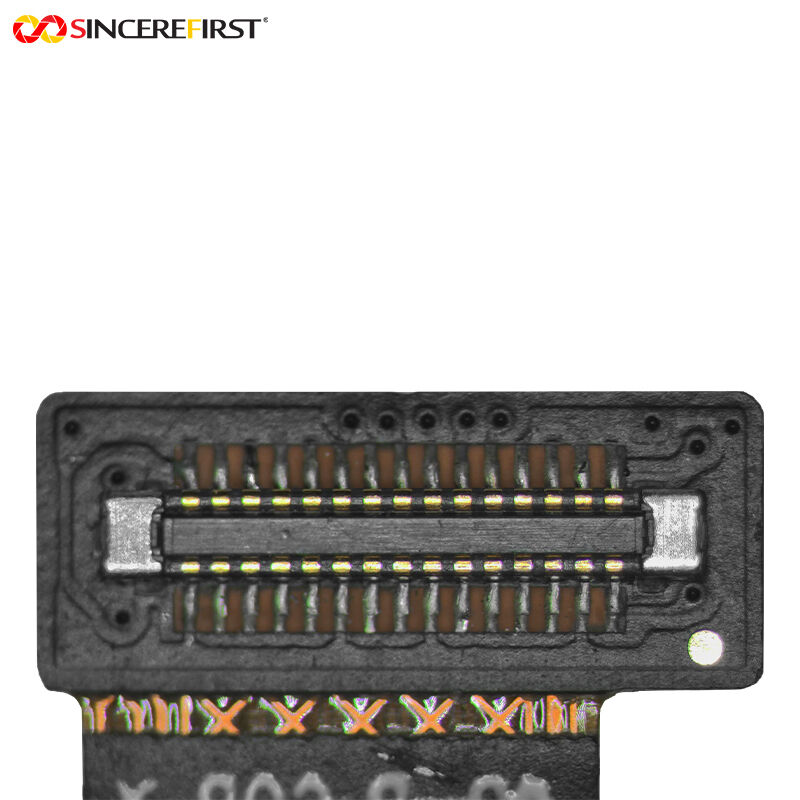

2. Compact Precision Structure: Module dimensions measure just 18.2×11×10.8mm, integrating a rigid-flex board with an autofocus motor.

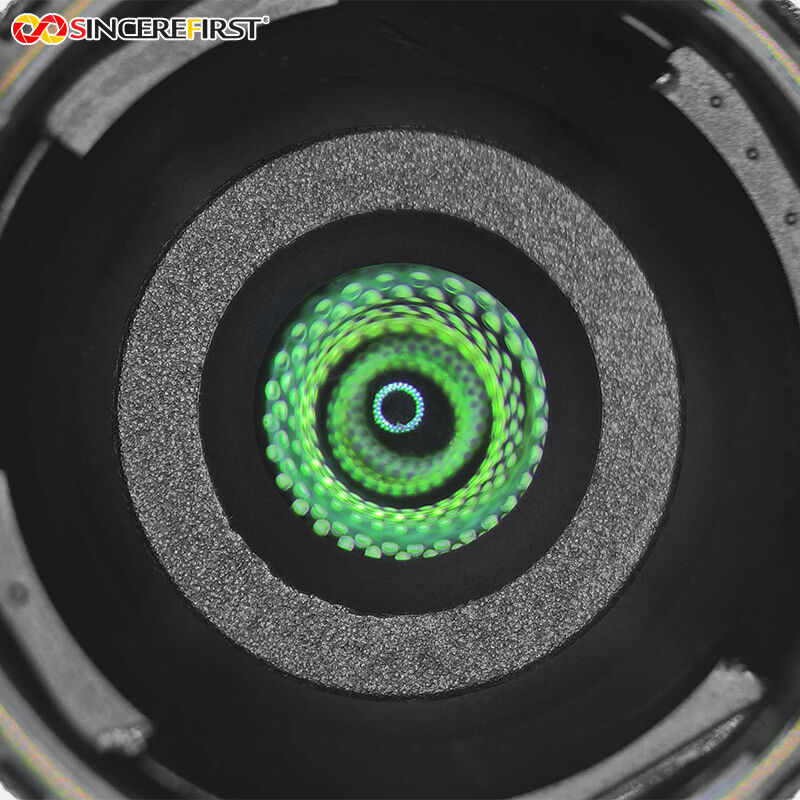

3. Wide-Angle True-to-Life Rendering: 4.74mm focal length delivers a 79.4° field of view, ensuring distortion-free, authentic imagery.
4. Stable Design: Incorporates conductive fabric and copper foil grounding for enhanced anti-interference capabilities and structural reliability.
| Product Name | 48MP Camera Module |
Sensor | IMX582 Sensor Camera Module |
| Piexl | 48MP |
EFL | 4.74MM |
Output Interface | MIPI |
Sensor Size | 1/2 Inch |
Keywords | 4K IMX582 Camera Module |
Warranty | 10 Years |
View Angle | 79.4° |
Brand Name | SINCEREFIRST |
1. Industrial Vision Inspection: Identifies cosmetic defects and performs dimensional measurements in production processes for PCB circuit boards, precision components, and similar items.
2. High-End Security Surveillance: Suitable for fixed monitoring, facial recognition, and license plate recognition scenarios requiring ultra-high resolution and detailed capture.
3. UAV Aerial Surveying and Mapping: Mounted on surveying drones for high-precision terrain modeling, architectural mapping, and agricultural monitoring.
4. Medical Imaging Equipment: Integrated into endoscopes, surgical microscopes, and other medical devices to support high-definition diagnostics and provide visual assistance for minimally invasive surgeries.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
