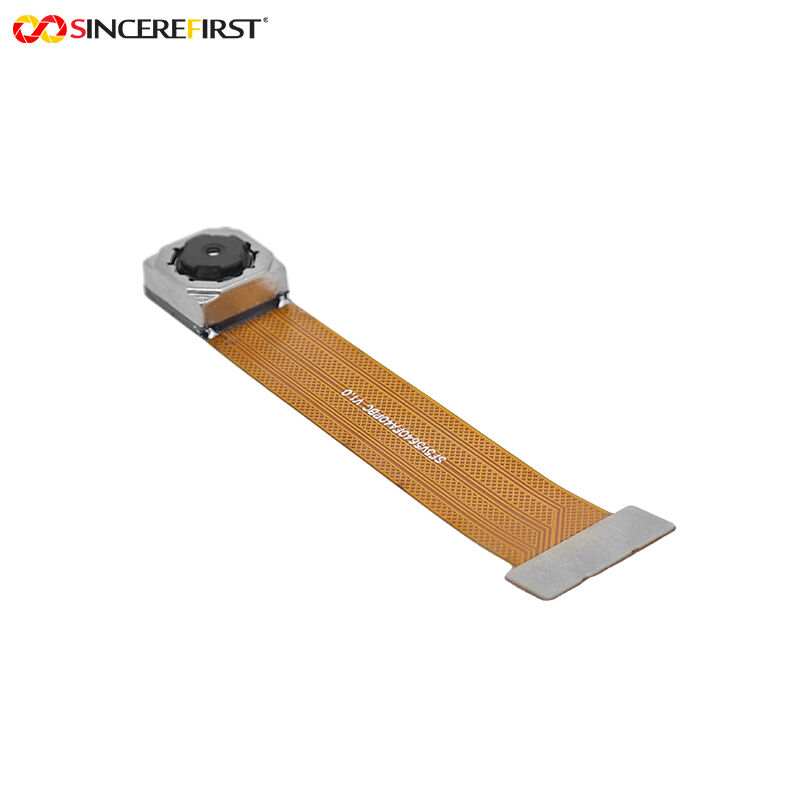

5MP Auto Focus OV5640 1/4 Inch MIPI Camera Module

5MP Auto Focus OV5640 1/4 Inch MIPI Camera Module

Product Description:

This 5MP Auto Focus OV5640 1/4 Inch MIPI Camera Module.It supports image output at resolutions up to 2592×1944, delivering clear capture for both static and dynamic scenes.The module features a fixed-focus design with a 3.29mm focal length and F2.8 aperture, delivering a wide field of view covering 68.7° diagonally, 58.1° horizontally, and 45° vertically, making it suitable for diverse visual applications.Structurally, the module body maintains a thickness of 8.90±0.15mm with mounting hole spacing of 30.00±0.2mm for easy integration and fixation. A protective filter is integrated on the surface, and all critical dimensions are marked with tolerances to ensure assembly consistency and optical reliability.This module is suitable for embedded vision systems, smart devices, security surveillance, and machine vision applications, delivering a stable, ready-to-use image acquisition solution.

Features:

1. 5MP HD output: Equipped with a 1/4-inch OV5640 sensor, supporting images up to 2592×1944 resolution for clear capture in both static and dynamic scenes.
2. Fixed-Focus Optical Design: Incorporates a 3.29mm fixed-focus lens with an F2.8 aperture, offering a wide field of view D68.7°/H58.1°/V45°,suitable for diverse visual applications.

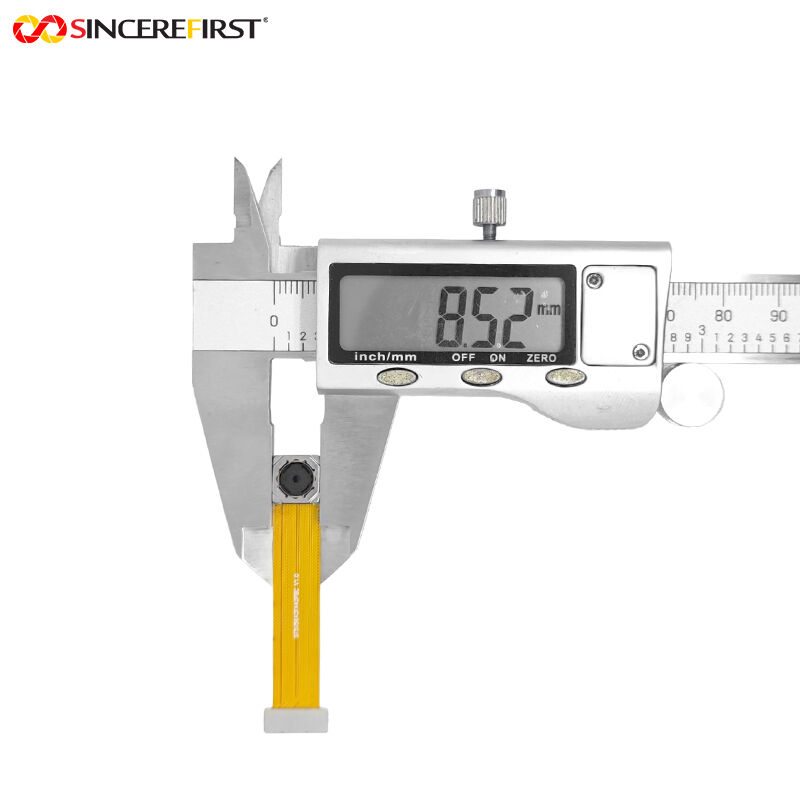

3. Compact Structure for Easy Integration: Body thickness of only 8.90±0.15mm with mounting hole spacing of 30.00±0.2mm. Critical dimensions are marked with tolerances, supporting quick installation and stable mounting.
4. Reliable, Ready-to-Use Imaging Solution: Features a protective filter on the surface and rigorous structural engineering. Suitable for embedded systems, smart devices, security surveillance, machine vision, and other fields. Ready to use out of the box.

Technical Parameters:

Applications:

1. Smart Home and Security Surveillance: Designed for home smart cameras, access control systems, and indoor/outdoor security monitoring devices, providing clear and reliable video capture and image recognition capabilities.
2. Embedded Vision Systems: Integrates seamlessly into various embedded devices such as industrial inspection tools, portable medical instruments, and smart retail terminals, supporting real-time image processing and analysis.
3. Consumer Electronics and IoT Devices: Widely used in smart door locks, video doorbells, dashcams, educational tablets, and other consumer electronics, meeting daily imaging recording and interactive needs.
4. Machine Vision and Automated Inspection: Suitable for positioning recognition, dimensional measurement, defect detection, and other scenarios in industrial automation, providing stable and efficient visual acquisition support for production lines.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
