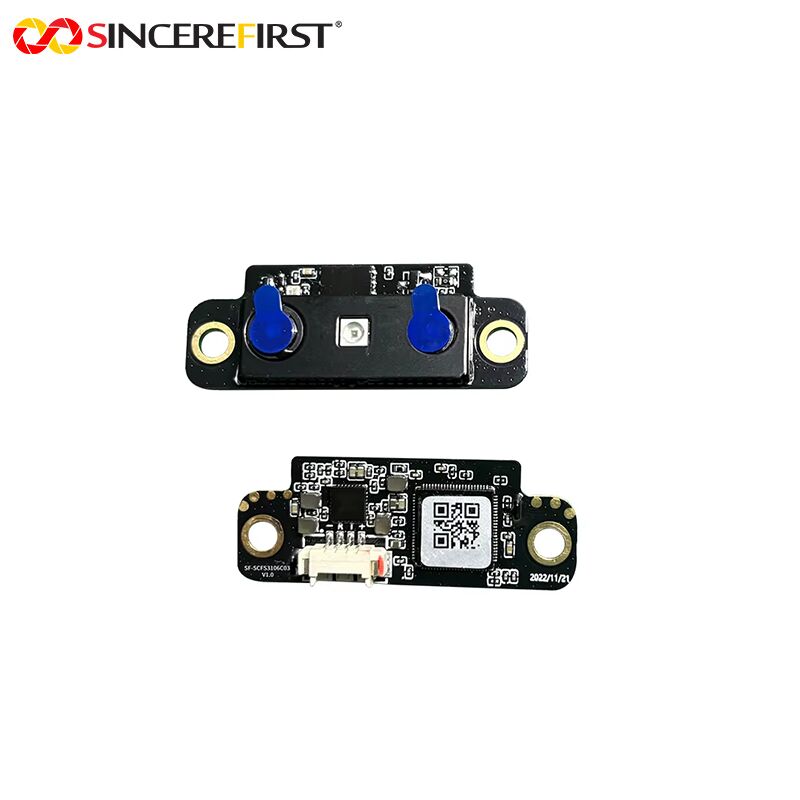

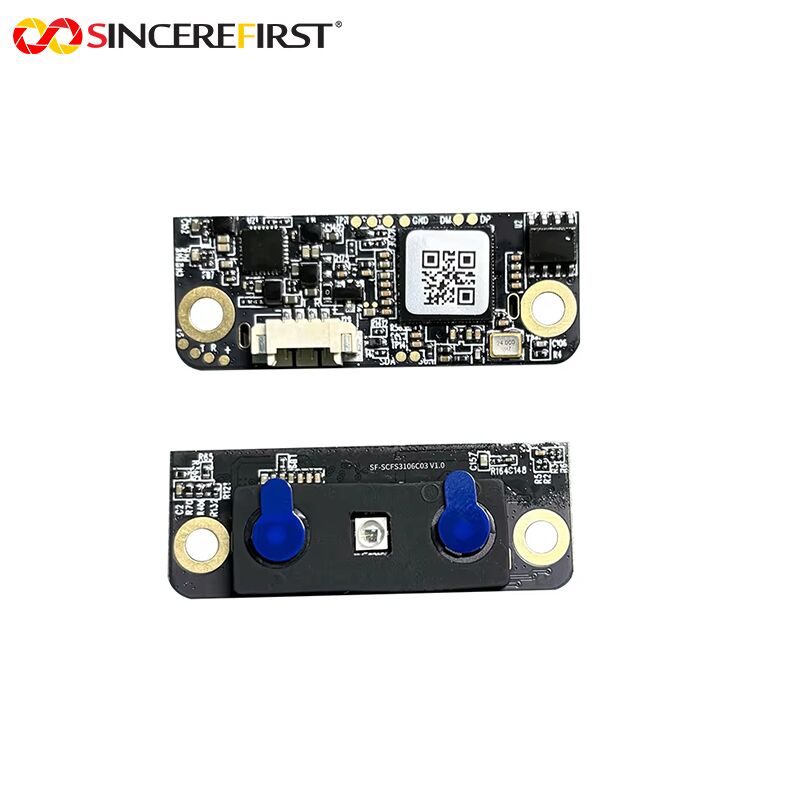

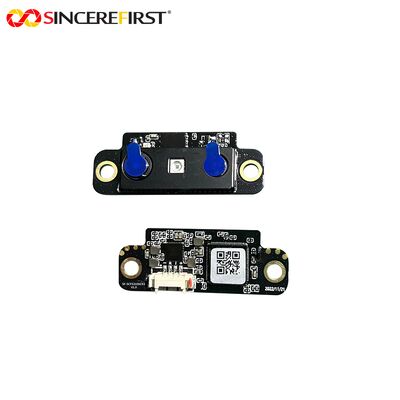

This 2MP 30FPS Dual Lens IR Face Recognition Camera Module is specifically designed for smart door locks, access control systems, and mobile robots. The module integrates dual cameras and an algorithm board into a single unit, featuring an 18mm baseline design. It enables fast and accurate facial recognition within a range of 40cm to 100cm, completing the process in under 1 second. It also supports liveness detection, effectively defending against deception attempts such as photos or masks. Equipped with a 1600×1200 resolution infrared sensor and 850nm LED flood illumination, the module operates reliably in low-light, backlit, and even pitch-black conditions. It accommodates heights ranging from 130cm to 200cm and demonstrates strong tolerance for accessories like glasses, hats, and beards. Utilizing a UART communication interface, the module supports local storage for 100 individuals. It operates within a wide voltage range of 4.5V to 14V and maintains a standby current of 0μA, meeting the demands of low-power embedded applications. With a compact structure measuring just 40.0×15.0×8.2mm, it suits installation environments with strict space constraints. Certified for ESD protection (±2000V) and Class 1 eye safety, it delivers excellent reliability.
1.Dual-camera 3D Recognition with High Security:Equipped with dual infrared cameras and an 18mm baseline design, it supports real-time 3D facial recognition and liveness detection, effectively preventing spoofing by photos, masks, and screens, providing a high level of security for access control and authentication applications.
2.Excellent Low-Light Performance and Wide Environmental Adaptability:Integrated with an 850nm infrared floodlight and a high-sensitivity infrared sensor, it maintains stable recognition in low-light, backlit, or completely dark environments. It also offers strong tolerance to accessories such as glasses, hats, beards, and makeup, ensuring reliable performance across diverse user scenarios.
3.Fast Recognition and Low Power Consumption:Capable of completing recognition from cold start within 1 second, delivering a fast and smooth user experience. With a standby current of 0μA and an operating voltage range of 4.5V to 14V, it is highly suitable for battery-powered and energy-sensitive applications.
4.Compact and Highly Integrated Design: Combines dual cameras and the algorithm board into a single compact module measuring only 40.0×15.0×8.2mm. This high level of integration simplifies installation and saves space, making it ideal for embedded devices with strict dimensional constraints.
| Product Name |
2MP USB 3.0 Camera Module |
|
Sensor |
Dual Lens IR Face Recognition |
| Piexl | 2MP |
|
IR resolution |
1600*1200@30fps |
|
Baseline |
18MM |
|

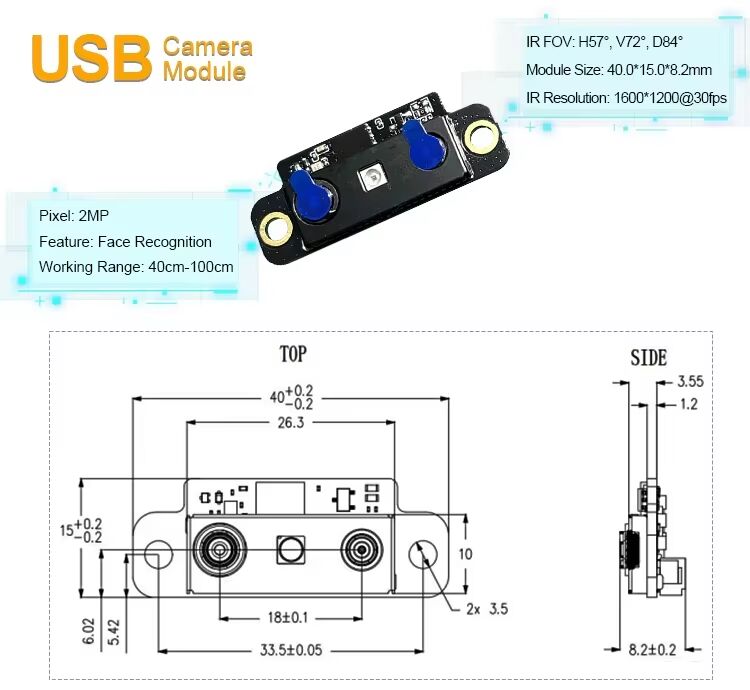

Module size |
40.0 × 15.0 × 8.2 mm |
|
Working Range |
40-100cm |
|
Interface |
USB |
|
IR FOV |
H57°,V72°,D84% |
|
Brand Name |
SINCEREFIRST |
1.Smart Door Locks & Access Control Systems:Ideal for residential, commercial, and office smart locks, supporting secure and contactless facial recognition access.
2.Smart Security & Surveillance Devices:Suitable for facial recognition terminals, visitor management systems, and secure entry points in buildings, schools, and campuses.
3.Service Robots & Human-Machine Interaction Devices:Can be integrated into service robots, kiosks, and interactive displays for user identification and personalized interaction.
4.IoT & Smart Home Applications:Applicable in smart home control panels, intelligent mirrors, and personalized home automation systems that require user recognition.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
