Product Description:

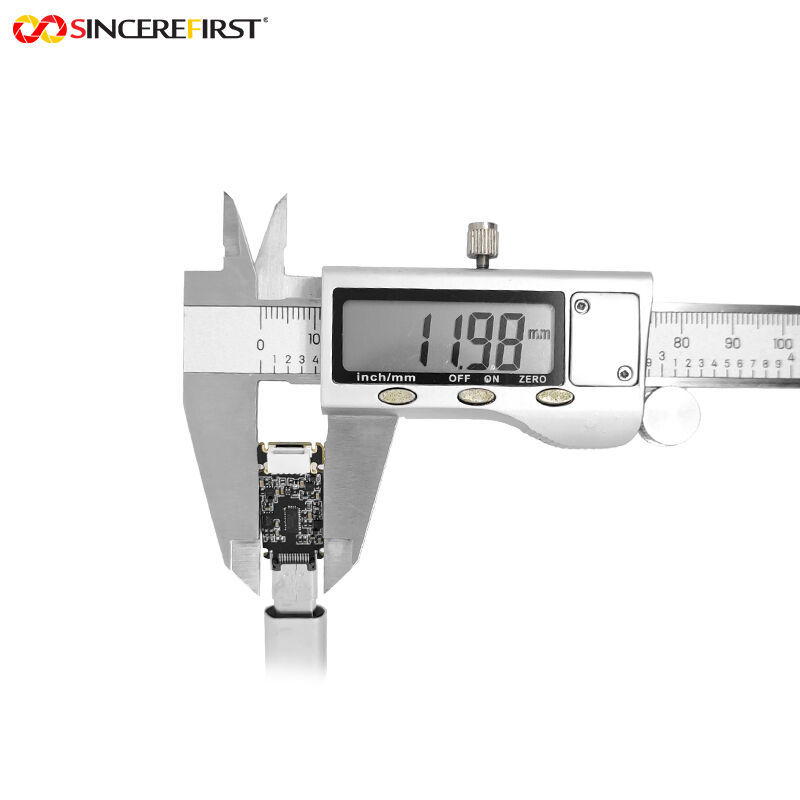

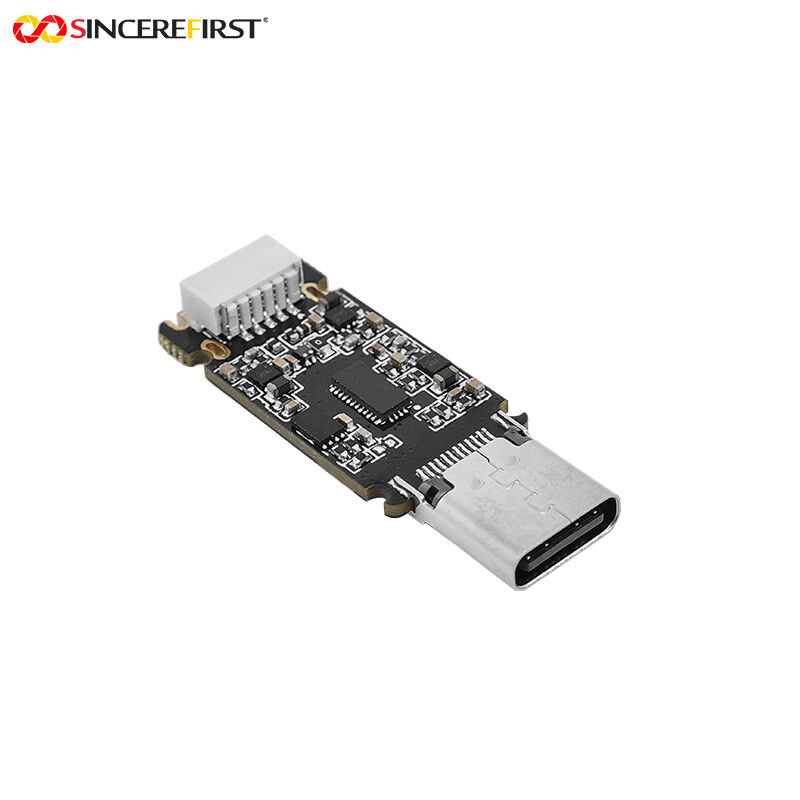

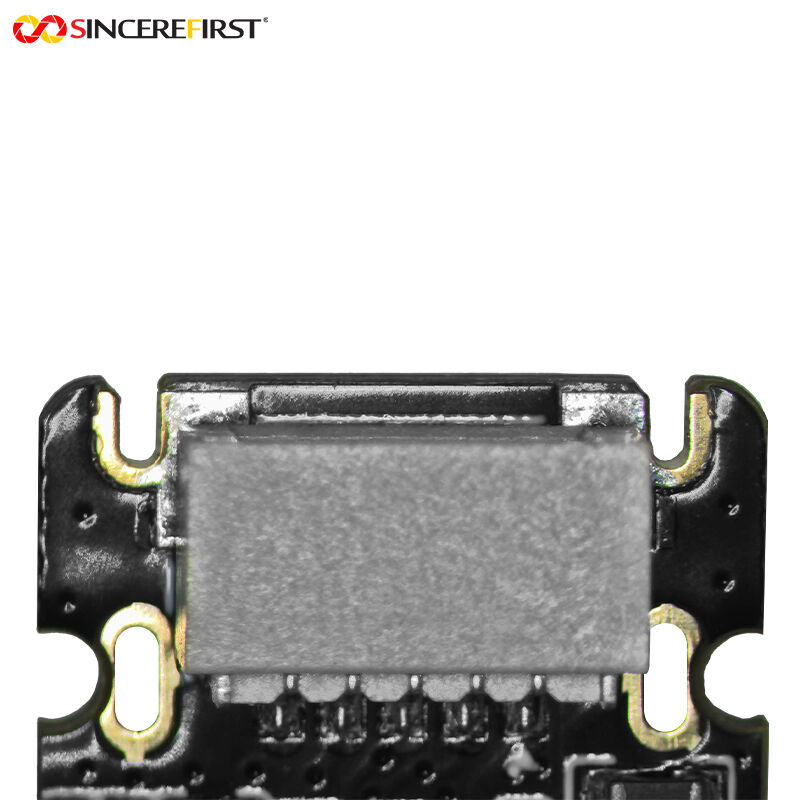

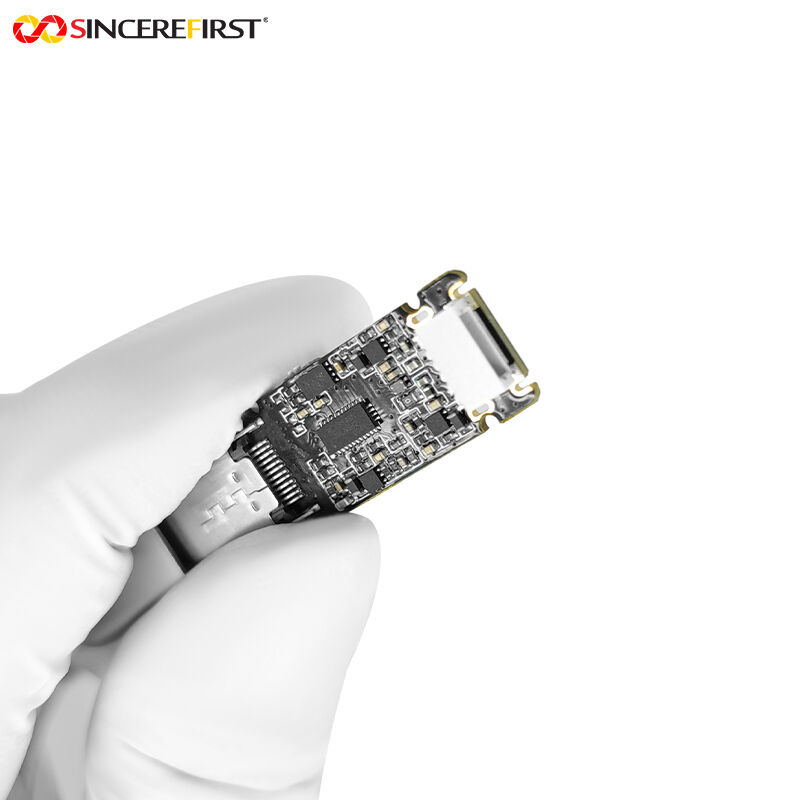

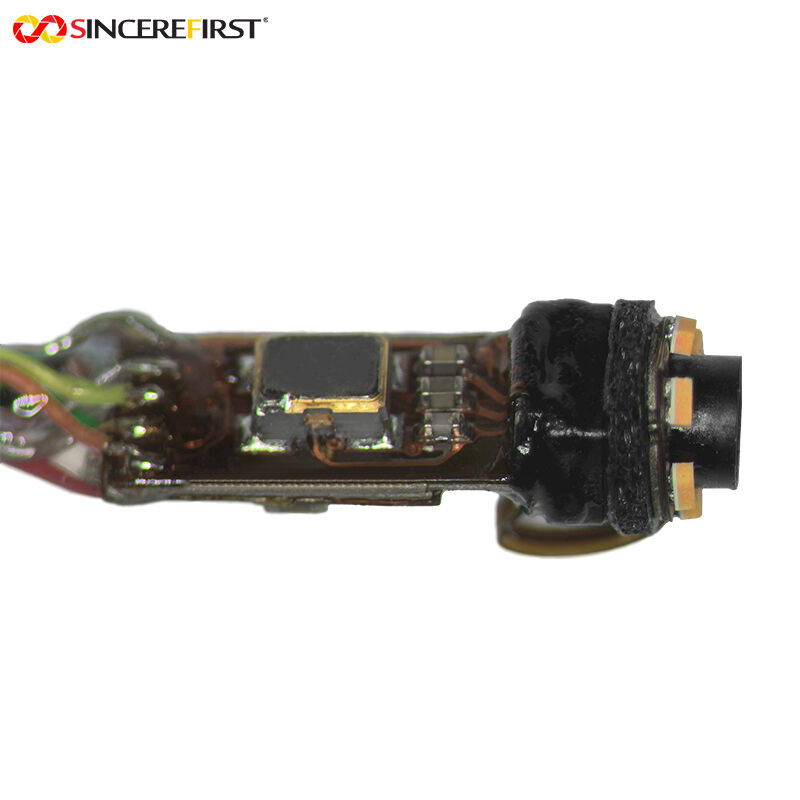

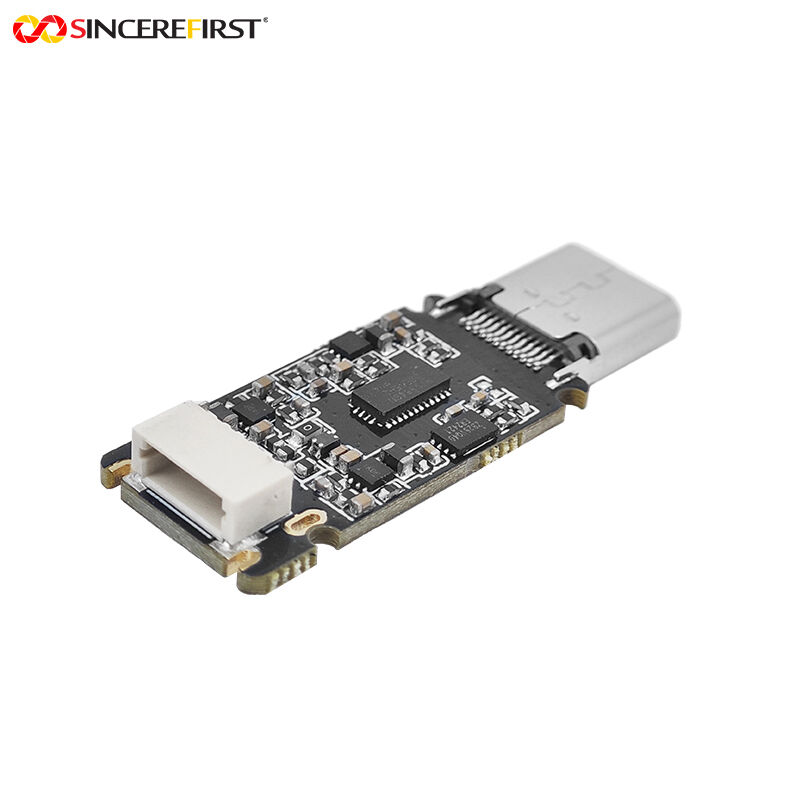

This is a 3.3mm Ultra-Miniature OV9734 Sensor Separate Endoscope Camera Module, This module is an ultra-compact, remote-type endoscope camera built around the OV9734 1/9-inch industrial-grade image sensor. The probe has a diameter of only 3.3mm, enabling high-definition, 102° ultra-wide-angle imaging in extremely confined spaces. The system adopts a separated design, with the probe and main control unit independently positioned, enhancing installation flexibility and adaptability to complex pathways.The optical system features an F4.0 aperture, providing sufficient depth of field while six 0201 white LEDs deliver continuous illumination for clear visibility even in complete darkness (0 lux). Lens distortion is corrected through a multi-element optical structure, keeping edge stretching within acceptable limits and ensuring accurate representation of pipe wall defects and foreign object morphology.This endoscope module is designed as a specialized solution for industrial inspection, equipment maintenance, pipeline exploration, and other specialized detection scenarios, combining miniaturization, ease of use, and reliable performance in an integrated imaging system.

Features:

1.Industrial-Grade Imaging Core: Equipped with the OV9734 1/9-inch CMOS sensor, carefully matched with the optical format, the 3.3mm micro-probe achieves 102° wide-angle imaging with minimal distortion. Edge resolution meets the requirements for precise defect identification.

2.Clear Imaging in Complete Darkness: Six 0201 white LEDs provide uniform continuous illumination without dark zones. The LED spectrum is optimized for the sensor’s response curve, avoiding common issues such as color shifts or blue bias, and reproducing the true appearance of inspected objects.

3.Optimized Optical System: A multi-element miniature lens assembly with anti-reflective coatings and F4.0 aperture ensures sufficient depth of field in close-range environments while suppressing stray light. This allows clear visualization of surface textures, wear marks, and other fine details on pipe walls.

4.Flexible Structure: The separated design, with the probe and main control unit independently positioned, increases installation flexibility and enables the probe to navigate complex or constrained paths.

Technical Parameters:

Applications:

• Disposable Laryngoscope: The 1.6mm slim lens can be easily inserted into the throat area; the IP67 waterproof design facilitates high-temperature disinfection after surgery to prevent cross-infection. 720P high-definition imaging + LED fill lights clearly present the state of vocal cords and throat mucosa, assisting doctors in quickly diagnosing inflammation or foreign body obstruction.​
• Internal Inspection Endoscope for Precision Instruments: Suitable for internal maintenance of precision equipment such as watch movements and micro-motors. The 1.6mm lens can penetrate narrow mechanical gaps; 720×720 high resolution accurately identifies subtle issues like gear wear and loose circuits, and manual focusing allows flexible focusing on key parts.​
• Household Air Conditioning Pipe Inspection Endoscope: The Micro USB interface can be directly connected to mobile phones or tablets for plug-and-play use. IP67 dustproof and waterproof capability resists dust and condensed water in air conditioning pipes; the 5~50mm focusing range adapts to pipes of different diameters. LED fill lights + wide FOV enable comprehensive observation of dust accumulation and mildew on the inner walls of pipes.​
• Veterinary Dental Endoscope: Targeting oral examination needs of pets such as cats and dogs. The 1.6mm slim lens avoids pet discomfort; 4 LED fill lights illuminate the deep part of the oral cavity. 720P high-definition imaging clearly presents issues like dental calculus and gingival inflammation, and the low distortion effect allows veterinarians to accurately diagnose conditions.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
