IMX766 CMOS Sensor MIPI Auto Focus Camera Module
Product Description:
The IMX766 CMOS Sensor MIPI Auto Focus Camera Module ,Built around the flagship SONY IMX766 CMOS sensor,this MIPI D-PHY auto-focus camera module redefines precision imaging for mission-critical devices that demand uncompromising clarity, geometric accuracy, and long-range adaptability.integrates a VCM (Voice Coil Motor) actuator for precise autofocus, with a focus range spanning 10cm to infinity,Unlike standard off-the-shelf modules, it integrates a calibrated AF actuator, low-distortion optical path, and industrial-grade control architecture to bridge consumer-level imaging quality with industrial-grade reliability—making it equally suited for high-end smart devices and precision inspection systems where pixel-level consistency and long-haul stability matter. Every design choice, from the 4-lane MIPI transmission pipeline to the OTP calibration storage and multi-rail regulated power input, is engineered to eliminate signal noise, focus lag, and image distortion, turning raw optical data into actionable, repeatable visual output.
Features:
1.Balanced High-Resolution Across Full Frame: This module breaks the common tradeoff between center and edge sharpness, delivering 2200 L/P center resolution and 1700 L/C corner resolution with tightly controlled variance. This uniform imaging performance eliminates soft edges and skewed details, ensuring every pixel across the field of view meets inspection or capture standards—critical for measurement, recognition, and premium photography where partial-frame clarity is not acceptable.
2.Near-Zero Distortion for Measurement-Grade Accuracy: With optical distortion held below 1%, the module maintains true geometric fidelity from close-up macro shots to infinity-range landscapes. This level of precision removes the need for post-capture correction software, streamlines integration, and qualifies the module for non-contact metrology, defect analysis, and AI vision tasks that rely on unaltered object proportions.
3.Seamless Full-Range Auto Focus: The calibrated AF system covers an industry-flexible 10cm-to-infinity range, transitioning smoothly between close-quarters inspection and long-distance monitoring without manual adjustment. It maintains focus lock in dynamic conditions, supporting continuous capture and real-time feedback loops for drones, dashcams, and surveillance hardware.
4.Built for Endurance & Compliance: Engineered with a critical dimension CPK > 1.33 and flex-optimized PCB/FPC (adhesive-free rolled copper, softened bend zones), the module withstands repeated flexing and harsh operating conditions. Backed by OTP-stored calibration data (MID, AMB, LSC, AF, PDAF) and compliance with ISF, Phthalate, Sh203, and Be standards, it delivers consistent performance over lifecycle and meets global environmental and quality regulations.

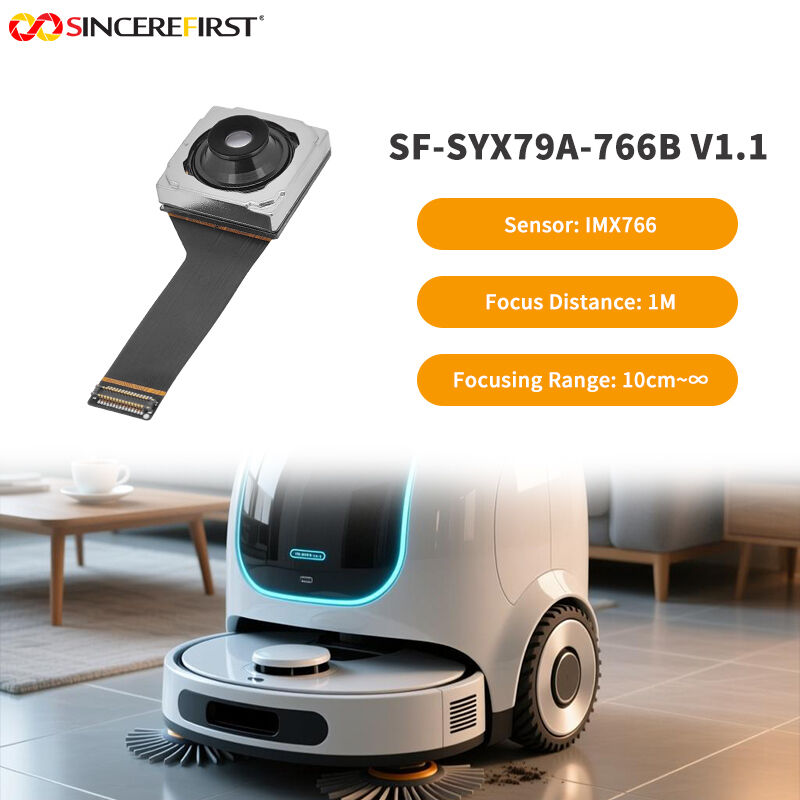

Technical Parameters:
| Product Name |
MIPI Camera Module
|
|
Sensor
|
IMX766 CMOS
|
| Focusing Rangle |
10cm-infinity |
|
F.NO
|
2.4
|
|
Output Interface
|
MIPI |
|
Focus Distance
|
6.16mm
|
|
Keywords
|
MIPI Camera Module
|
|
Warranty
|
10 Years
|
|
Distortion
|
<1%
|
|
Brand Name
|
SINCEREFIRST
|
Applications:
- Smart Home: The large-pixel advantage allows the camera to clearly recognize the activity status of family members at nighttime or in low-light conditions; the wide FOV can cover a larger indoor area, and a single device can monitor the entire room; the compact design facilitates concealed integration into home products, maintaining aesthetics without sacrificing performance.
- VR/AR: The 120FPS high frame rate combined with the global shutter can accurately capture fast hand movements and head rotations, providing smooth, blur-free visual data; the excellent near-infrared response characteristics support cooperation with infrared markers to achieve high-precision spatial positioning and motion tracking, enhancing the realism of immersive experiences.
- AOI Inspection: At a 2m/s board conveying speed on SMT production lines, the global shutter freezes images of solder joints and components; the 3μm pixel resolution meets the inspection requirements for 01005 components; NIR illumination suppresses reflection interference from pads; the 10-Bit RAW data supports deep learning models in identifying hidden defects such as microcracks and cold solder joints.
Customized Process:
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
