Product Description:

This is a IMX678 CMOS Sensor USB3.0 Type-C and HDMI Interface Camera Module , built on Sony’s IMX678 large-format CMOS sensor, this 8MP USB camera module is engineered to solve the pain points of low detail, poor compatibility and unstable transmission in industrial and scientific imaging scenarios. Its 1/1.8-inch large sensor with 2.0μm pixel size delivers superior light-gathering capability, effectively reducing noise in low-illumination environments and ensuring clear, high-fidelity imaging even for micro-details. Supporting up to 4K (3840×2160) ultra-high definition output and maintaining 30fps stable frame rate across all resolutions, it achieves a perfect balance between imaging precision and transmission efficiency through MJPG, YUY2 and H.264 multi-format output—H.264 hardware encoding further reduces bandwidth occupation while preserving image quality. The dual-interface design of USB3.0 Type-C and HDMI not only enables high-speed data transmission (up to 5Gbps via USB3.0) but also supports real-time display without signal delay, while UVC driver-free compatibility with Windows, Linux, Android, MAC, Raspberry Pi and domestic systems eliminates cross-platform integration barriers. Optically, it is fully compatible with M12/C/CS interface lenses matching the 1/1.8-inch target surface, with a focusing range of 1cm to infinity to cover macro inspection and long-distance observation. Manufactured by SMT precision process and compliant with RoHS environmental standards, it provides SDK support for Halcon, OpenCV and LabView, and allows fine adjustment of more than ten image parameters, making it a customizable, high-reliability imaging core for high-precision industrial detection, machine vision and scientific research experiments.

Features:

1.Sony IMX678 Large-Format Imaging Core:1/1.8-inch large sensor with 2.0μm pixel size, strong light-gathering ability, low noise and high dynamic range, ensuring clear details in both bright and low-illumination environments.

2.4K High-Precision & Efficient Transmission: 4K ultra-clear output + 30fps stable frame rate, H.264 hardware encoding reduces bandwidth, USB3.0 high-speed transmission ensures no lag, meeting high-precision real-time imaging needs.

3.Multi-System & Lens Compatibility: UVC driver-free, compatible with multiple systems; supports M12/C/CS interface lenses, flexible replacement to adapt to different imaging distances and fields of view.

4.Customizable & Industrial-Grade Reliability: SDK support for secondary development, ten+ adjustable image parameters; SMT process + RoHS compliance, -20℃~70℃ wide temperature range, stable in harsh industrial conditions.

Technical Parameters:

Applications:

• Disposable Laryngoscope: The 1.6mm slim lens can be easily inserted into the throat area; the IP67 waterproof design facilitates high-temperature disinfection after surgery to prevent cross-infection. 720P high-definition imaging + LED fill lights clearly present the state of vocal cords and throat mucosa, assisting doctors in quickly diagnosing inflammation or foreign body obstruction.​
• Internal Inspection Endoscope for Precision Instruments: Suitable for internal maintenance of precision equipment such as watch movements and micro-motors. The 1.6mm lens can penetrate narrow mechanical gaps; 720×720 high resolution accurately identifies subtle issues like gear wear and loose circuits, and manual focusing allows flexible focusing on key parts.​
• Household Air Conditioning Pipe Inspection Endoscope: The Micro USB interface can be directly connected to mobile phones or tablets for plug-and-play use. IP67 dustproof and waterproof capability resists dust and condensed water in air conditioning pipes; the 5~50mm focusing range adapts to pipes of different diameters. LED fill lights + wide FOV enable comprehensive observation of dust accumulation and mildew on the inner walls of pipes.​
• Veterinary Dental Endoscope: Targeting oral examination needs of pets such as cats and dogs. The 1.6mm slim lens avoids pet discomfort; 4 LED fill lights illuminate the deep part of the oral cavity. 720P high-definition imaging clearly presents issues like dental calculus and gingival inflammation, and the low distortion effect allows veterinarians to accurately diagnose conditions.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

About US:

Cooperative Brands & Customers:

Why Chooes US:

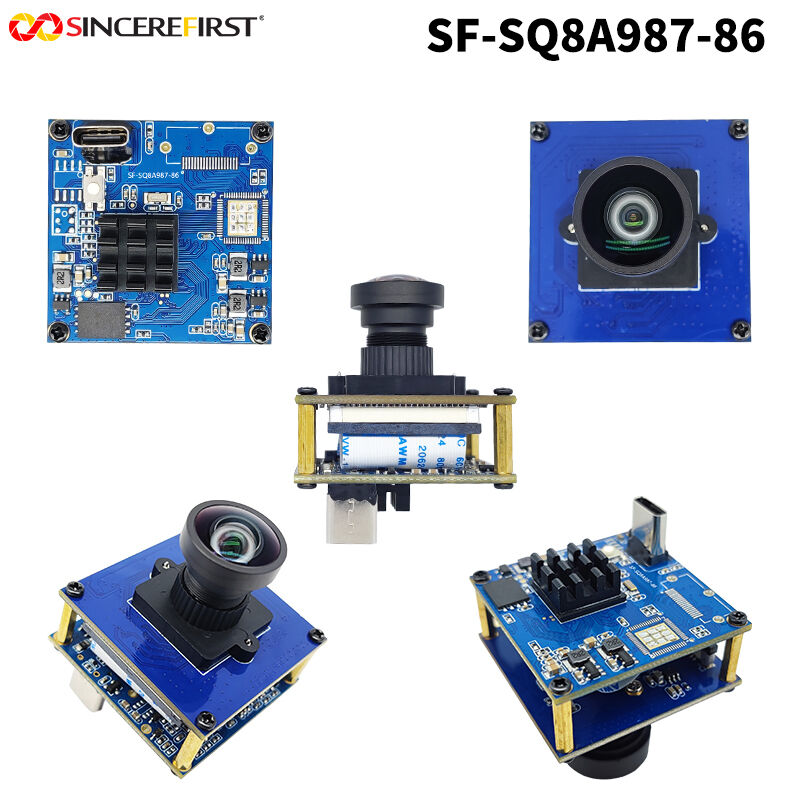

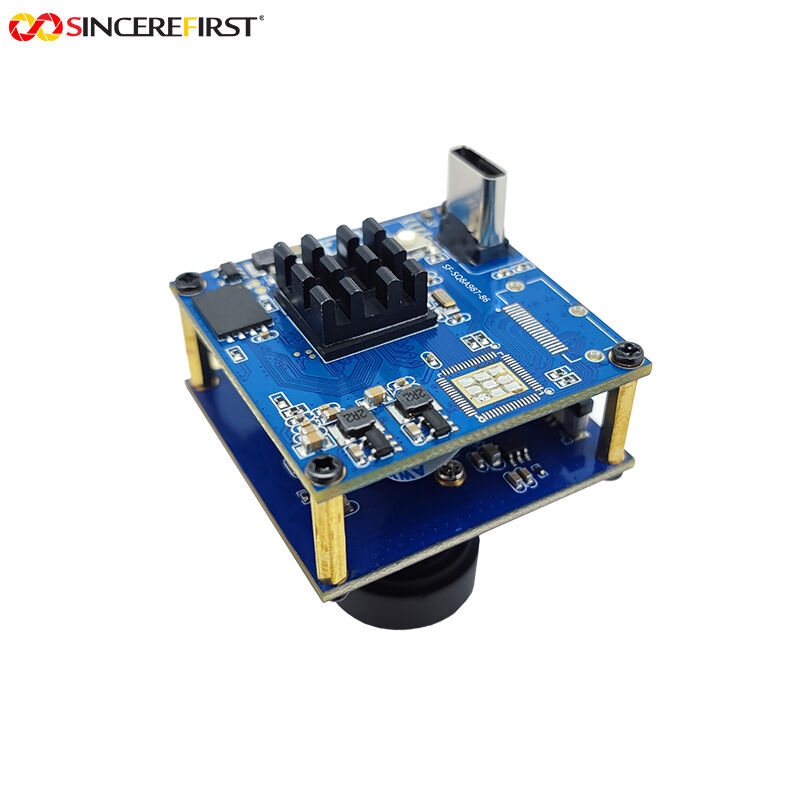

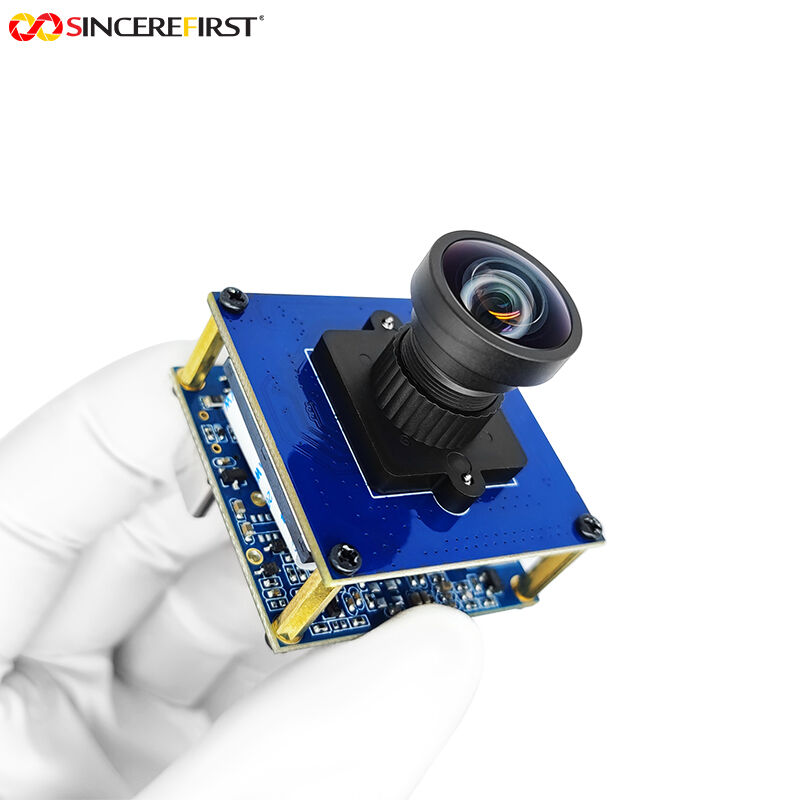

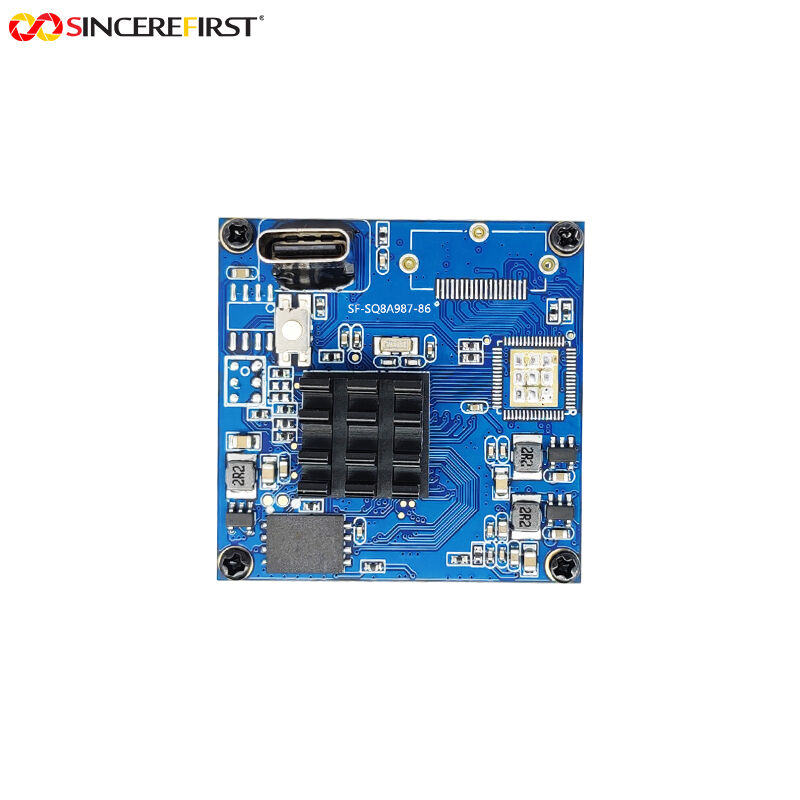

Detail Pictures:
