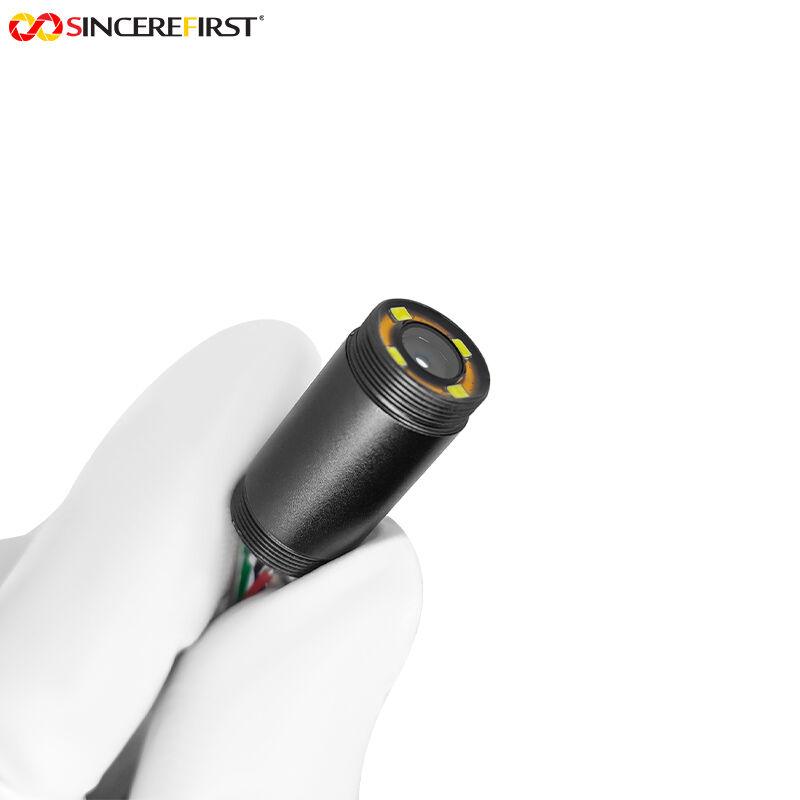

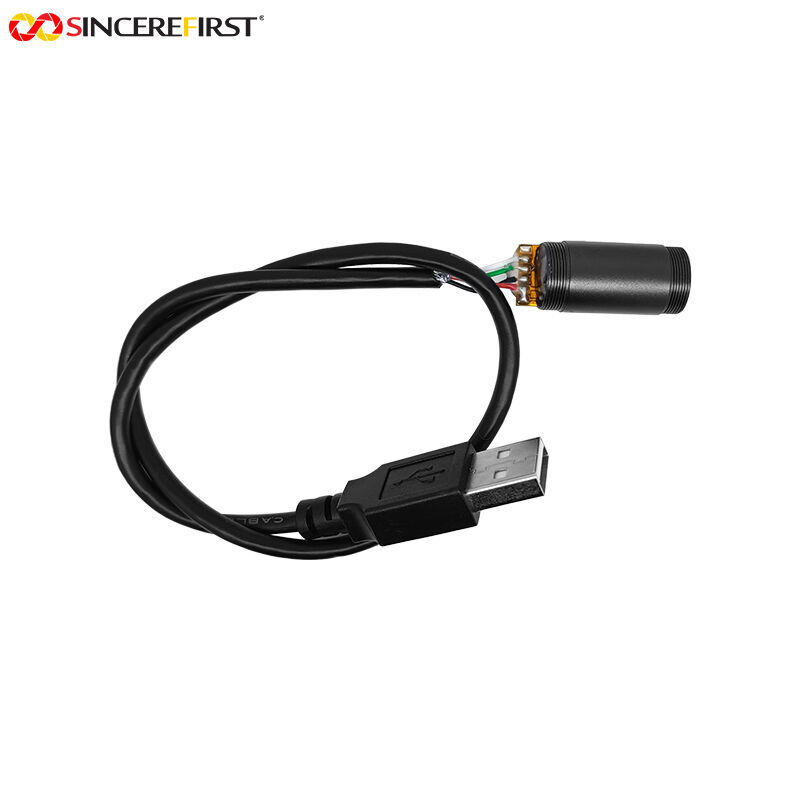

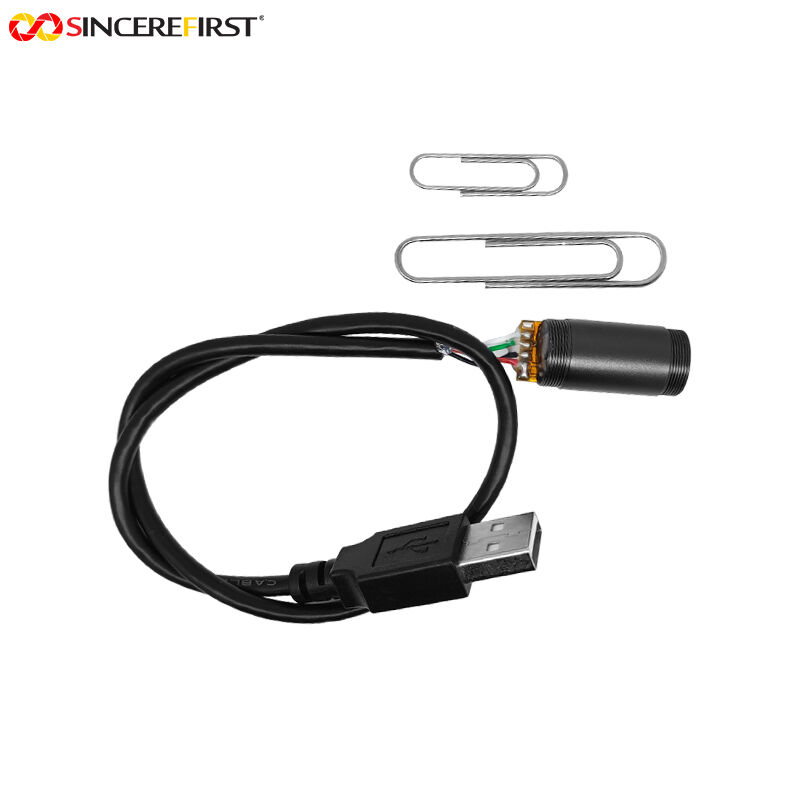

This 5MP HD USB2.0 Interface Auto Focus Endoscope Camera Module is engineered as a rugged, industrial-grade imaging solution tailored for medium-to-long-distance visual inspection in confined spaces. Available in 12.5mm and 14.5mm dual diameter specifications, it integrates a 1/5-inch CMOS sensor with 5MP (2592×1944) resolution and 1.12μm pixel technology to deliver crisp, detailed imaging—critical for identifying micro-defects in large-diameter industrial environments. Paired with a 72° field of view and F2.8 aperture, it balances wide coverage and sharpness, while its 5cm-to-infinity auto-focus mechanism eliminates manual adjustments, ensuring consistent clarity across varying detection distances. The module is equipped with 4 high-brightness 6000-6500K white-light SMD LEDs, with optional dimming to adapt to dark or variable lighting conditions inside equipment, and leverages USB2.0 for seamless 5V power and data transmission via dedicated LED/VCC power pins. Compatible with Windows XP/7 systems and operating reliably from 0°C to 60°C, it features strict ±0.2mm dimensional tolerance for its 29.2mm core lengths, anti-static packaging, and factory-default image registers for plug-and-play deployment. As a purpose-built component for industrial endoscopy, it excels in challenging environments where structural integrity, environmental resilience, and precise imaging are non-negotiable.
1.5MP High-Resolution Industrial Imaging:1.12μm pixel size + 72° FOV + F2.8 aperture capture ultra-fine defects (e.g., wear, cracks) in large cavities/pipes, ensuring no detail is missed for accurate diagnostic reporting.
2.Auto-Focus for Long-Distance Efficiency:5cm-to-infinity auto-focus dynamically adapts to variable detection distances (e.g., deep tank interiors, long pipe runs) without manual intervention, cutting inspection time and human error.

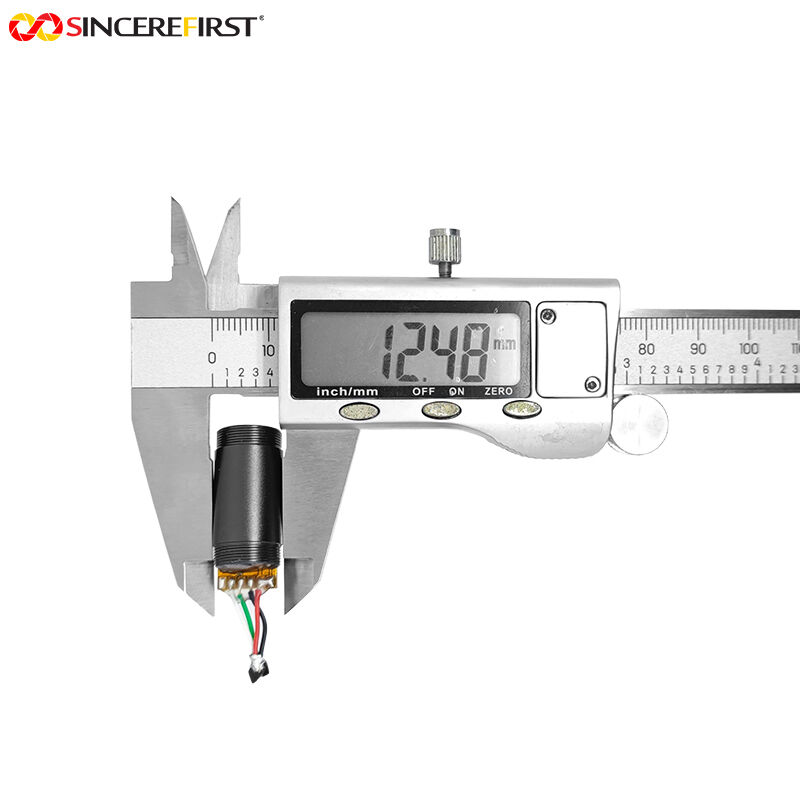

3.Dual-Size Industrial Compatibility:12.5mm/14.5mm dual diameters match standard industrial pipe/cavity specifications, eliminating custom modifications and ensuring seamless integration into existing inspection setups.
4.Robust Environmental & Electrical Design:0°C–60°C wide temp range, anti-static protection, and independent LED power pins enable stable operation in harsh industrial conditions (e.g., dusty factories, cold storage, outdoor pipelines).
| Product Name |
CMOS Medical Endoscope Camera Module |
|
Sensor |
CMOS Sensor |
| Sensor Size | 1/5 inch |
|
FOV |
72° |
|
F.NO |
2.8 |
|
Pixel |
5MP |
|
LED |
4pcs |
|
Interface |
Micro, USB2.0 |
|
Warranty |
10 Years |
|
Certification |
CE, FCC, REACH, ISO, RoHS |
1.Industrial Large Cavity & Tank Inspection: It can be used for internal inspection of large mechanical cavities, industrial storage tanks, and heavy-diameter pipelines to identify wall corrosion, cracks, or blockages. It is applicable because its 5MP HD imaging resolves micro-defects and dual-size probes fit diverse cavity/pipeline dimensions, even in low-light environments.
2.Heavy Equipment Overhaul & Maintenance: It can be integrated into engines, gearboxes, and marine machinery for non-dismantling fault location. It is applicable due to its 5cm–∞ auto-focus (adapting to multi-distance component gaps) and 0°C–60°C temperature resilience, enabling reliable inspection in tight, hard-to-reach spaces.
3.Municipal & Building Pipeline Maintenance: It can inspect building water supply/drainage, gas, and HVAC pipelines for blockages or damage. It is applicable as dual diameter specs match different pipe sizes, and USB2.0 plug-and-play design simplifies on-site use by municipal crews.
4.Commercial Large-Scale Equipment Care: It can support internal visual maintenance of central air conditioners and industrial refrigeration systems. It is applicable because its dimmable LED fill light illuminates dark equipment interiors, while HD imaging clarifies component wear for efficient repairs.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
