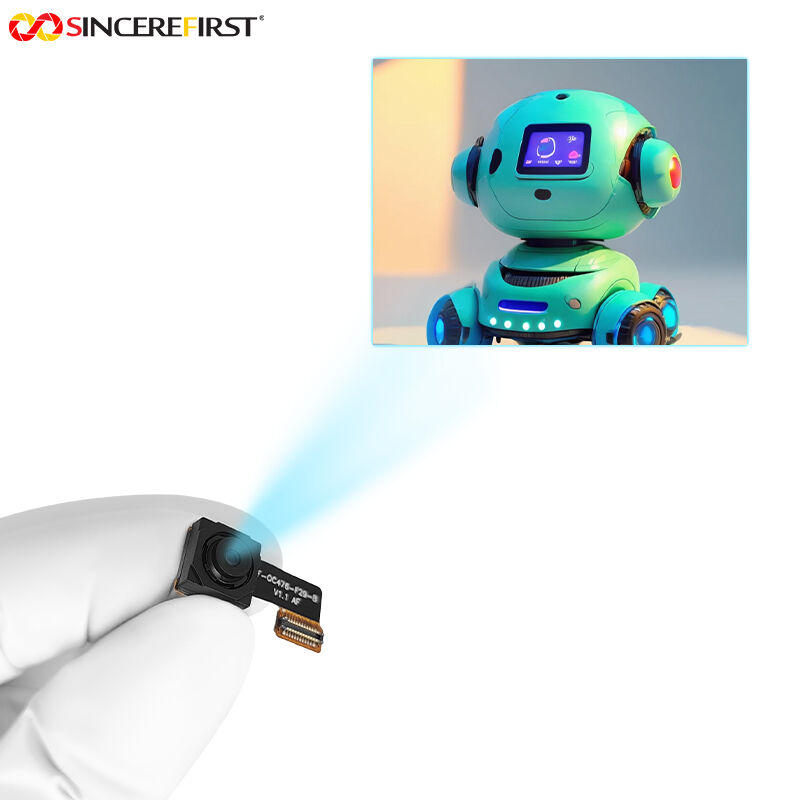

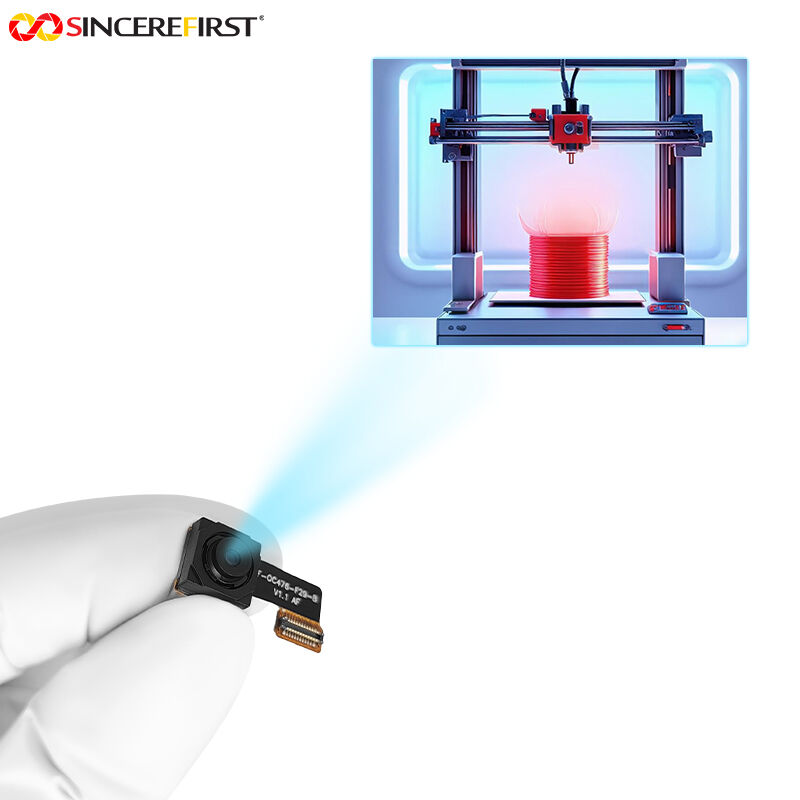

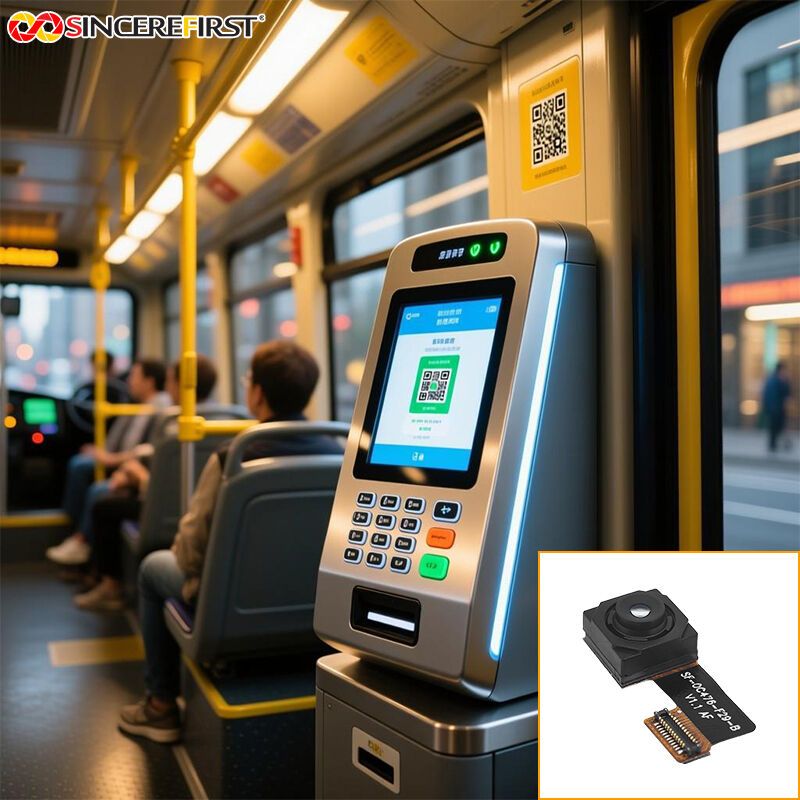

This IMX376 CMOS Sensor Auto Focus MIPI Interface HD Camera Module is a high-precision auto-focus MIPI camera module, ideal for high-end vision, industrial detection, intelligent imaging and measurement analysis equipment. It uses a 1/2.7-inch IMX376 sensor (directly replaceable with IMX476), reducing hardware modification costs and enhancing product iteration flexibility. Equipped with VCM auto-focus driven by the DW9763 AF chip, it maintains clear imaging at distances above 10cm without manual adjustment. Its optical system features a 3.81mm focal length, F/2.2 aperture and 78° field of view, with distortion controlled within 0.5% and resolution up to 5184×3880 (about 20 million pixels), effectively enhancing image detail restoration. It transmits signals via 4 MIPI channels, achieving high transmission rate and strong anti-interference. Structurally, it adopts FPC + steel sheet reinforcement and conductive foam grounding to suppress electromagnetic interference and improve mechanical stability. The IIC communication address is fixed at 0x34 (write) and 0x35 (read) to ensure reliable transmission of control commands, integrating high resolution, low distortion, auto-focus and sensor compatibility.
1.VCM Auto Focus:Integrates micro focus motor and driver chip, automatically maintaining clear imaging at different distances.
2.20MP Ultra HD Imaging:Outputs 5184×3880 resolution, captures tiny details for high-precision acquisition.
3.Ultra-Low Distortion (<0.5%):Minimizes geometric distortion, improving accuracy of size measurement and shape judgment.
4.IMX376/IMX476 Compatible:The two sensors are directly replaceable, reducing costs and enhancing iteration flexibility.

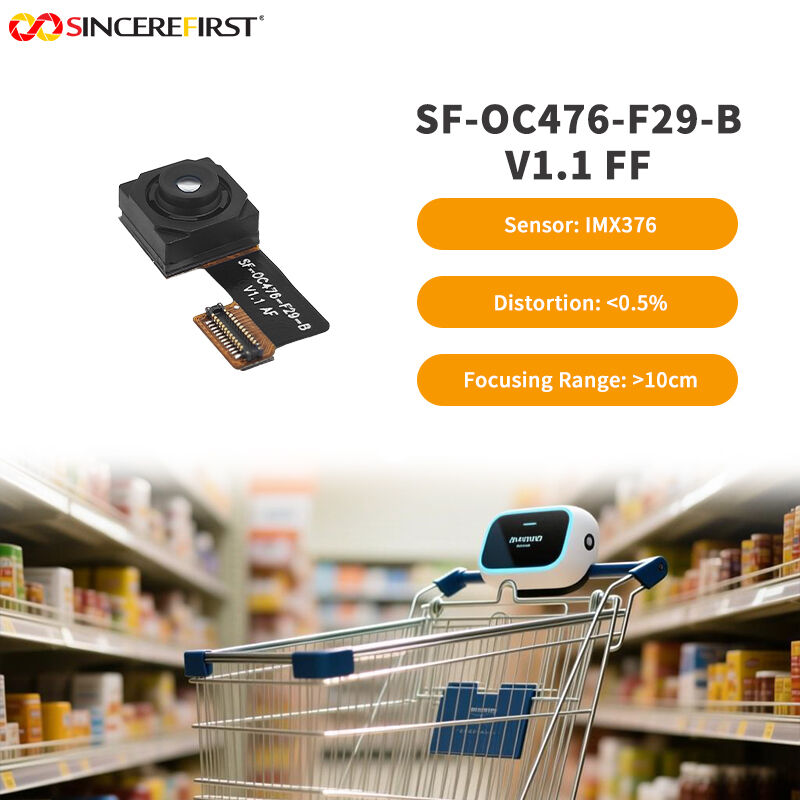

| Product Name |
MIPI Camera Module |
|
Sensor |
IMX376 |
|
Focusing Range |
>10cm |
|
Lens Type |
1/2.7" |
|
View Angle |
78° |
|
TV Distortion |
<0.5% |
|
Keywords |
MIPI Camera Module |
|
Warranty |
10 Years |
|
Pinout |
24 Pin |
| EFL | 3.81mm |
| Pixel | 5184*3880 |
| F.No | 2.8 |
|
Brand Name |
SINCEREFIRST |
1.Industrial High-Precision Vision Detection:It provides reliable image input for component size and defect detection, relying on its low distortion and high resolution.
2.Intelligent HD Imaging Equipment:It serves as a high-quality image source for capture, video and face recognition devices with its ultra HD imaging.
3.Measurement and Analysis Systems:Its ultra-low distortion ensures true image proportion, suitable for quantitative analysis of distance, area and shape.

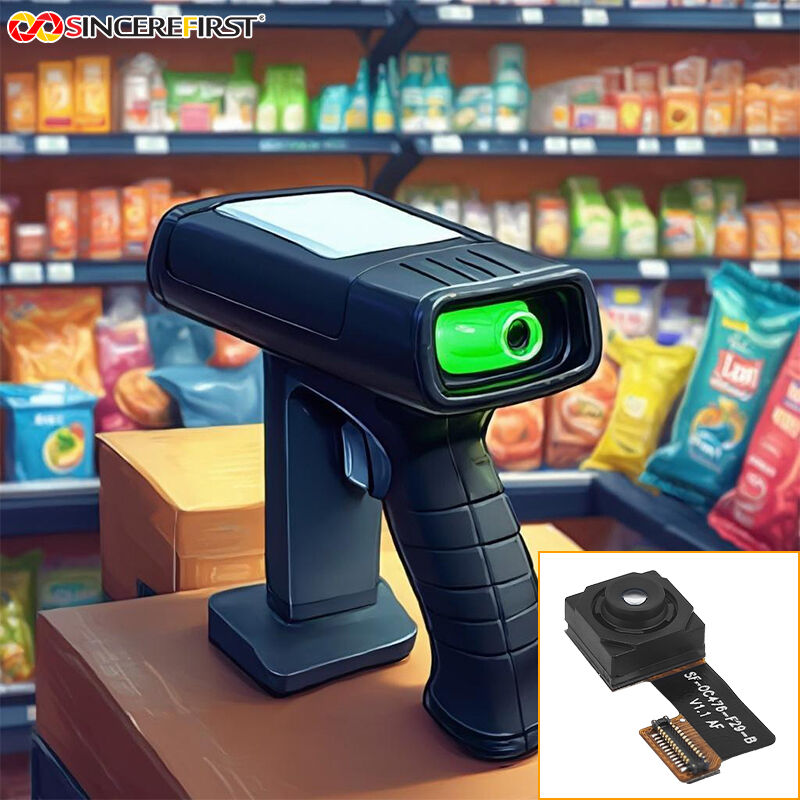

4.Multi-Scene Universal Camera Module:It covers close to long-distance focusing, applicable to document scanning, remote observation and panoramic shooting.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
