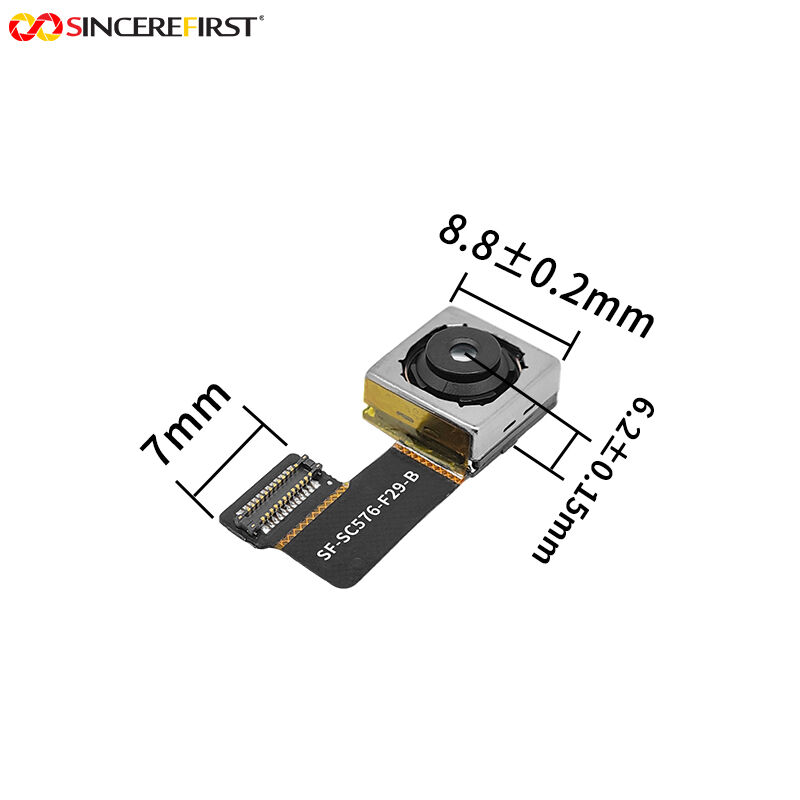

This IMX576 CMOS Sensor 24MP UHD Image Auto Focus MIPI Interface Camera Module is a high-performance imaging module built around the 1/2.7-inch IMX576-COB sensor, integrating ultra-high definition, high-precision focusing and stable transmission to meet diverse high-demand imaging scenarios. It outputs 24MP UHD images (5760×4312), maximizing the ability to capture tiny details and fully meeting the demand for extreme clarity. Equipped with an HBM closed-loop motor driven by CN3927E, it achieves fast focusing response and high positioning accuracy, enhancing imaging stability in dynamic scenarios, with a focusing range above 10cm to ensure clear imaging at different distances. Its optical system features a 3.95mm focal length, F1.8 aperture and 78.1° field of view, with distortion strictly controlled within 1% to ensure the accuracy of size measurement and shape judgment. It also optimizes the resolution gap between the center and edge of the image, ensuring consistent full-frame imaging and improving detection reliability. The module adopts a MIPI 4-lane high-speed interface for stable and efficient signal transmission, integrating ultra-high definition, high-precision focusing, low distortion and uniform imaging, making it an ideal core module for industrial detection, professional imaging, high-definition scanning and AI biometric recognition.
1.24MP Ultra HD Output:Outputs 5760×4312 resolution, captures tiny details to meet extreme clarity needs.
2.HBM Closed-Loop High-Speed Focus:Adopts closed-loop motor, improves focusing response and positioning accuracy, enhances dynamic imaging stability.
3.Low Distortion Optics (<1%):Strictly controls geometric distortion, improves accuracy of size measurement and shape judgment.
4.Uniform Full-Frame High Resolution:Narrows the resolution gap between center and edge, ensures full-frame imaging consistency.
| Product Name |
MIPI Camera Module |
|

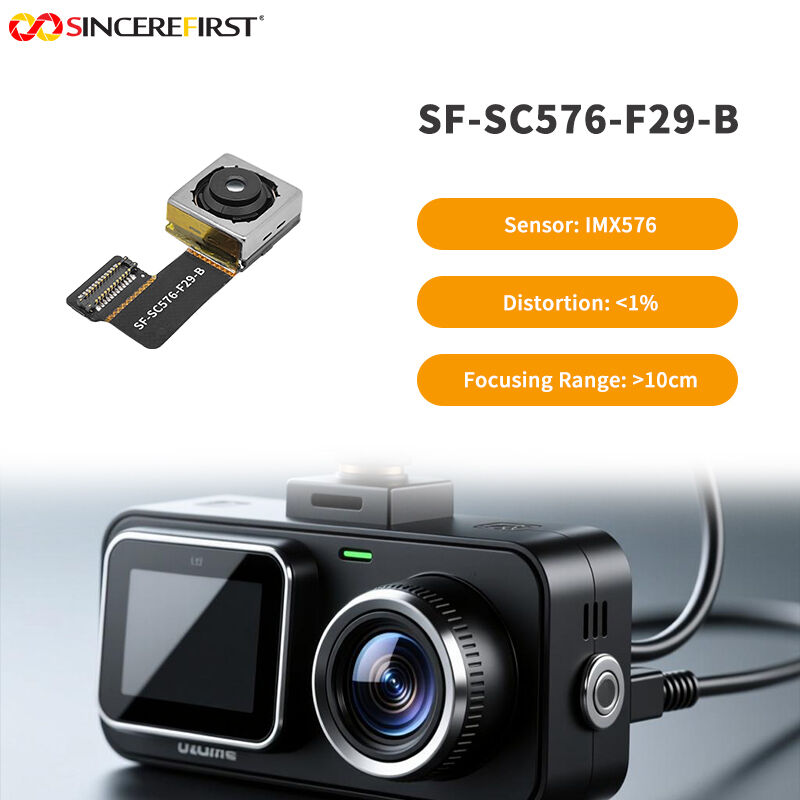

Sensor |
IMX576 |
|
Focusing Range |
>10cm |
|
Lens Type |
1/2.7" |
|
View Angle |
78.1° |
|
TV Distortion |
<1% |
|
Keywords |
MIPI Camera Module |
|
Warranty |
10 Years |
|

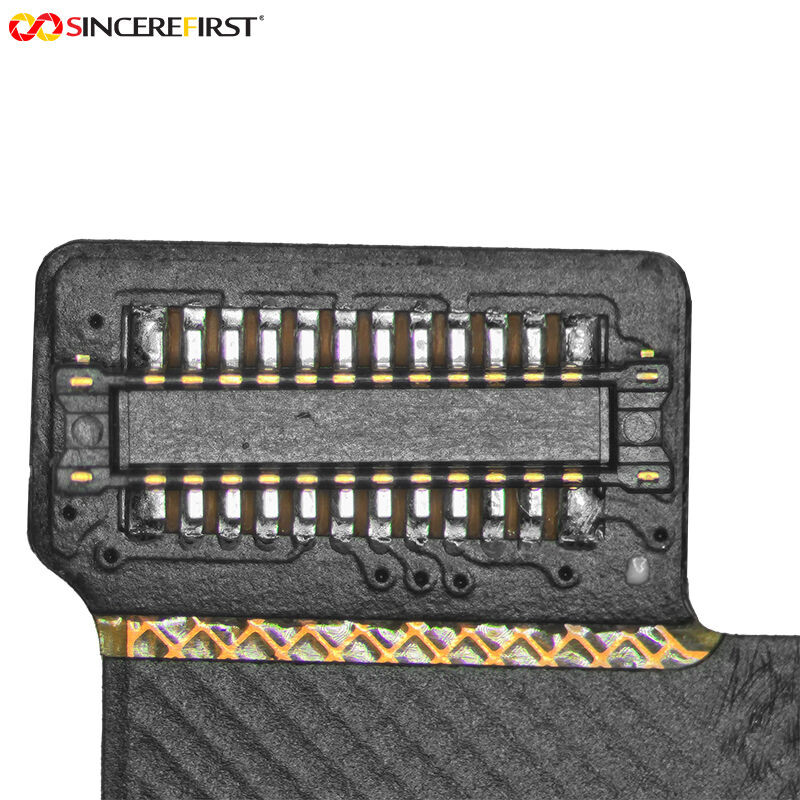

Pinout |
24 Pin |
| EFL | 3.95mm |
| Pixel | 5760*4312 |
| F.No | 1.8 |
|
Brand Name |
SINCEREFIRST |
1.Industrial Micro-Detail Detection:It detects defects and measures sizes of micro-components, with 24MP image quality supporting quantitative analysis.
2.Professional Image Recording Equipment:It serves as the core module of action cameras and capture devices, outputting 24MP professional images.
3.Large-Format HD Scanning:It digitizes documents and specimens, with wide viewing angle and high resolution improving scanning efficiency.
4.AI Biometric Recognition:It provides ultra-high resolution images for face and iris recognition, enhancing recognition accuracy.
