OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module

OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module

Products - MIPI Camera Module
  • Product Name
    Small Camera Module
  • Sensor Type
    OV2735
  • Pin.No
    24PIN
  • Focus Length
    3.6mm
  • F.No
    2.0
  • Format Output
    RAW 10bit
  • View Angle
    105°
  • Interface Type
    DVP
  • Keyword
    CMOS Camera Module
  • Distortion
    <-15%
  • Focusing Range
    1m-infinity
  • Sensor Size
    1/2.7inch
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCERE FIRST
  • Certification
    CE, FCC, RoHS, REACH, ISO
  • Model Number
    SF-C2013DVP-3023-PCB
  • Minimum Order Quantity
    5pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C, Western Union, T/T, MoneyGram, Paypal and Others
  • Supply Ability
    350000 pcs / month

OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module

  • OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module
  • OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module
  • OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module
  • OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module
  • OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module
  • OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module
Get Price Contact Now

OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module

OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module 0

Product Description:

This OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module,with a 1/2.7-inch OV2735 image sensor adopts a DVP parallel digital interface, combined with a 3.6mm focal length, F2.0 aperture and 105° diagonal ultra-wide angle design, specially built for industrial scenarios such as large-field-of-view image acquisition and embedded vision. Its fixed focus range of 1m–∞ covers the commonly used long-distance interval, enabling stable imaging without manual debugging and greatly reducing maintenance costs. The RAW 10bit original image output retains uncompressed colors and details, enhancing the flexibility of algorithm development. Equipped with complete control methods such as IIC control and external clock, as well as a PCB onboard design, it has strong anti-interference ability and stable real-time transmission, which can adapt to complex industrial environments, comply with RoHS environmental standards, and balance practicality and reliability.

Features:

  1. 105° Ultra-Wide Angle Coverage: Expands the single-frame coverage, suitable for large-scene, panoramic and multi-target simultaneous observation, reducing the number of equipment deployments.
  2. DVP Digital Stable Transmission: Adopts a parallel digital interface to improve transmission anti-interference and real-time performance, adapting to complex industrial working environments.
  3. 1m–∞ Focus-Free: Fixed focus covers the commonly used long-distance interval, enabling stable imaging without debugging and reducing maintenance costs.
  4. RAW 10bit High-Fidelity Output: Retains uncompressed original image data, restores real colors and details, and enhances the flexibility of algorithm development.

Technical Parameters:

Product Name

DVP Camera Module

Sensor

 OV2735

Focusing Range

1mm-infinity

Lens Type

1/2.7"

View Angle

105°

TV Distortion

<-15%

Keywords

DVP Camera Module

Warranty

10 Years

Pinout

24 Pin
Focus Length 3.6mm
Output Formate RAW 10bit
F.No 2.0

Brand Name

SINCEREFIRST


Applications:

  1. Embedded Wide-Angle Vision: Can be used in robots, drones and intelligent devices. With its ultra-wide angle and easy integration, it can provide large-field-of-view environmental perception and navigation images, adapting to the miniaturization needs of devices.
  2. Panoramic Security Monitoring: Can be used for large-scale indoor and outdoor monitoring. With its wide single-frame coverage, it can reduce the number of camera deployments and effectively lower equipment deployment costs.
  3. Automotive Auxiliary Imaging: Can be used in automotive front-view and surround-view systems. With its ultra-wide angle of view, it can expand the driving observation range and improve driving safety.
  4. Industrial Long-Distance Observation: Can be used for remote status monitoring of production lines and equipment. With its stable fixed focus and strong anti-interference ability, it can ensure long-term continuous and stable imaging.

OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module 1

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

About US:

OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module 2



Cooperative Brands & Customers:

OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module 3



Why Chooes US:

OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module 4



Detail Pictures:

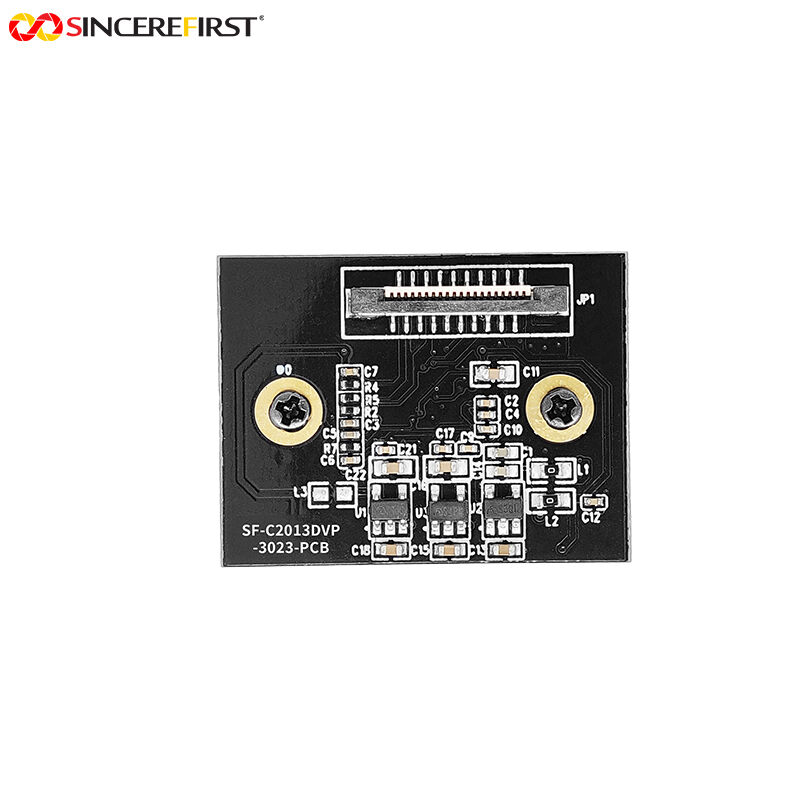

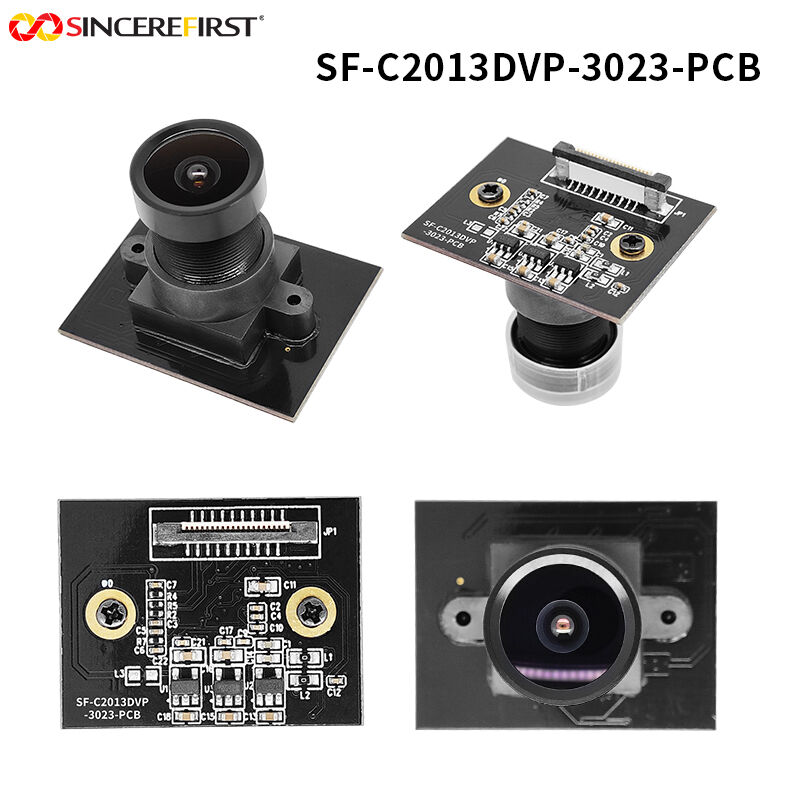

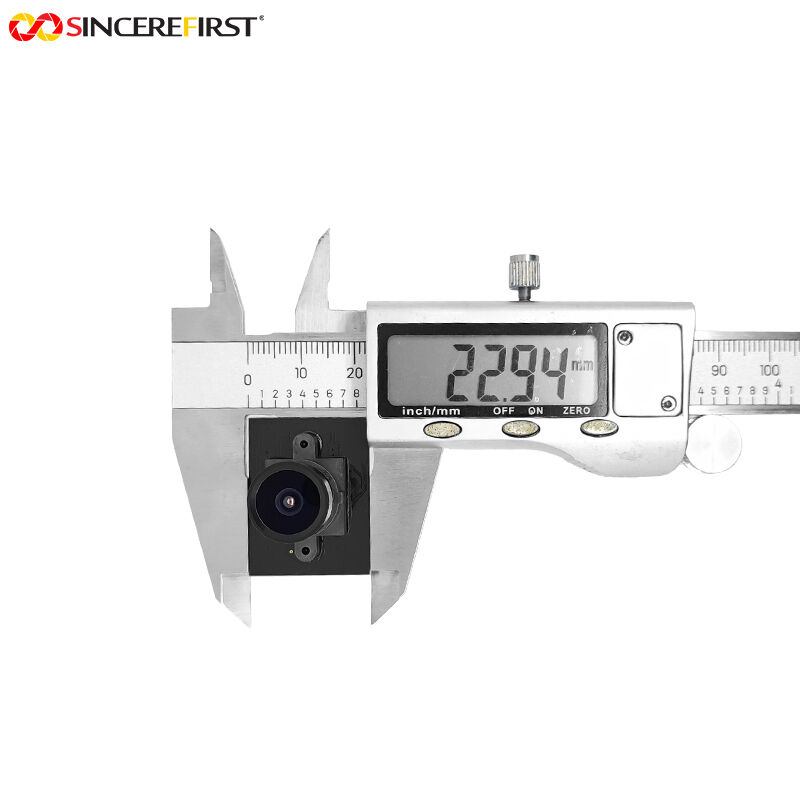

OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module 5OV2735 CMOS Sensor Ultra Wide Angle DVP Interface Camera Module 6
