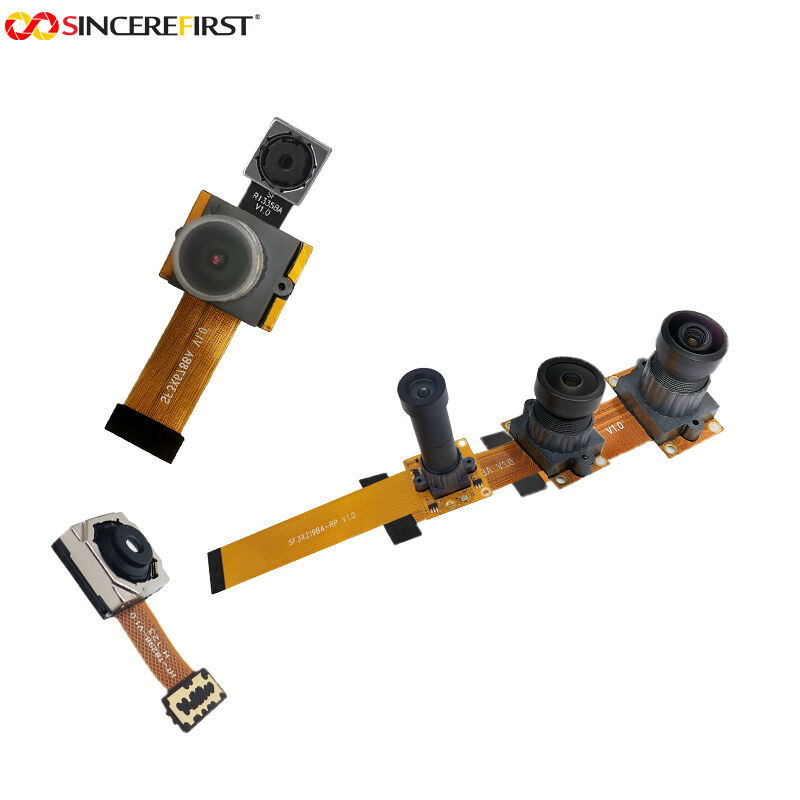

This 2MP HD Image Fixed Focus GC2145 CMOS Sensor Rolling Shutter Camera Moduleequipped with the GC2145 Bayer array rolling shutter CMOS sensor adopts FPC flexible circuit board and DVP interface design, with 1600×1200 (2MP) classic 4:3 aspect ratio resolution as the core, specially designed for static, low-speed scenarios and embedded devices. Its rolling shutter design excels at restoring colors in static and low-speed scenes, with delicate and natural imaging; the 4:3 aspect ratio resolution not only ensures high-definition image quality but also avoids excessive bandwidth pressure on the back-end processing chip. Paired with an F2.4-5 zoom lens, it can flexibly adjust depth of field to adapt to imaging needs at different distances; the compact structure design combined with FPC flexible circuit board facilitates integration into embedded devices, and it also has a cost-effective advantage, providing high-quality solutions for various low-cost, lightweight imaging scenarios.
1.106° Ultra-Wide Angle: 106° diagonal viewing angle, expanding single-frame coverage and reducing monitoring and detection blind spots.
2.GC2145 Sensor: Bayer array rolling shutter, excellent at color restoration in static and low-speed scenes.
3.2MP HD Resolution: 1600×1200 (4:3), clear image quality and reducing back-end bandwidth pressure.
4.DVP Interface & FPC Flexible Board: Stable transmission, flexible structure, easy for embedded integration.
5.Cost-Effective Compact Design: Small size, controllable cost, suitable for lightweight scenarios.
| Poduct Name | GC2145 DVP Camera Module |
| Pixel | 2MP |
| Sensor | GC2145 |
| Resolution | 1600*1200 |
| Brand | SincereFirst |
| FOV | D106°*H80°*V60° |
| Output Format | YCbCr4:2:2,RGB565, Raw Bayer |
| Focus Length | 2.15 |
| F.No | 2.4 |
| Distortion | <-10% |
| Feature | HD Camera Module |
| Focus Type | Fixed Focus |
| Interface | DVP |
1.Face Recognition Access Control: Can be used in access control devices. With its good color restoration and moderate resolution, it can accurately complete face acquisition and recognition.
2.QR Code Scanning on Industrial Assembly Lines: Can be used on assembly lines. With its clear imaging and low cost, it can stably scan QR codes on the assembly line.
3.Commodity Recognition in Smart Retail Cabinets: Can be used in smart retail cabinets. With its compact structure and strong adaptability, it can accurately identify commodities in the cabinet.
We can customize module shape, module head size, lens holder, imaging direction, VCM, lens, firmware, etc.
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
